LED-Stängel-Markierungsleuchte mit dynamischem Blinker - Rechts - LG165R

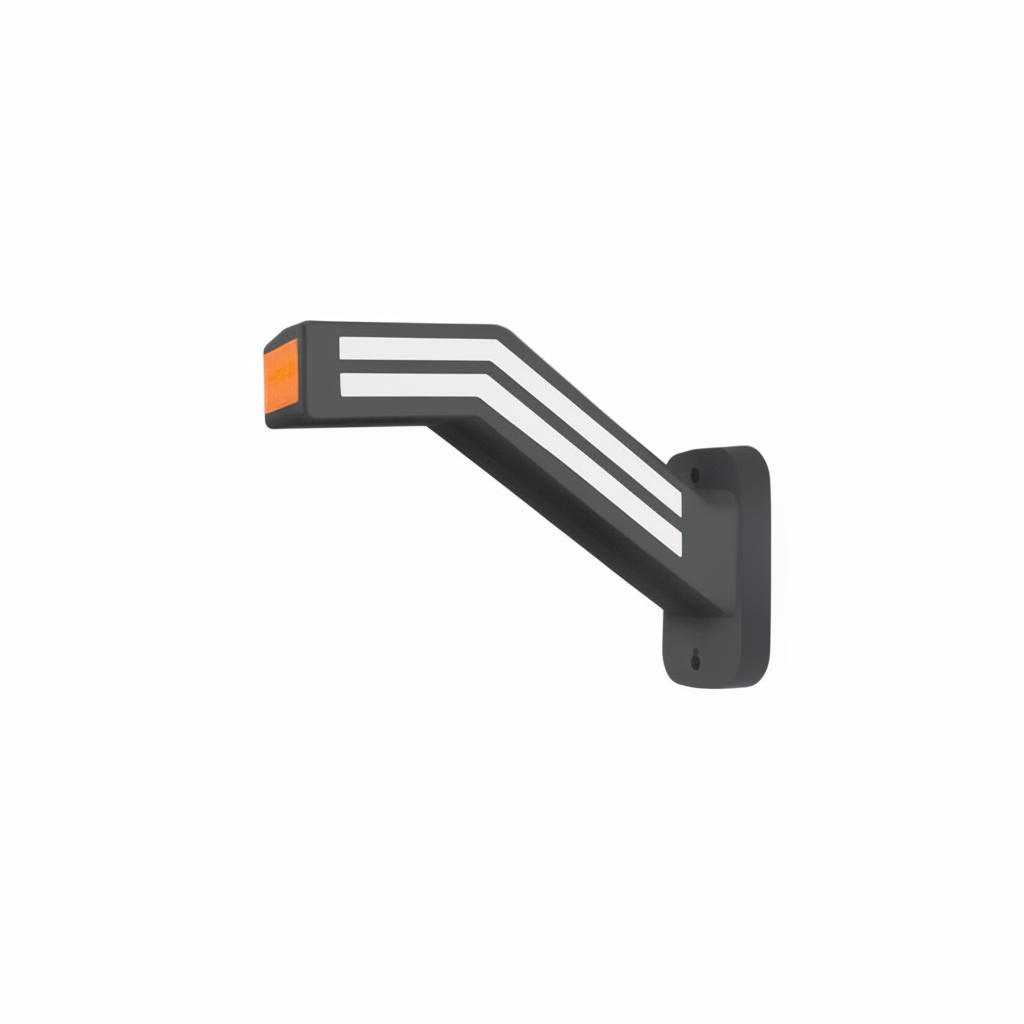

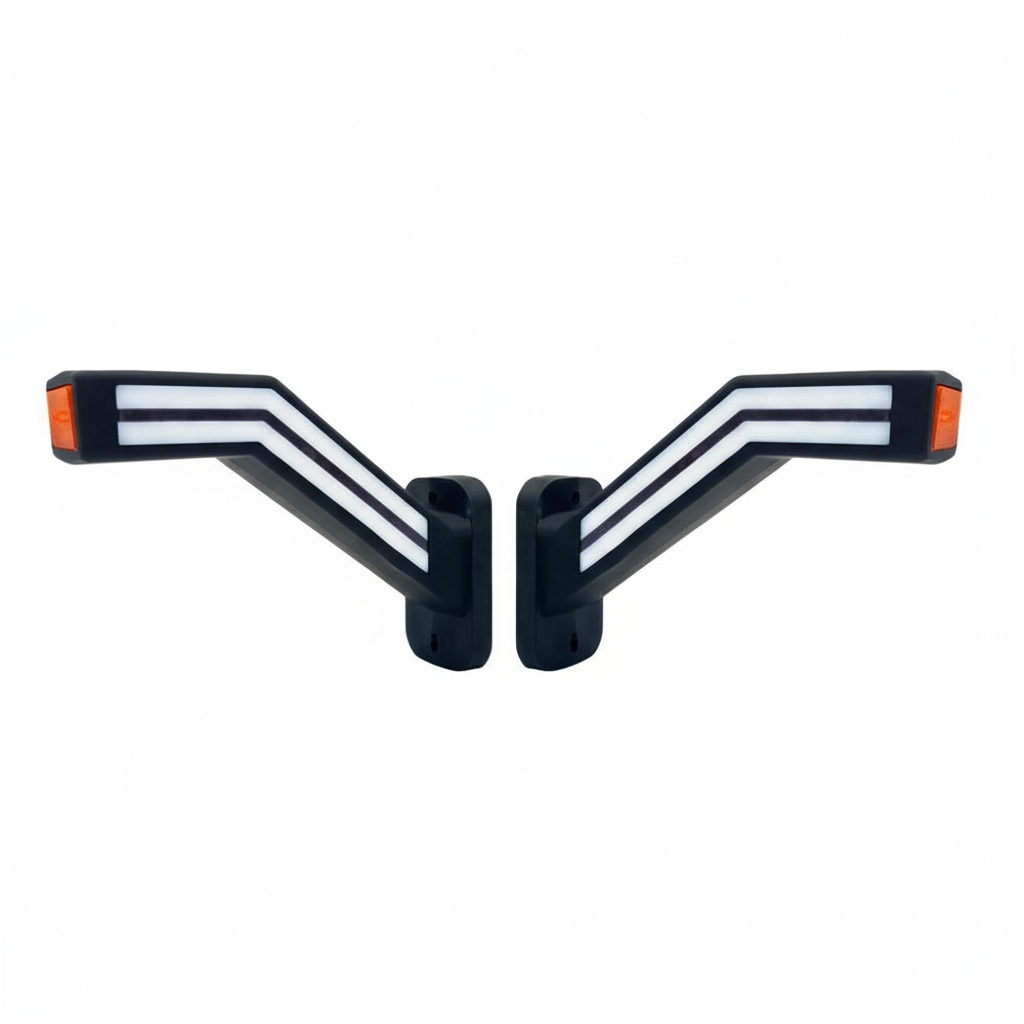

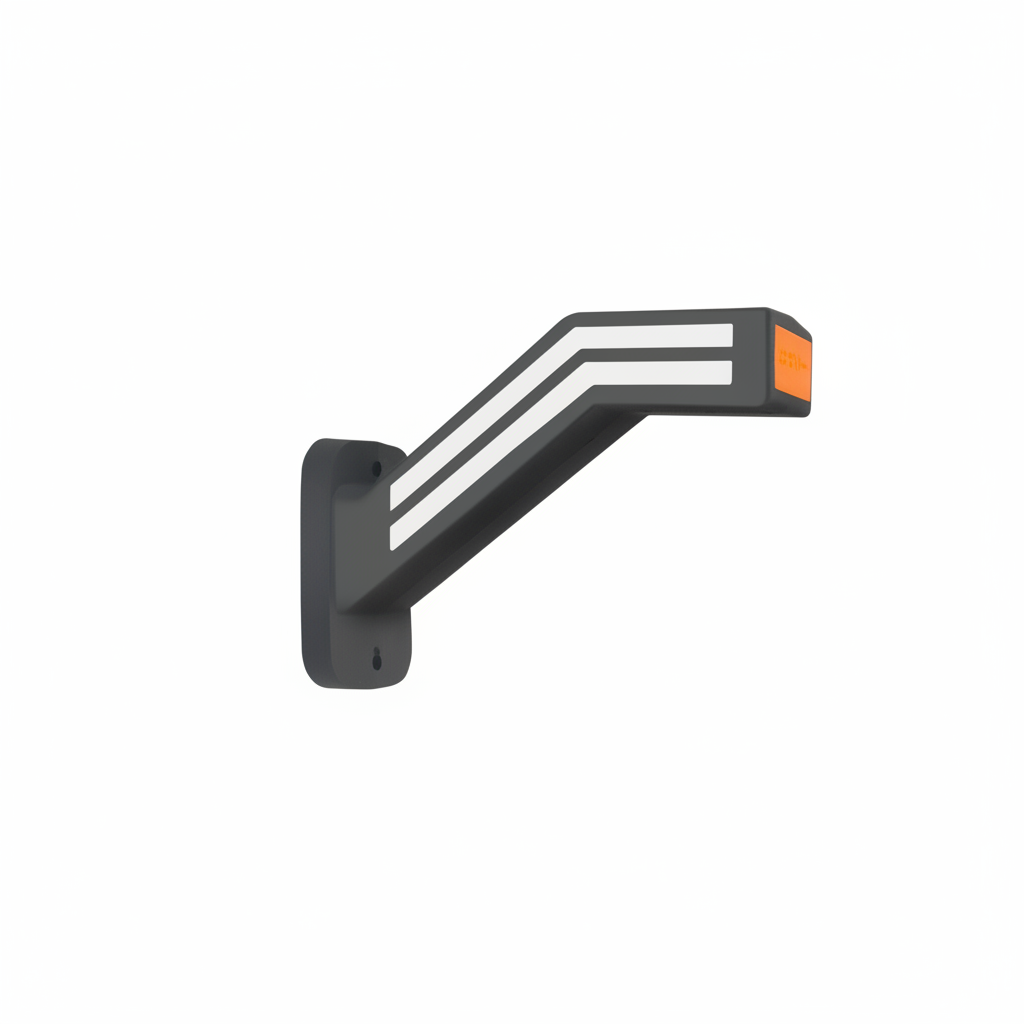

LED Stalk Marker Light with Dynamic Indicator – Right – LG165R

This LED stalk marker light with dynamic indicator is built for professional fleets that need clear position lighting and a highly visible flowing amber turn signal on the right-hand side. It combines front white, rear red, side marker and amber dynamic indicator in one compact, rugged unit. ECE-approved with EMC R10, R6, R7 and R91, it’s engineered for reliable, road-legal use on trucks, trailers, agricultural and construction equipment across Europe.

You know the problem. Long vehicles with poor side visibility, mixed lighting on the rear, and indicators you can barely see in rain or spray. The LG165R solves that by putting high-output Osram LEDs exactly where other drivers expect to see them: out on a flexible stalk, right-hand side, clearly marking front, rear and side, with a sweeping amber indicator that’s hard to ignore.

This European-made stalk lamp runs on 10–30 V DC, so it’s plug-and-play on both 12 V and 24 V systems. The front position light uses 12 LEDs at 2.5 W to give a clean white marker; the rear position light uses 12 LEDs at 4.5 W for a solid red signature; the dynamic rear indicator uses 12 amber LEDs at 15 W for a bold, moving signal; and the side marker function adds 3 LEDs at 1 W to define the vehicle envelope. All housed in a tough polycarbonate lens and EPDM body, it’s rated IP67, so it stands up to road spray, washdowns and harsh weather.

In practice, that means less downtime and fewer call-backs. The LG165R has an operating range from -40 °C to +65 °C, so it keeps working on cold winter starts and hot summer days in the yard. With bolt mounting and a compact base of 78.5 × 58 mm, it fits easily on trailer chassis, mudguard brackets or bodywork, while the 185 × 52 × 35 mm stalk gives enough stand-off for visibility without being clumsy. One unit, four functions, proven in daily fleet use.

Key Features

• Right-side stalk light with dynamic amber indicator – combines front, rear, side marker and flowing indicator in a single, tidy unit.
• Wide voltage range 10–30 V DC – suitable for 12 V and 24 V systems on trucks, trailers, agri and plant.
• Multi-function LED output
• Rear position (red): 12 LEDs, 4.5 W
• Front position (white): 12 LEDs, 2.5 W
• Rear indicator (amber, dynamic): 12 LEDs, 15 W
• Side marker: 3 LEDs, 1 W
• Osram LED technology – high-efficiency diodes for strong, consistent light and long service life.
• Polycarbonate lens and EPDM housing – impact-resistant, vibration-tolerant construction suited to heavy-duty and off-road use.
• IP67 ingress protection – sealed against dust and capable of withstanding temporary immersion, ideal for pressure washing and severe weather.
• Wide operating temperature -40 °C to +65 °C – dependable performance in winter freeze and summer heat.
• ECE and EMC compliant – approved to ECE with EMC R10, R6, R7 and R91 for road-legal use and low radio interference.

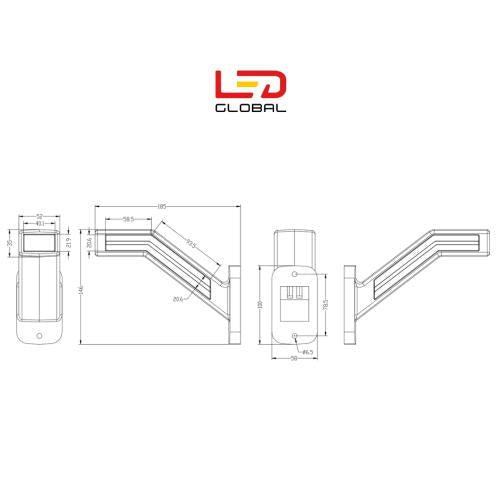

• Compact dimensions – stalk 185 × 52 × 35 mm, base 78.5 × 58 mm, easy to position on chassis rails, mudguards or body corners.
• Simple bolt mounting – secure mechanical fixing for both front and rear marker functions, ideal for fleet-standard installations.

Ideal Applications

• Articulated trucks and semi-trailers needing clear right-side outline marker lights and a highly visible dynamic indicator.
• Rigid trucks, tippers and box bodies where improved side and corner visibility cuts the risk of side-swipes and tight-yard accidents.
• Agricultural machinery (tractors, slurry tankers, balers, grain trailers) working on-road and in the field, often in low-visibility conditions.
• Construction and plant equipment such as low-loaders, service trucks and site trailers operating in dust, mud and harsh weather.
• Horseboxes, recovery vehicles and specialist builds where professional, road-legal lighting is essential for safety and compliance.
