100 Watt LED-Scheinwerfer mit vorderem und hinterem Blinker (RH) & Tagfahrlicht - LG820R EU - LG820REU

100 Watt LED Headlight with Front & Rear Indicator (RH) & DRL – LG820REU

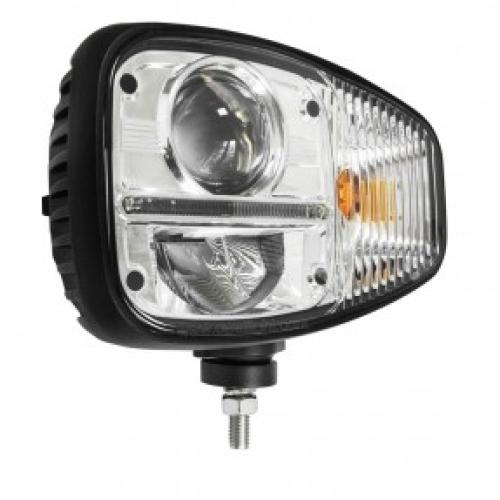

High-output 100 W LED headlight with built‑in front and rear indicators and daytime running light (DRL), designed as a direct replacement for leading European OEM units. Ideal for telehandlers, loaders and tractors where you need strong road‑legal light, clear signalling and proven durability in one compact housing. Fully E-mark approved for on-road use and engineered to handle tough, daily fleet work.

The LG820REU right-hand headlight combines 60 W high beam, 30 W low beam, 10 W DRL and 10 W indicators (front/rear) in a single IP68 aluminium unit. Output is a strong 5,600 lumens at a crisp 6000 K cold white, giving clear definition of ground conditions, attachments and obstacles. At 12 lux you get usable light at 50 m, while the 1 lux beam reaches 186 m, so operators can work with confidence on the road and in the yard.

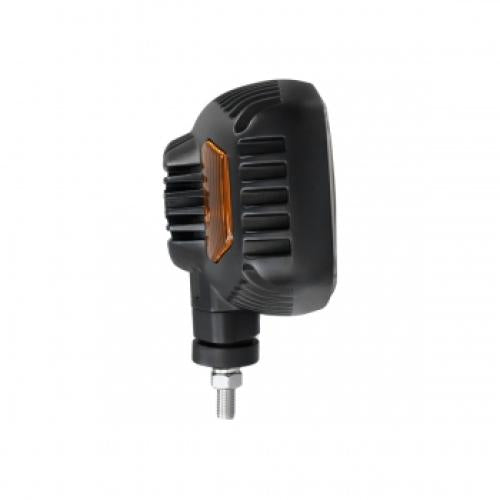

The housing is powder-coated aluminium with IP68 ingress protection, so it resists dust and high‑pressure water immersion during wash-downs and wet site work. Inside, high‑intensity CREE XTE LEDs provide a long 50,000 h rated life, reducing change-outs on busy fleets. EMC performance is controlled to CISPR 25 Class 4, so the lamp won’t interfere with in‑cab radios, control systems or telemetry.

This LED headlamp is fully E-mark approved and compliant with ECE R10, ECE R149, ECE R112, ECE R148 and ECE R7, covering light performance, signals and electromagnetic compatibility. It operates on 9–32 V DC, so it suits both 12 V and 24 V systems without modification. A 6‑pin Deutsch plug and socket are supplied, making it a clean retrofit for many JCB, Manitou, Scania, Volvo, MAN and other agricultural and industrial machines where matching OEM style and function is essential.

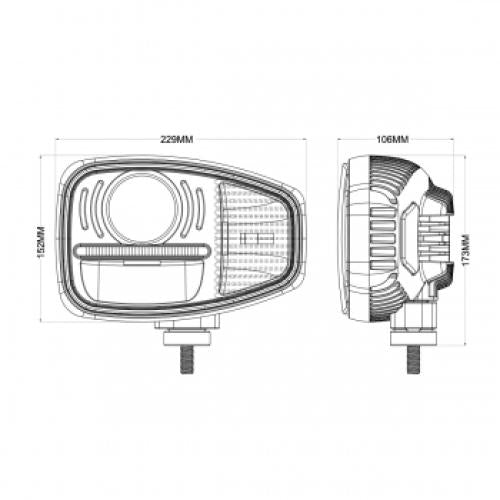

Dimensions are 229 × 152 × 106 mm (W × H × D), matching a wide range of factory units. This version is the right-hand (RH) lamp – LG820REU; it pairs with the corresponding left-hand model on applicable vehicles. Wiring is straightforward: Black – Earth, White – DRL, Blue – Indicator, Brown – Low Beam, Red – High Beam. So your auto electrician gets a quick, reliable install, and you get your machine back to work faster.

Key Features

• High-output 100 W LED system
  Combines 60 W high beam, 30 W low beam, 10 W DRL and 10 W indicators to replace multiple lamps with one integrated unit.

• Strong, usable light output – 5,600 lumens
  6000 K cold white beam improves contrast on tarmac, gravel and fields, helping operators see hazards and edges earlier.

• Proven CREE XTE LED technology
  High-intensity CREE XTE LEDs with 50,000 h rated life reduce downtime and maintenance spend across fleets.

• Road-legal E-mark approvals
  Approved to ECE R10, ECE R149, ECE R112, ECE R148 and ECE R7, supporting road use where a compliant LED headlight and signalling package is required.

• Robust IP68 aluminium housing
  Powder-coated aluminium body with IP68 ingress protection guards against dust and water ingress during pressure washing and harsh weather.

• Wide voltage range 9–32 V DC
  Works on both 12 V and 24 V systems, ideal for mixed fleets of telehandlers, tractors, loaders and trucks.

• EMC-safe – CISPR 25 Class 4
  Designed for low electromagnetic emissions to help prevent interference with radios, CAN-bus electronics and other sensitive vehicle systems.

• OEM-style fit and references
  Cross references include JCB 700/50192, 700/50193; HELLA 1EE 996 174-401; MAN 81251016403; SCANIA 20223061; VOLVO 17 286 451; MANITOU 929717; and more, making it a practical LED replacement where those numbers are used.*

• Compact, OE-matching size – 229 × 152 × 106 mm
  Fits many existing brackets and surrounds, reducing fabrication work during upgrade.

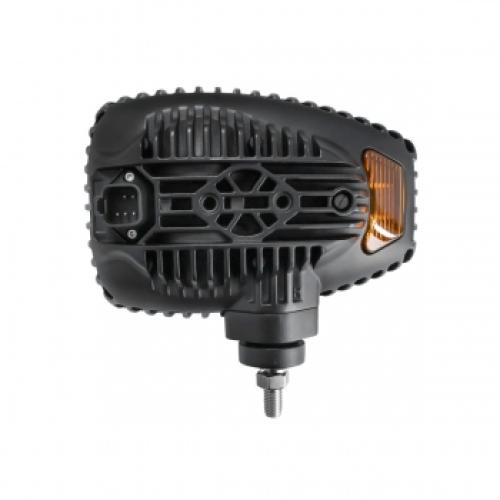

• 6-pin Deutsch connection supplied
  Deutsch socket and plug included for a secure, vibration-resistant connection that stands up to constant movement and shock.

*Original equipment names, part numbers and references are used for identification only and do not imply the parts are supplied by the OEM.

Ideal Applications

• Telehandlers and loaders – JCB, Manitou, Caterpillar, Volvo, Terex and others needing combined headlight, DRL and indicator units.
• Agricultural tractors and material handlers – where operators work long hours on and off road.
• Construction and quarry equipment – machines exposed to dust, vibration and aggressive wash-down.
• Municipal and utility fleets – road-maintenance, waste, and yard vehicles requiring E-mark approved forward lighting.
• Industrial yard tractors and tugs – port, logistics and airport equipment using OEM-equivalent headlamps.
