102 Watt LED Fern- und Abblendlicht-Scheinwerfer mit Tagfahrlicht - LG829 - LG829EU

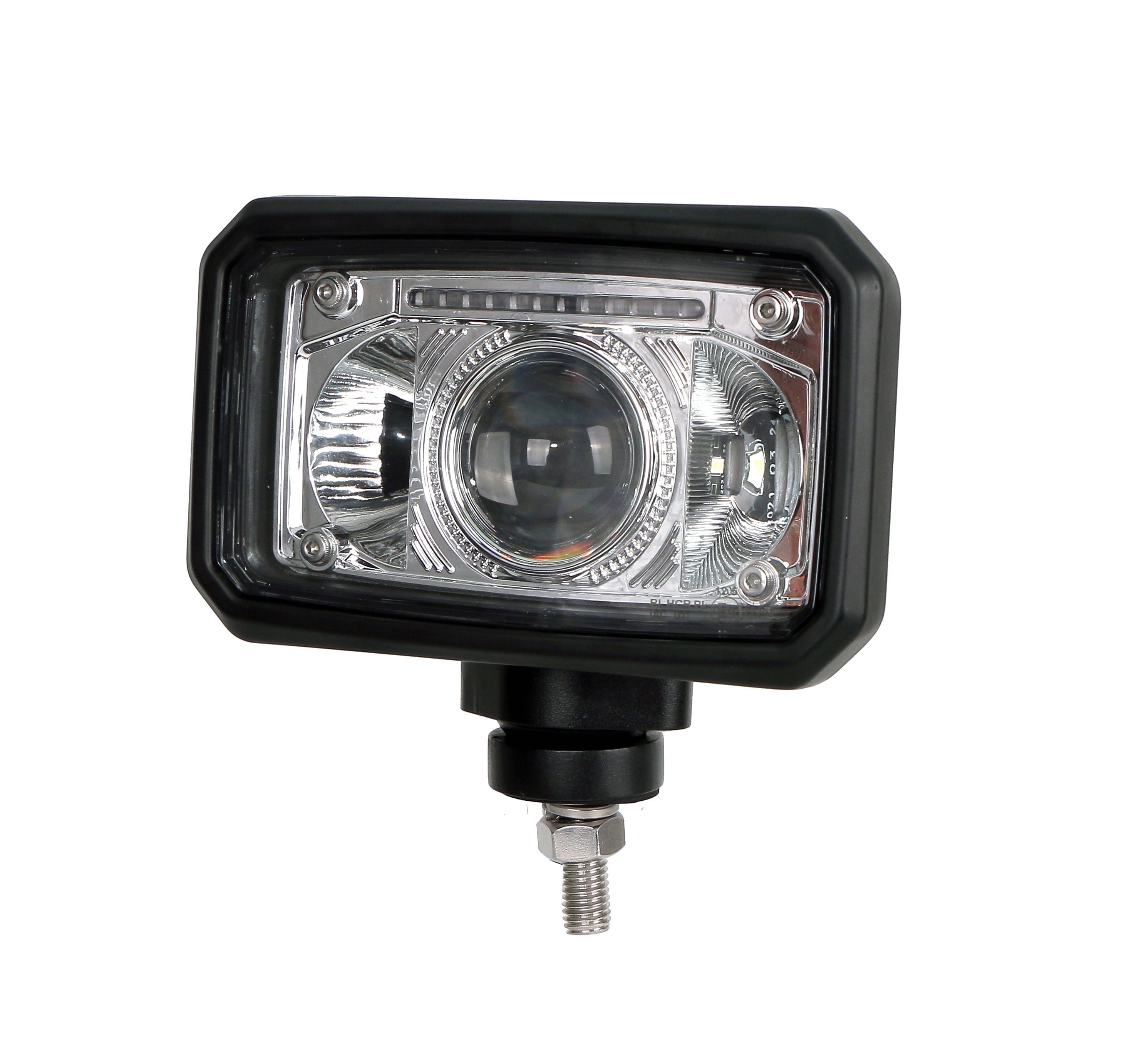

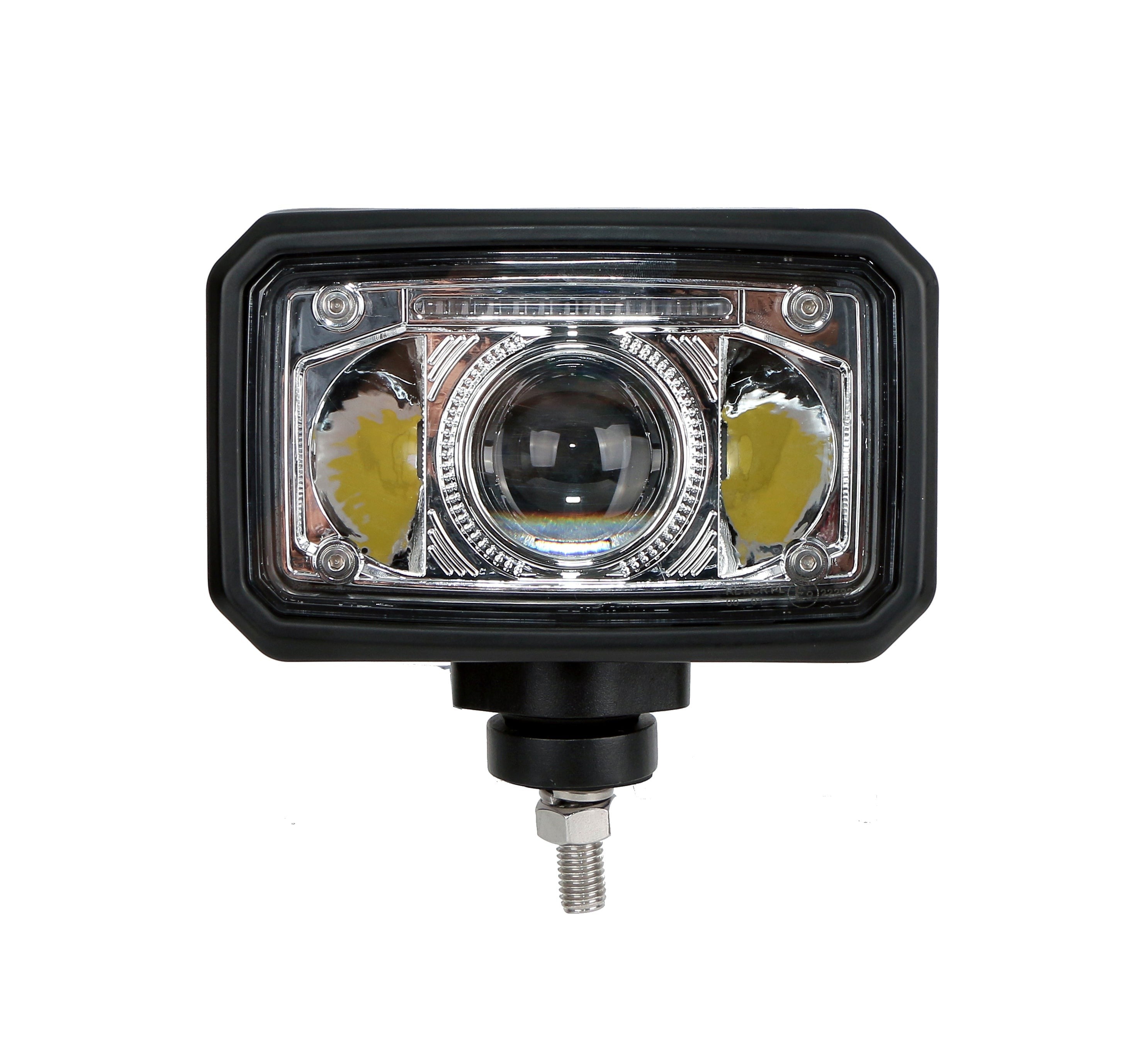

102 Watt LED High & Low Beam Headlight with DRL – LG829EU

This 102 W LED high and low beam headlight with DRL is engineered for long days and late nights on modern agricultural and industrial machines. You get a powerful 60 W high beam, a precise 30 W low beam, and a clean 12 W daytime running light, all in one compact, road-legal unit. Fully ECE-approved and tested to IP68 and CISPR 25 Class 4, it’s built for operators who can’t afford lighting failures in the field.

The LG829EU solves a familiar problem: factory halogens that fade, flicker, or simply don’t cut through dust, rain, and long winter evenings. This LED headlamp delivers up to 5,760 lumens of 6,000 K cool white light, giving a crisp, daylight-style view of the work area. High beam reaches out for road and track work, while the low beam gives controlled, glare-free light when you’re working around others or meeting traffic.

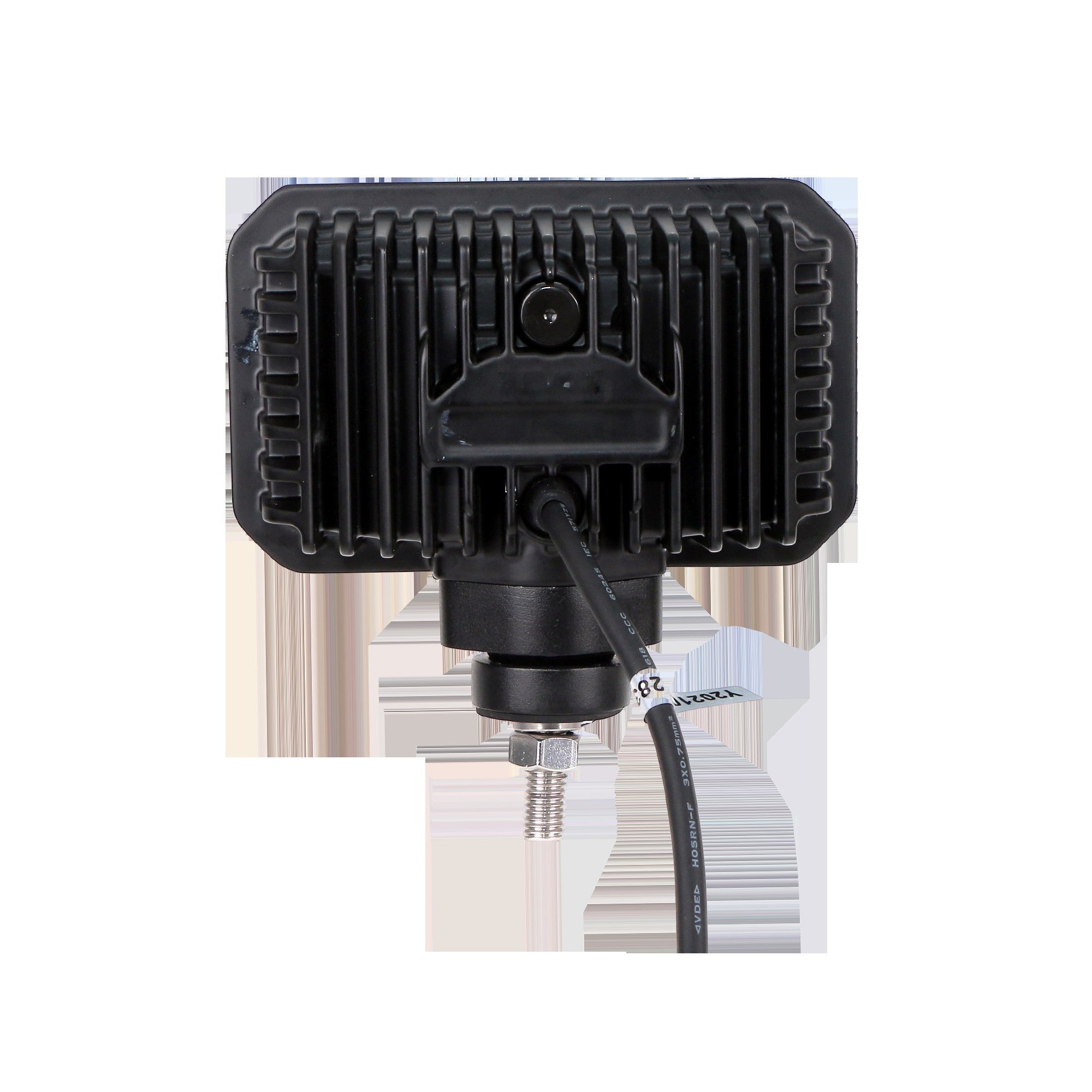

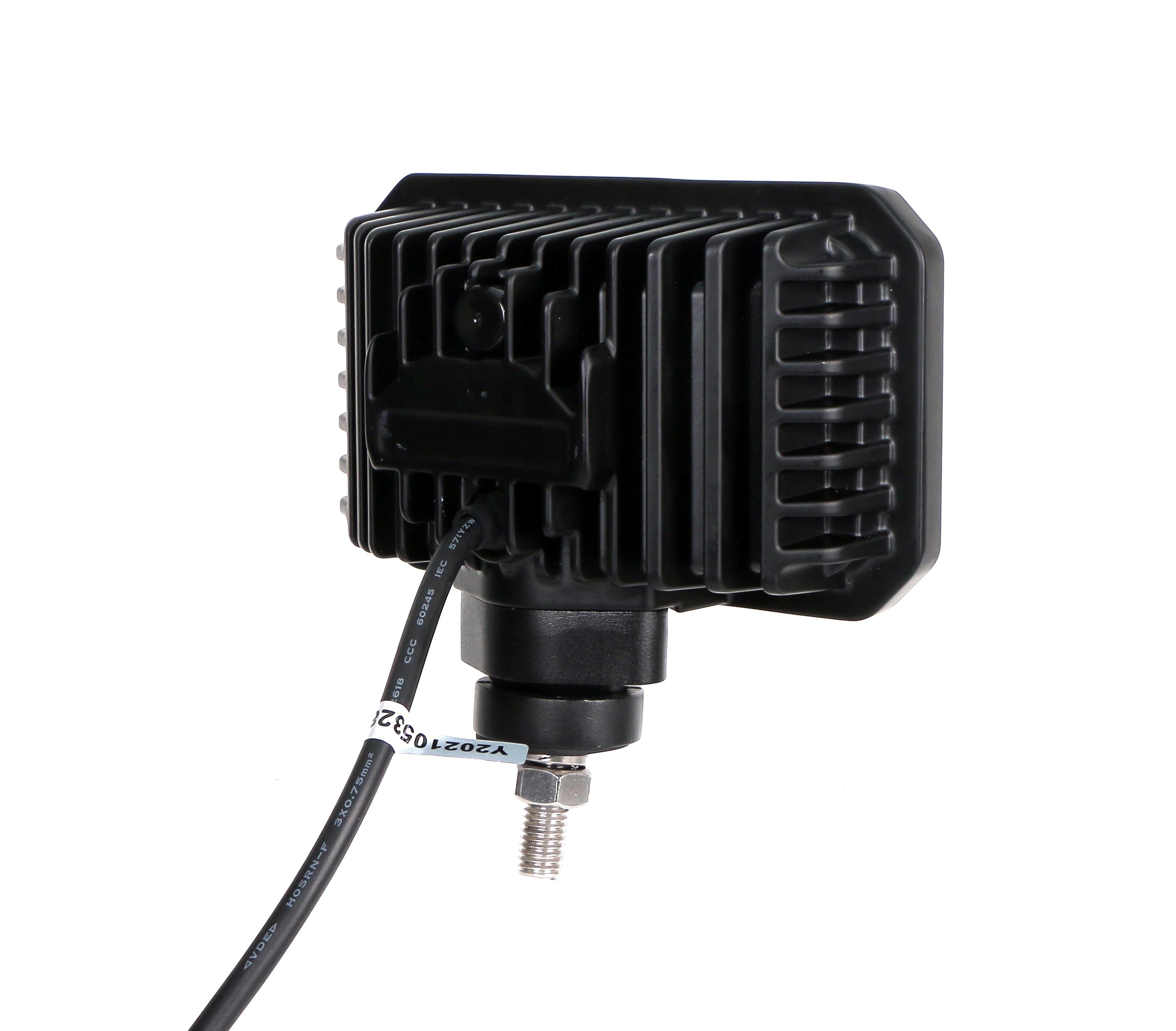

Behind the lens you’ve got a die-cast aluminium housing with integrated cooling fins and a tough polycarbonate lens, so it’ll handle heavy use, vibration, and regular washing on farms, construction sites, and municipal fleets. The IP68 rating means it’s dust-tight and protected against prolonged immersion, and 15 G vibration resistance keeps the LEDs and electronics stable on rough ground and high-speed road work. It’s fully ECE R112 (headlamp), ECE R148 (DRL), and ECE R10 (EMC) compliant, with CISPR 25 Class 4 EMC performance to protect sensitive onboard electronics.

Installation is straightforward. The LG829EU runs on 9–32 V DC, so it suits both 12 V and 24 V systems without extra boxes or adaptors, and uses a 4‑pin Deutsch plug & play connector for a clean, secure connection. With compact dimensions of 170 × 106 × 80 mm, it’s a practical LED replacement for OEM units on Massey Ferguson 5400 Series, John Deere select models, and AEBI machines, cross-referencing part numbers such as AL77589, AL204951, AZ50258, AM120887, 1AB007145-001, AEBI 0233283-1, 07076571, 16029758 and others. OEM numbers are given for reference only; this is a high-quality replacement, not an original factory part.

Key Features

• 102 W total power – 60 W high beam, 30 W low beam, 12 W DRL for a complete road and work lighting package in one lamp.
• Up to 5,760 lm luminous output – strong, efficient LED performance to upgrade visibility versus standard halogen or older LED units.
• 6,000 K cool white colour temperature – daylight-style light that helps pick out detail in crops, implements, and ground conditions.
• Wide voltage range 9–32 V DC – designed for both 12 V and 24 V agricultural, industrial, and municipal vehicles without additional converters.
• Integrated DRL (Daytime Running Light) – improves on-road conspicuity and supports modern safety expectations for mixed road/field use.
• 4‑pin Deutsch plug & play connector – secure, sealed connection for fast installation and easy service in harsh environments.
• Rugged construction – die‑cast aluminium housing with heat dissipation fins and polycarbonate lens for impact resistance and thermal control.
• Ingress protection IP68 – dust-tight and protected against extended immersion, suitable for regular pressure cleaning and wet conditions.
• High vibration resistance – tested to 15 G – proven in demanding off-road, agricultural, and industrial environments.
• Approved to ECE R10, ECE R112, ECE R148; EMC to CISPR 25 Class 4 – road-legal headlamp and DRL in applicable markets with strong electromagnetic compatibility.

Ideal Applications

• Agricultural tractors and loaders – especially Massey Ferguson 5400 Series and compatible John Deere models needing a direct LED headlight upgrade.
• AEBI and specialist slope/municipal machines where vibration, angle, and weather demand a robust EU-compliant headlamp.
• Construction equipment such as telehandlers, compact wheel loaders, and site tractors used on and off public roads.
• Municipal and utility fleets including verge mowers, winter service vehicles, and compact sweepers needing reliable DRL and headlight performance.
• Industrial yard and plant equipment operating in dusty, wet, or extended-hours environments.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting built for real European conditions: long seasons, mixed road and field use, and demanding operators. Every headlamp is specified with proven electronics, robust housings, and correct ECE approvals, so you know exactly what you’re fitting and where you can legally use it. Our range is engineered for easy retrofit on common OEM platforms, backed by knowledgeable support from people who understand machinery, wiring looms, and downtime costs.

Choose LED-Global when you want lighting that simply works – shift after shift, season after season.
