12" (300mm) LED-Fahrlichtleiste mit zweifarbiger Positionsleuchte - LG980

12" (300mm) LED Driving Lightbar with Dual Colour Position – LG980

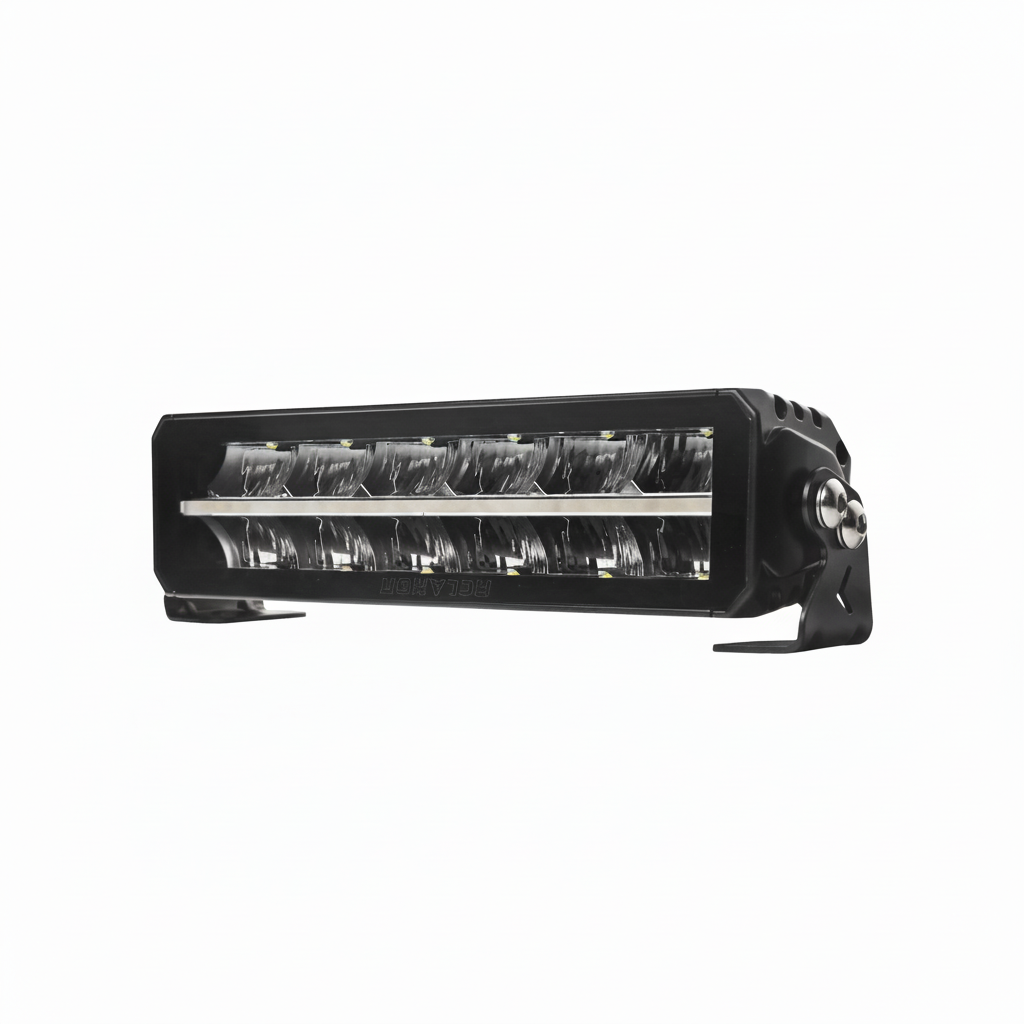

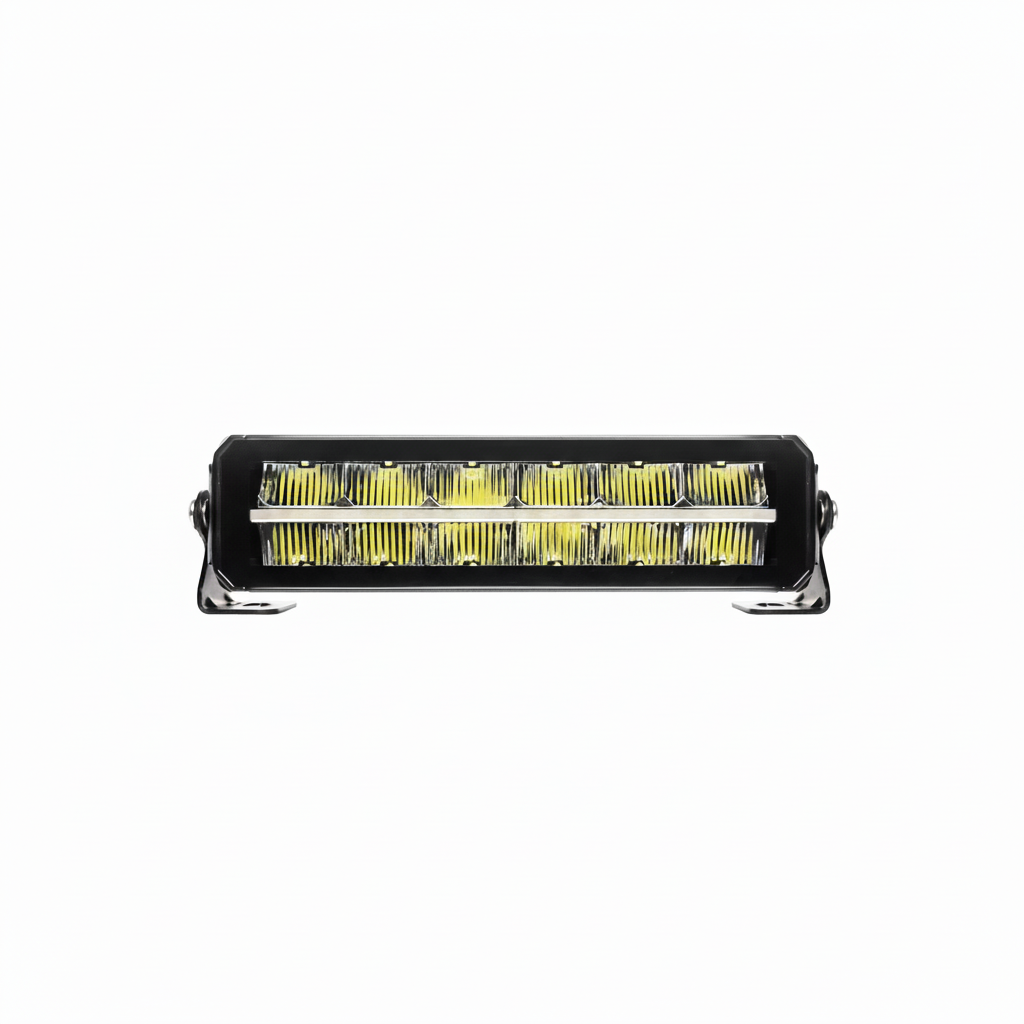

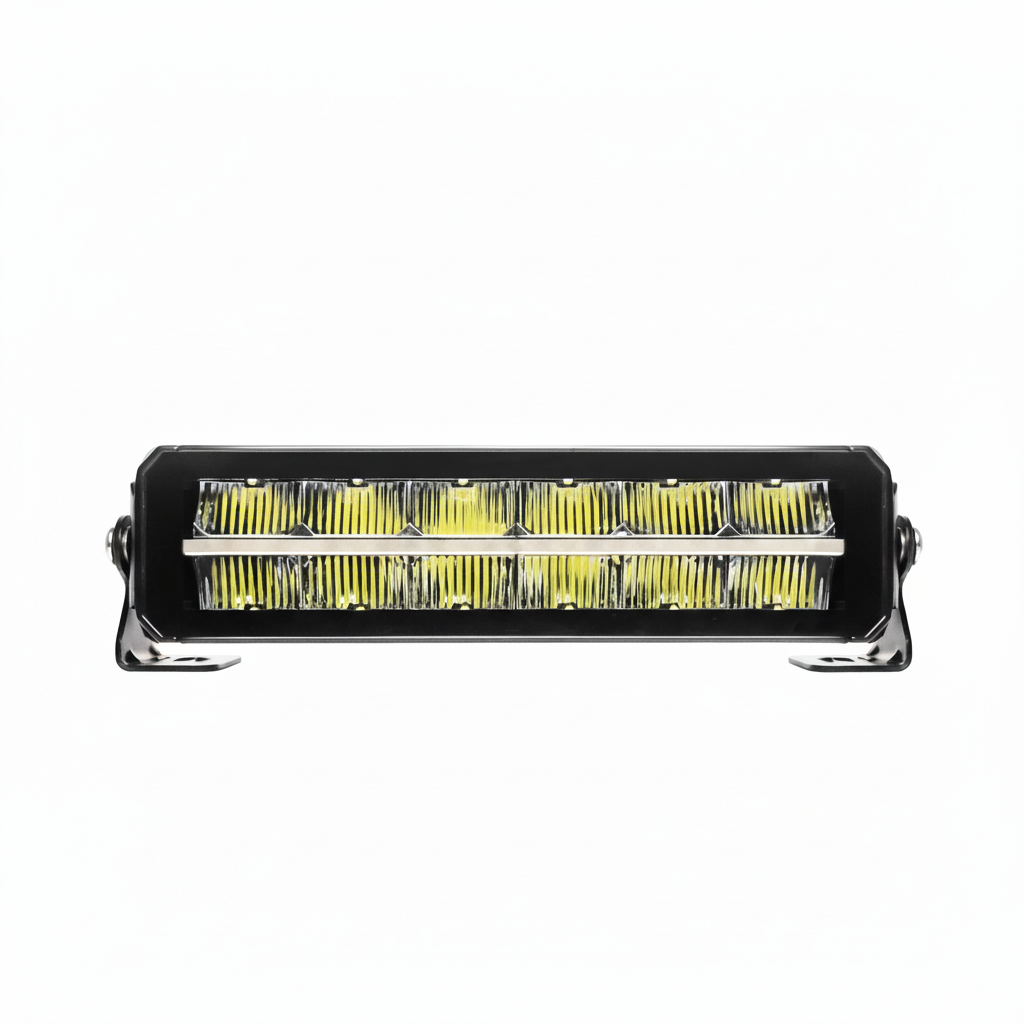

This compact 12" LED driving lightbar delivers a 4,000 lm effective main beam with a clean 300 m reach at 1 lux, in a tidy 303 mm housing. Dual-colour position light (white / amber) gives you both a modern road presence and added visibility in poor conditions. Fully ECE approved for use on-road, with strong EMC control and IP67 protection for harsh European weather.

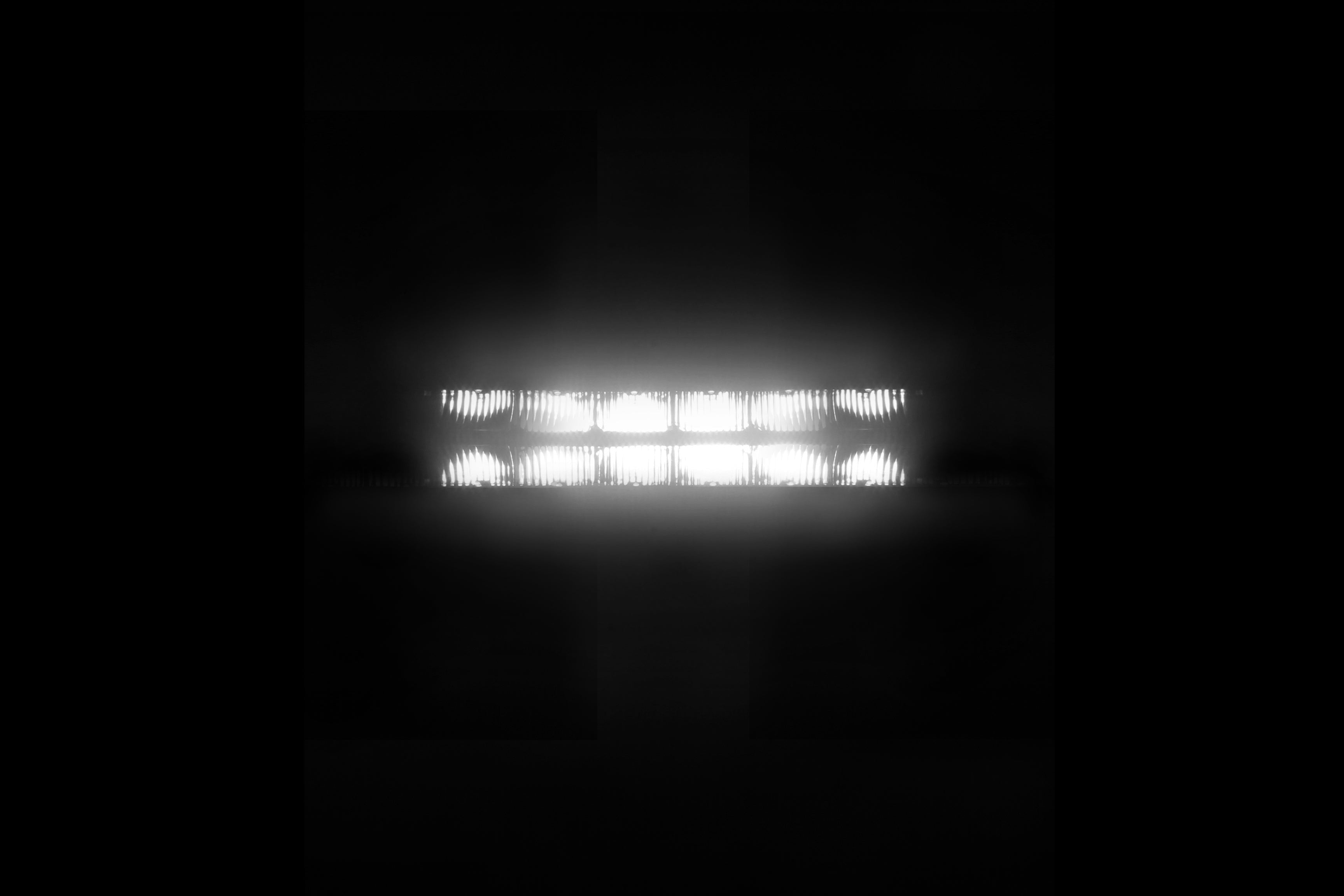

The LG980 is built for vehicles where space is tight but proper performance is non‑negotiable. At 45 W main beam power and 5,200 lm raw output, it punches well above its size, giving clear mid‑range illumination that helps drivers read the road, spot hazards and reduce fatigue on long night runs. The 4.5 W dual-colour position light lets you choose a crisp white signature or a more conspicuous amber, depending on your fleet standard and operating environment.

Behind the light output is solid engineering. An aluminium housing manages heat effectively, while the polycarbonate lens resists stone impacts and vibration from rough tracks. Operating on 10–30 V DC, this bar suits both 12 V and 24 V systems, so it drops straight onto most light commercial vehicles, 4x4s, pickups, plant, and agricultural kit. Built‑in over/under‑voltage protection helps shield the lightbar and your electrical system from poor connections, jump starts or charging issues.

Road legality and EMC are covered. The LG980 is ECE R112 approved as a driving lamp, with ECE R7 / R148 / R149 for position and light distribution, plus ECE R10 and EMC CISPR 25 Class 4 for electromagnetic compatibility, so it won’t upset sensitive vehicle electronics. With IP67 ingress protection, it’s sealed against dust and capable of withstanding temporary immersion, which is exactly what you want on a vehicle that sees floods, fords or pressure washing.

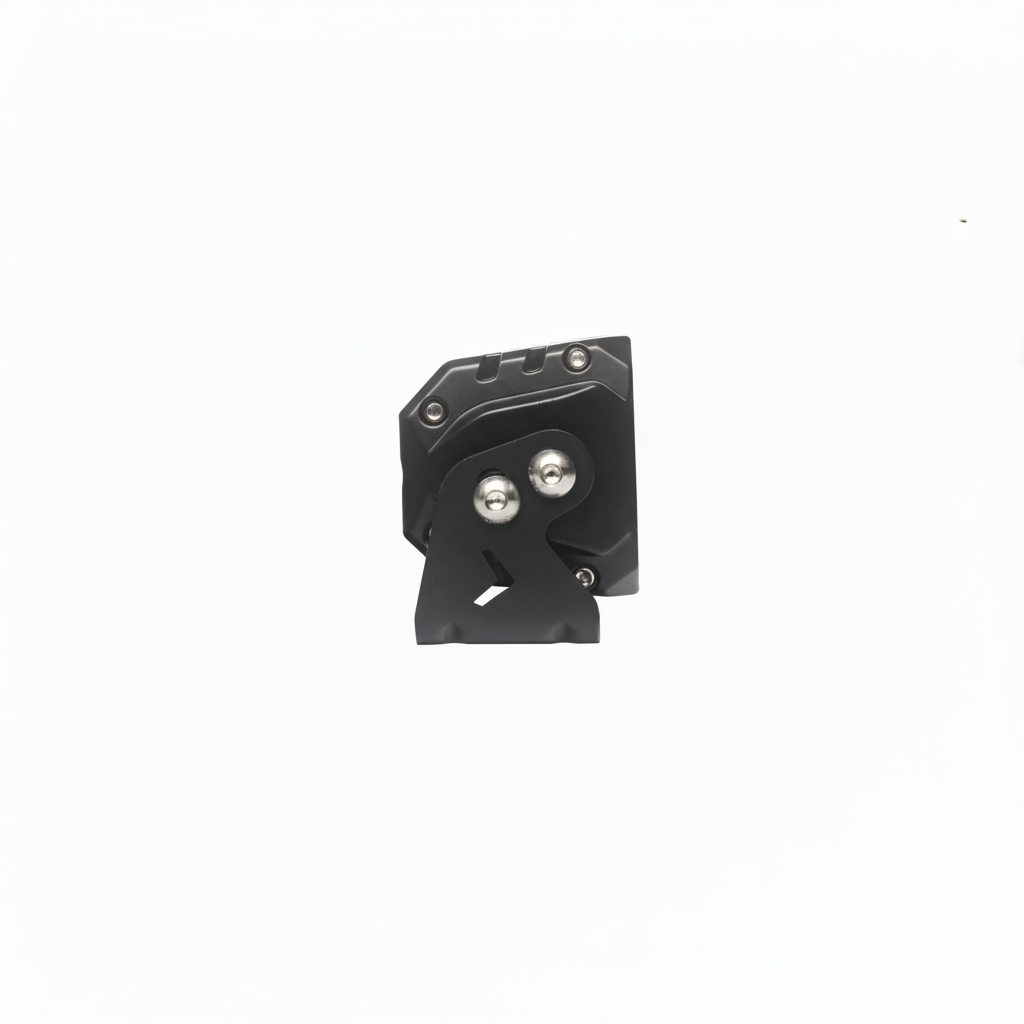

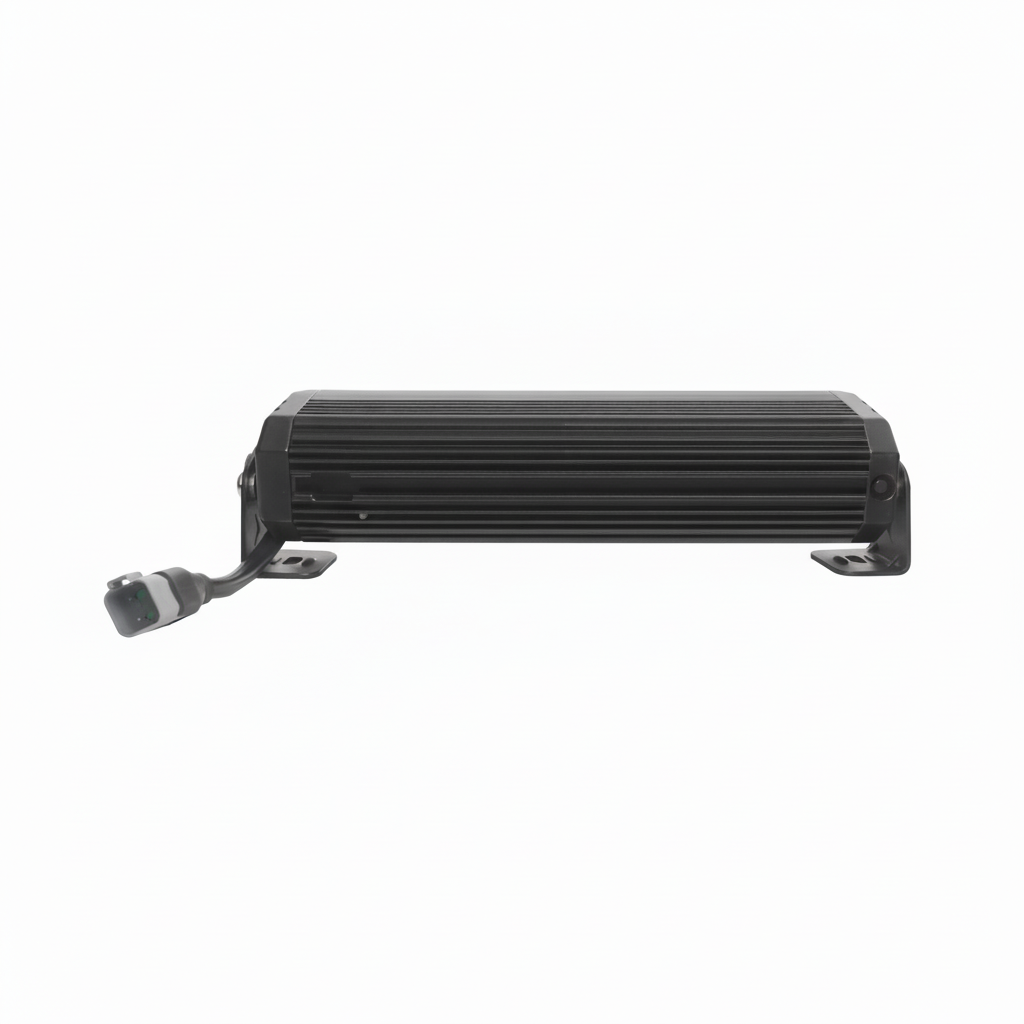

At 303 × 69 × 76.3 mm and 1.4 kg, this is a compact, robust package that’s easy to mount in pairs on roof bars, behind grilles or on bull bars. A 500 mm cable tail gives enough length to reach junction points without a tangle of extensions. Fit it once, wire it correctly, and it will just get on with the job.

Key Features

• Compact 12" (300 mm) driving lightbar – ideal where space is limited but additional front lighting is essential.
• 45 W main beam power delivering 5,200 lm raw / 4,000 lm effective for confident night driving and mid‑range visibility.
• Beam distance 300 m @ 1 lux providing a clear view of the road and verge in real‑world conditions.

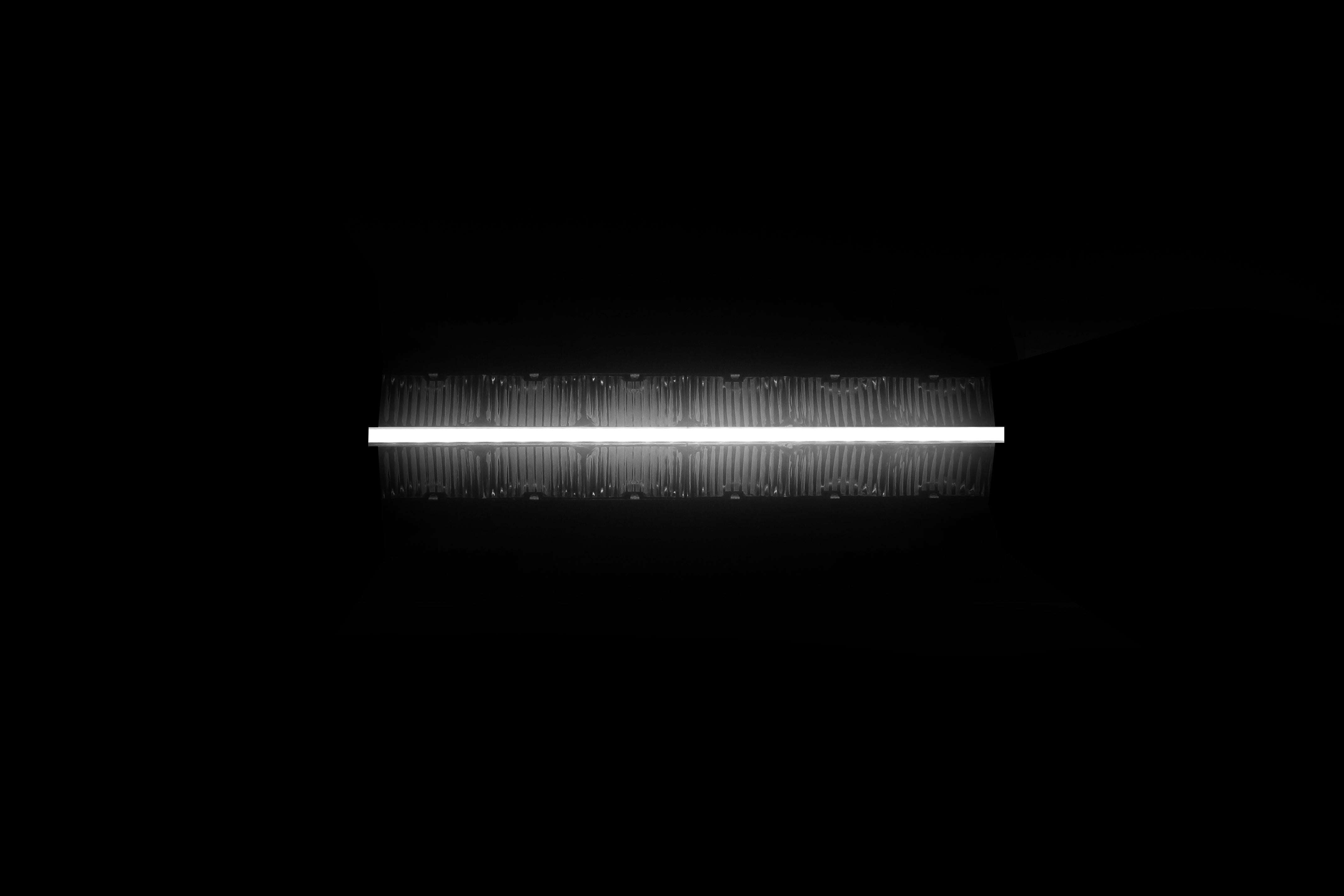

• Dual‑colour position light (White / Amber, 4.5 W) for flexible styling and enhanced conspicuity in varying weather and duty cycles.
• Wide voltage range 10–30 V DC – engineered for both 12 V and 24 V vehicles, from pickups to heavy plant.
• OSRAM LEDs for stable light output, long service life and proven reliability in professional use.
• Aluminium housing with polycarbonate lens – tough, impact‑resistant construction suited to off‑road, construction and farm environments.
• Ingress protection IP67 – sealed against dust and capable of withstanding temporary immersion, suitable for high‑pressure washdowns and wet sites.
• ECE approved: R112 (Driving), R7 (White Position), R148, R149, R10 – road‑legal use where correctly installed and aimed.
• EMC compliant to CISPR 25 Class 4 – minimises radio interference with communication, telemetry and OEM vehicle systems.
• Integrated over/under‑voltage protection helping guard against wiring faults, jump starts and charging system spikes.
• Compact dimensions 303 × 69 × 76.3 mm, weight 1.4 kg, 500 mm cable for straightforward mounting and wiring.

Ideal Applications

• 4x4s, pickups and off‑road vehicles needing a compact, road‑legal driving lightbar with serious performance.
• Light commercial vans and service vehicles where grille or bumper space is limited but extra forward light is required.
• Agricultural tractors, telehandlers and farm machinery working long hours in low‑light or poor‑weather conditions.
• Construction, utilities and rail maintenance fleets that demand robust lighting with proven EMC control.
• Plant, forestry and quarry vehicles needing durable, compact LED driving lights that withstand vibration and dirt.

Why Choose LED-Global Lighting

LED‑Global focuses on high‑performance vehicle lighting that works in the real world, not just on a spec sheet. Products like the LG980 are engineered in Europe, tested in demanding conditions and matched to the approvals fleet managers expect. You get clear documentation, honest performance figures and lighting that integrates cleanly with modern vehicles. That combination of technical accuracy, build quality and support is why professional operators across Europe trust LED‑Global for their lighting upgrades.
