120 Watt 9 Zoll Fahrlicht mit zweifarbiger Positionsleuchte - LG930

120 Watt 9 Inch Driving Light with Dual Colour Position Light – LG930

This 120 W 9″ LED driving light is built for serious mile-eaters and hard-use fleets. You get a powerful high beam, a dual‑colour white/amber position light, and an integrated amber warning light in one compact unit. ECE approvals (R149 / R148 / R65 / R10) and CISPR 25 Class 5 EMC make it a trusted choice for professional road use right across Europe.

The LG930 solves a simple problem. You shouldn’t need three separate lamps on the front of a vehicle to get range, visibility, and compliance-grade warning. This unit combines a 113 W high beam, a dual‑colour position light (white or amber), and a dedicated amber warning function in one 9″ housing, cutting wiring time, bracket clutter, and potential failure points.

On the road or off it, you get light you can rely on. The lamp delivers 12,900 lm raw and 4,800 lm effective output on high beam, with a crisp 5700–6500 K white driving light for distance and clarity. The amber functions run warmer – 2000–2200 K for the amber position light and 1700 K for the warning mode – which cuts through dust, fog, rain, and snow where pure white light can bounce straight back at you.

Electrically, it’s at home on almost any commercial, 4×4, or plant vehicle. The 10–30 V DC input covers both 12 V and 24 V systems. Power is sensibly managed: High Beam 113 W (effective ~50 W), Position 20 W (effective ~3 W), and Warning 18 W (effective ~15 W), so you get strong output without abusing alternators or looms on older trucks and vans. A 40 cm cable tail gives you flexible routing into junction boxes or behind grilles.

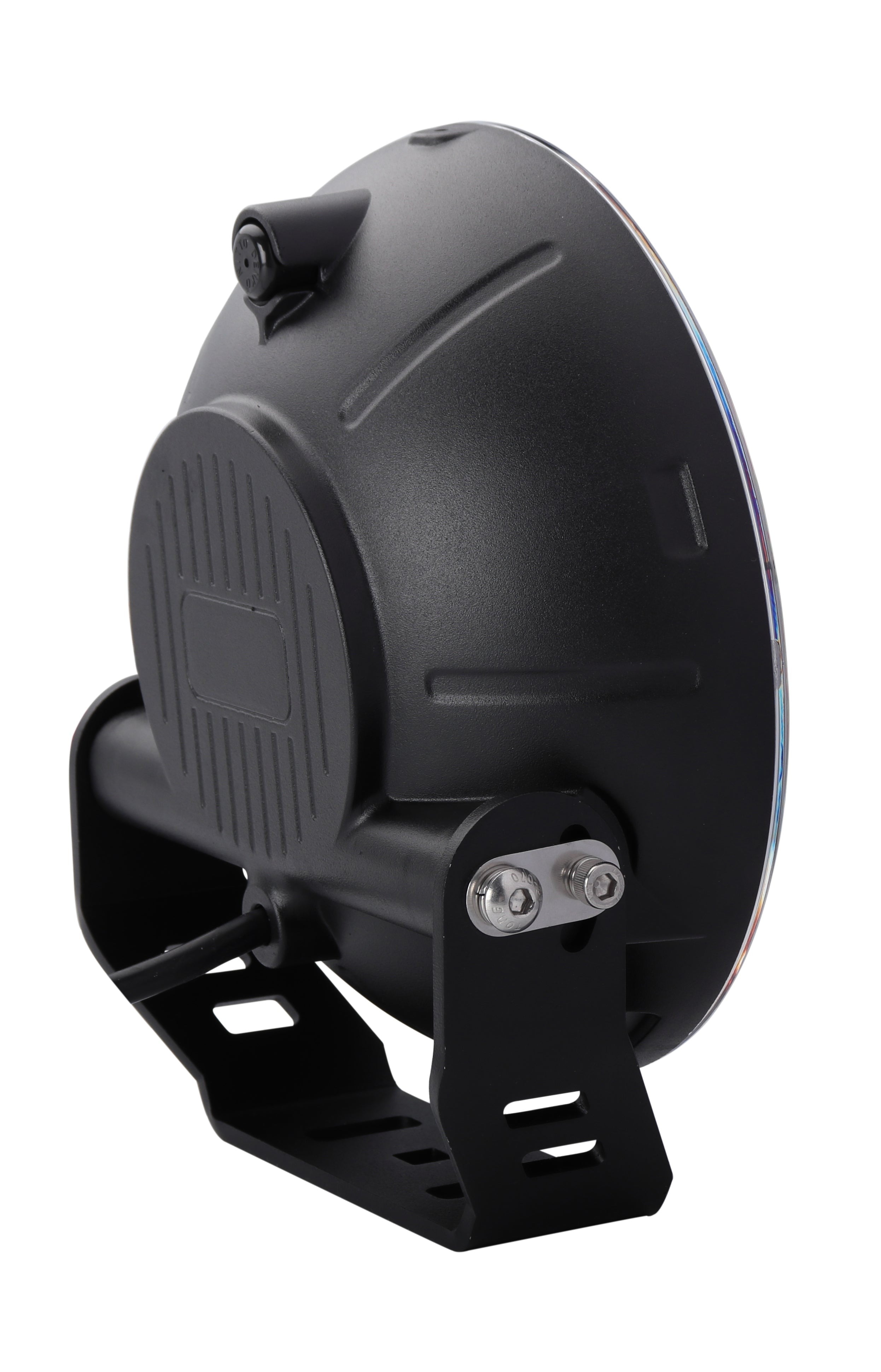

The build is engineered for long service. A thermal plastic (graphene) housing manages heat and weight, while the polycarbonate lens resists stone chips and harsh cleaning. The stainless steel SUS 304 U‑shape bracket gives a wide adjustment range, so you can set the beam where you need it and lock it down. Rated IP69K, the lamp stands up to high‑pressure, high‑temperature washdowns and heavy dust environments, and it’s tested to work from −40 °C to +50 °C – so Nordic winters and hot southern summers are both covered.

Compliance is straightforward and transparent. The LG930 is approved to ECE R149 for driving light performance, R148 for position light, R65 for amber warning, and R10 / CISPR 25 Class 5 for electromagnetic compatibility. That means minimal radio interference and a road‑legal warning pattern for European markets when installed correctly. Size‑wise it’s compact for a 9″ unit: 225 × 230.5 × 85 mm (L × W × H), so it works well in pairs on light bars, bumper mounts, or A‑pillars.

Key Features

• 9″ 120 W multi‑function driving light combining high beam, dual‑colour position light, and amber warning in one housing – fewer lamps, simpler installs.
• High beam: 12,900 lm raw / 4,800 lm effective, 113 W input, 5700–6500 K – long‑range, clean white light for night driving.

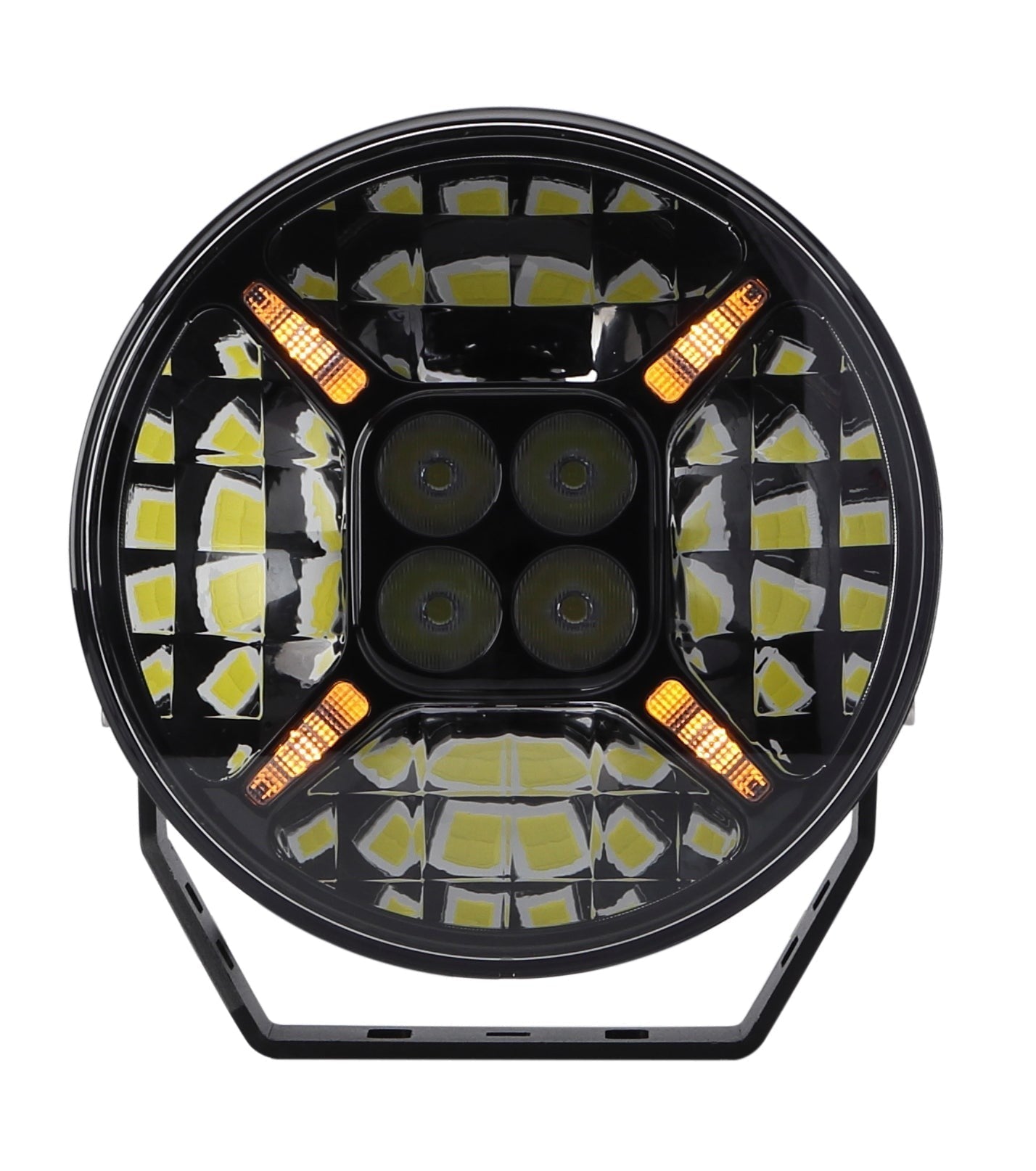

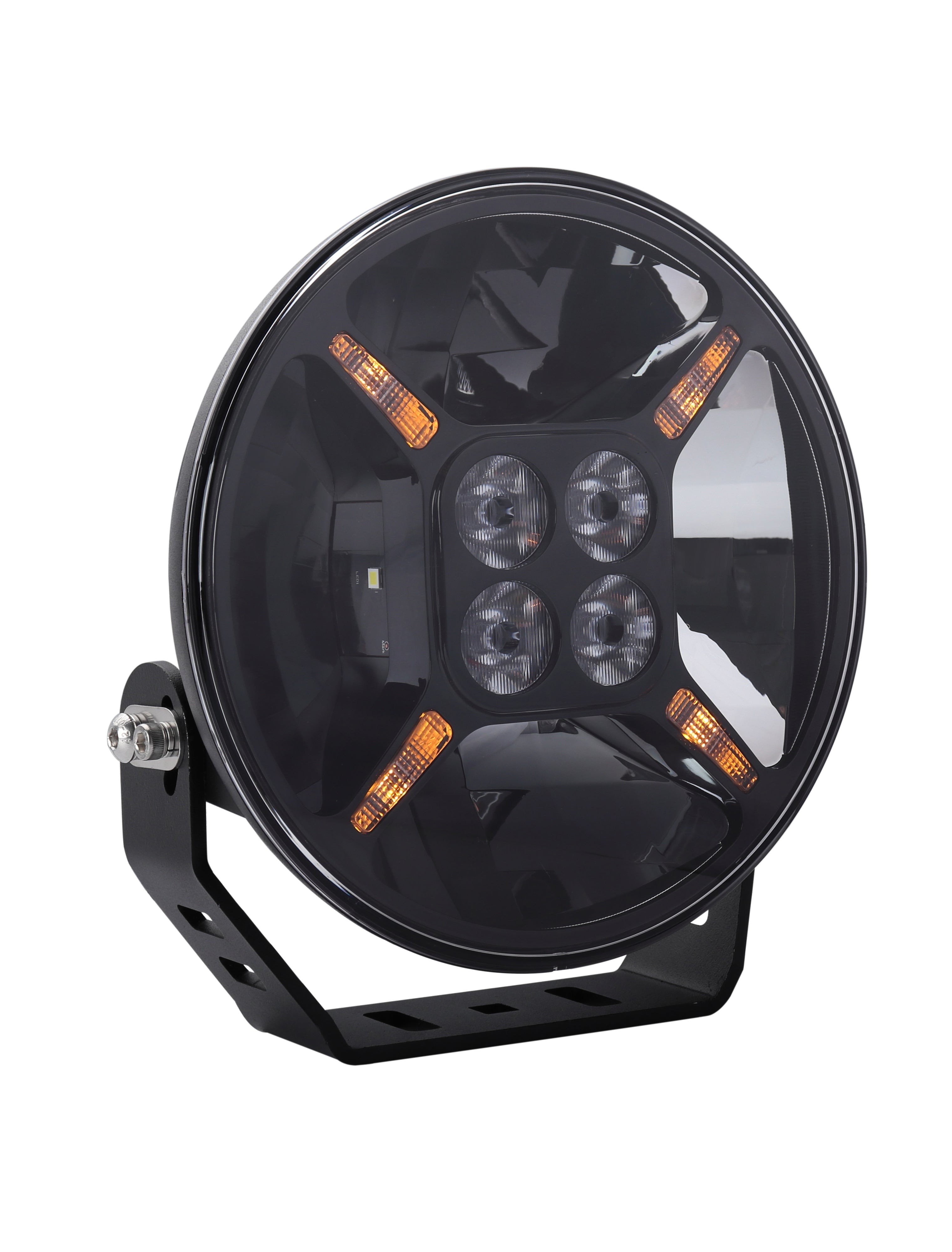

• Dual‑colour position light (white or amber) with 20 W input / 3 W effective – switchable to suit on‑road visibility or off‑road marking.
• Integrated amber warning light, 18 W input / 15 W effective at ≈1700 K – compliant warning function without separate beacons on the front.
• Wide voltage range 10–30 V DC – suitable for 12 V and 24 V commercial vehicles, 4×4s, vans, plant, and agricultural machinery.
• Rugged construction: graphene thermal plastic housing, polycarbonate (PC) lens, and SUS 304 stainless steel U‑bracket for strength and corrosion resistance.
• IP69K ingress rating – engineered to withstand pressure washing and heavy dust in construction, agriculture, and off‑road environments.
• Wide operating temperature −40 °C to +50 °C – reliable cold‑start performance in winter and stable operation in summer heat.
• EMC safe: CISPR 25 Class 5 and ECE R10 – minimises interference with radios, GPS, telematics, and other sensitive electronics.
• Fully approved: ECE R149 (driving light) / ECE R148 (position light) / ECE R65 (amber warning) / ECE R10 / CE / RoHS for professional European use.
• Compact size 225 × 230.5 × 85 mm (L × W × H) with 40 cm cable tail – easy mounting and neat wiring on bars, bumpers, or roof frames.

Ideal Applications

• Heavy trucks and tractors with semi‑off‑road duty, needing long‑range driving lights plus compliant front warning on forest, quarry, or farm access roads.
• Utility, telecoms, and rail maintenance fleets where one lamp can cover driving, marking, and front‑facing amber warning.
• 4×4, pick‑up, and overland builds that want a clean front end with fewer lamps but high performance on unlit roads.
• Municipal, highways, and airport service vehicles needing ECE R65 amber warning and strong auxiliary driving light in one package.
• Construction, mining, and quarry equipment where robust, IP69K‑rated lighting must survive vibration, dust, and frequent washdowns.

Why Choose LED-Global Lighting

LED‑Global designs lighting the way engineers like to see it: tested numbers, honest specifications, and hardware that stands up to daily abuse. Our products are built around European approvals and standards, so fleet managers and installers know exactly what they’re fitting and where it’s legal to use. Every unit like the LG930 is selected and specified for long service life, stable EMC performance, and straightforward installation, giving you fewer call‑backs and more vehicles working the night shift without lighting issues.
