14" (350mm) LED-Fahrlichtleiste - mit Boost-Funktion & dynamischem Start - LG990

14" (350 mm) LED Driving Lightbar with Boost Function & Dynamic Start Up – LG990

The LG990 14" LED driving lightbar packs full-size light output into a compact 350 mm housing, ideal where grille and bumper space is tight. Use ECE-approved mode for legal road driving, then switch to E-Boost mode for maximum off-road punch when the tarmac ends. With ECE R10, R148 and R149 approvals, plus IP68/IP69K protection, it’s engineered for professional use on European roads and harsh worksites.

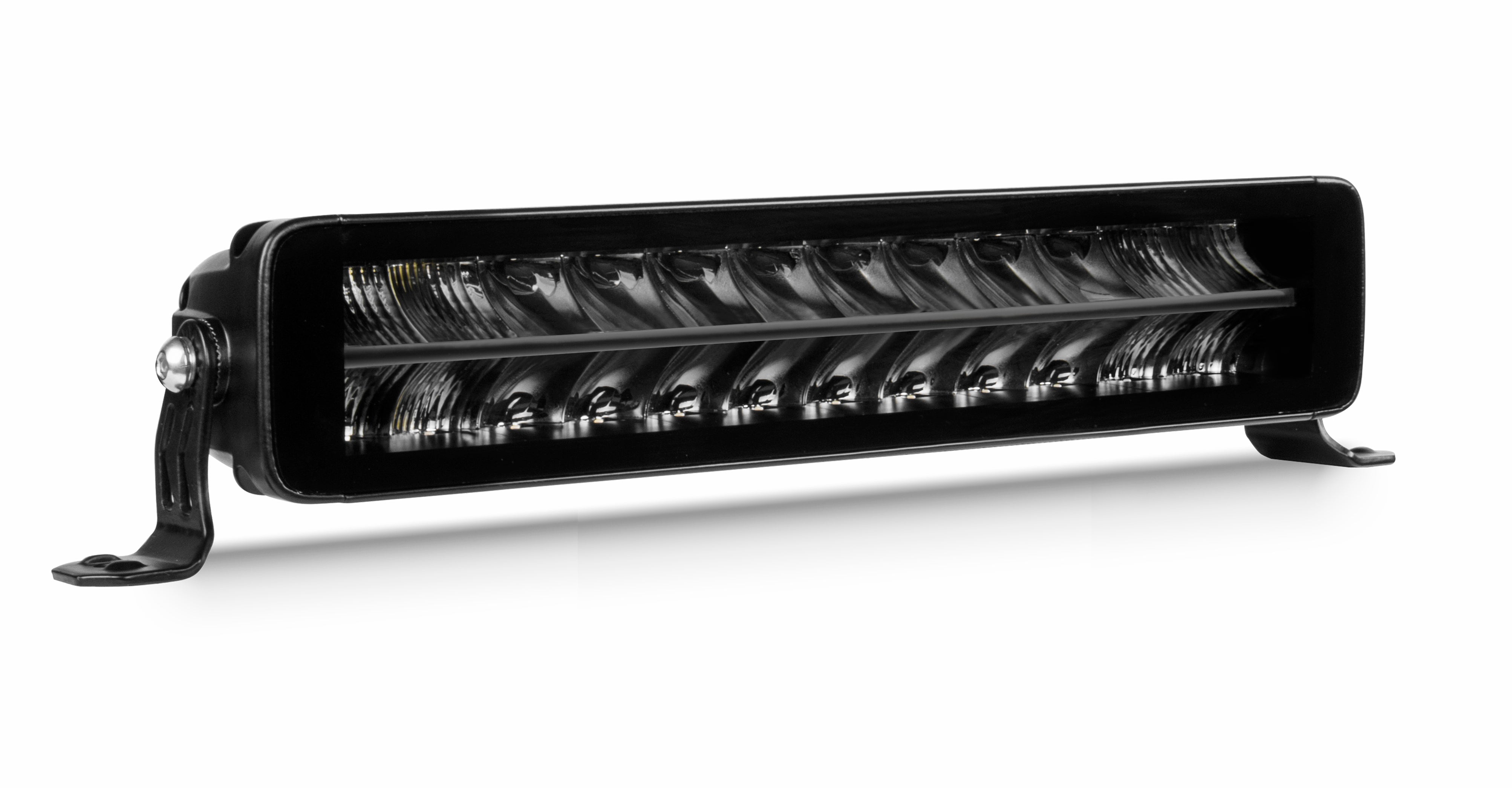

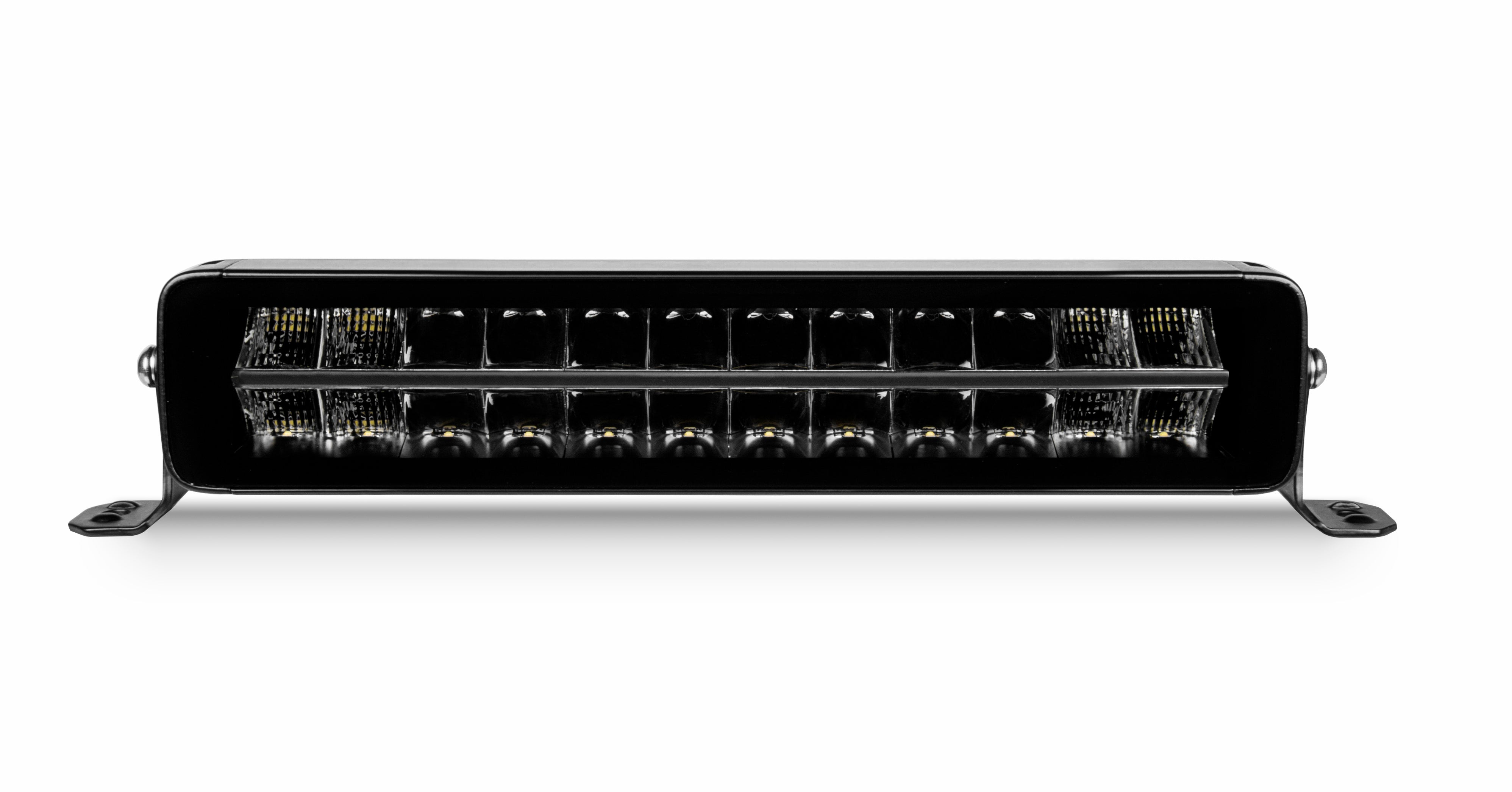

This bar is built for people who need serious forward lighting but don’t have room for a big round lamp. You get 24 × 5 W high-output LEDs delivering 10,880 lm (raw), a crisp driving beam pattern, and a Dynamic Position Light at start-up that gives a modern OEM-style sweep every time you power on. The dark chrome design helps it blend into contemporary grilles without shouting until you need it.

On the road, the ECE-compliant mode (ECE R149) keeps you legal for everyday use on public highways in Europe and the UK. Off the road, E-Boost mode unlocks the full 120 W for maximum reach and fill, ideal for forestry tracks, construction compounds, and rural access roads. EMC performance is covered by ECE R10, so it won’t interfere with radios, CANbus systems, or other vehicle electronics when installed correctly.

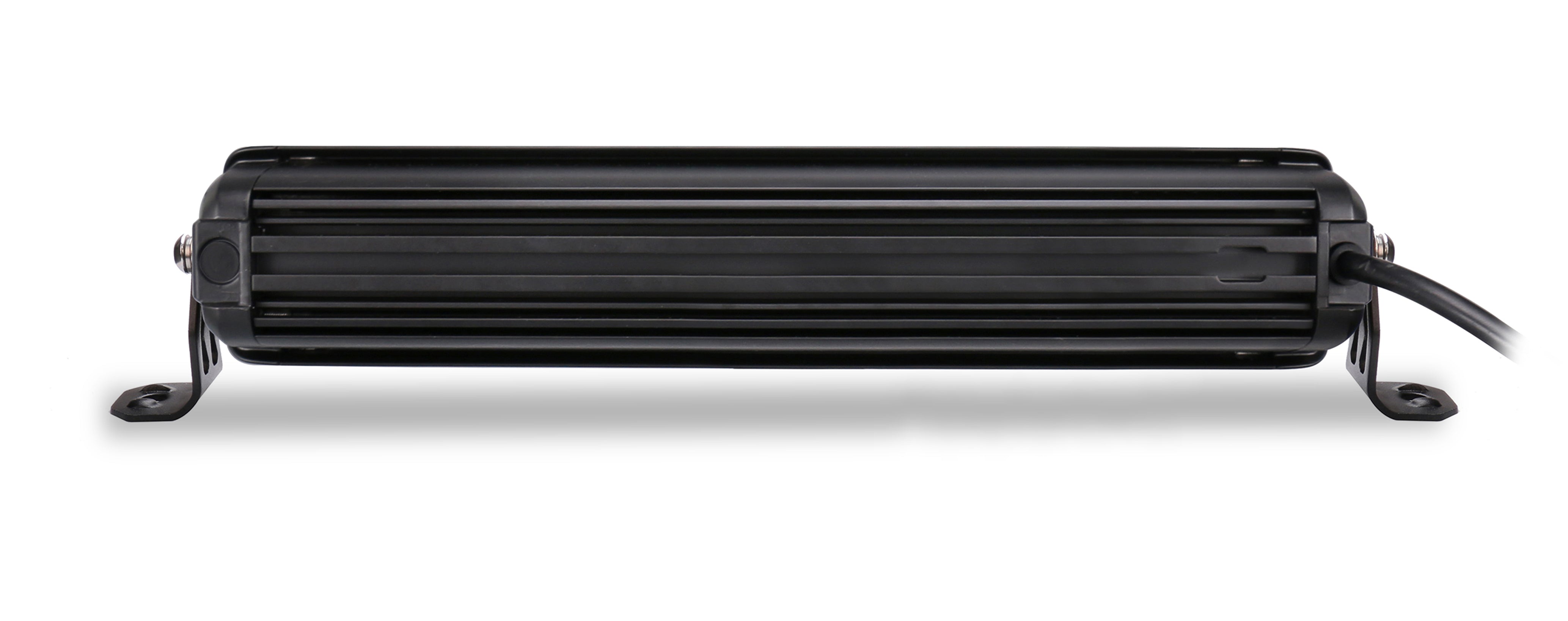

The LG990 runs on 10–30 V DC, so it’s suited to both 12 V and 24 V electrical systems across vans, 4x4s, LCVs, HGVs and plant. At full boost it draws 8.18 A @ 12 V or 4.25 A @ 24 V, while ECE mode drops consumption to 3.99 A @ 12 V or 2.04 A @ 24 V, which helps when multiple auxiliaries share a single circuit. The housing is compact at 356.6 × 67.3 × 70 mm (L × W × H) and supplied with both side and bottom mounting brackets, giving you options for roof bars, grille mounts, and bumper integrations.

Because it’s rated IP68/IP69K, the lightbar is designed to cope with deep dust, heavy spray, and high-pressure cleaning. There’s no “show piece” fragility here; it’s a working tool for fleets, utilities and off-road users who wash their vehicles hard and use them daily. Install it with quality wiring and relays, respect the E-Boost mode as off-road only, and you get reliable, stable lighting that just does its job night after night.

Key Features

• Compact 14" (350 mm) housing – ideal for tight grille, bumper and roof bar installs where space is limited but output cannot be compromised.
• 120 W power (24 × 5 W LEDs) – high-density LED array engineered for strong forward lighting and consistent beam performance.
• 10,880 lm raw output – provides substantial illumination for off-road use and unlit rural routes when used in E-Boost mode.
• Dual operating modes – ECE-approved driving mode for road-legal use, plus E-Boost mode for maximum off-road brightness.

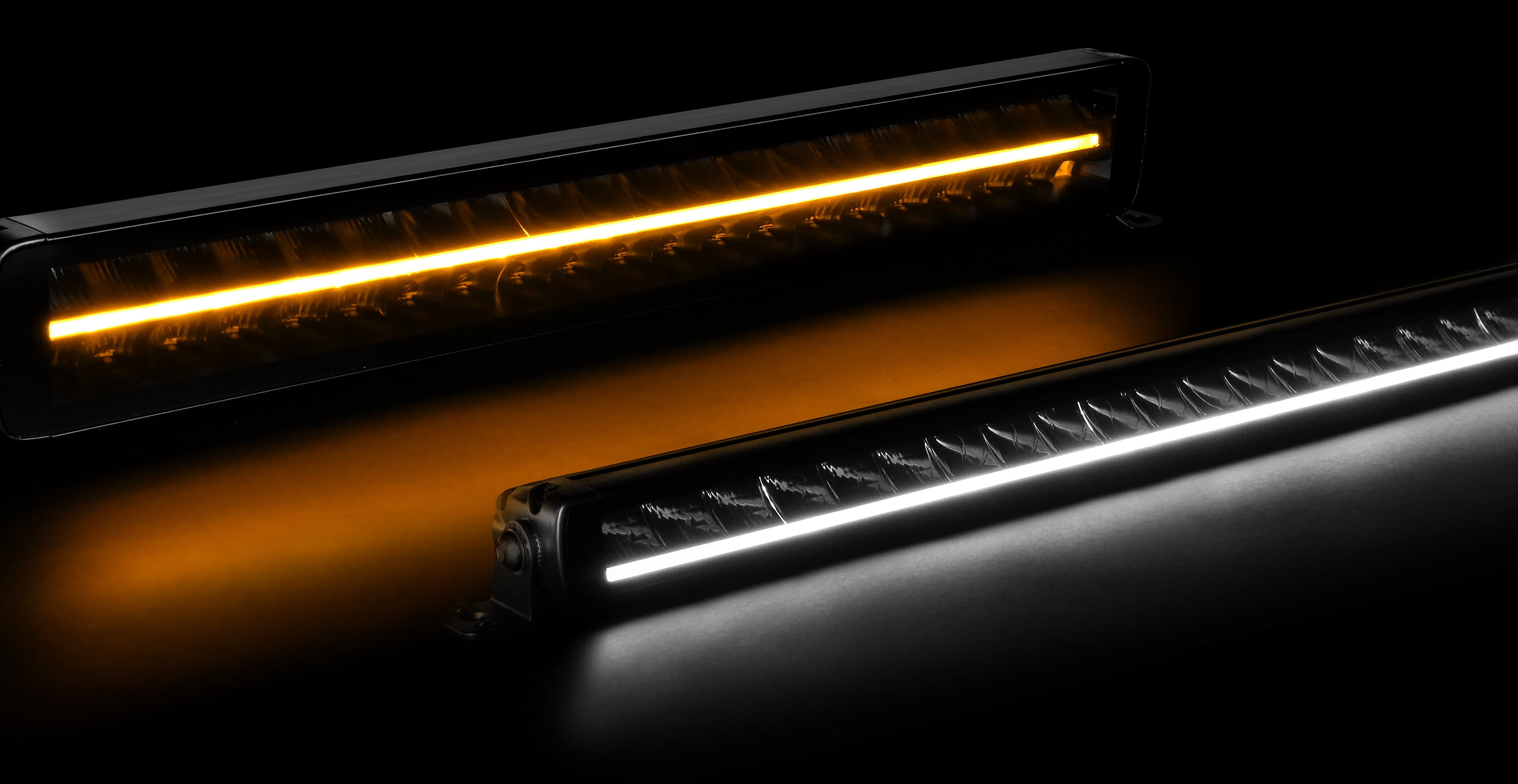

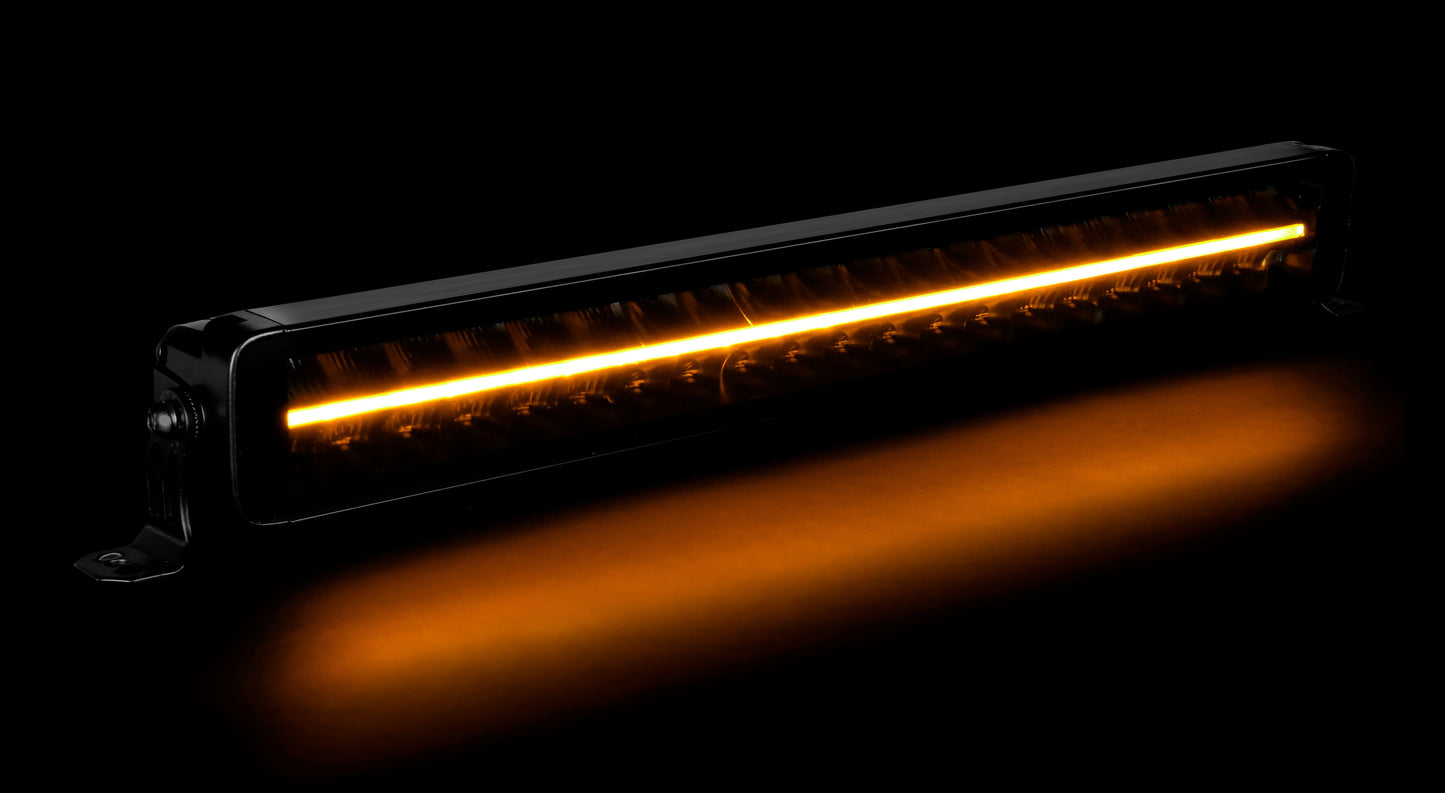

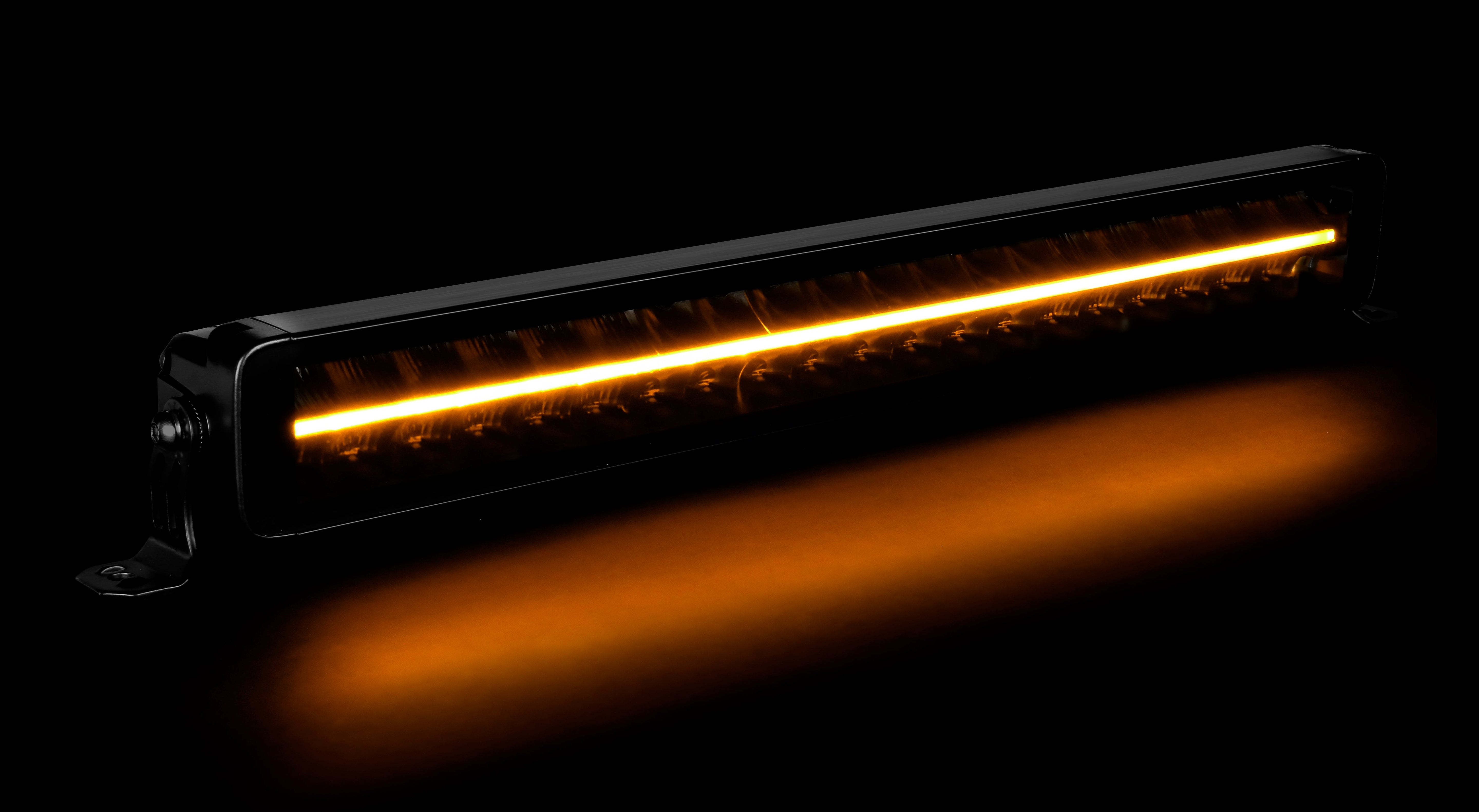

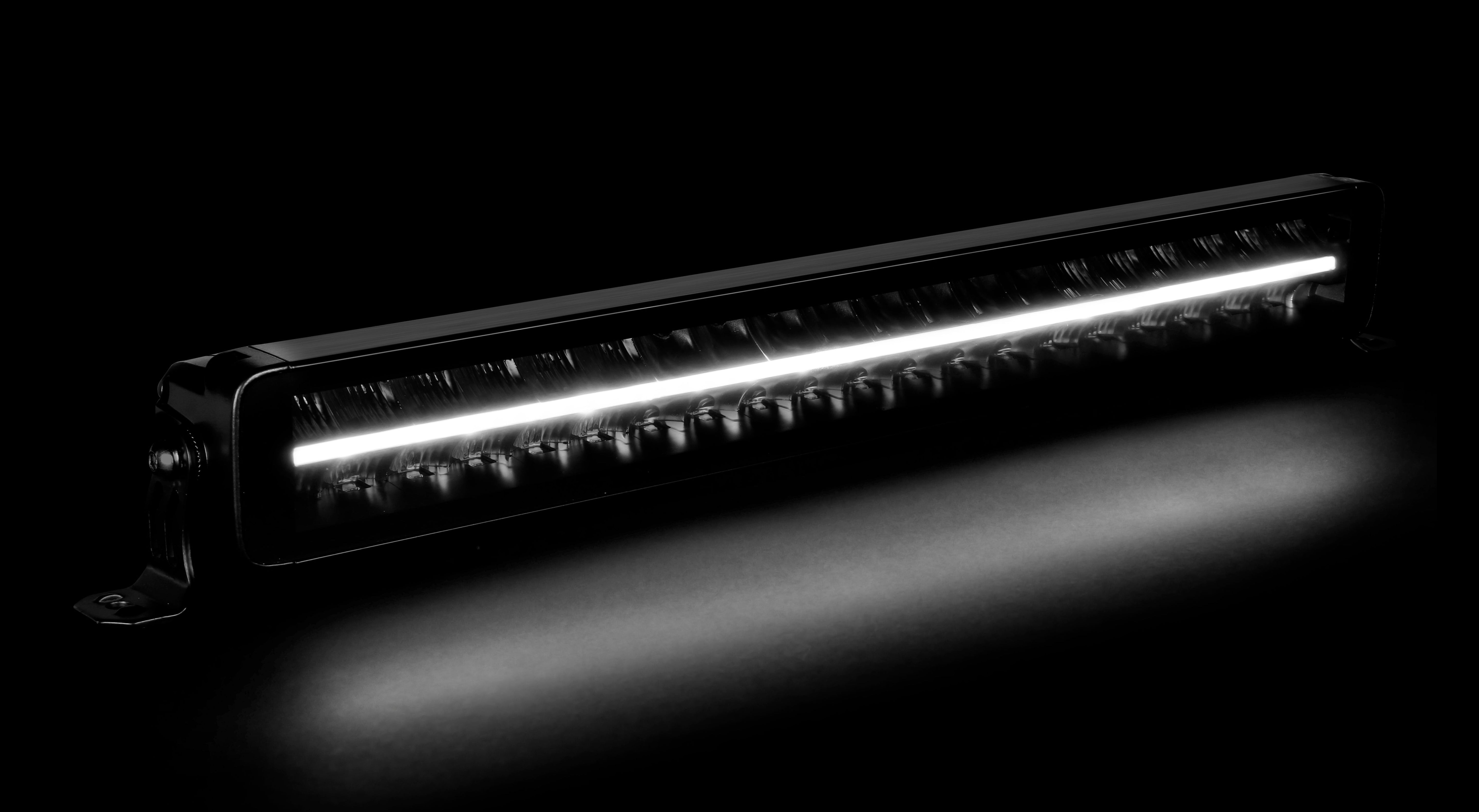

• Dynamic Position Light at start-up – modern dynamic start-up effect for a premium OEM-style appearance and instant vehicle presence.
• Dark chrome design – discreet by day, smart integration with modern vehicle styling without drawing attention when not lit.
• Wide voltage range 10–30 V DC – suited to 12 V and 24 V systems on 4x4s, vans, trucks, and machinery.
• Optimised power draw – Boost: 8.18 A @ 12 V / 4.25 A @ 24 V; ECE: 3.99 A @ 12 V / 2.04 A @ 24 V for easier circuit planning and fuse selection.
• High ingress protection: IP68 / IP69K – engineered to withstand immersion, dust ingress, and regular high-pressure, high‑temperature cleaning.
• Approved for road use in ECE mode – ECE R10 (EMC), ECE R148, ECE R149, CE, RoHS, UKCA; trusted compliance for European and UK fleets.

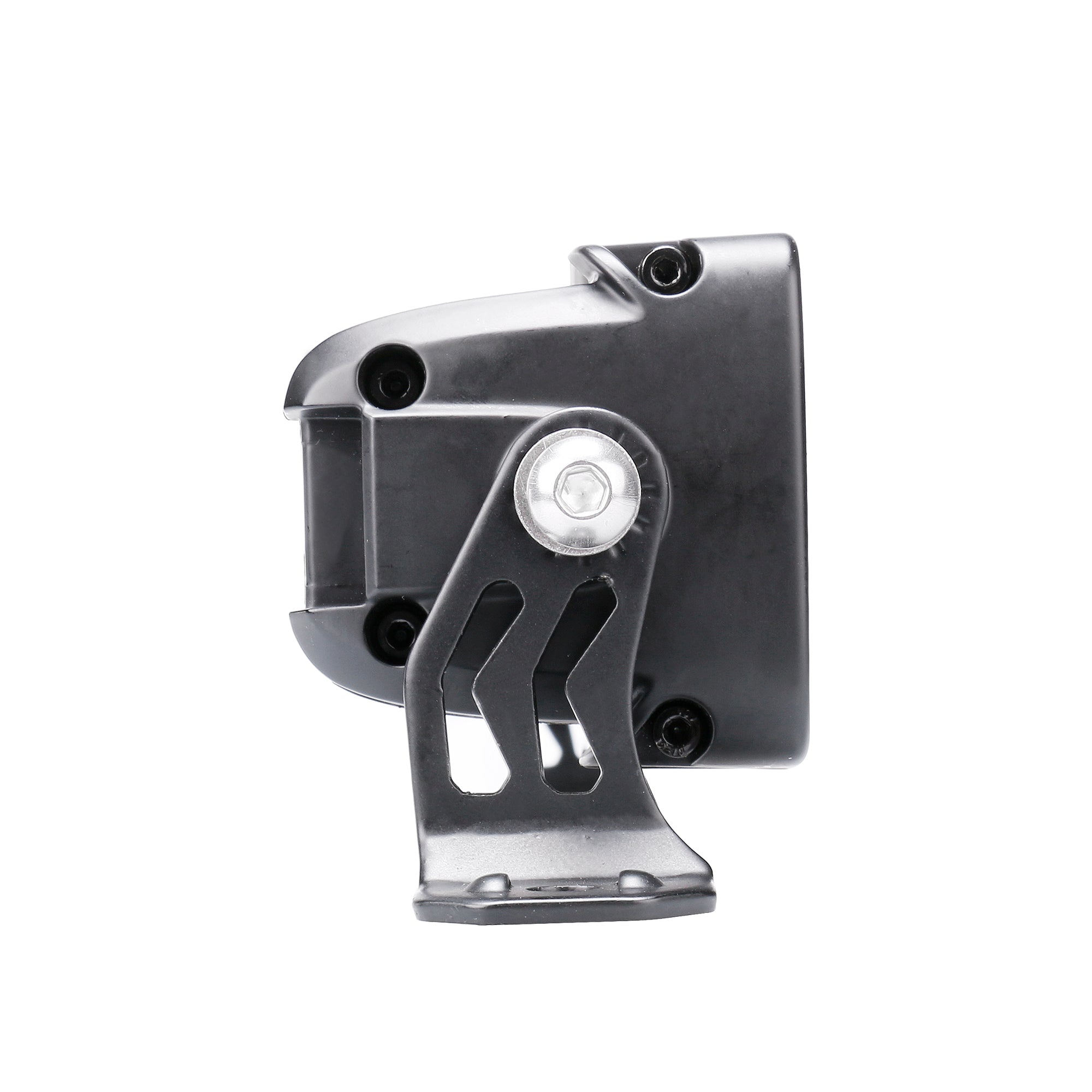

• Flexible mounting options – supplied with side-mount and bottom-mount brackets to suit grille mounts, roof racks and light bars.

Ideal Applications

• 4x4s and pickups needing a compact LED driving lightbar for rural roads, green laning and farm access.
• Utility and service vans requiring reliable auxiliary forward lighting for night call-outs, telecoms and electrical work.
• HGVs and recovery vehicles where grille space is limited but strong long-range lighting is needed.
• Construction, forestry and agricultural machinery working in low-light, off-road environments.
• Fleet vehicles and local authority assets that demand compliant, durable auxiliary lighting with proven European approvals.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered, high-performance vehicle lighting that works as hard as your fleet does. Every product is selected for solid approvals, honest specifications, and real-world durability, not marketing claims. The LG990 follows that approach: compact, efficient, and compliant, backed by a team that understands electrical systems, EMC, and the demands of professional users.

When you spec LED-Global, you know what you’re fitting, why it’s approved, and how it will behave on the vehicle. That’s the difference between generic lighting and a trusted trade partner for contractors, installers and fleet managers across Europe.
