4 LED 180 Grad Bernsteinfarbenes Warnlicht - LG766

4 LED 180° Amber Warning Light – LG766

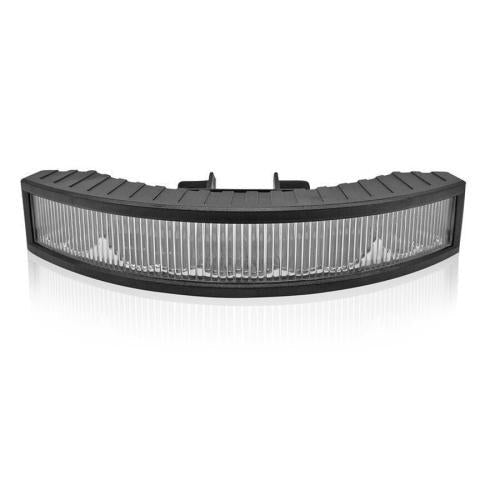

The LG766 4 LED 180° amber warning light is a compact, high-output strobe module engineered for professional use on plant, agricultural and utility vehicles. It delivers a wide 180-degree amber warning beam with 26 selectable flash patterns, making it ideal for conspicuity on roadsides, construction sites and farmyards. Fully ECE R65 and ECE R10 approved and IP67 rated, it’s road-legal where amber warning is required and built for harsh European weather.

When you’re working roadside in the rain, or backing a spreader into a dark yard, you need warning lights that cut through the mess. Not just bright in theory – bright where it matters, in a wide arc around the vehicle. The LG766 uses 12 × 5 W high-power LEDs behind a clear lens with an amber flash to project a clean, punchy warning signal through 180°, so approaching drivers see you earlier and from more angles.

Running a mixed fleet? No problem. This module runs on 9–30 V, so it drops straight into 12 V and 24 V systems on tractors, telehandlers, excavators, pickups and service vans. The housing is compact at 170 × 80 × 30 mm, so it fits easily on bumpers, headboards, body sides, or rear frames without getting in the way. With an operating range of -30 °C to +60 °C, it’s proven for winter gritting, high-summer harvest and year-round utility work.

ECE approvals matter. ECE R65 means the light output and flash pattern performance meet the standard for road-going amber warning lamps in Europe. ECE R10 and CISPR 25 Class 3 mean the unit is EMC-safe and won’t interfere with radios, GPS, CAN-bus or control systems when installed correctly. The IP67 ingress protection rating keeps dust out and allows short-term immersion, so heavy spray, mud and pressure rinsing are part of its design brief, not a surprise.

The LG766 comes pre‑wired, so your auto electrician or in-house fitter can get it mounted and powered quickly. Multiple heads can be synchronised and paired, allowing alternating or simultaneous flash patterns across a vehicle or trailer set for a professional, consistent warning signature. Fit it once, wire it cleanly, and it just does its job – shift after shift.

Key Features

• Wide 180° amber warning beam for strong side and frontal visibility, improving safety when working near live traffic or moving machinery.
• 12 high-power LEDs (5 W per LED) delivering intense, focused light output with low current draw for 12 V and 24 V systems.
• 26 selectable flash patterns, allowing you to match site policy, fleet standards, or specific operating environments.
• Multi-voltage 9–30 V DC input, compatible with most agricultural, construction, municipal and utility vehicles.
• Clear lens with amber flash for a modern, clean look that blends with bodywork when off yet stands out when active.
• Operating temperature -30 °C to +60 °C, engineered for winter service fleets, high-heat summer operations and all-weather use.
• IP67 ingress protection, keeping dust out and resisting water and road spray during daily operation and wash-down.
• ECE R65 and ECE R10 approved, road-legal where amber warning is required and compliant with European on-road standards.
• EMC compliant – CISPR 25 Class 3, designed to minimise electrical interference with radios, GPS, telematics and vehicle electronics.

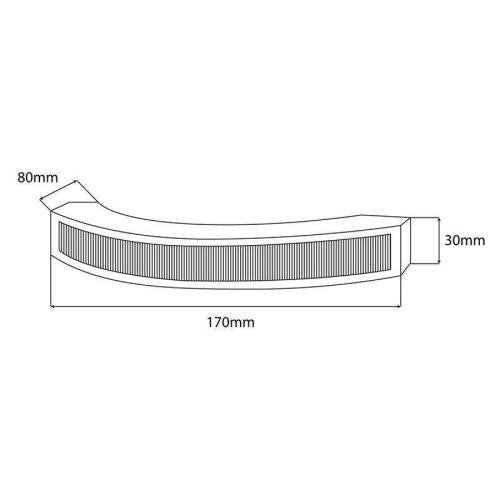

• Compact housing – 170 × 80 × 30 mm, easy to mount on crowded chassis rails, bumpers or body modules, even on smaller vehicles.
• Pre‑wired and synchronisable, simplifying installation and allowing multiple units to run in sync for a professional fleet appearance.

Ideal Applications

• Agricultural machinery – tractors, sprayers, harvesters, balers, and implements operating on or crossing public roads.
• Construction and plant – excavators, dumpers, rollers, telehandlers, and site support vehicles needing reliable amber strobes.
• Municipal and utility fleets – gritters, refuse trucks, highway maintenance vehicles, water, power and telecom service vans.
• Recovery and roadside assistance – breakdown trucks, light recovery vehicles and support pickups.
• Industrial and yard vehicles – forklifts, yard shunters, site support equipment and warehouse service vehicles.

Why Choose LED-Global Lighting

LED-Global focuses on European‑engineered vehicle lighting that earns its place on professional fleets. Products like the LG766 are specified around real-world use: mixed voltages, harsh weather, tight installation spaces and strict compliance rules. Every unit is built to consistent standards, backed by approvals such as ECE R65, ECE R10 and CISPR 25, so fleet managers, contractors and auto electricians can fit with confidence. You get lighting that’s engineered to work hard, day after day, with support from a specialist team that understands how your vehicles are used, not just how they look on paper.
