6 LED Slim Combination Tail Light – LG526

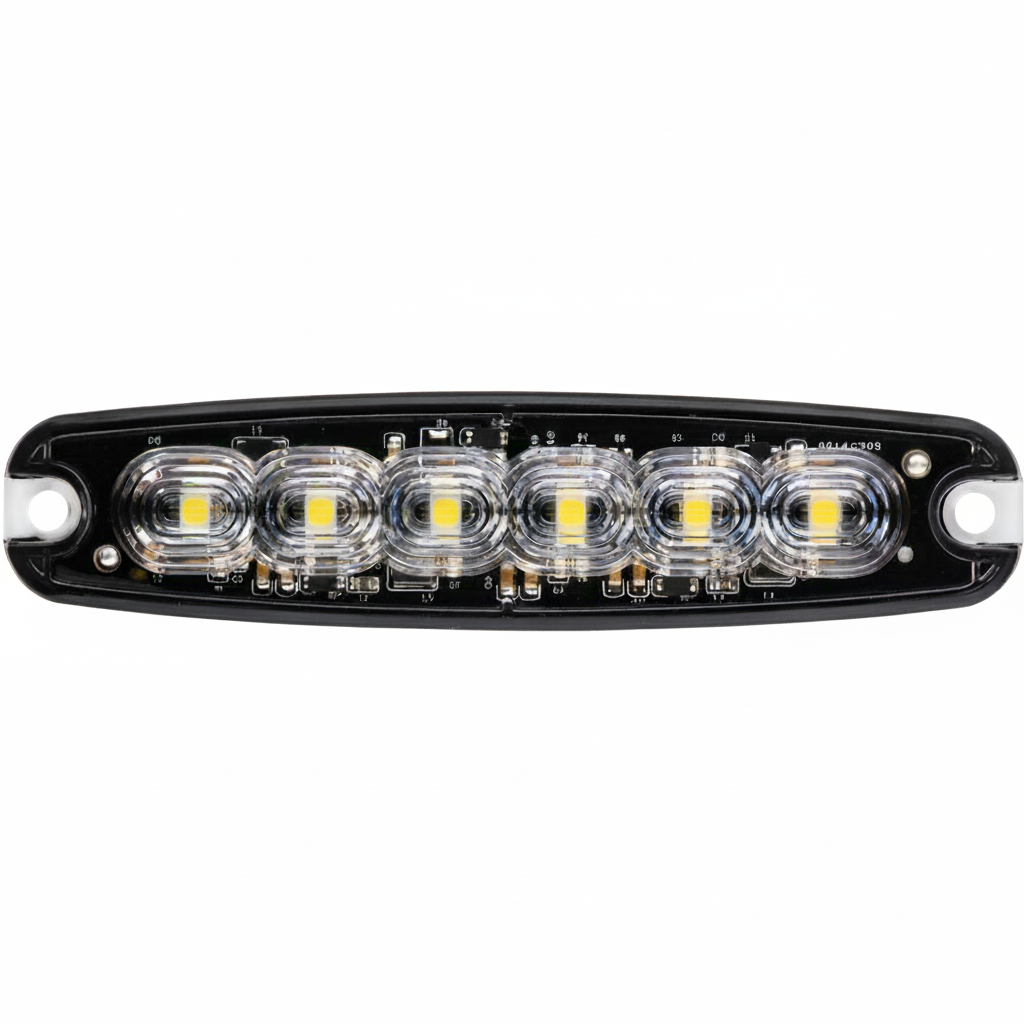

The LG526 6 LED slim combination tail light gives you stop, tail and indicator functions in a compact, low-profile bar that fits almost anywhere. It runs on 12–24 V DC, is ECE R148 and ECE R10 approved, and is built for harsh, wet road conditions with IP67 ingress protection. Ideal when you need a clean, modern LED rear light solution without reworking the whole vehicle body.

This slim combination rear lamp solves a simple problem: not much space, but you still need a road-legal stop, tail and indicator setup that will last. At just 131 mm × 31 mm × 6.6 mm, the LG526 sits almost flush on the bodywork, so it’s less likely to be knocked, caught or damaged on tight sites, loading bays or farmyards. The clear lens with red LEDs for stop/tail and amber LEDs for indicator gives a sharp, modern look while staying compliant with ECE R148 for rear signalling.

The light runs on DC 12–24 volts, so it suits mixed fleets with cars, vans, trailers and plant running both 12 V and 24 V systems. Each unit uses 6 × 1.5 W high-efficiency LEDs, giving strong, even illumination with low current draw and no filament failures to worry about. It’s ECE R10 compliant, so it won’t introduce electrical noise into your CAN-bus or radio systems, which matters on newer vehicles packed with electronics.

Installation is straightforward. You can bolt it on using standard fixings or use the 3M self-adhesive strip where drilling is awkward or bodywork is thin. The wiring is simple and clearly defined: black = negative, red = stop, white = tail, yellow = indicator. With IP67 protection, the unit is dust-tight and protected against temporary immersion, so it’s well suited to vehicles that see pressure washing, winter road spray and day-to-day abuse across Europe.

Key Features

• Slim combination LED tail light with stop, tail and indicator functions in a single compact housing
• Operating voltage: DC 12–24 V, ideal for mixed 12 V / 24 V commercial and agricultural fleets
• 6 high-output LEDs × 1.5 W for bright, even light and reduced power consumption
• ECE R148 compliant rear functions:
• R1-S1 red LED, clear lens for stop/tail
• 2a amber LED, clear lens for rear indicator
  making it suitable for road-legal rear lighting when installed correctly
• ECE R10 compliant for electromagnetic compatibility, helping protect sensitive vehicle electronics
• Ingress Protection: IP67, fully dust-tight and protected against temporary immersion, ideal for pressure-washed and outdoor vehicles
• Ultra-low profile design: only 6.6 mm thick, reducing snag risk and damage in tight working areas
• Compact dimensions: 131 mm (L) × 31 mm (W) × 6.6 mm (T) for easy fitment to narrow body sections, light bars and toolboxes
• Flexible mounting options: bolt-on or 3M self-adhesive strip for quick, non-invasive installation on smooth surfaces
• Simple, colour-coded wiring: black (negative), red (stop), white (tail), yellow (indicator) for fast, error-free connection

Ideal Applications

• Light commercial vehicles and vans needing discreet LED rear combination lights
• Trailers and towed equipment where space is tight but full rear signalling is required
• Agricultural machines and implements that face mud, spray and regular pressure washing
• Construction and plant equipment operating in confined yards and depots
• Utility bodies, service vehicles and tool modules where low-profile, surface-mounted lighting is preferred
