6 LED Schlankes Positionslicht (AMBER) - LG117

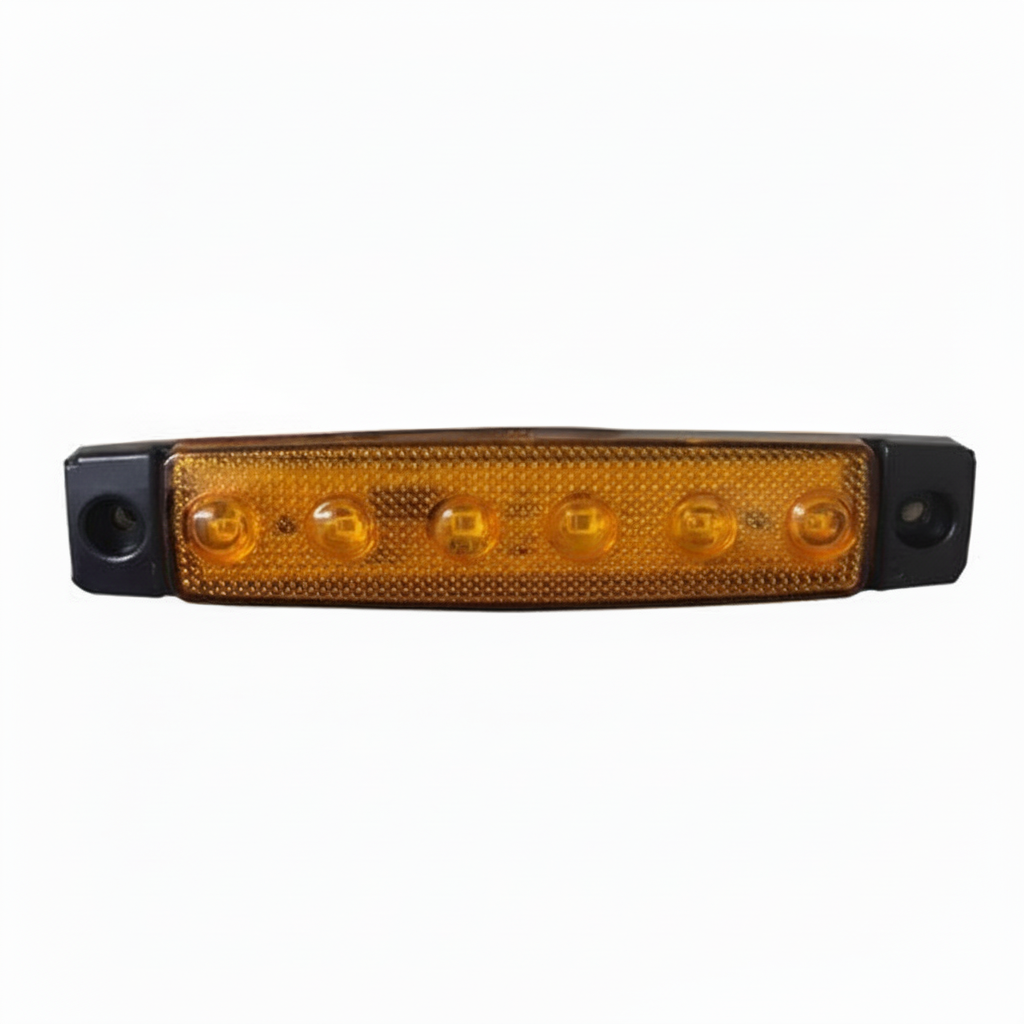

6 LED Slim Marker Light (Amber) – LG117

Slim, tough and bright. The LG117 6 LED slim amber marker light gives clear side visibility without stealing space on the vehicle. Engineered in Europe with OSRAM LEDs and ECE-approved for road use, it’s a proven choice for trucks, trailers, agricultural and construction equipment.

This slim LED marker exists for one reason: make long vehicles visible from every angle, in all conditions, without adding bulk. At just 8 mm thick, the LG117 sits tight against the bodywork, so it’s far less likely to be knocked, snagged or broken in the yard or on site. Despite the tiny footprint, the 6 × 0.1 W high-intensity OSRAM diodes deliver a clean amber output that’s easy to pick up in mirrors and at junctions.

The light runs on 10–30 V DC, so it drops straight into both 12 V and 24 V systems across mixed fleets. With a nominal power of just 0.6 W and a rated lifespan of 50,000+ hours, it’s built for fit-and-forget operation on assets that can’t afford downtime – trailers, grain carts, tippers, plant and more. The PMMA lens and heavy-duty plastic housing give solid impact resistance, while IP67 splash protection keeps the unit sealed against dust and brief immersion, so it shrugs off rain, spray and regular washing.

On the compliance side, the LG117 is ECE approved / e-marked, so it’s legal for on-road marker use when installed correctly, and it includes EMC / radio suppression to protect radios, telematics and other sensitive electronics from interference. It’s pre‑wired for quick installation, and for bull bar or curved mounting there’s a matching LG116G gasket available to get a neat, sealed fit. Once it’s on, it stays on – no bulbs to change, no warm-up, just instant light every time the sidelight circuit comes alive.

Key Features

• Slim flat-surface design – 96 × 20 × 8 mm
  Sits close to the body, ideal where space is tight or damage risk is high.

• 6 × 0.1 W high-intensity OSRAM LEDs
  Proven European LEDs for stable light output and long service life.

• Amber light output, approx. 6000 K
  Crisp, highly visible marker colour to define vehicle length and corners.

• Nominal power 0.6 W
  Extremely low current draw, perfect for multi-marker trailer setups and battery-conscious fleets.

• Wide voltage range: 10–30 V DC
  Suits 12 V and 24 V systems on trucks, trailers, agri and construction machinery without separate versions.

• Long-life design – 50,000+ hour lifespan
  Reduces maintenance visits and lamp changes on high-usage equipment.

• IP67 splashproof construction
  Dust-tight and protected against temporary immersion, so it handles rain, spray and regular vehicle washing.

• Heavy-duty plastic housing with PMMA lamp finish
  Robust body and clear, impact-resistant lens for demanding working environments.

• ECE approved / e-marked
  Road-legal marker solution when fitted in line with relevant lighting regulations.

• EMC / radio suppression built in
  Minimises electrical noise, helping to protect radios, CBs, GPS and telematics from interference.

• Pre‑wired for easy installation
  Saves time in the workshop; no need to open the lamp or modify the housing.

• Optional bull bar gasket (LG116G)
  Accessory for clean, secure mounting on curved or tubular sections.

Ideal Applications

• Truck and trailer side marker lighting on artics, rigids, flatbeds, curtainsiders and low-loaders.
• Agricultural machinery such as trailers, slurry tankers, grain carts and bale chasers working late into the night.
• Construction and plant equipment including low-loaders, service trucks, site support vehicles and tool vans.
• Light commercial vehicles and recovery trucks needing slim, unobtrusive marker lights.
• Fleet standardisation projects where a single 10–30 V amber marker must cover mixed vehicle types.

Why Choose LED-Global Lighting

At LED-Global, we build lighting the way professional operators expect it: engineered, tested and specified for hard daily use, not showroom gloss. Our marker lights use European manufacturing and branded LEDs to deliver stable output, long life and clean EMC behaviour across real-world conditions. Every product is selected to make the fitter’s job easier and the fleet manager’s life calmer – predictable installation, consistent performance, and clear approvals printed where you need them.

If you want reliable, road‑legal LED marker lighting that just works across trucks, trailers and machinery, the LG117 is exactly that: simple, proven and built for the long haul.
