6 LED Schlanke Positionsleuchte (WEISS) - LG116

6 LED Slim Marker Light (White) – LG116

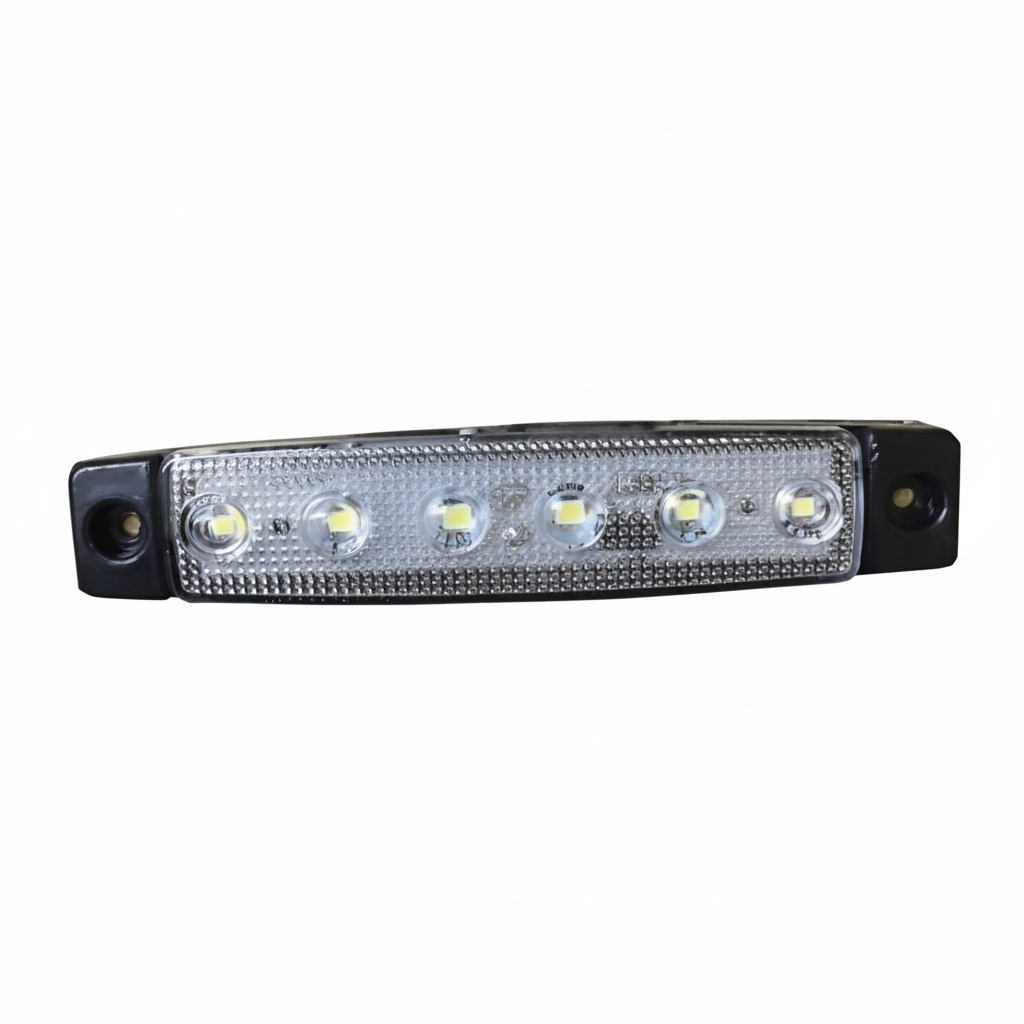

The 6 LED slim marker light LG116 is a compact, road-legal side marker designed for professional vehicles that need clear white position lighting without cluttering bodywork. It uses high-intensity OSRAM LEDs for consistent output and long service life, even on hard-worked fleets and machinery. Fully ECE approved and EMC-safe, it’s a tidy fit-and-forget solution for trucks, trailers, agricultural and construction equipment.

This slim white marker exists for one reason: clear side visibility with no drama. When you’re threading a loaded trailer into a tight yard at night or working a telehandler around a dark site, you need marker lights that simply work, every time. LG116 delivers a crisp 6000K white output that matches modern LED headlights and work lamps, so the vehicle looks uniform and professional.

The lamp uses 6 × 0.1 W high-intensity OSRAM LEDs drawing just 0.6 W in total. Power consumption stays low, yet the 14.4 lumen output is sharp and well-defined for positioning and side identification. With a rated lifespan of 30,000+ hours, it’s engineered to outlast multiple vehicle service cycles, cutting down on nuisance bulb changes and call-backs.

Physically, the lamp is deliberately slim and unobtrusive. At just 96 mm (W) × 20 mm (H) × 8 mm (T), it sits tight to the bodywork, reducing the risk of snagging on straps, branches or wash brushes. The heavy-duty plastic housing and PMMA lens are built for fleet use, while the IP67 splashproof rating means the unit is dust-tight and can withstand temporary immersion – ideal for vehicles exposed to rain, road spray and regular washing.

LG116 is ECE approved / e-mark for on-road use and includes EMC / radio suppression, so it won’t interfere with radios, GPS or other sensitive electronics on the vehicle. It’s pre‑wired for simple installation and is designed for 10–30 V DC systems, making it suitable for both 12 V and 24 V fleets. For bull bars or curved mounting surfaces, a dedicated bull bar gasket (LG116G) is available to keep the install neat and stable.

Key Features

• Slim flat-surface marker light – only 8 mm thick, ideal where space is tight or you want a clean, low-profile install.
• 6 × 0.1 W high-intensity OSRAM LEDs – proven European LED technology for consistent performance and reliability.
• 6000K white light colour – modern, crisp output that pairs well with LED headlights and work lamps.
• Low power draw: 0.6 W nominal – minimises load on vehicle electrics and battery, especially useful on multi-axle trailers with many markers.
• Luminous flux: 14.4 lumens – bright, well-defined marker output for clear side and position indication.
• Wide voltage range: 10–30 V DC – suitable for both 12 V and 24 V commercial and agricultural systems.
• Robust housing with PMMA lens – built for daily use on trucks, trailers and machinery in demanding environments.
• IP67 splashproof design – dust-tight and protected against temporary immersion, ideal for road spray and regular washing.
• ECE approved / e-mark – road-legal white side marker for use across European markets.
• EMC / radio suppression – minimises electrical noise, protecting communication and navigation equipment.
• Pre-wired for quick installation – simplifies fitting and reduces time on site or in the workshop.
• Optional bull bar gasket (LG116G) – for secure, vibration-resistant mounting on round or awkward surfaces.

Ideal Applications

• Articulated trucks and rigid HGVs – white front and side position marking on cabs, chassis rails and side guards.
• Semi-trailers and drawbar trailers – clean, low-profile marker lighting along trailer sides and at the front corners.
• Agricultural machinery – tractors, telehandlers, slurry tankers and balers working early mornings and late nights.
• Construction and plant equipment – loaders, dumpers and service vehicles operating around busy, low-light sites.
• Light commercial vehicles and conversions – recovery trucks, flatbeds, tippers and specialist builds needing compact LED marker lights.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting for people who depend on their vehicles to earn a living. Products like the LG116 are specified with quality LEDs, honest ratings and proven approvals, so you know exactly what you’re fitting. Every lamp is chosen with installers, fleet managers and operators in mind: straightforward wiring, robust construction and support from a team that understands how these lights are used in the real world.
