60 Watt Cab Insert LED Work Light – LG834

The 60 Watt cab insert LED work light LG834 is a direct-fit upgrade for John Deere R-Series and related models that need serious light output from the roof line. It delivers 4 800 lm of cold white flood light from a compact housing, with EMC-safe operation and long service life for professional agricultural use. ECE R10 and CISPR 25 Class 4 approvals keep your tractor electronics protected while you work through the night.

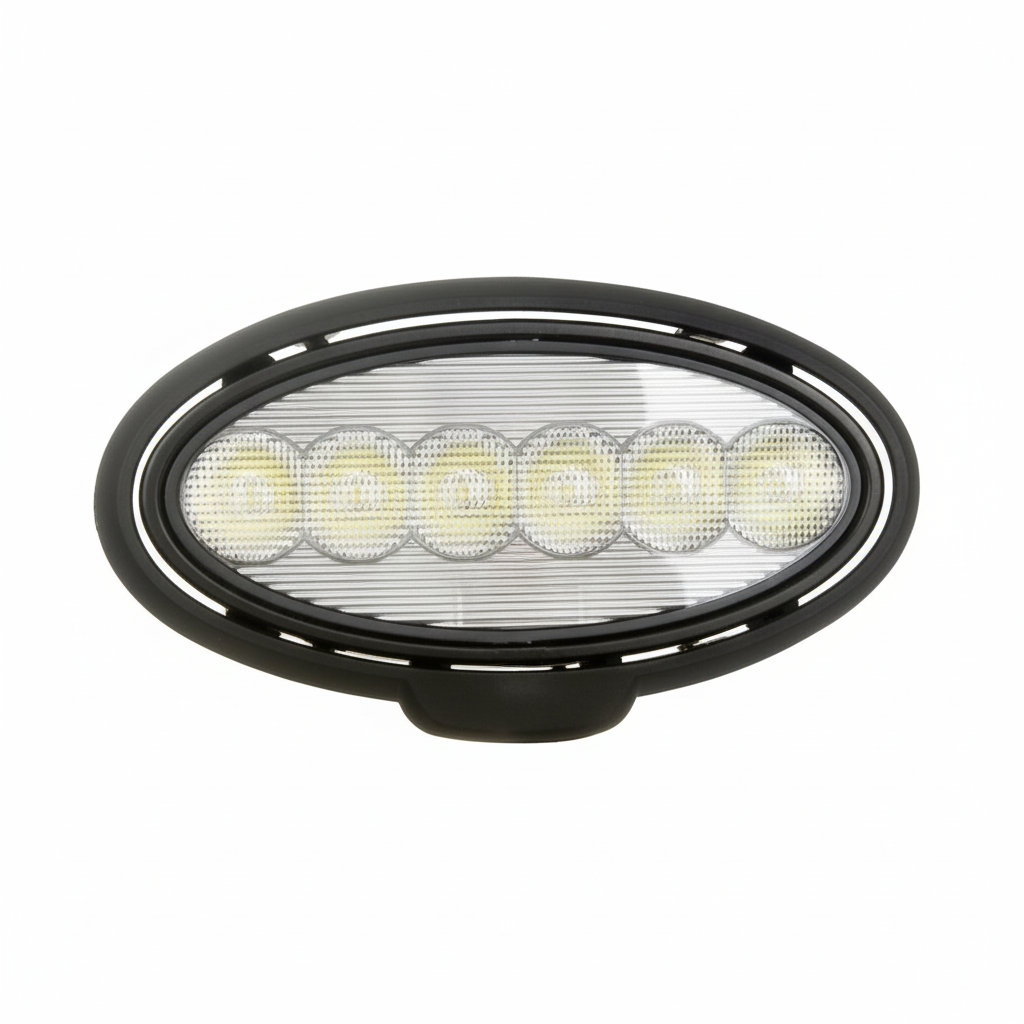

This cab insert LED work light is built for operators who are tired of dull, yellow halogens and patchy coverage around the machine. With 6 × 10 W CREE XTE LEDs behind a well-balanced flood beam, the LG834 throws clean, even light around the tractor, loader and implements, helping you see obstacles, crop rows and attachment points with far more confidence. At 4 800 lm and 6 000 K colour temperature, you get bright, daylight-style illumination that cuts through dust and drizzle.

Electromagnetic compatibility is critical on modern John Deere tractors. This lamp is approved to ECE R10 and CISPR 25 Class 4, so it’s engineered to work alongside sensitive CAN-bus systems, GPS guidance and ISOBUS controls without causing radio noise or screen interference. The wide 9–32 V DC voltage range covers both 12 V and 24 V machinery, useful if you run a mixed fleet or move lights between platforms.

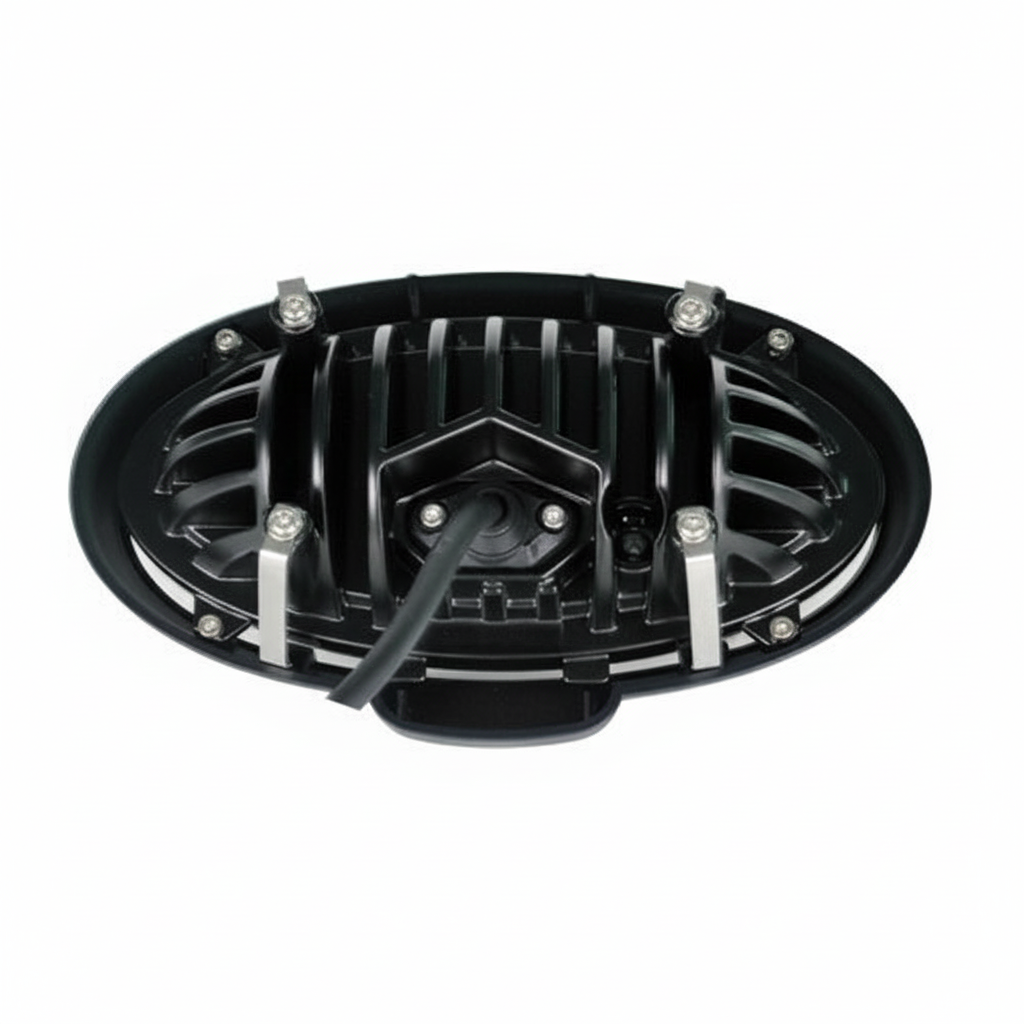

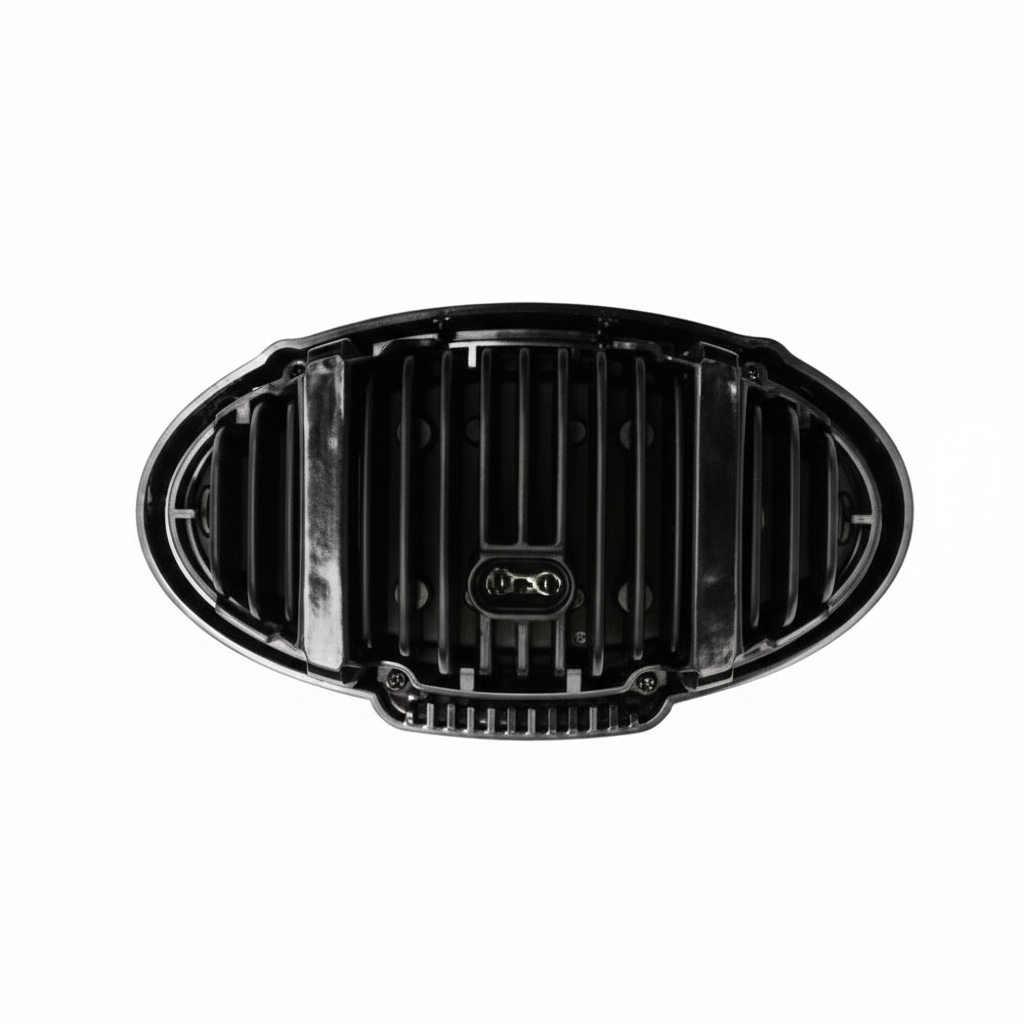

Mechanically, the LG834 is solid. The die-cast aluminium housing manages heat from the 60 W LED package and stands up to vibration levels tested to 15G, which is exactly what you want on heavy cultivators, front loaders and high-speed road work. With IP68 ingress protection, the unit is sealed against dust and can tolerate prolonged exposure to moisture, washing and field conditions. The compact footprint – 191 × 107 × 65 mm (W × H × D) – allows it to sit neatly in the cab insert position without fouling trim or panels.

Installation is straightforward on compatible John Deere models. The lamp is supplied with a 7024 plug and socket, so there’s no cutting into the loom on tractors using this connector style. It cross-references to O.E.M reference RE574752, making it a practical replacement or upgrade. Once fitted, the 50 000 h service life means you can forget about regular bulb changes and get on with the job.

Key Features

• 60 W CREE LED package using 6 × 10 W CREE XTE LEDs for high light output and proven reliability
• 4 800 lm flood beam providing wide, even work light around tractor, loader and implements
• 9–32 V DC input range, suitable for 12 V and 24 V systems across modern agricultural fleets
• 6 000 K cold white colour for daylight-style visibility and better contrast on ground, crop and implements
• Die-cast aluminium housing for efficient heat management and robust mechanical strength in harsh field conditions
• Lux performance: approx. 12 lux at 50 m and 1 lux at 186 m, giving practical throw as well as close-range spread
• IP68 ingress protection, sealed against dust and prolonged exposure to water and washdown environments
• Tested to 15G vibration, engineered for rough ground, heavy draft work and road transport
• ECE R10 approved and CISPR 25 Class 4 compliant, minimising electrical interference with radios, GPS and control systems
• Direct-fit style with 7024 plug & socket and O.E.M reference RE574752, simplifying replacement on listed John Deere models

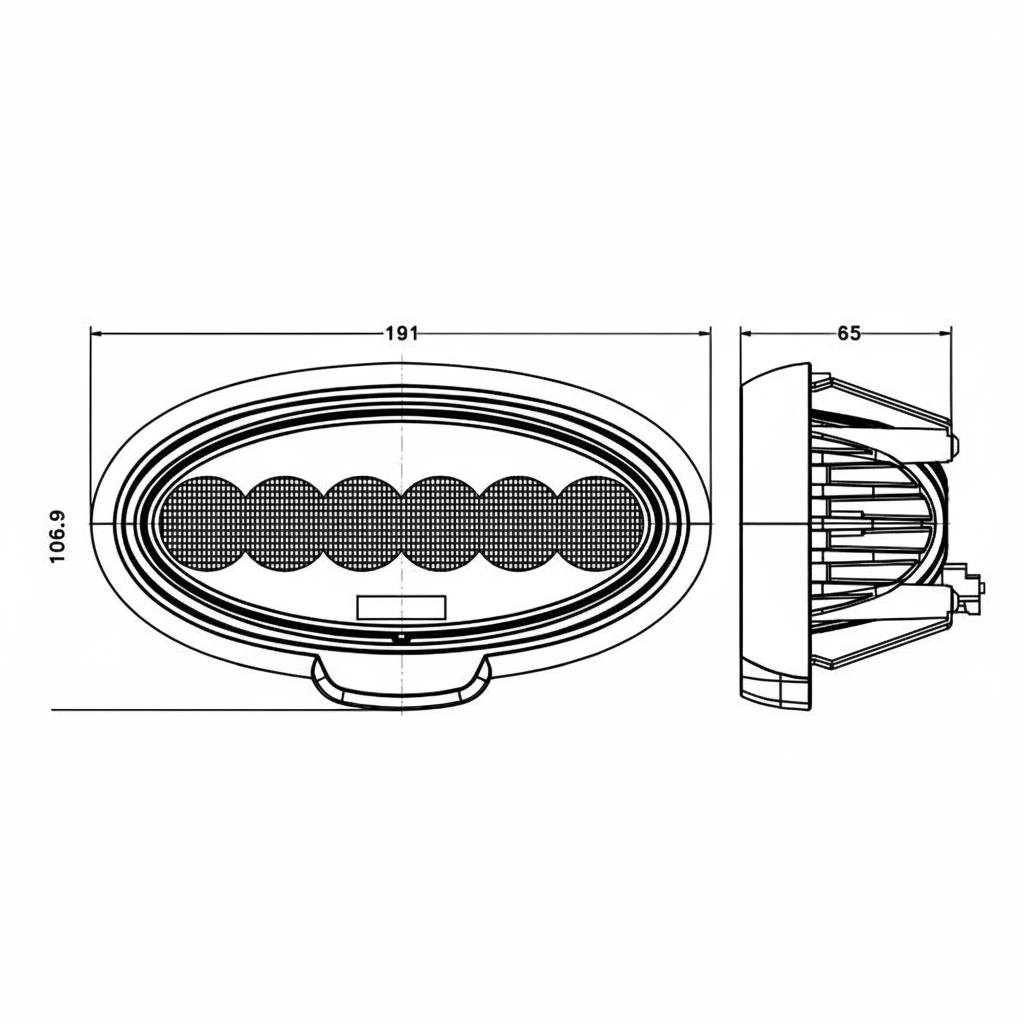

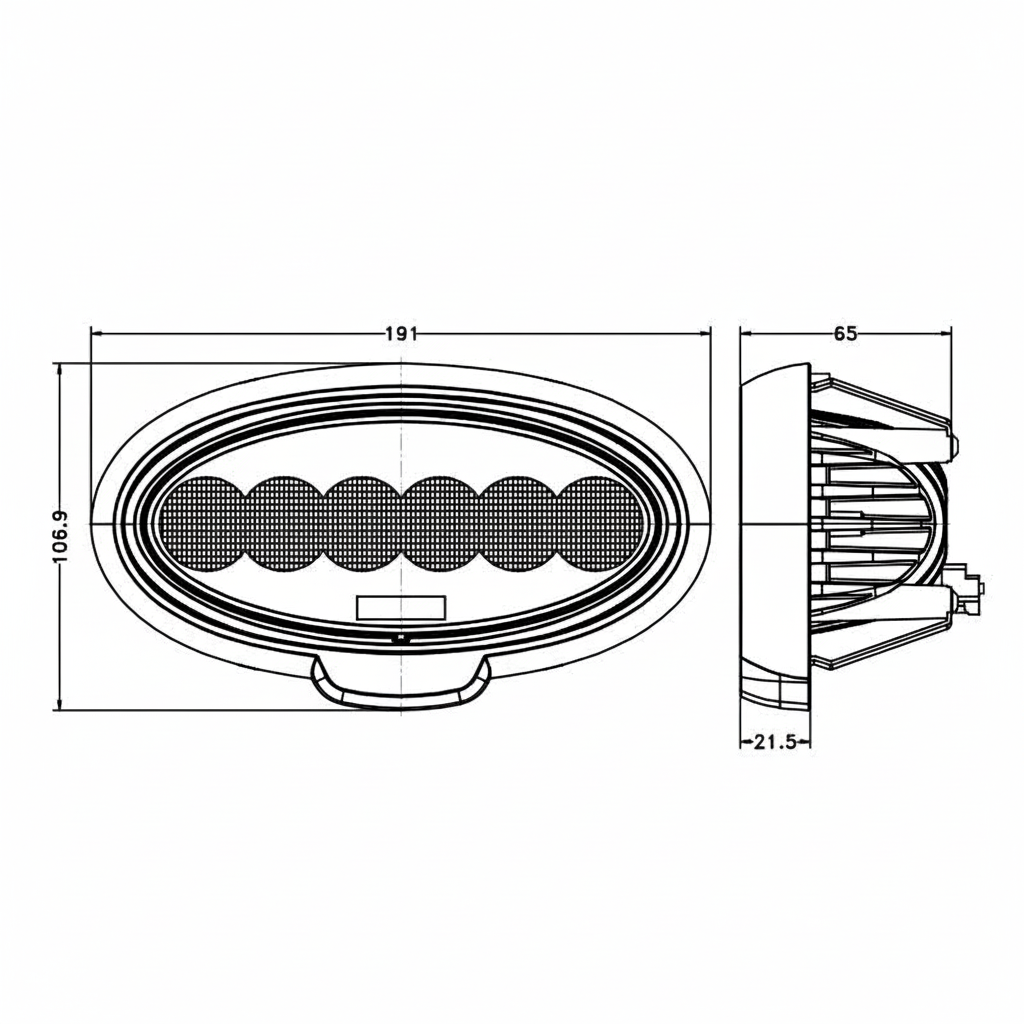

• Compact dimensions: 191 × 107 × 65 mm (W × H × D) for easy integration into cab insert locations
• Long 50 000 h service life, reducing downtime, maintenance and bulb replacement costs

Ideal Applications

• John Deere 5M and 5R Series tractors (e.g. 5065M to 5115M, 5080R to 5125R) needing cab insert work light upgrades
• John Deere 6R, 7R, 8R and 9R Series tractors working long hours in tillage, drilling, spraying and transport
• Front loader work, bale handling and yard operations where wide-area flood lighting improves safety
• Contracting fleets wanting consistent LED lighting across multiple John Deere models
• Mixed arable, dairy and livestock farms looking to replace halogen cab lights with a durable LED solution

Original equipment names, series numbers and references are provided for compatibility guidance only and do not imply OEM manufacture.
