9–33 Volts LED Slim Tail Light Pair – LG530

The LG530 9–33 V LED slim tail light pair gives you stop, tail, and indicator functions in one neat, low‑profile unit. Designed for 12 V and 24 V systems, it suits modern commercial vehicles where space is tight but visibility is non‑negotiable. ECE approved, IP67 rated and CISPR 25 Class 3 compliant, it delivers reliable, road‑legal signalling without radio interference.

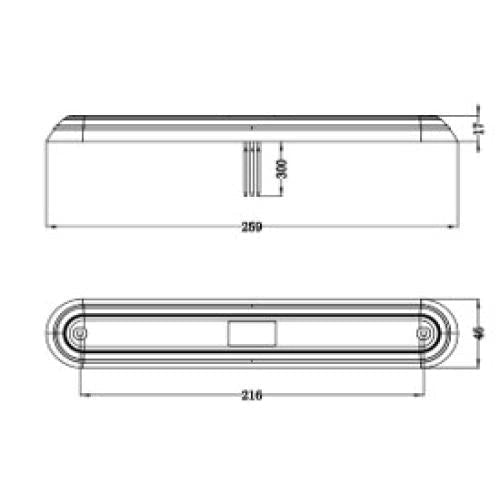

These slim LED tail lights are built for everyday work. At 259 × 46 × 17 mm, they sit close to the bodywork, so they’re far less likely to be knocked off in tight yards, forestry tracks, or city deliveries. Despite the compact size, the light output is clear and well defined, so other road users can instantly read your braking and signalling.

The 9–33 volt operating range means they drop straight onto 12 V or 24 V electrical systems, from light commercials and trailers through to trucks, plant and agricultural kit. Two mounting options give you flexibility at installation: use the flush-mount gasket where you want a clean, integrated look, or the surface-mounted bracket where you’re retrofitting to existing bodies or gantries.

Safety and compliance are baked in, not bolted on later. The LG530 is ECE approved for use on European roads, and its CISPR 25 Class 3 EMC performance helps protect radios, GPS, and telematics from interference. With an IP67 ingress protection rating, the units are sealed against dust and withstand temporary immersion, so repeated washing and heavy spray are not a problem.

Installation is straightforward for any competent auto electrician or fleet workshop. The pair is supplied ready to wire as stop / tail / indicator lamps, replacing bulky traditional units with an efficient LED solution that draws less current and offers a much longer service life.

Key Features

• Wide operating voltage: 9–33 V – stable performance on both 12 V and 24 V vehicle systems, ideal for mixed fleets.
• Three functions in one unit – stop / tail / indicator combined, reducing cable runs, fittings, and spare stock.
• Slim, compact design: 259 × 46 × 17 mm – low profile reduces impact damage risk and suits tight bodywork recesses.
• ECE approved – compliant with European road lighting regulations for legal on‑road use when correctly installed.
• EMC: CISPR 25 Class 3 – designed to minimise radio frequency interference with communication, tracking, and control equipment.
• Ingress protection: IP67 – fully dust‑tight and protected against temporary immersion, ideal for vehicles that see heavy spray and frequent washing.
• Two mounting options – supplied with flush-mount gasket and surface-mount bracket for flexible installation on new builds or retrofits.
• Supplied as a matched pair – ensures consistent light pattern and appearance across both sides of the vehicle.
• LED technology – low current draw, fast response, and long service life compared to incandescent tail lamps.

Ideal Applications

• Commercial vans and rigid trucks needing slim rear combination lamps with stop, tail, and indicator in one unit.
• Trailers and plant transporters where low profile lights are less exposed to loading damage.
• Agricultural and forestry equipment working in rough terrain and tight gateways.
• Municipal and utility fleets that demand ECE‑approved, EMC‑safe lighting with long service intervals.
• Construction, quarry, and off‑highway vehicles that face mud, spray, and regular pressure washing.

Why Choose LED-Global Lighting
