96 Watt LED Fern- und Abblendlicht-Scheinwerfer mit Tagfahrlicht - LG832EU

96 Watt LED High Low Beam Headlight with DRL – LG832EU

This 96 W LED high/low beam headlight with DRL is built for heavy tractors and agricultural machines that work long days and longer nights. It delivers a tight, road-legal beam pattern for Ireland and UK, with a bright daytime running light to keep you seen on lanes, yards, and public roads. Fully ECE approved and EMC-safe, it replaces common OEM oval units on Massey Ferguson, John Deere, New Holland, Claas and others with a serious upgrade in light output and durability.

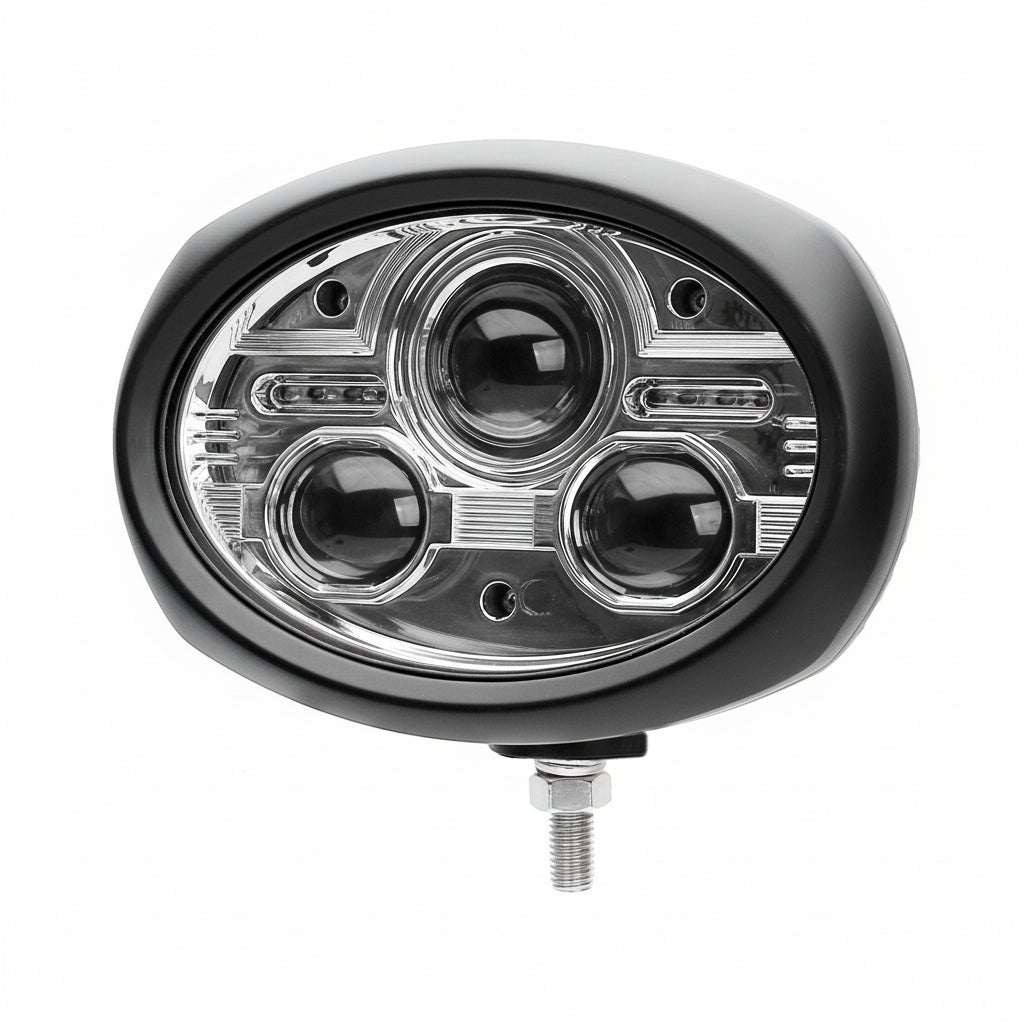

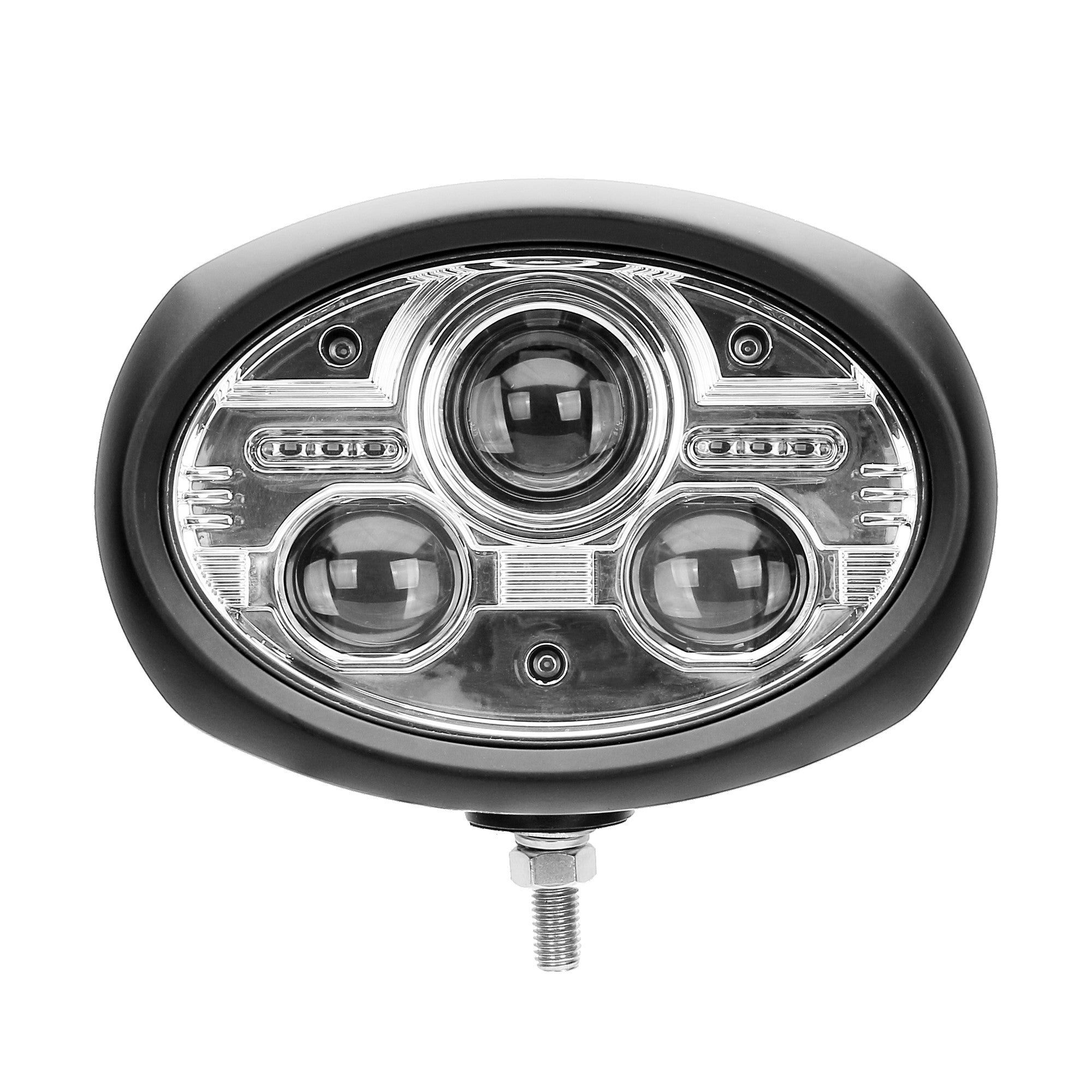

You know the problem. Standard halogen or tired OEM lamps give a yellow, patchy beam and fade even faster when the tractor shakes its way through a long season. This LG832EU 96 W LED headlight solves that with high-intensity CREE XTE LEDs, producing up to 5,600 lumens of crisp 6000 K cold-white light. High beam, low beam and integrated DRL (Daytime Running Light) are all built into one rugged, oval housing.

High beam draws 60 W, low beam 30 W, with a dedicated 6 W DRL for daytime visibility without glare. The optic system is engineered for Ireland/UK left-hand traffic pattern, so the cut-off is clean, predictable and ECE R112 compliant for use on the road. At 50 m the beam still delivers 12 lux, and it reaches out to 186 m at 1 lux, so you can see headlands, gateways and obstacles in time to react, not guess.

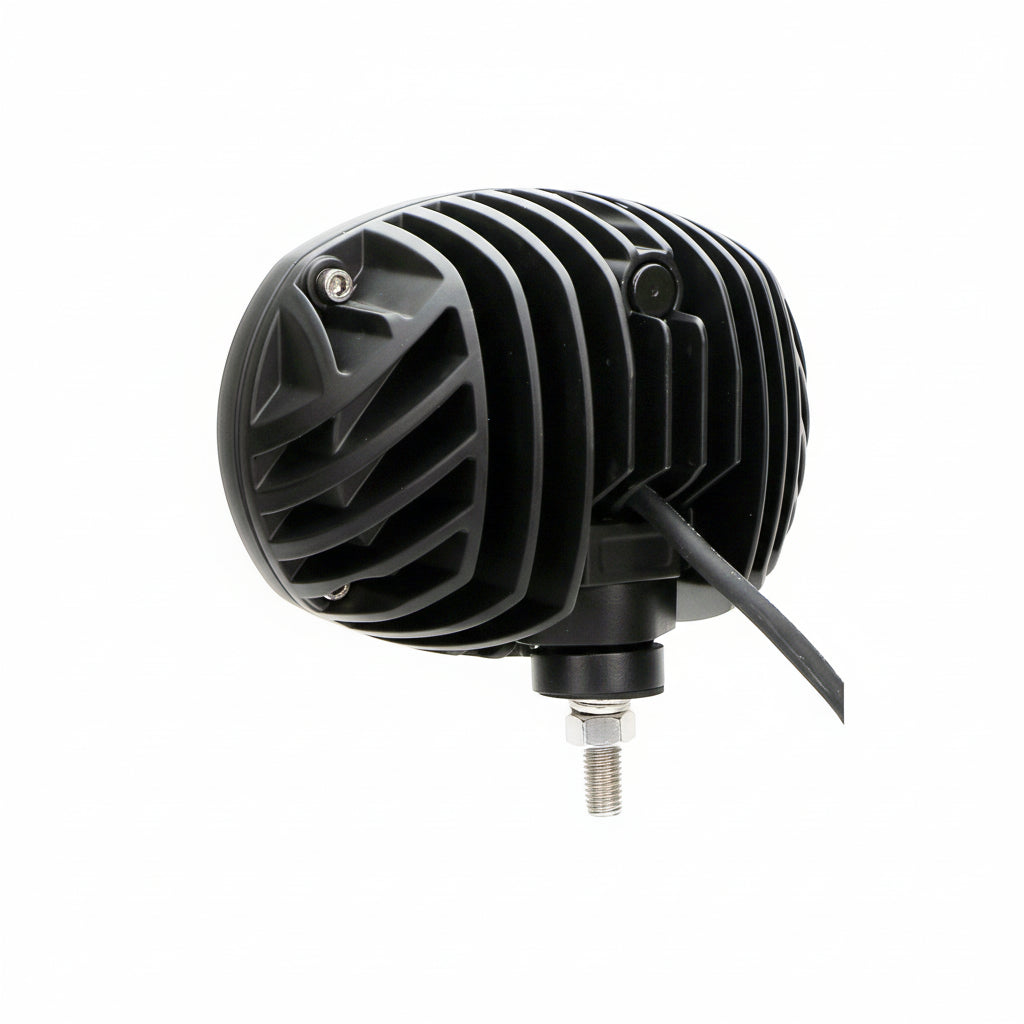

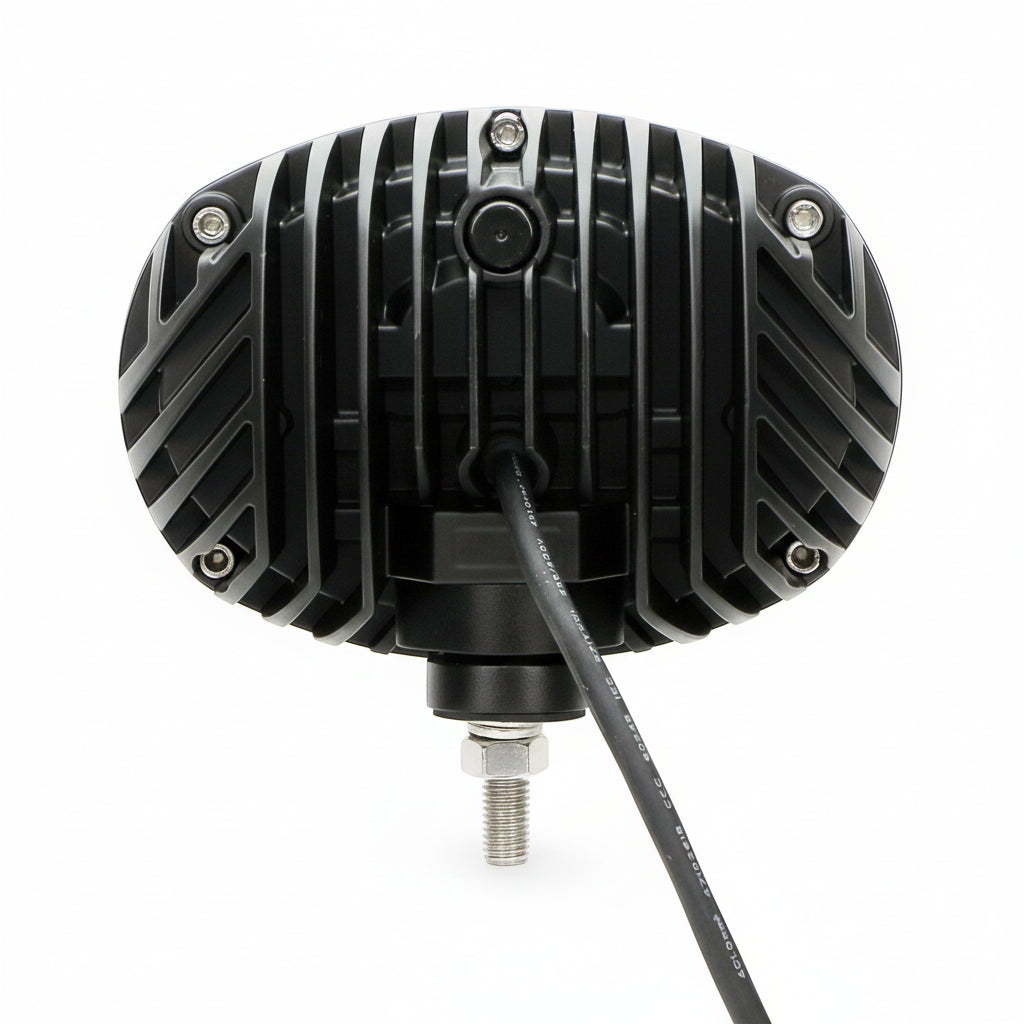

The die-cast aluminium housing and fully sealed construction carry a tough IP68 rating, so dust stays out and the unit handles high-pressure washing and wet field work. It’s tested to 15 G vibration, which matters on tractors, telehandlers and harvesters where cheaper lights crack, fog or lose connections. EMC performance is equally serious: CISPR 25 Class 4 and ECE R10 approved, so it won’t upset radios, ISOBUS, GPS receivers or other electronics in the cab.

Electrically, it’s built for mixed fleets with a 9–32 V DC input range, so one part number covers 12 V and 24 V systems. Physical size is 208 × 154 × 118 mm (W × H × D), and it’s designed as a direct LED replacement for several OEM references, including 4291301M92, 4291301M91, 4384408M1, RE229115 LHT, RE2299111 RHT, ACW0422120. That means minimal bracket work, straightforward swap-out, and a clean integration into existing headlight pods.

Key Features

• Combined 96 W LED high/low beam with DRL – one compact oval unit replaces separate lamps and simplifies wiring and mounting.
• High beam 60 W / low beam 30 W / DRL 6 W – clear power split gives strong distance light, controlled dipped beam and efficient daytime running.
• Up to 5,600 lm luminous flux – far brighter than halogen, with proven CREE XTE high-intensity LEDs for long service life.
• 6000 K cold-white output – sharp, daylight-style colour that improves contrast on tracks, stubble, mud and yard surfaces.
• Ireland / UK headlight pattern – engineered dipped beam cut-off for left-hand traffic, compliant for on-road use.
• Measured performance: 12 lux at 50 m; 1 lux at 186 m – real, tested figures so you know exactly how far you can see.
• Rugged die-cast aluminium housing – manages LED heat correctly and provides a solid, corrosion-resistant shell for heavy-duty work.
• Ingress protection IP68 – fully dust-tight and built to handle immersion and aggressive cleaning typical of farm and contractor fleets.
• Vibration tested to 15 G – proven on machinery with harsh suspension and heavy implements, where lesser lights fail or flicker.
• ECE approved: R10, R112, R148 – road-legal headlamp and DRL operation with stable EMC behaviour on modern electronic vehicles.
• EMC: CISPR 25 Class 4 – high-level radio-frequency suppression to protect GPS, radios and control systems from interference.
• Wide input 9–32 V DC – suitable for both 12 V and 24 V systems across tractors, loaders, sprayers and harvesters.
• Size 208 × 154 × 118 mm (W × H × D) – compact oval footprint suited to many OEM pods and front fascia designs.
• OEM cross-references – replaces 4291301M92, 4291301M91, 4384408M1, RE229115 LHT, RE2299111 RHT, ACW0422120 for an easy LED upgrade.

Ideal Applications

• Massey Ferguson tractors including 8600, 8600 Series, 4700, 5700, 6600, 7600 and 8700 ranges as a direct or near-direct headlight upgrade.
• John Deere, New Holland, Claas, Case, Landini, Fendt and David Brown tractors and harvesters using the compatible oval headlamp format.
• Front headlights on heavy agricultural tractors and loaders working long hours in fields, yards, forestry tracks or municipal work.
• Contractor and fleet retrofits where reliable, EMC-safe LED lighting is required across mixed brand machinery.
• Road-going agricultural and municipal vehicles that need E-marked, UK/Ireland pattern LED headlamps with integrated DRL.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered lighting that does what the spec sheet promises, day in, day out. Every headlight like the LG832EU is built around proven components, realistic light measurements and proper approvals, so you can fit it once and trust it in the field and on the road. That’s why contractors, farmers and fleet managers across Europe rely on us for road-legal, EMC-safe and hard-wearing LED upgrades that simply make night work safer and easier.
