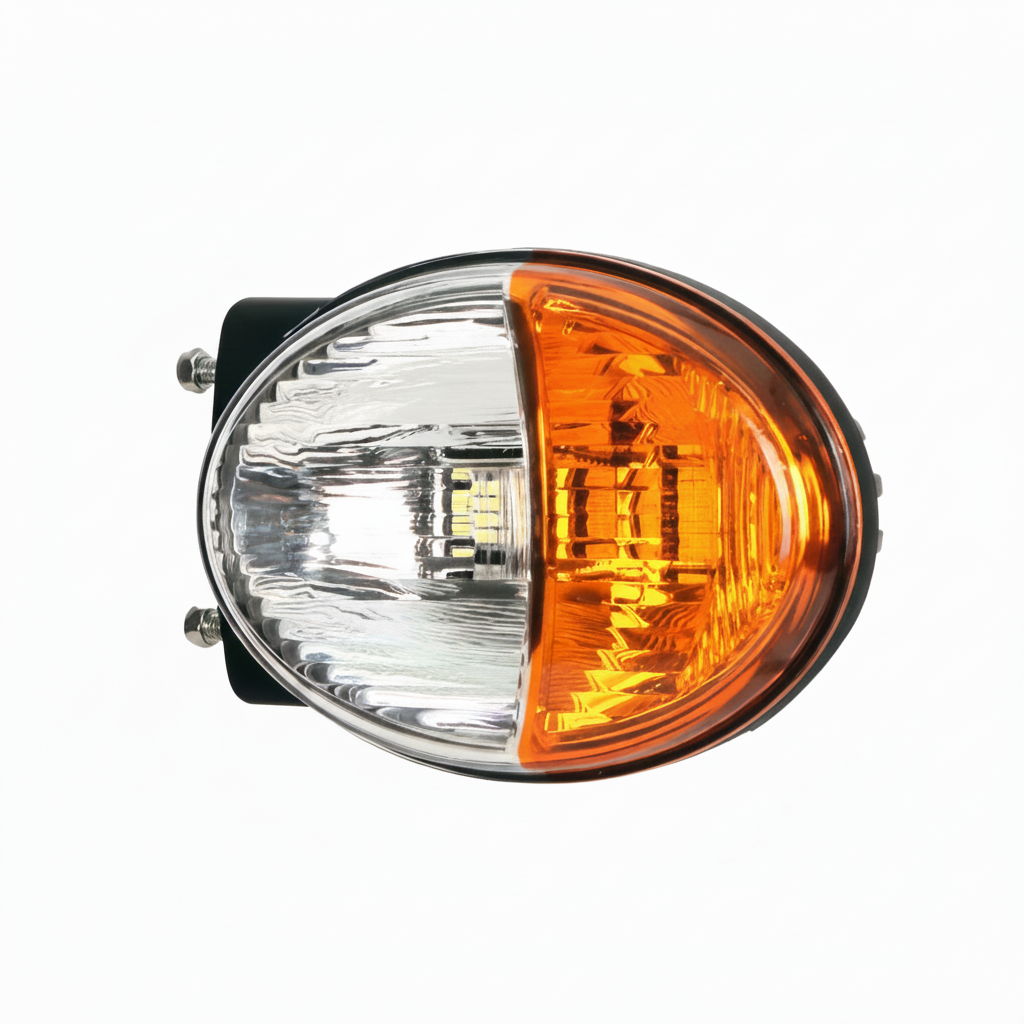

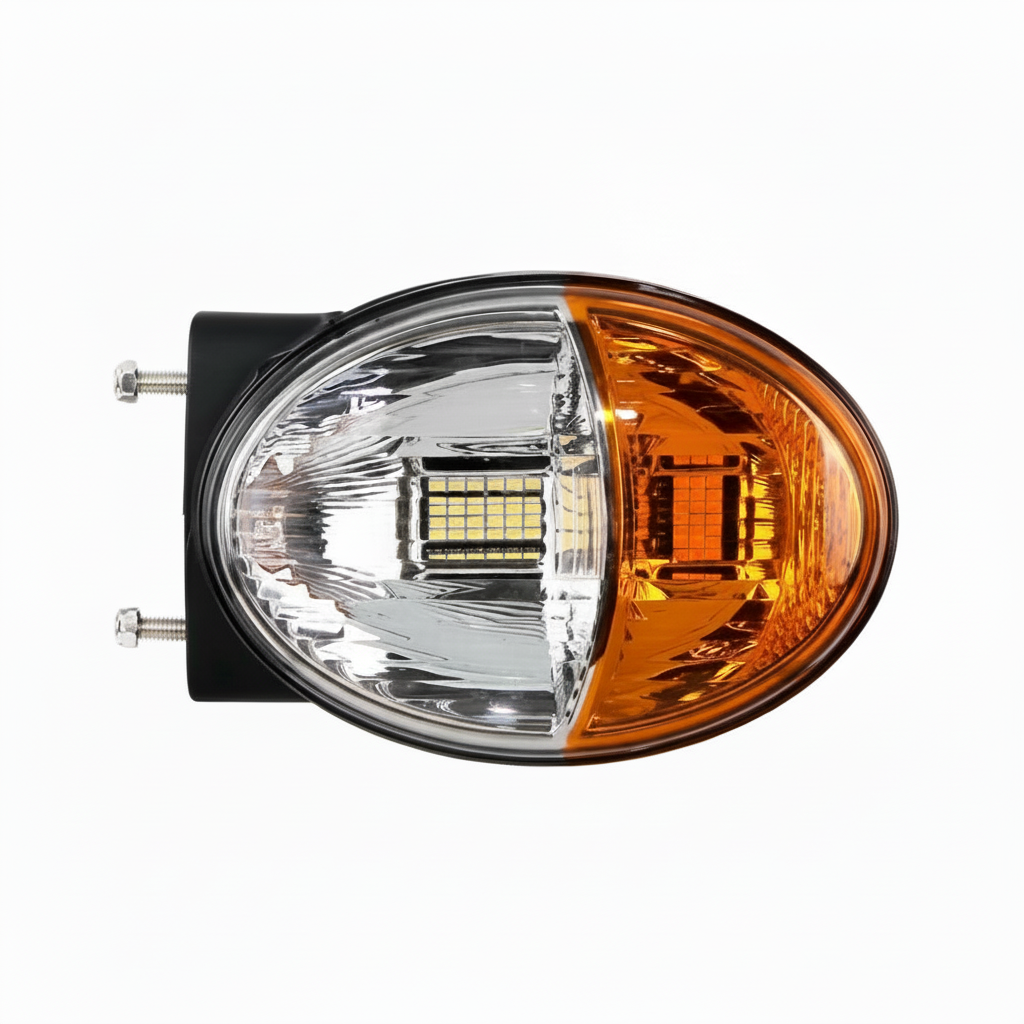

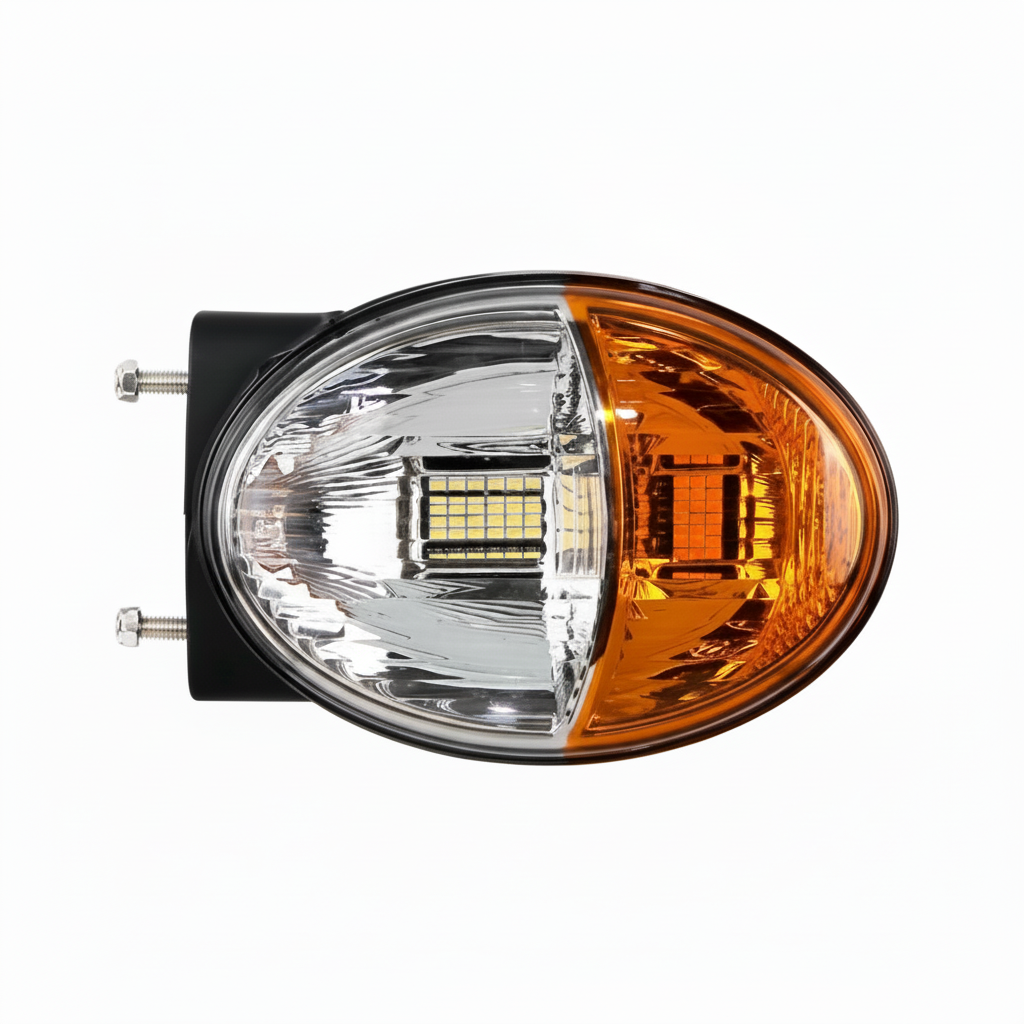

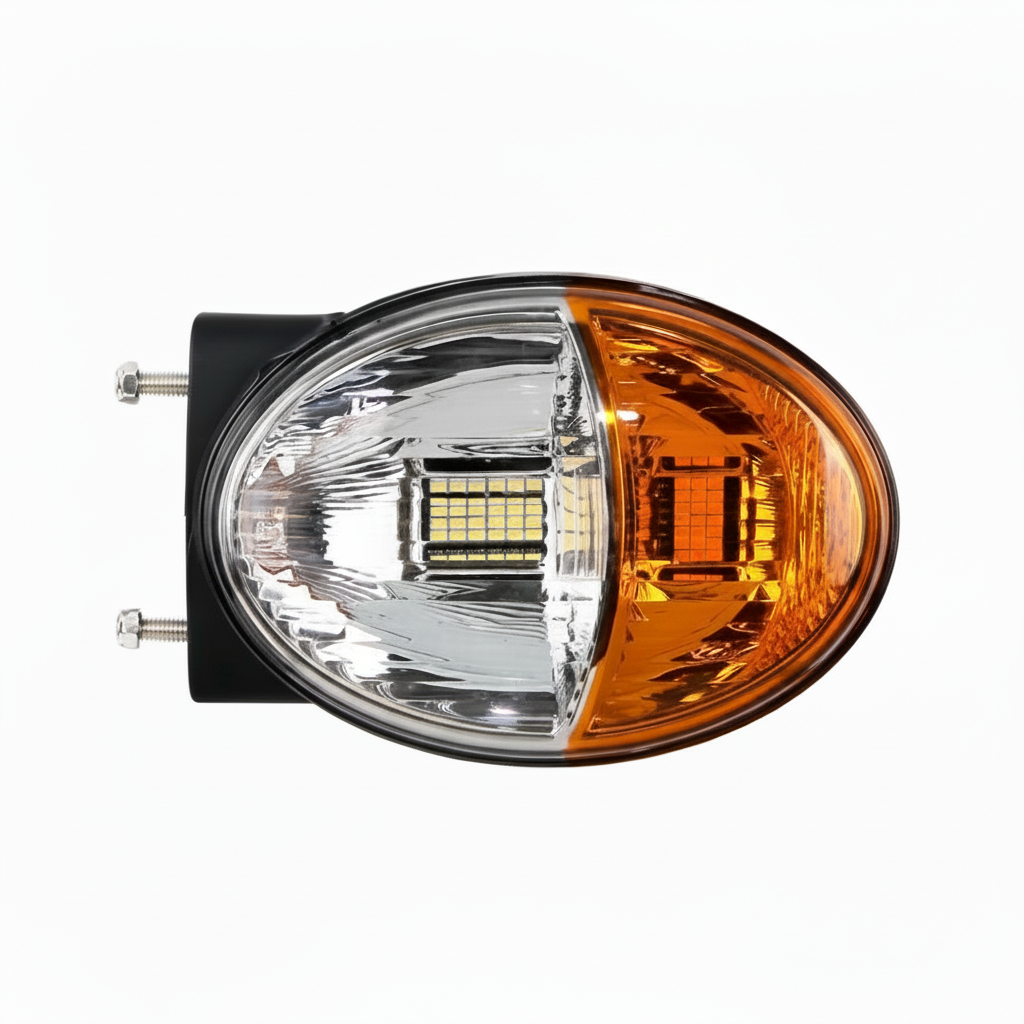

Front-LED-Positionsleuchte mit Blinker - LG126

Front LED Position Light with Turning Indicator – LG126

The LG126 front LED position light with turning indicator is a compact, high-output unit built for modern tractors and agricultural machinery. It combines a bright position lamp with a crisp front indicator in one robust housing, cutting wiring clutter and downtime. With E-Mark and ECE R10 approvals plus CISPR 25 Class 4 EMC performance, it’s engineered to stay stable and radio-quiet in harsh working conditions.

This front LED position and indicator lamp uses high-efficiency CREE LEDs and a 24 W nominal power draw for strong visibility with low current load. It runs on 9–32 V DC, so it’s perfectly suited to both 12 V and 24 V electrical systems across mixed fleets. The powder-coated aluminium housing gives solid mechanical protection and excellent heat dissipation, supporting a 50,000 h design lifetime for long service intervals and predictable maintenance planning.

The lamp is tested to IP68 ingress protection, so it’s sealed against dust and resistant to long-term immersion, ideal for tractors and off-road machines that live in mud, rain, and washdown environments. Vibration testing to 15G means it will cope with heavy ground engaging work, road transport, and front-loader use without LEDs shaking loose or connections failing. EMC performance is proven to CISPR 25 Class 4, so your radio, GPS, ISOBUS and telemetry systems stay clean and usable even when lighting is fully loaded.

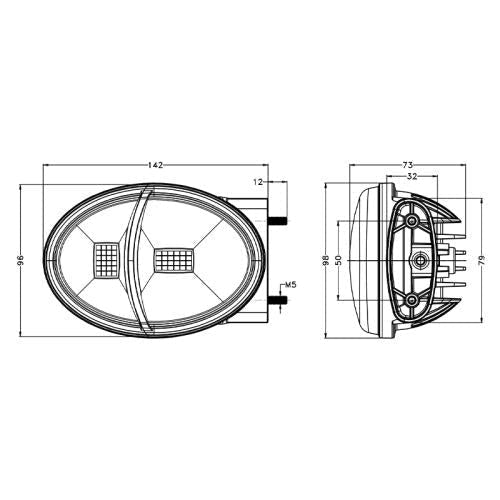

Physically, the LG126 is compact at 142 × 96 × 73 mm (W × H × T), making it easy to position on tractor fronts, weight blocks, or custom brackets without blocking grille airflow. It’s designed as a direct-fit option for Massey Ferguson front light systems and is listed as compatible with multiple series, including the 5600, 5700, 5S and 8S ranges, so fleet upgrades are straightforward. Installation is simple for any competent auto electrician: standard 9–32 V wiring, no external control modules, and a single unit handling both the position and indicator function.

Key Features

• Combined front position and indicator lamp – one compact unit providing clear position light and a sharp, highly visible turning signal.
• Nominal 24 W power – efficient LED output with lower current draw than halogen, ideal for machines with many auxiliary loads.
• Wide 9–32 V DC operating range – stable operation on both 12 V and 24 V systems across mixed tractor and machinery fleets.
• High-quality CREE LEDs – proven LED technology for strong light output and a 50,000 h design lifetime.
• Powder-coated aluminium housing – robust, corrosion-resistant body that manages heat and survives daily farm use.
• IP68 ingress protection – fully dust-tight and resistant to long-term immersion, suited to off-road, wet and dirty conditions.
• EMC to CISPR 25 Class 4 – advanced radio frequency suppression to protect radios, GPS, ISOBUS and other sensitive electronics.
• ECE R10 approved – compliant with automotive EMC standards, supporting road use where fitted as part of an approved lighting system.
• Vibration tested to 15G – designed for tractors, loaders and off-road plant working over rough ground and at transport speeds.
• Compact size: 142 × 96 × 73 mm – easy to mount on front linkages, weight blocks, custom brackets or OE positions.

Ideal Applications

• Front position and indicator lighting on tractors, especially Massey Ferguson 5600, 5700, 5S and 8S series.
• Agricultural telehandlers, loaders and yard tractors needing durable, EMC-safe front signalling lights.
• Municipal and contractor fleets where machines operate both on-road and off-road and require clear, legal front signalling.
• Construction and quarry equipment that demands rugged LED position and indicator lighting in dusty, high-vibration environments.
• Retrofit upgrades from halogen to LED on older tractors or mixed fleets to reduce maintenance and current draw.
