LED-Schraubanker-Warnleuchte - LG677

LED Bolt Down Beacon – LG677

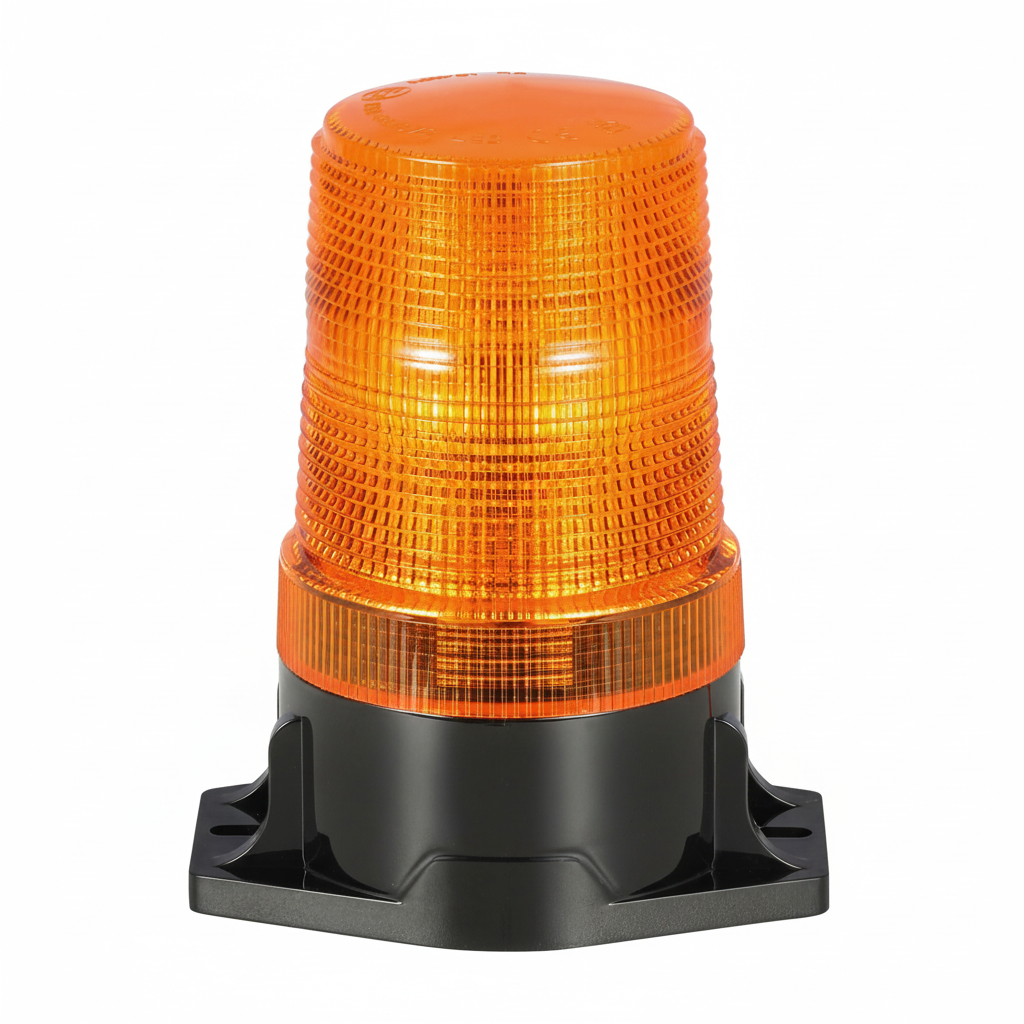

The LED bolt-down beacon LG677 is a compact, high-impact amber warning beacon designed for forklifts and industrial vehicles that can’t afford downtime. It delivers strong 360° visibility from 30 high-output LEDs, runs on 10–80 V systems, and is ECE R10 and CISPR 25 Class 3 approved for EMC safety. With an IP67 ingress rating and rugged bolt-mount base, it’s built for harsh industrial yards, warehouses, and plant environments.

This beacon solves a simple but critical problem: being seen in busy, noisy workspaces. The LG677 gives operators and site managers a reliable, low-profile warning light that works across mixed fleets, from older 12 V machines to modern 80 V electric forklifts. One proven flash pattern keeps things clear and unambiguous for everyone on site.

With its 130 × 100 mm footprint (diameter × height), the beacon stays compact enough for masts and roofs where clearance is limited, but still throws out a wide, clean amber signal. The IP67 rating means the housing is fully dust-tight and can withstand temporary immersion, so washdowns, rain, and grime are not an issue in day-to-day operation.

Electrical noise is a common headache around industrial trucks and chargers. That’s why this unit is approved to ECE R10 and CISPR 25 Class 3, helping to protect radios, telematics, and other sensitive electronics from interference. It’s a solid fit for safety-conscious fleets that need warning beacons which won’t upset CANbus systems or on-board electronics.

Installation is straightforward. The bolt-down mount gives a secure mechanical fixing to cabins, canopies, and equipment enclosures, and the wide 10–80 V DC range covers most industrial platforms without extra converters. Once fitted and wired, it’s a low-maintenance safety asset with solid-state LEDs and no bulbs to replace.

Key Features

• Wide voltage range 10–80 V DC – ideal for mixed fleets, including electric forklifts, warehouse trucks, and industrial plant.
• 30 high-performance LEDs – bright 360° amber warning, engineered for high visibility in busy industrial environments.
• Bolt-down mounting – secure mechanical fixing for forklifts, material handling equipment, and plant machinery operating on rough ground.
• Single, clear flash pattern – consistent warning signal that’s easy for pedestrians and operators to recognise.
• Amber flash colour – proven, site-friendly warning colour for warehouses, yards, and loading bays.
• IP67 ingress protection – dust-tight housing and protection against temporary immersion; suitable for outdoor use and pressure rinsing.
• ECE R10 approved – meets automotive EMC standards to reduce the risk of electrical interference with vehicle systems.
• CISPR 25 Class 3 compliant – designed for low electromagnetic emissions, supporting clean operation around radios and telematics.
• Compact dimensions: 130 × 100 mm (D × H) – low profile beacon for masts, roofs, and gantries with limited space.
• Solid-state LED design – no filament bulbs, low current draw, and long service life for reduced maintenance.

Ideal Applications

• Forklifts and reach trucks in warehouses, distribution centres, and cold stores.
• Industrial towing tractors and pallet trucks in logistics hubs and factories.
• Construction site utility vehicles and site service equipment.
• Plant and machinery in recycling facilities, quarries, and industrial yards.
• Airport, seaport, and terminal support vehicles operating off-highway where clear visual warning is essential.

Why Choose LED-Global Lighting

LED-Global focuses on high-performance vehicle lighting engineered for demanding European industrial and commercial environments. Products like the LG677 beacon are specified with installers, fleet managers, and safety officers in mind: clear approvals, honest performance, and hardware built to last. Every unit is backed by our technical know-how, practical support, and a commitment to reliable, standards-compliant lighting that keeps your people and your assets visible.
