LED-Magnetmontierte Warnleuchte - Grün - LG697

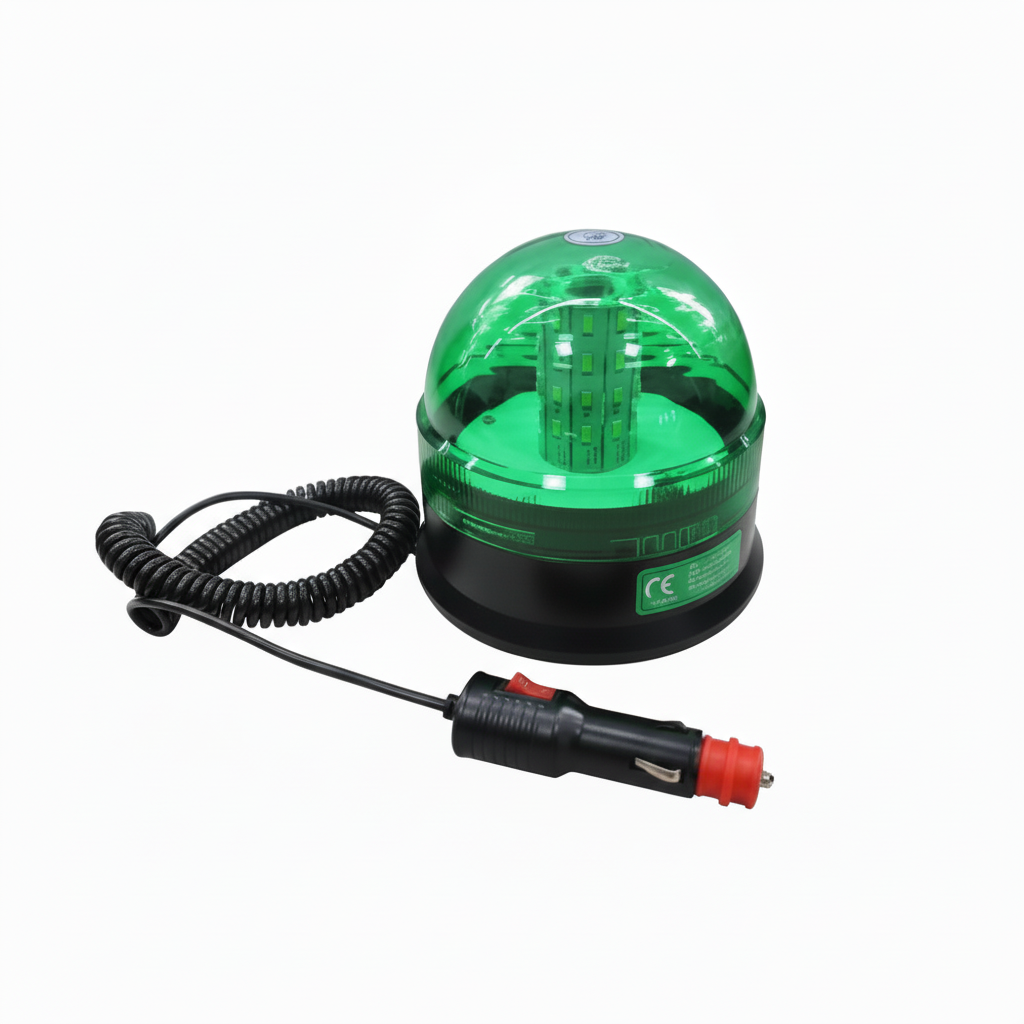

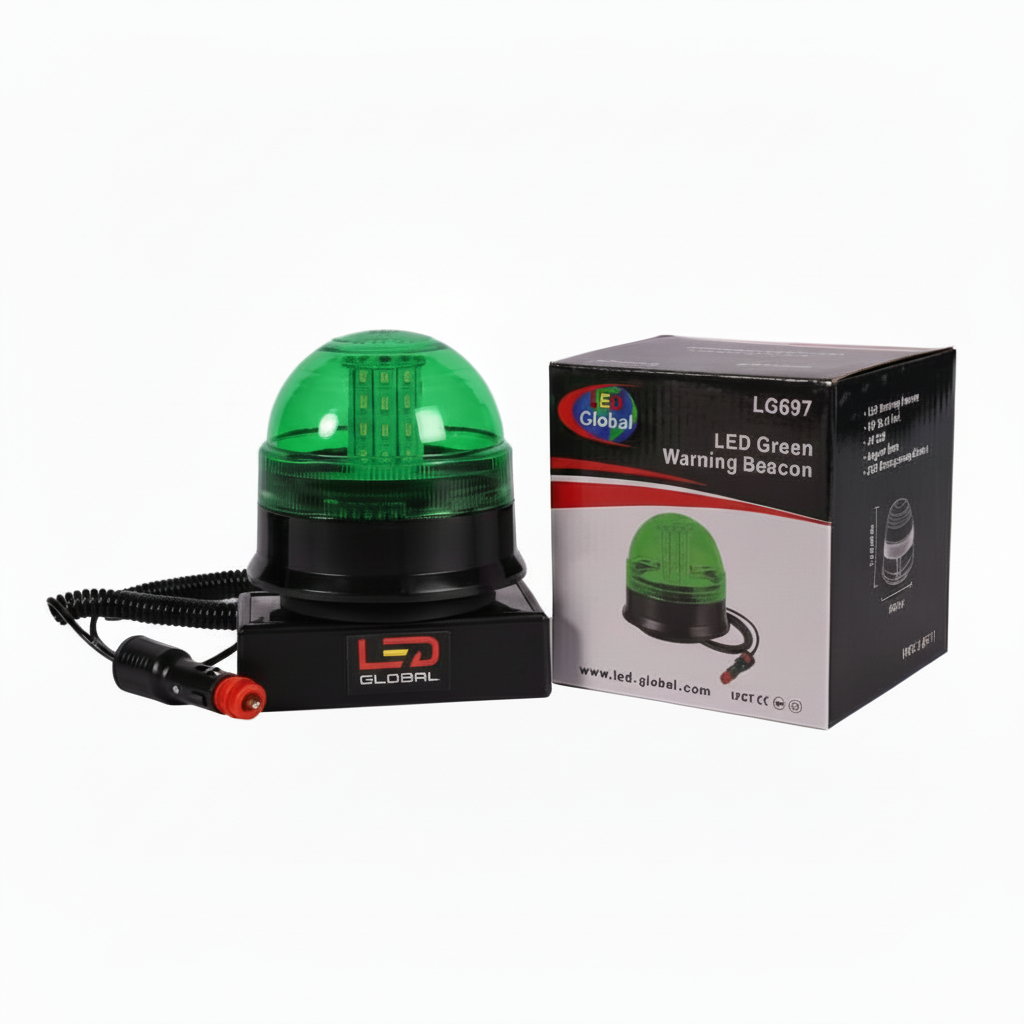

LED Magnetic Mounted Warning Beacon – Green – LG697

This green LED magnetic mounted warning beacon gives clear, high-output 360° signalling without hard-wiring or drilling. It’s built for professional use on fleets, agricultural kit and construction machinery where equipment must be seen and kept compliant. ECE R10 and CISPR 25 Class 3 approvals help protect radio and CAN systems from interference, even on sensitive modern vehicles.

You need a beacon that stays put, takes a beating, and does not upset the electrics. That’s exactly what the LG697 is engineered for. Running on 10–30 V systems, it suits both 12 V and 24 V vehicles, so you can move it between vans, tractors, telehandlers or plant without thinking twice.

The magnetic base and high quality flexible rubber stem give a solid hold and impact resistance. If it’s knocked by a loader arm or tree branch, the stem flexes instead of snapping, reducing downtime and replacement costs. With 40 SMD LEDs, light output is strong and even, giving a clear green signal in daylight and at night.

The unit offers 3 flash patterns, so you can match site policy or operator preference. Rated IP67, it’s protected against dust and temporary immersion, so it handles heavy rain, wash-downs and dirty yards. ECE R10 approval and EMC – CISPR 25 Class 3 mean it’s designed to limit radio frequency interference, helping keep communications, GPS and other electronics stable.

Because it’s suitable to work with seat belts systems, it’s a good fit where green beacons are used to show seat belt engagement or authorised driver status. Dimensions of 136 mm x 140 mm keep the profile compact while still providing a visible, professional warning package.

Key Features

• 10–30 V operating range – works on both 12 V and 24 V vehicle systems for flexible fleet use
• Magnetic mounted base – fast installation and removal with no drilling or permanent fixings
• High quality flexible rubber stem – absorbs knocks and vibration, reducing damage on busy sites
• 40 SMD LEDs – high-efficiency diodes for strong, uniform green light output and long service life
• 3 selectable flash patterns – choose the warning pattern to suit site rules or operating conditions
• IP67 rated housing – fully dust-tight and protected against temporary immersion, ideal for outdoor and wash-down environments
• ECE R10 approved – compliant with automotive EMC standards for reliable operation on modern vehicles
• EMC – CISPR 25 Class 3 – designed to limit radio frequency interference with radios, GPS and vehicle electronics
• Suitable to work with seat belt indication systems – ideal where green beacons are used for seat belt or operator status signalling
• Compact size: 136 mm x 140 mm – easy to position on roofs, cabs and machinery without obstructing other equipment

Ideal Applications

• Agricultural machinery – tractors, sprayers, telehandlers and loaders where operators need a clear green status beacon
• Construction and plant – excavators, dumpers, rollers and site vehicles on controlled-access worksites
• Commercial fleets – vans, utility vehicles and service trucks using green beacons for safety officer or first responder identification
• Industrial and warehouse environments – electric vehicles, tugs and maintenance machines needing visible status indication
• Training centres and test facilities – vehicles where seat belt or authorised driver indication must be obvious to instructors and observers

Why Choose LED-Global Lighting

LED-Global specialises in high-performance European vehicle lighting for demanding professional fleets. Products like the LG697 are built around proven LED technology, robust housings and correct approvals, so they integrate cleanly with modern vehicles and keep working in tough conditions. Every unit is specified with installers, fleet managers and operators in mind, backed by consistent quality control and practical, engineer-led design.
