LED Positionsleuchte mit Halterung (WEISS) - LG134

LED Marker Light with Bracket (White) – LG134

Compact, robust and bright, the LG134 white LED marker light with bracket gives clean, high-contrast side visibility wherever you need it. It’s engineered in Europe with high‑intensity OSRAM LEDs, pre‑wired, and ready for quick installation on trucks, trailers, agricultural and construction equipment. Fully ECE approved with built‑in EMC suppression, it’s a tidy, compliant solution for professional fleets.

This white LED side marker is designed for one job. Be seen, every time. Four 1.25 W OSRAM diodes sit behind a precision PMMA lens and mirror reflector, producing a crisp, even marker light while drawing only 0.6 W. That means low current draw, minimal load on the wiring loom, and long-term reliability on both 12 V and 24 V systems (9–33 V DC).

The heavy-duty plastic housing and IP67 splashproof construction protect the electronics from dust and water ingress during daily use. It’s built for trucks running year-round, plant working in mud, and trailers that live outdoors. With a rated lifetime of 50,000+ hours, you fit it once and get on with the job, instead of chasing blown bulbs.

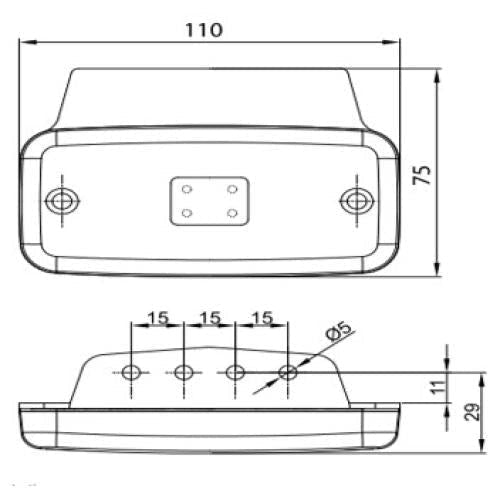

Mounting is simple. The LG134 comes pre-wired and supplied with a removable bracket, giving you two mounting options depending on bodywork and available space. At 114 mm (W) × 70 mm (H) × 18.8 mm (T), it’s slim enough for tight spots, but big enough to be noticed. ECE approval and EMC / radio suppression mean it plays nicely with modern vehicle electronics and remains road-legal where a compliant white marker is required.

Key Features

• High-intensity OSRAM LEDs – 4 × 1.25 W diodes delivering a bright, clean white marker light for excellent side visibility.
• Low power draw – 0.6 W nominal – protects batteries and alternators, ideal for multi-axle trailers and large fleets.
• Wide voltage range 9–33 V DC – works on both 12 V and 24 V vehicles without modification.
• Long service life – 50,000+ hours – proven solid-state design reduces downtime and replacement costs.
• Heavy-duty plastic housing – tough, impact-resistant body built for commercial and off-road environments.
• PMMA lamp finish with mirror reflector technology – sharp, uniform light output and good optical efficiency.
• IP67 splashproof construction – sealed against dust and high-pressure spray, suitable for harsh European weather and regular washing.
• ECE approved / e-marked – road-legal where white marker lights are required, aligned with European lighting standards.
• EMC / radio suppression built in – avoids interference with radios, GPS, CANbus and other sensitive electronics.
• Removable bracket included – two mounting options for flexible install on body panels, mudguards or chassis members.
• Pre-wired for fast installation – reduces wiring time and simplifies retrofits.

Ideal Applications

• Truck and trailer side markers on curtainsiders, box bodies, low-loaders and refrigerated units.
• Agricultural machinery, including tractors, seeders, sprayers and balers needing clean white position or marker lighting.
• Construction and plant equipment – excavators, dumpers, telehandlers and site trailers.
• Light commercial vehicles and recovery trucks that require additional side visibility.
• Specialist and municipal vehicles, such as refuse trucks, sweepers and maintenance fleets.

Why Choose LED-Global Lighting

LED-Global focuses on European-engineered, high-performance vehicle lighting that simply does what it claims. Every lamp is specified with quality components, robust sealing and proper EMC control, so it integrates cleanly into modern fleets without drama. Products like the LG134 are chosen by operators who care about uptime, compliance and clear, consistent light output. If you want marker lights you can fit once and rely on, this is exactly what they’re built for.
