LED Ovaler Positionsleuchte mit Halterung (WEISS) - LG183

LED Oval Marker Light with Bracket (WHITE) – LG183

The LED Oval Marker Light with Bracket LG183 is a compact, road-legal white marker engineered for trucks, trailers and heavy equipment that need clear side visibility and long service life. It uses high-intensity OSRAM LEDs and a smart mirror reflector to deliver a clean, crisp 6000 K white outline with minimal power draw. Fully ECE approved and IP67 rated, it’s a proven, low-maintenance upgrade for fleet operators who want fit-and-forget side marker lighting.

This white LED side marker exists for one reason: to make vehicles easier to see, in all conditions, with no drama and no fuss. Four 1.25 W high-intensity OSRAM diodes sit behind a mirror reflector optic, so even at a low nominal lamp power of 0.6 W the light output is sharp, uniform, and visible from wide angles. That means better side visibility at junctions, lay-bys and loading bays, without loading your electrical system.

The LG183 runs on 9–33 V DC, so it’s at home on both 12 V and 24 V systems across mixed fleets. Housing and bracket are heavy-duty plastic with a tough PMMA lens, giving a robust, corrosion-proof package that shrugs off daily abuse on tippers, trailers, ag kit and plant. With a lifespan of 50,000+ hours, you’re not chasing blown bulbs around the yard any more.

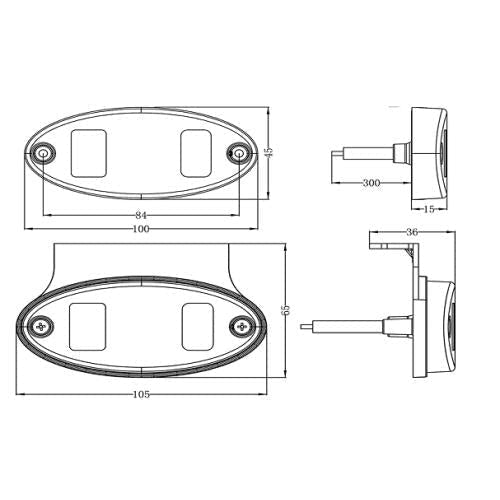

Mounting is straightforward. You get two mounting options thanks to the removable bracket, so you can bolt it to bodywork, chassis rails or mounting strips without reworking panels. It’s pre-wired, ECE-approved and EMC suppressed, so it’s safe to fit on modern trucks without stray radio noise or CANbus upset. At just 105 × 65 × 36 mm, it’s compact enough for tight bodywork but large enough to be noticed.

Key Features

• High-performance OSRAM LEDs – 4 × 1.25 W high-intensity diodes for a bright, clean white marker with stable light over time.
• Low power consumption – 0.6 W nominal lamp power, ideal for long wiring runs and multiple marker setups on trailers and semi-trailers.
• 6000 K white light – crisp, daylight-style colour temperature for clear visibility and a modern look that matches LED headlamps and work lamps.
• Wide voltage range: 9–33 V DC – designed for use on 12 V and 24 V systems, perfect for mixed commercial fleets and plant.
• Mirror Reflector Technology – optimised reflector system spreads light efficiently, improving side visibility without glare.
• Heavy-duty construction – H/D plastic housing and PMMA lens resist impact, corrosion and typical road grime on trucks, ag and construction kit.
• Long service life – 50,000+ hours LED lifespan reduces downtime, call-outs and maintenance costs compared to filament markers.
• Flexible mounting options – supplied with a removable bracket and two mounting options for easy installation on bodywork or brackets.
• IP67 ingress protection – sealed against dust and temporary immersion; proven performance in rain, spray, and regular washdowns.
• Road-legal and EMC safe – ECE approved / e-mark for on-road use and EMC / radio suppression to protect vehicle electronics and communications.

Ideal Applications

• Artic and rigid trucks needing durable, road-legal white side marker lights along cabs, chassis and bodies.
• Semi-trailers, box trailers and curtain-siders where multiple low-power LED marker lamps are required along the side and rear.
• Agricultural machinery such as tractors, tankers and balers working on-road and in yard environments.
• Construction and plant equipment including low-loaders, service vehicles and support trailers operating in tough sites.
• Light commercial vehicles and recovery trucks needing compact, reliable white marker lamps for better side visibility.

Why Choose LED-Global Lighting

At LED-Global, we build lighting the way fleet engineers expect: European-made, technically honest, and built to last. Every marker, including the LG183, is specified around proven components like OSRAM LEDs, proper sealing and compliant electronics, not marketing claims. Our range is trusted by operators across haulage, agriculture and construction who can’t afford preventable lighting failures.

If you want reliable, ECE-approved LED marker lights that install easily and keep working in real European weather and road conditions, this is exactly what we designed the LG183 to do.
