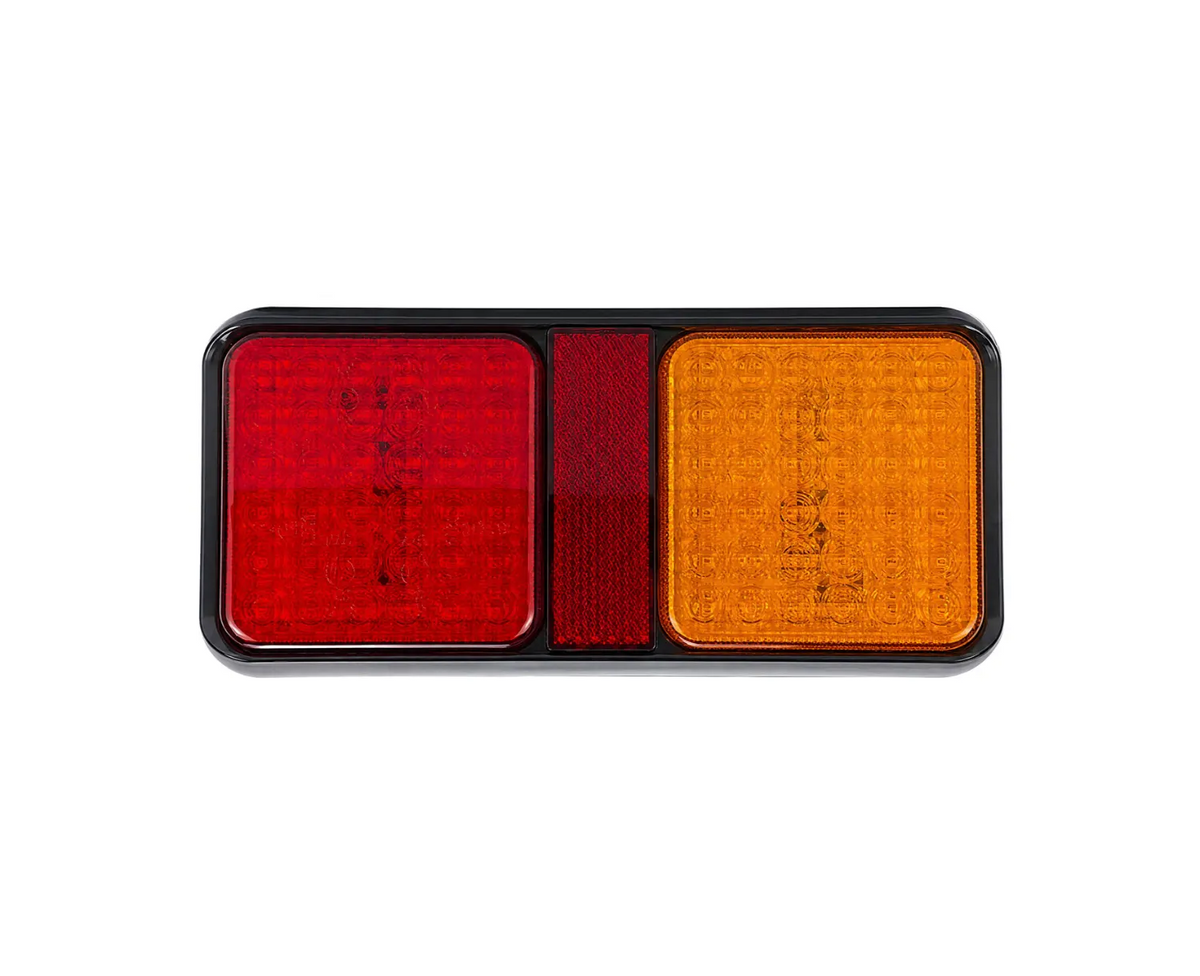

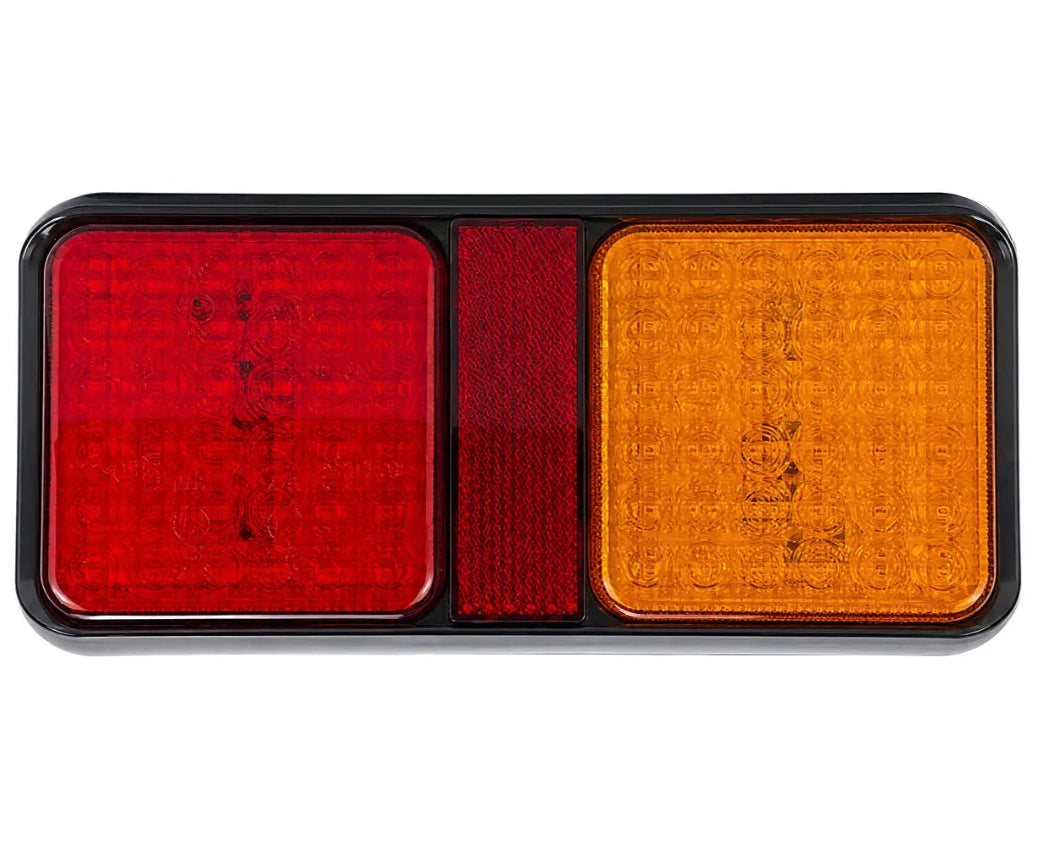

LED Tail Lights Pod Combination – LG512

The LG512 LED tail light pod combination is a compact rear lighting unit designed for commercial vehicles, trailers, agricultural machinery, plant equipment and utility fleets. It combines stop, tail and indicator functions in one rugged LED assembly, helping provide clear rear signalling with low maintenance.

With a wide 10–30 V operating range, the LG512 is suitable for both 12 V and 24 V vehicle systems. It is ECE approved, IP67 rated and built for demanding daily use where reliable rear lighting and road-ready compliance are important.

Compact LED Pod Tail Light Combination

The LG512 is designed for operators who want a clean, reliable LED replacement for older bulb-style rear lights. It combines the key rear functions into one compact pod-style unit, reducing the need for separate stop, tail and indicator lamps.

This makes it a practical choice for trailers, flatbeds, plant carriers, agricultural equipment and commercial vehicle bodywork where space is limited and visibility is essential.

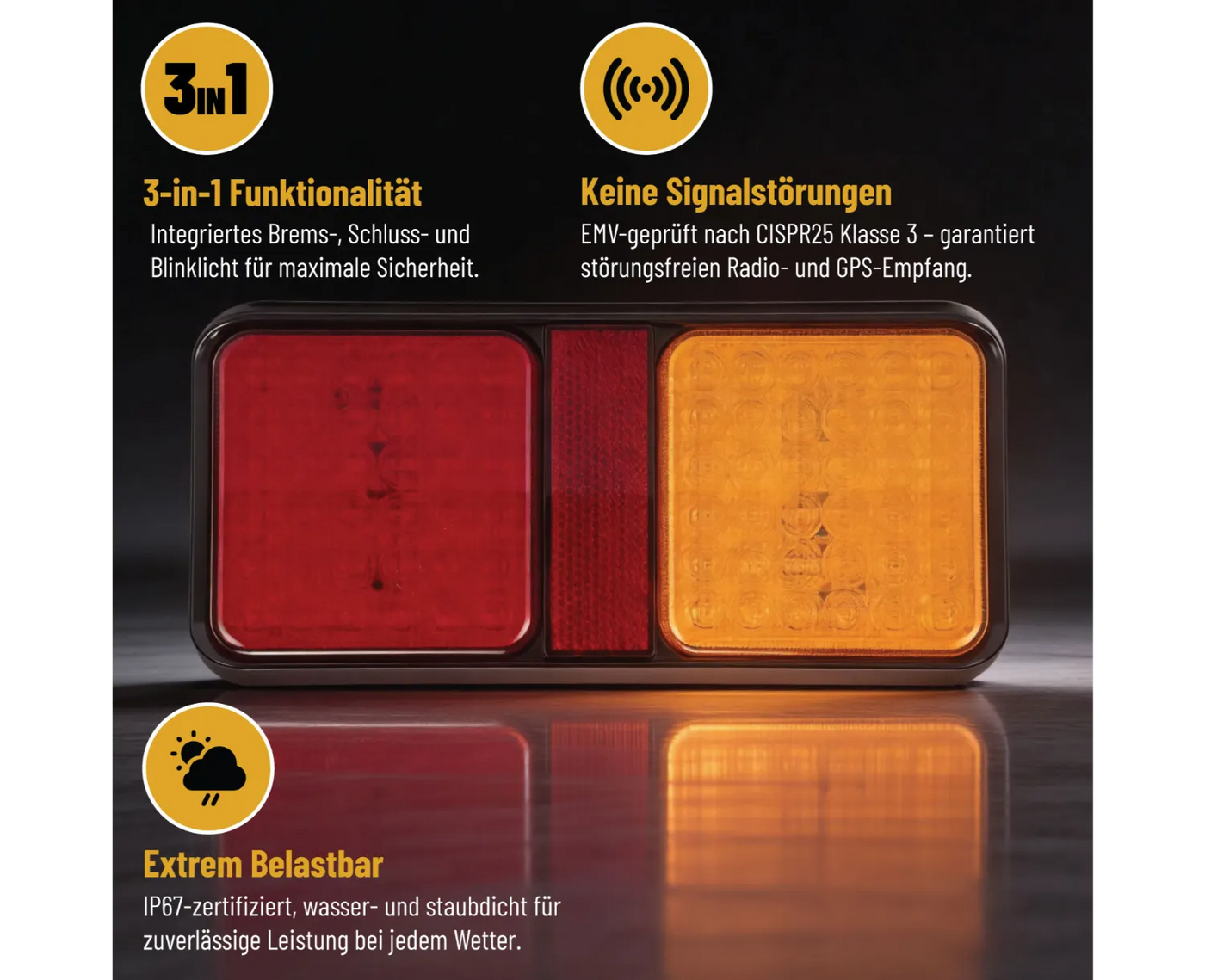

Stop, Tail and Indicator Functions

The unit provides clear stop light, tail light and amber indicator functions for safer rear signalling. With 72 LEDs in total, including 36 LEDs per pod, it delivers strong and even light output for better visibility in rain, spray, dust and low-light conditions.

The LED design also helps reduce maintenance compared with traditional filament bulbs, making it suitable for fleets and machinery that work long hours.

10–30 V Multi-Voltage Compatibility

The LG512 operates across 10–30 V, making it suitable for mixed fleets using 12 V light commercial vehicles and 24 V trucks, trailers or agricultural equipment. This helps simplify stock control and installation for workshops and fleet maintenance teams.

The light is pre-wired with a 4-core cable, giving clear connections for stop, tail, indicator and earth functions.

ECE Approved and EMC-Safe

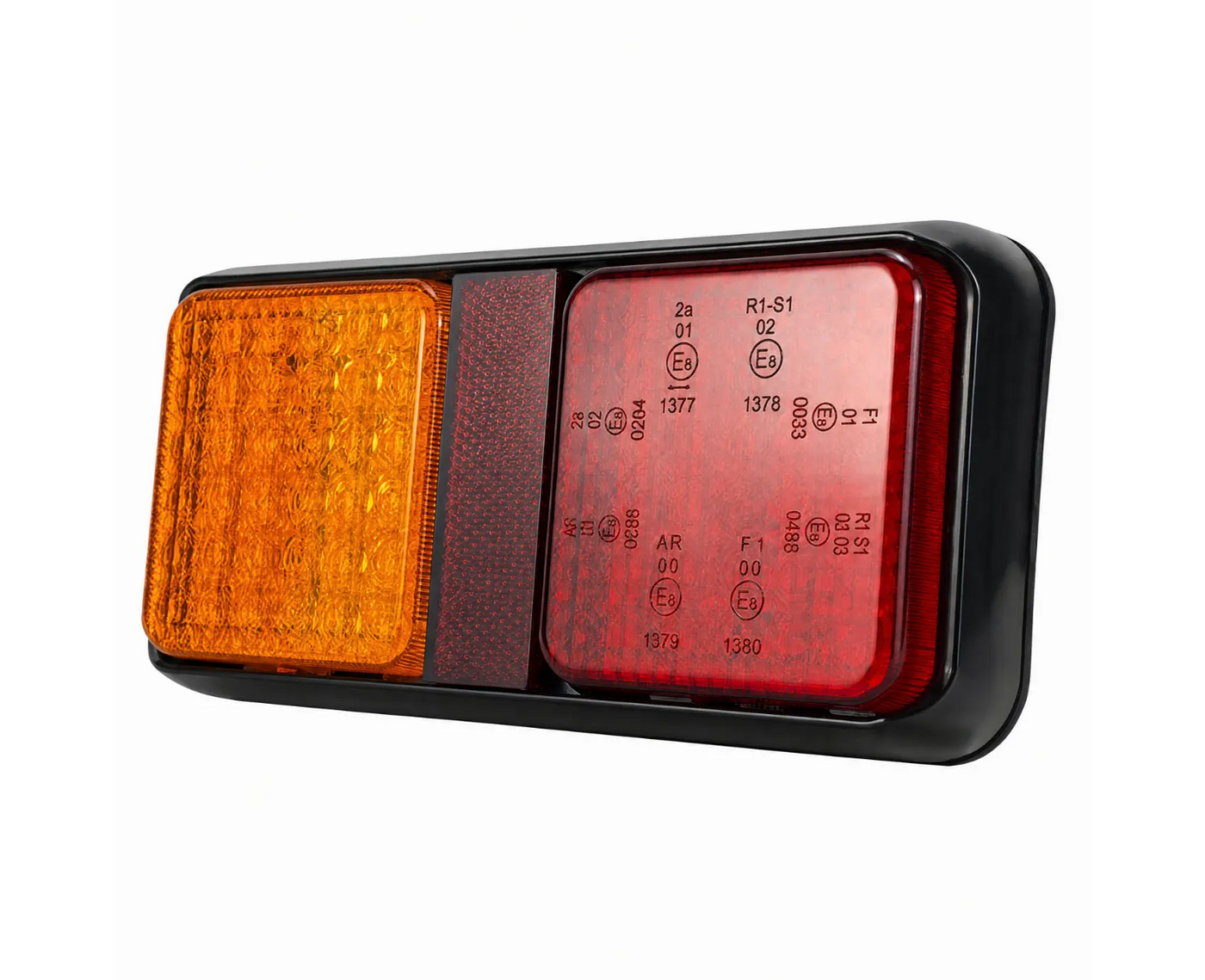

The LG512 is approved to ECE R3, ECE R6 and ECE R7 for rear lighting and signalling functions. It is also approved to ECE R10 and meets CISPR 25 Class 3 EMC performance, helping reduce interference with radios, GPS, telematics and other onboard electronics.

This makes it suitable for modern commercial and agricultural vehicles where electrical compatibility is important.

Built for Harsh Working Conditions

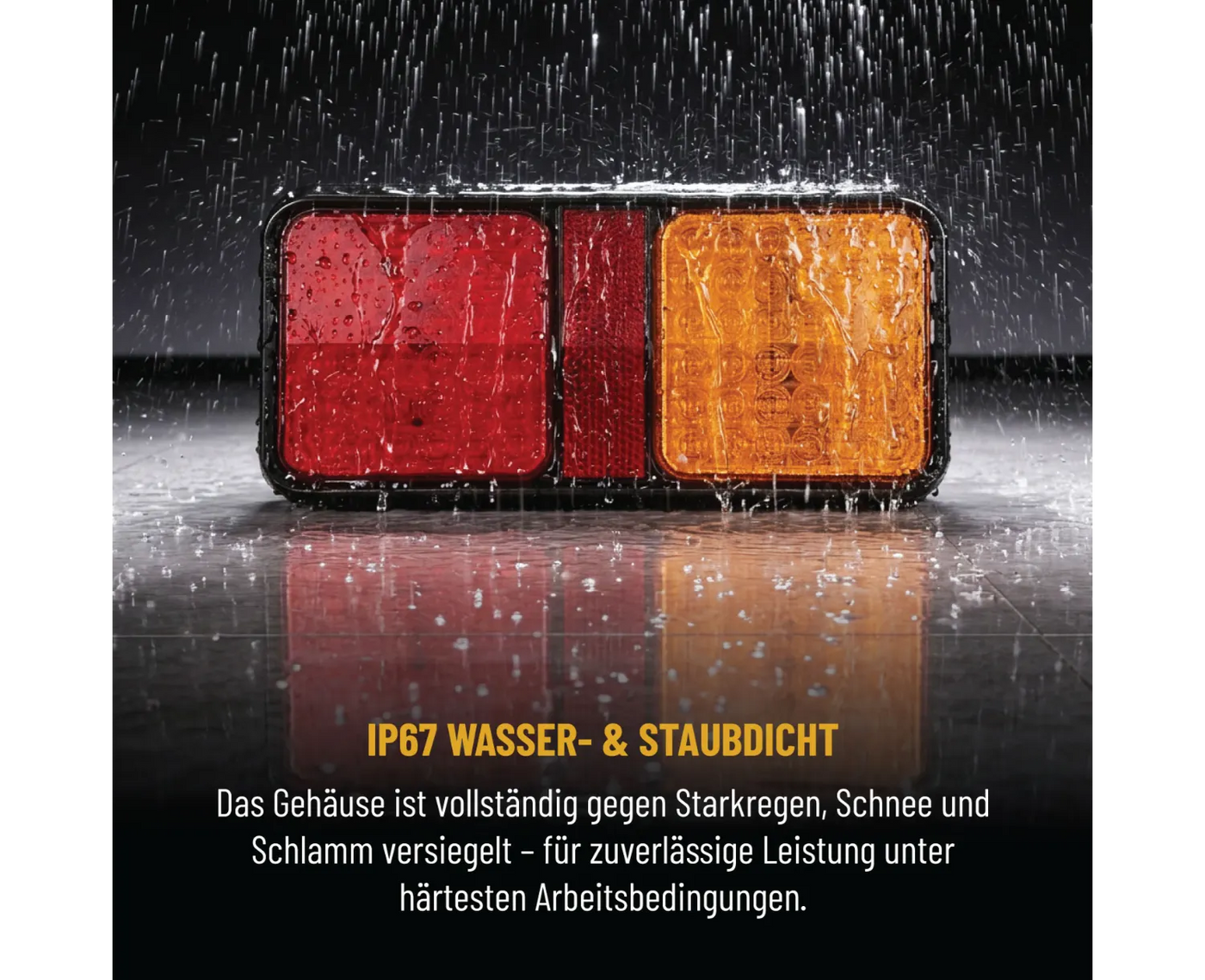

The IP67 ingress protection rating helps protect the unit against dust, rain, spray, mud and temporary water exposure. This makes the LG512 suitable for exposed rear mounting on trailers, utility vehicles, plant equipment and farm machinery.

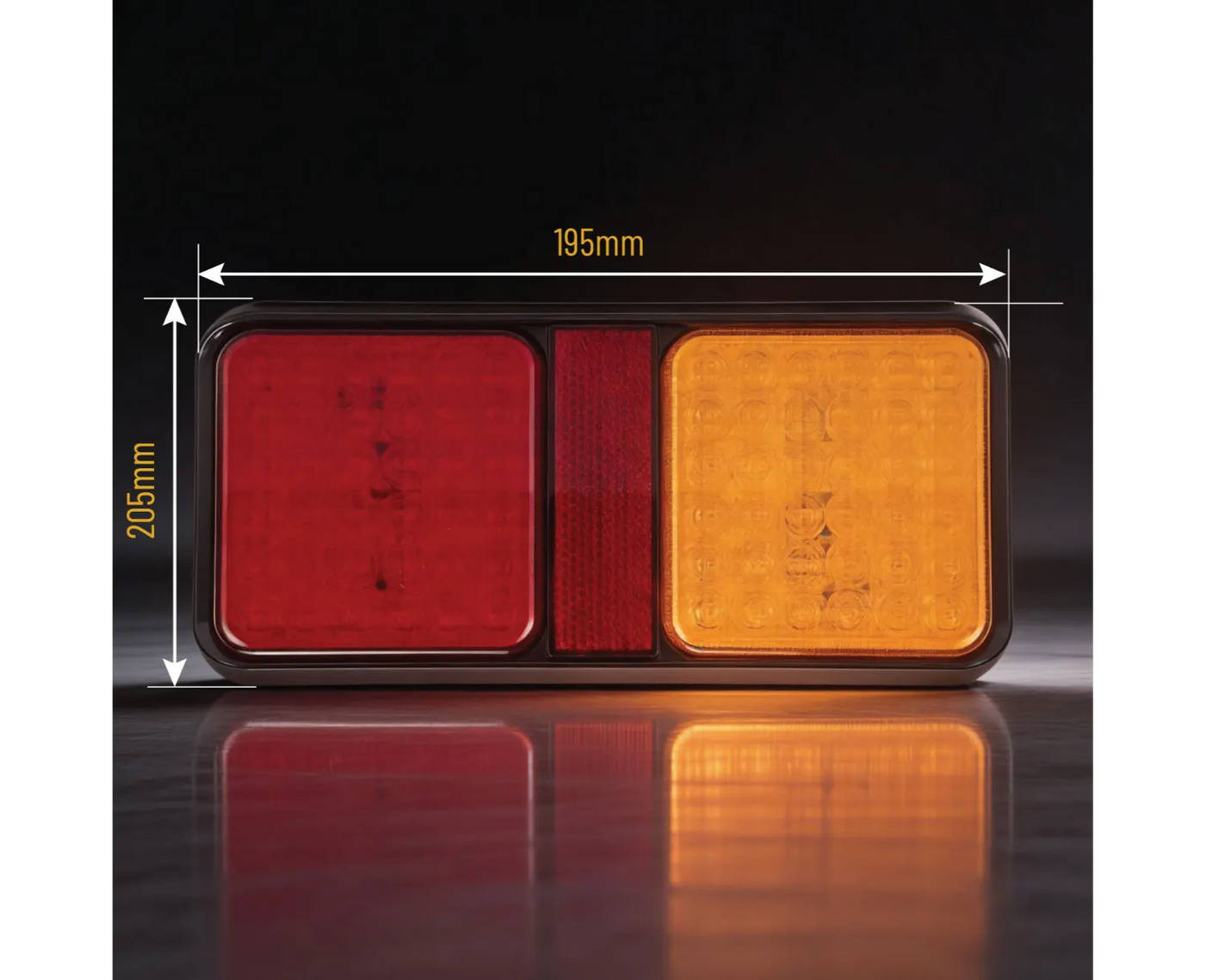

Its compact 205 × 195 × 28 mm body fits neatly onto rear crossmembers, light boards, fabricated brackets and flat mounting surfaces.

Key Features

• LED pod combination tail light with stop, tail and indicator functions.
• Suitable for commercial vehicles, trailers, plant and agricultural machinery.
• Wide 10–30 V operating range for 12 V and 24 V systems.
• 72 LEDs in total, with 36 LEDs per pod.
• Bright stop light, clear tail light and amber indicator output.
• Pre-wired with 4-core cable for straightforward installation.
• ECE R3, ECE R6 and ECE R7 approved for rear lighting functions.
• ECE R10 approved for electromagnetic compatibility.
• CISPR 25 Class 3 EMC performance to help reduce radio interference.
• IP67 protection against dust, water, spray and harsh outdoor conditions.
• Compact 205 × 195 × 28 mm size for flexible mounting.
• Low-maintenance LED design with no filament bulbs to replace.

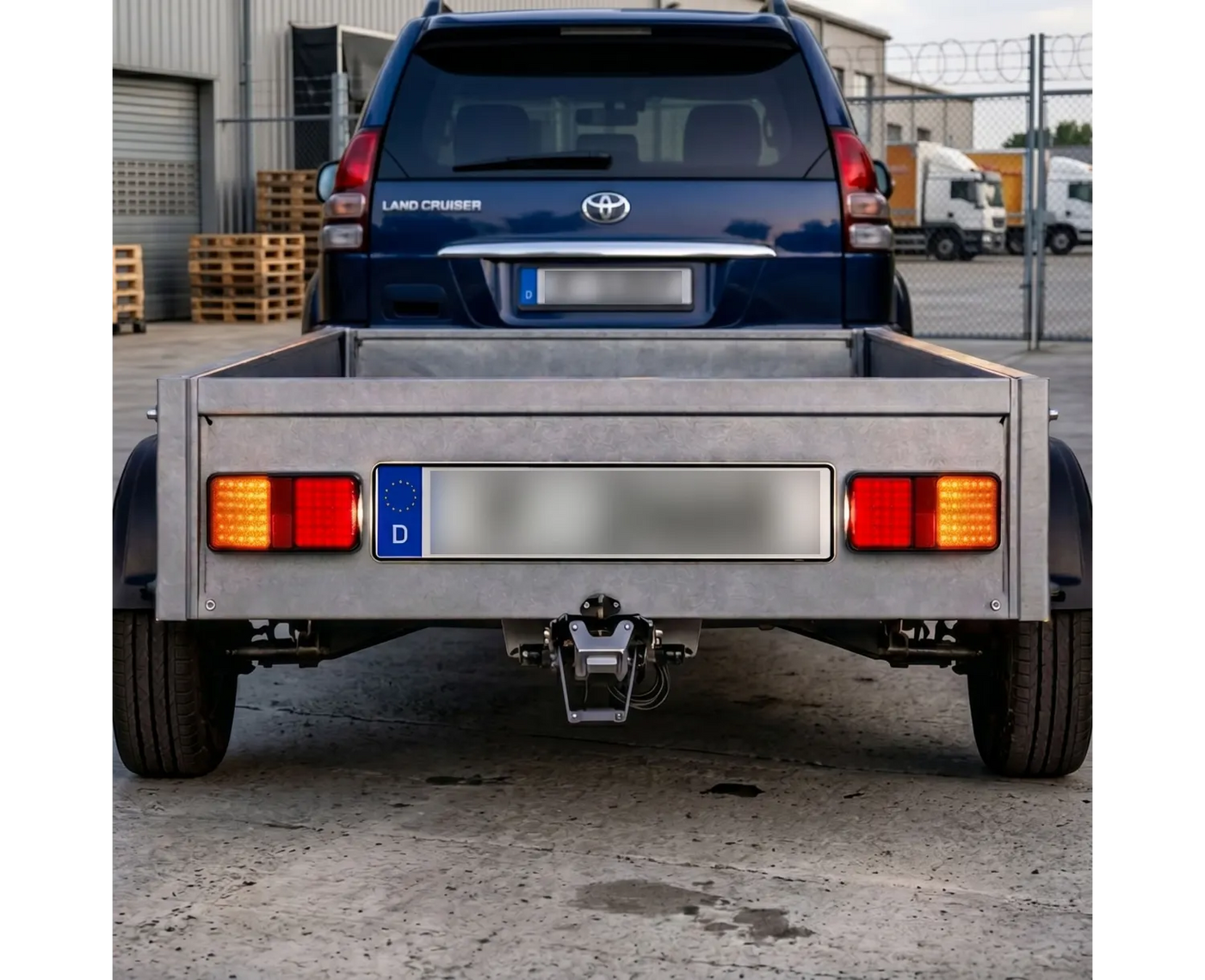

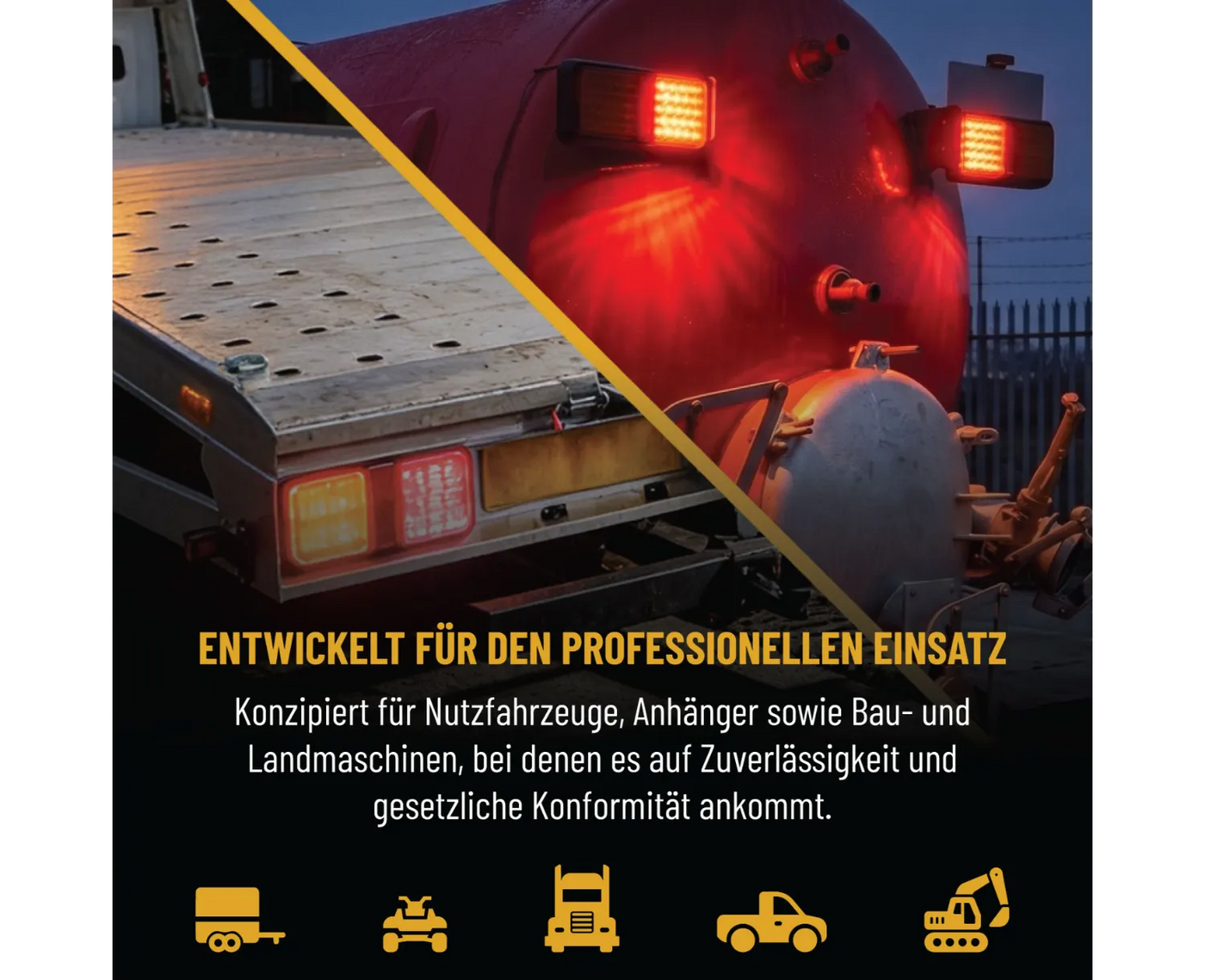

Ideal Applications

• Commercial trucks, rigid bodies and box vans.
• Flatbed trailers, plant trailers and trailer boards.
• Agricultural trailers, slurry tankers, grain trailers and bale trailers.
• Construction, utility and municipal fleet vehicles.
• Recovery vehicles, service vans and workshop refits.
• Rear lighting upgrades from bulb units to LED tail lights.

Why Choose the LG512 LED Tail Light?

The LG512 is designed for professional users who need reliable rear lighting, simple wiring and strong visibility in tough working environments. Its LED pod design, multi-voltage compatibility, ECE approvals, EMC-safe performance and IP67 protection make it a practical choice for fleet, trailer, agricultural and construction applications.

For bodybuilders, workshops, farmers, fleet managers and auto electricians, this LED tail light combination offers a clean, durable and low-maintenance rear lighting solution.

Important Fitment Note

Please check mounting space, wiring layout, voltage system and local lighting regulations before installation. The light should be securely mounted, correctly wired and tested for stop, tail and indicator operation before road use.
