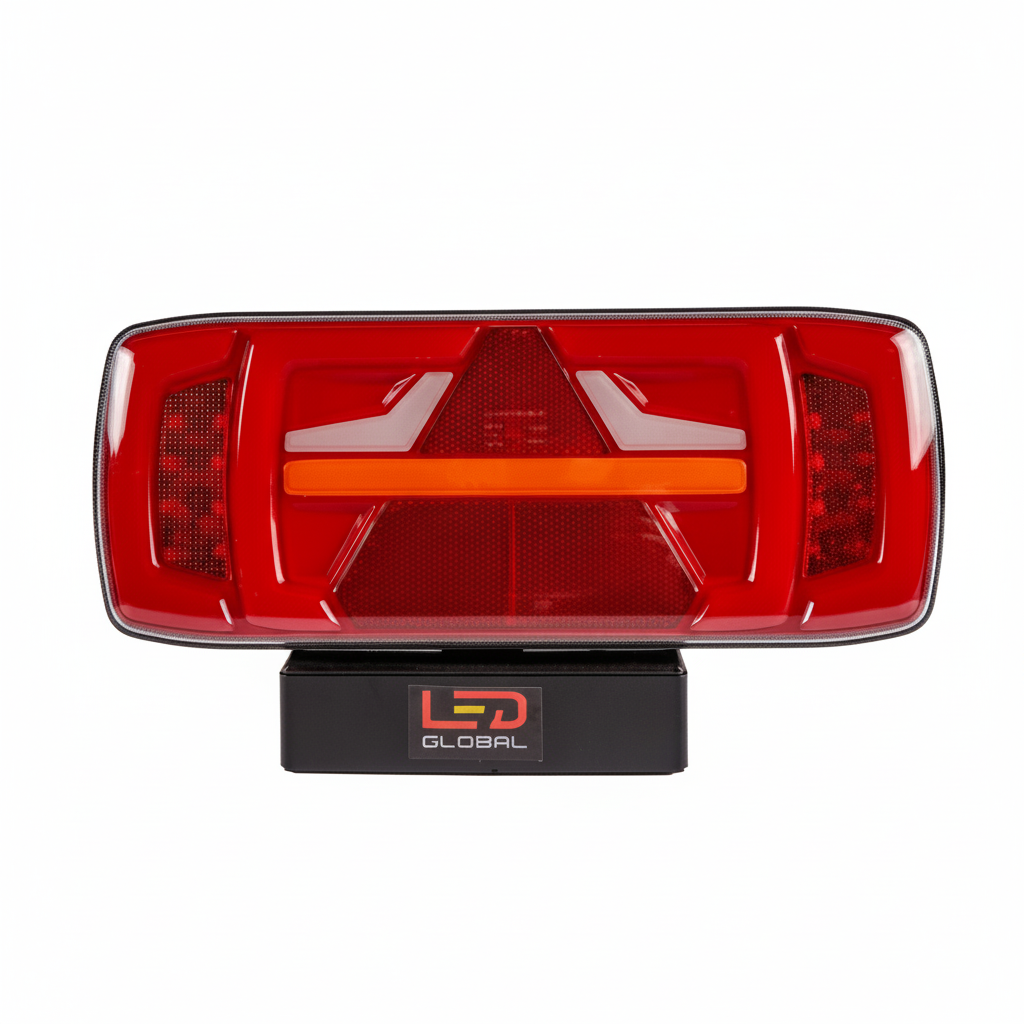

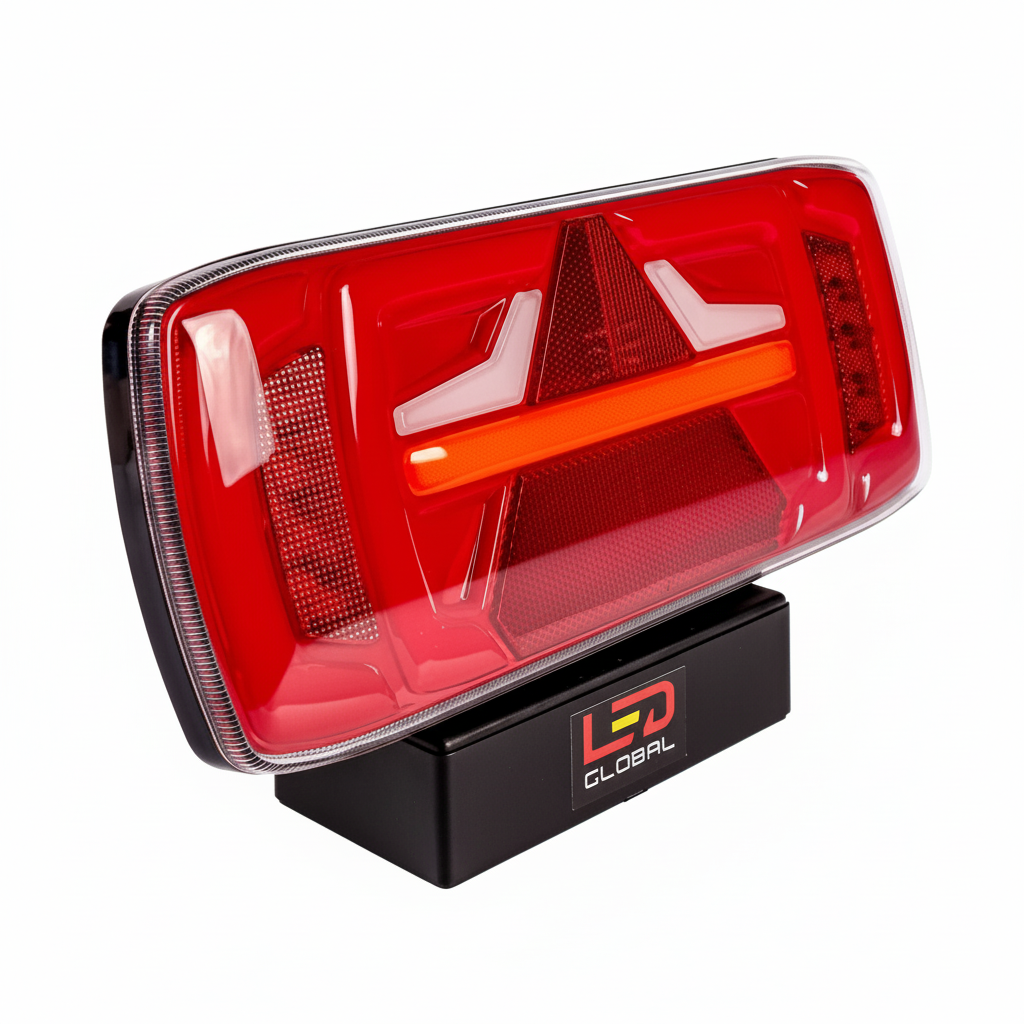

LED Combination Tail Light with Dynamic Indicator LH – LG554

The LG554 LED combination tail light is a compact left-hand rear lamp designed for trailers, plant, commercial bodies, agricultural equipment and light commercial vehicles. It combines stop, tail, dynamic indicator and reflector functions in one low-profile unit, helping simplify rear lighting installations.

With 9–33 V DC operation, IP67 protection, ECE approvals and CISPR 25 Class 3 EMC performance, the LG554 is suitable for both 12 V and 24 V vehicle systems. It is built for professional use where reliability, visibility and road-ready compliance are important.

Compact LED Combination Tail Light

The LG554 is designed for bodybuilders, workshops, fleet operators and trailer manufacturers who need a clean rear lighting solution in a compact housing. Its 150 × 80 × 21.4 mm body provides stop, tail, indicator and reflector functions without needing multiple separate lamps.

The slim design helps reduce the risk of impact damage in yards, loading bays, farms, quarries and tight vehicle mounting positions.

Dynamic Indicator for Clear Signalling

The integrated dynamic indicator gives a sweeping turn signal effect for improved visibility and a modern OEM-style appearance. This helps following traffic notice the direction signal more clearly, especially in poor weather, low light or busy road conditions.

The lamp also includes stop and tail light functions, making it a practical all-in-one rear lighting unit for trailers and commercial vehicle bodies.

9–33 V DC for 12 V and 24 V Systems

The wide 9–33 V DC voltage range makes the LG554 suitable for both 12 V and 24 V electrical systems. This is useful for mixed fleets that include light trailers, vans, trucks, agricultural machinery and plant equipment.

One lamp type can be used across different vehicle platforms, helping reduce stock complexity for installers and fleet maintenance teams.

IP67 Protection for Harsh Environments

The IP67 ingress protection rating helps protect the lamp against dust, rain, spray, mud and temporary water exposure. This makes it suitable for equipment exposed to outdoor working conditions, pressure washing and wet road environments.

The sealed LED design also helps reduce maintenance compared with traditional bulb-based tail lights.

ECE Approved and EMC Safe

The LG554 is approved to ECE R3, ECE R6, ECE R7 and ECE R10, supporting road-ready use when correctly installed as part of a compliant lighting layout.

CISPR 25 Class 3 EMC performance helps reduce radio frequency interference with radios, GPS, telematics and onboard vehicle electronics.

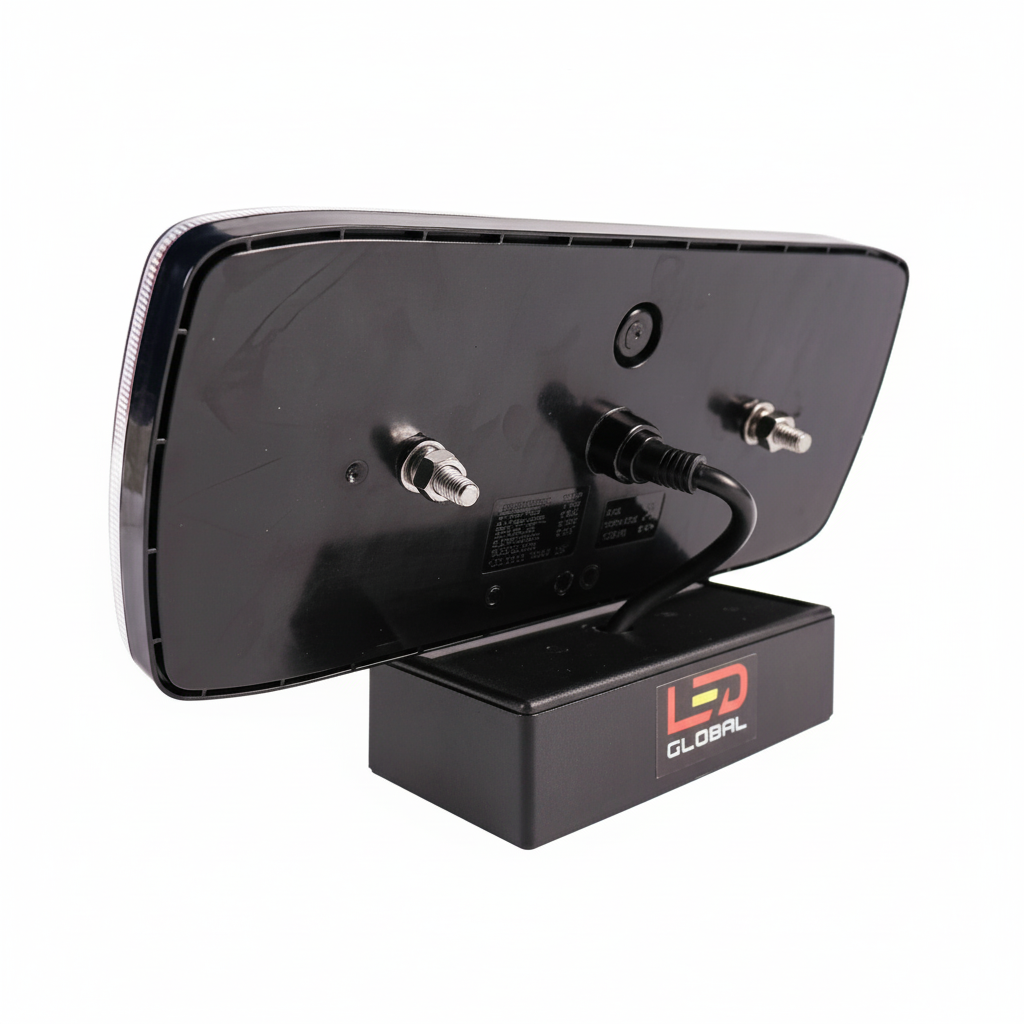

Straightforward Wiring

The wiring layout is designed for simple installation by auto electricians and bodybuilders. White is earth, brown is tail, red is brake and green is indicator.

This makes the lamp easy to integrate into trailer looms, vehicle bodies and retrofit lighting projects.

Key Features

• Left-hand LED combination tail light.
• Stop, tail, dynamic indicator and reflector functions in one unit.
• Dynamic sweeping indicator for clearer signalling.
• 9–33 V DC input for 12 V and 24 V systems.
• Compact low-profile body measuring 150 × 80 × 21.4 mm.
• IP67 protection against dust, rain, spray and temporary water exposure.
• ECE R3 approval for reflector performance.
• ECE R6 approval for indicator performance.
• ECE R7 approval for tail and stop light performance.
• ECE R10 approval for electromagnetic compatibility.
• CISPR 25 Class 3 EMC performance.
• Simple wiring: white earth, brown tail, red brake, green indicator.
• LED technology for low current draw and long service life.
• Supplied as a pair where included in the kit configuration.

Ideal Applications

• General cargo trailers and box trailers.
• Agricultural trailers, slurry tankers and bale trailers.
• Plant trailers, low-loaders and construction equipment.
• Horseboxes, recovery vehicles and car transporters.
• Light commercial vehicle bodies and small HGV rear lighting.
• Trailer refurbishments and new bodybuilder installations.

Why Choose the LG554 Combination Tail Light?

The LG554 is designed for professional users who need compact size, clear rear signalling and reliable LED performance. Its dynamic indicator, wide voltage range, IP67 sealing, ECE approvals and EMC-safe design make it a practical choice for trailers, commercial vehicle bodies and working equipment.

For fleet operators, bodybuilders, farmers, contractors and workshops, this LED combination tail light offers a clean, compliant and low-maintenance rear lighting solution.

Important Fitment Note

Please confirm the required side, mounting position, wiring layout, voltage system and vehicle lighting requirements before installation. The lamp should be securely mounted, correctly wired and positioned in accordance with local road lighting regulations.
