| Part number | LG934 |
|---|---|
| EAN / barcode | 4255929200369 |
| Operating voltage | 9–32 V DC |
| Ingress protection | IP67 / IP69K |
| Operating temperature | -40°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; adjustable bolt-on bracket |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving; white/amber position; amber warning strobe |
| LED configuration | 3 HGL4 driving + 30 × 3030 SMD position + 18 × 3030 SMD warning |
| Power rating / consumption | Driving 60 W; position 0.5 W; warning 1.5 W |
| Luminous flux | 3,500 lm effective |

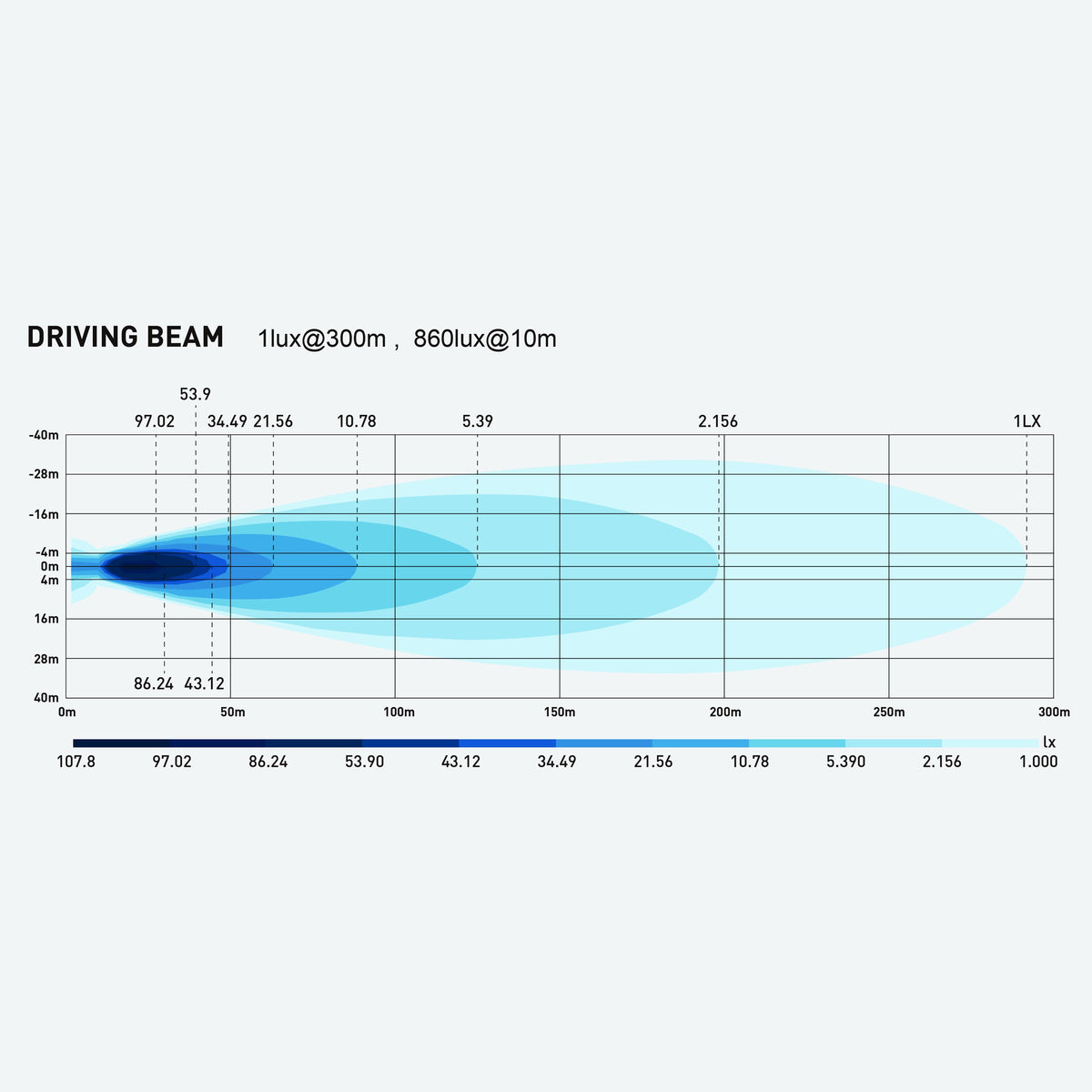

| Beam pattern / range | 1 lux at 300 m; 860 lux at 10 m |
| Approvals | ECE R10, R65, R148, R149 |

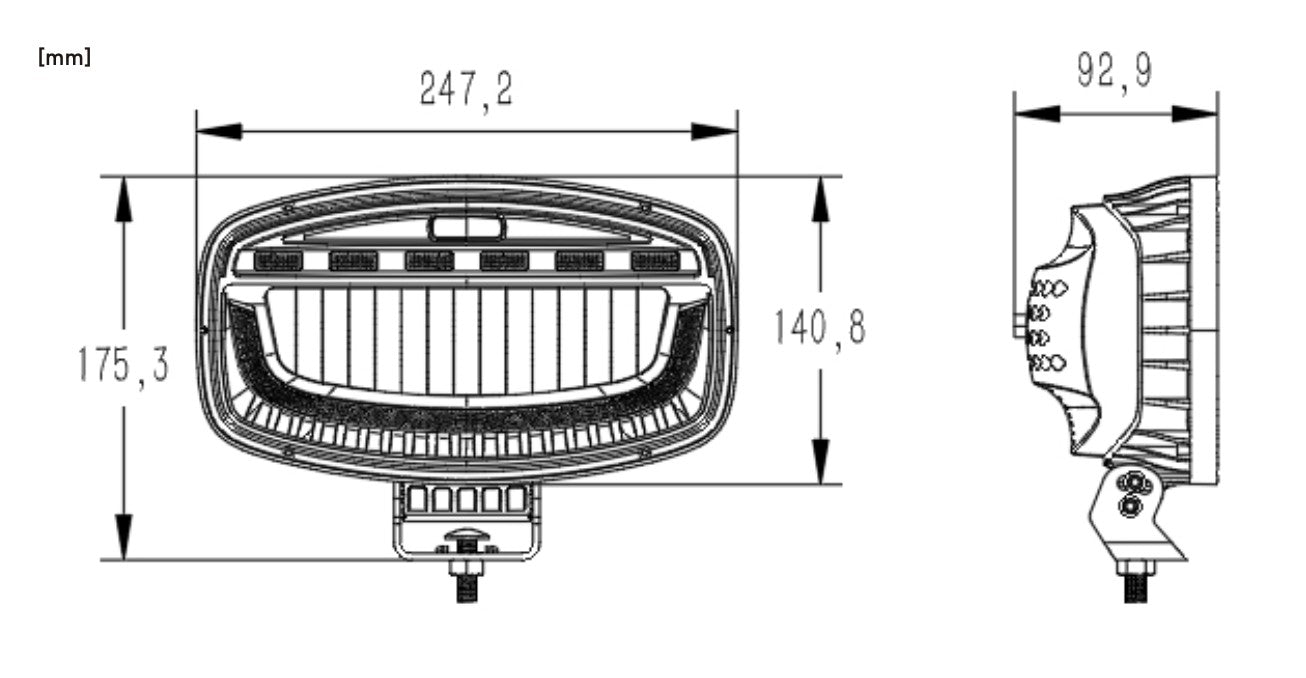

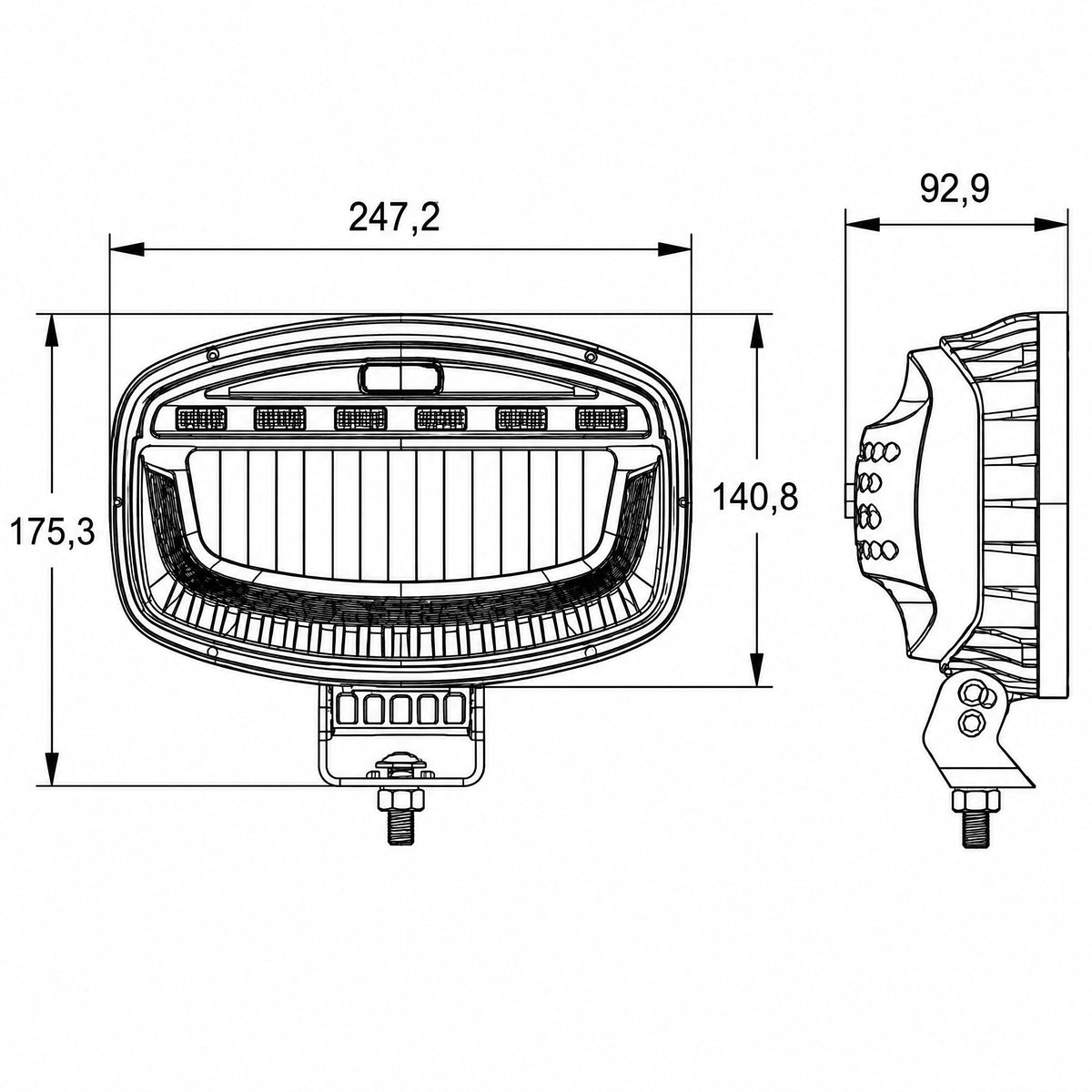

| Width / length | 247.2 mm |
| Height | 175.3 mm with bracket; 140.8 mm housing |
| Depth | 92.9 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); yellow: amber position (+); grey: warning (+); blue: pattern / sync |
| Features | 4 warning flash modes |

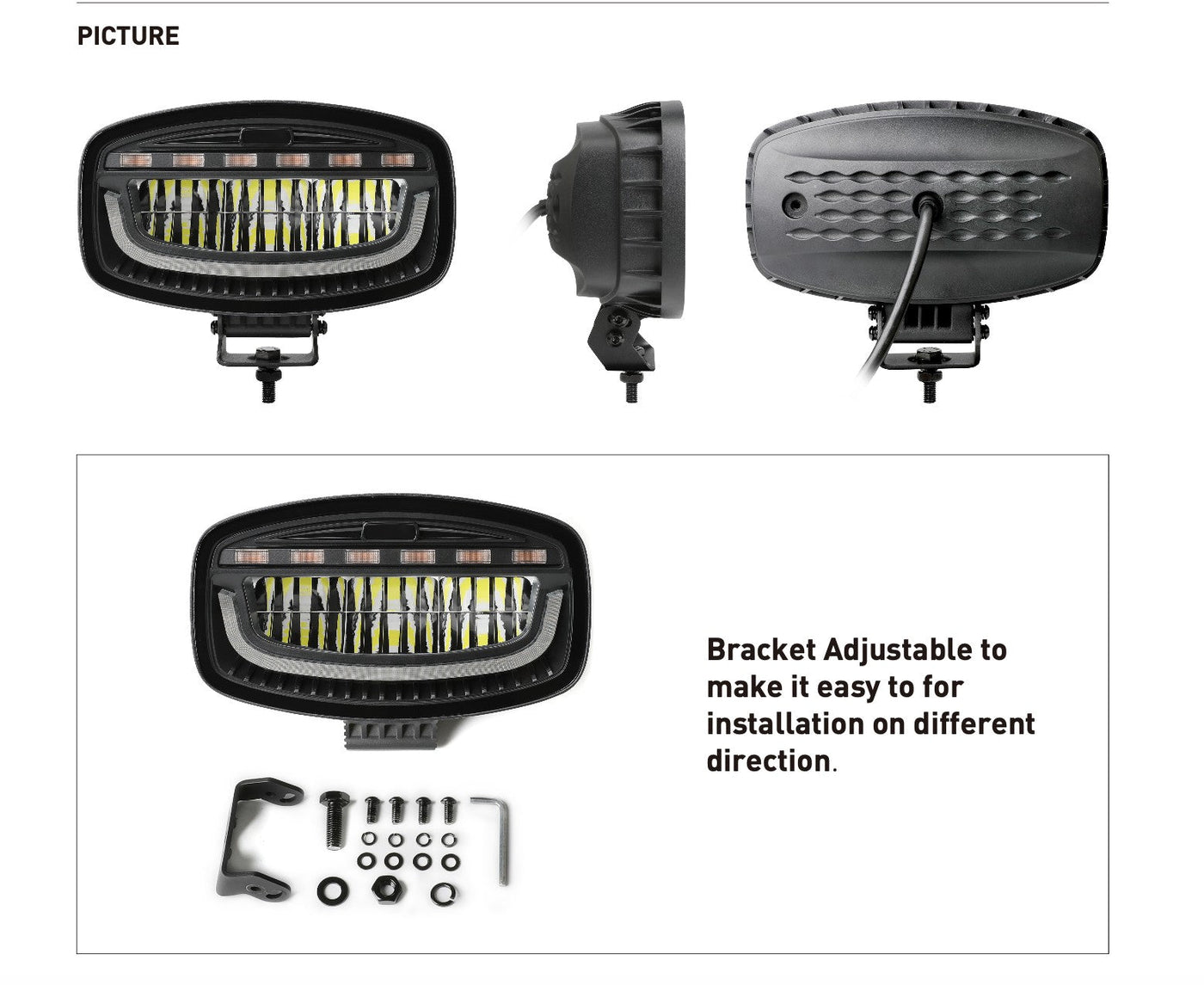

| Included | 1 lamp, adjustable bracket and mounting hardware |
Accessories
60W Oval LED Driving Light with Position Light and Strobe – LG934
Top Seller
60W Oval LED Driving Light with Position Light and Strobe – LG934
The LG934 combines a 60 W driving beam delivering 3,500 effective lumens with separate white/amber position lighting and an amber warning strobe. The supplied beam chart specifies 1 lux at 300 m.

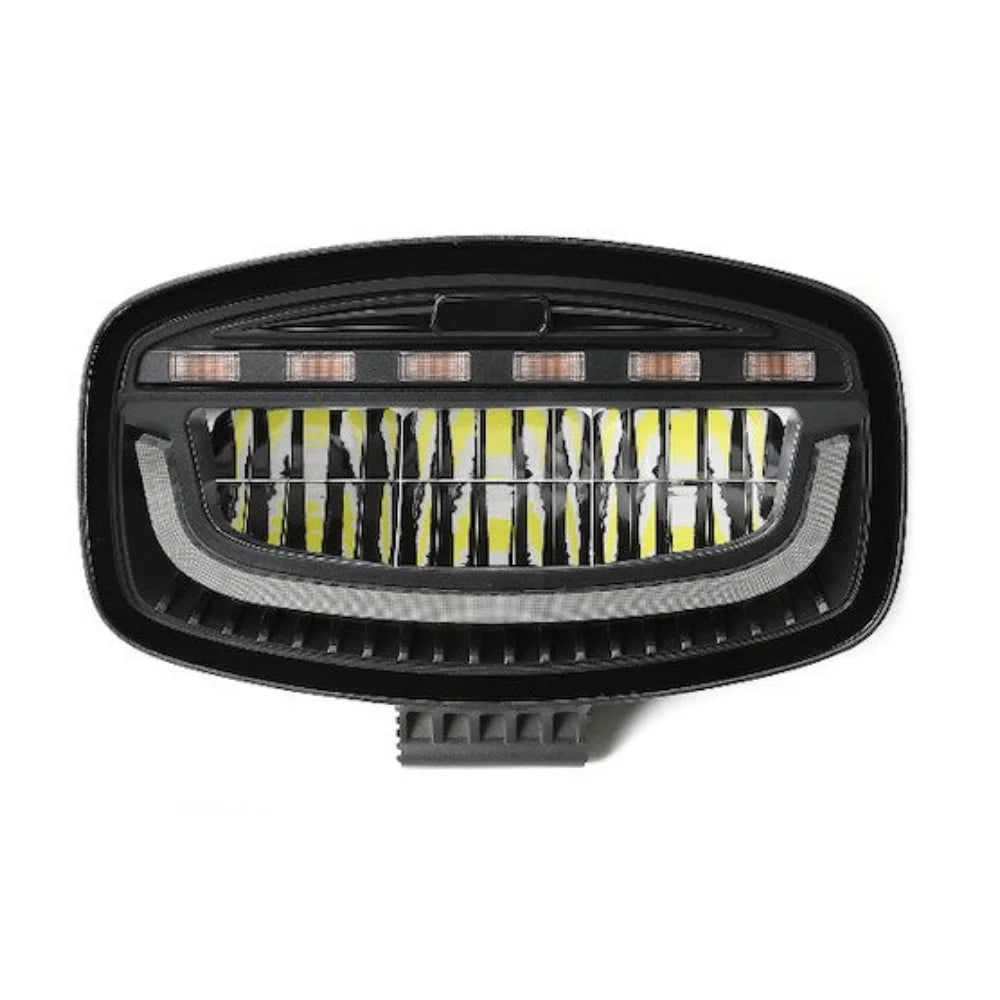

Three HGL4 driving LEDs are complemented by 30 position-light LEDs and 18 warning LEDs. The warning function offers four flash modes, with a separate wire for pattern selection and synchronisation.
The aluminium housing, PC lens and adjustable stainless steel bracket measure 247.2 × 175.3 × 92.9 mm including the bracket. IP67/IP69K sealing and a 9–32 V supply range suit a wide range of vehicle installations.
£107.00
● In stock
