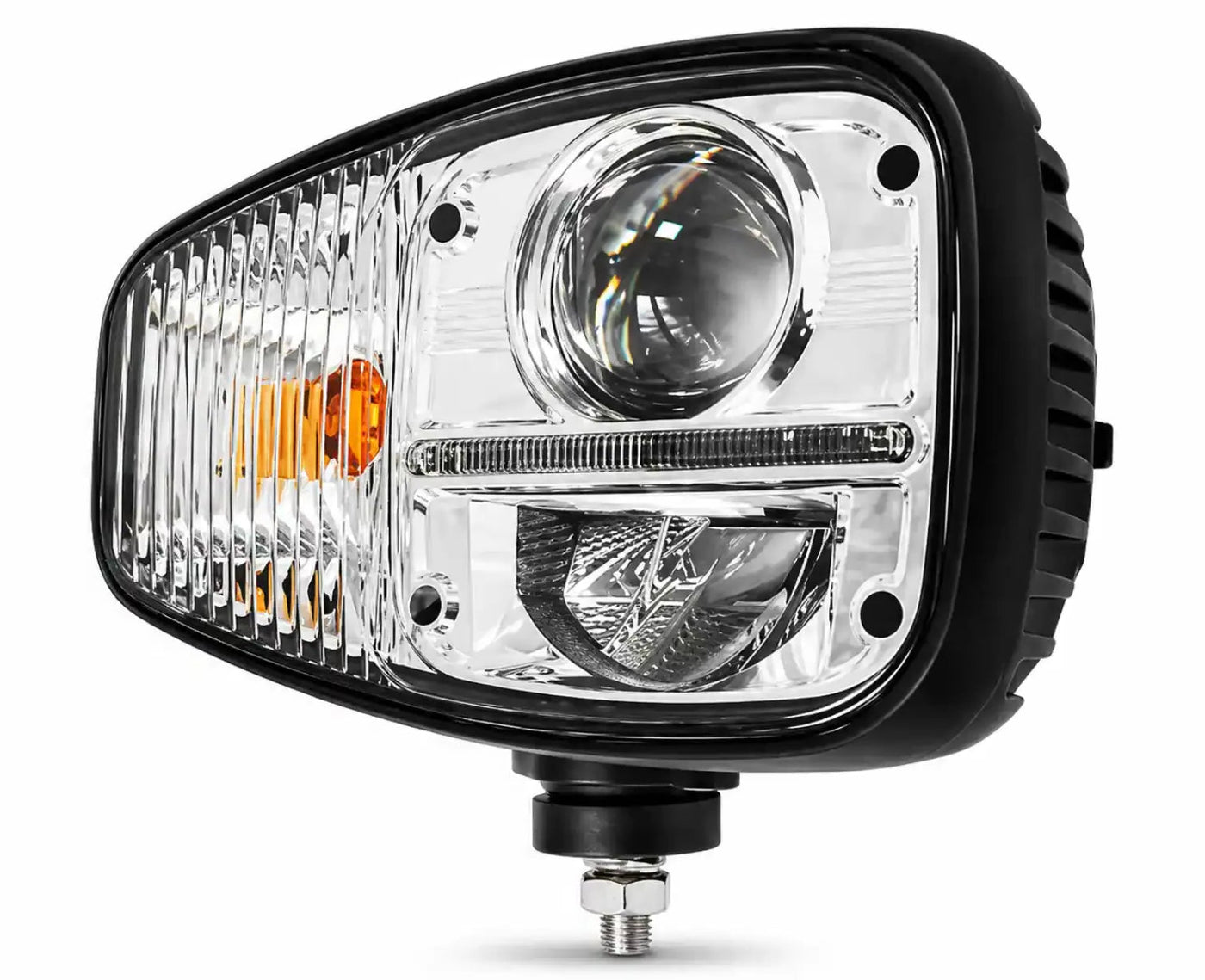

100 Watt LED Headlight with Front and Rear Indicator RH and DRL – LG820REU

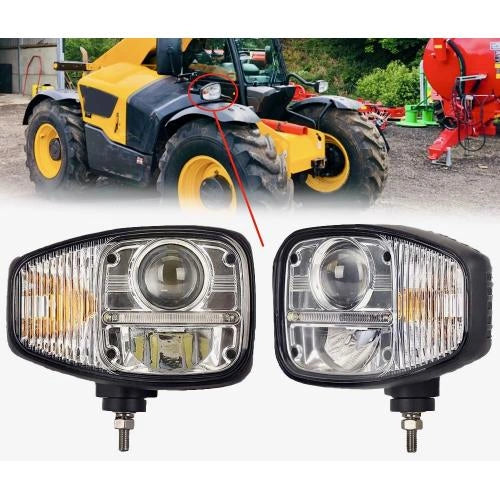

The LG820REU 100 W LED headlight is a right-hand replacement headlamp designed for telehandlers, loaders, tractors, trucks, construction machinery and industrial vehicles. It combines high beam, low beam, front and rear indicator functions and daytime running light in one robust LED unit.

With 9–32 V DC operation, 5,600 lumen output, 6000 K cold white light, IP68 protection, CREE XTE LEDs, E-mark approvals and CISPR 25 Class 4 EMC performance, this headlight is built for professional 12 V and 24 V vehicle systems.

Right-Hand LED Headlight with DRL and Indicators

The LG820REU is the right-hand version of this multifunction LED headlight. It combines 60 W high beam, 30 W low beam, 10 W daytime running light and 10 W indicator output in one compact housing.

This integrated design helps replace multiple lighting functions with one clean unit, making it suitable for OEM-style upgrades and replacement installations on agricultural, industrial and construction vehicles.

Strong 5,600 Lumen Light Output

The headlight delivers 5,600 lumens of crisp 6000 K cold white light. This helps improve visibility on roads, yards, farms, worksites and loading areas, giving operators better contrast and clearer awareness of hazards, attachments and ground conditions.

The beam performance reaches 50 m at 12 lux and 186 m at 1 lux, giving useful forward visibility for both road travel and working environments.

Built for 12 V and 24 V Systems

The wide 9–32 V DC voltage range makes the LG820REU suitable for both 12 V and 24 V vehicle systems. This makes it a practical headlight option for mixed fleets using tractors, telehandlers, loaders, trucks and industrial machines.

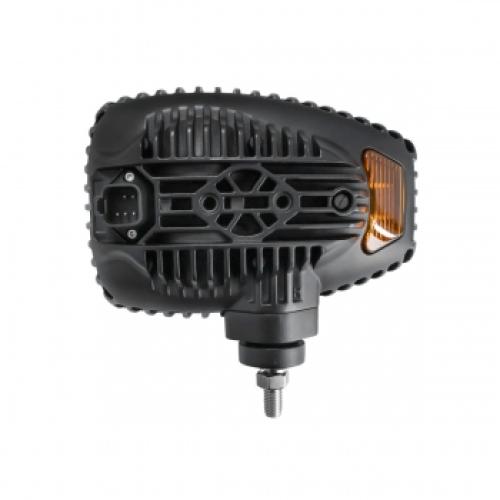

The 6-pin Deutsch plug and socket connection helps provide a secure, vibration-resistant installation for demanding working vehicles.

Durable IP68 Aluminium Construction

The headlight is built with a powder-coated aluminium housing for strength, heat control and long service life. IP68 ingress protection helps guard against dust, rain, water exposure, wash-downs and harsh outdoor conditions.

High-intensity CREE XTE LEDs provide long-lasting performance, with a rated service life of 50,000 hours to reduce maintenance and replacement downtime.

ECE Approved and EMC Safe

The LG820REU is E-mark approved and compliant with ECE R10, ECE R149, ECE R112, ECE R148 and ECE R7. These approvals support road-ready use where correctly fitted and aligned.

CISPR 25 Class 4 EMC performance helps reduce interference with radios, CANbus systems, telemetry, GPS and other sensitive onboard electronics.

Wiring Information

• Black wire: earth.
• White wire: daytime running light.
• Blue wire: indicator.
• Brown wire: low beam.
• Red wire: high beam.

Key Features

• Right-hand 100 W LED headlight with integrated DRL and indicators.
• 60 W high beam, 30 W low beam, 10 W DRL and 10 W indicators.
• Front and rear indicator functionality in one unit.
• 5,600 lumen output for strong working and road visibility.
• 6000 K cold white light for clear contrast.
• Beam performance: 50 m at 12 lux and 186 m at 1 lux.
• 9–32 V DC input for 12 V and 24 V systems.
• CREE XTE LED technology with 50,000 hour rated life.
• Powder-coated aluminium housing.
• IP68 protection against dust and water exposure.
• CISPR 25 Class 4 EMC performance.
• E-mark approved for professional road-ready applications.
• ECE R10, ECE R149, ECE R112, ECE R148 and ECE R7 compliant.
• 6-pin Deutsch plug and socket supplied.

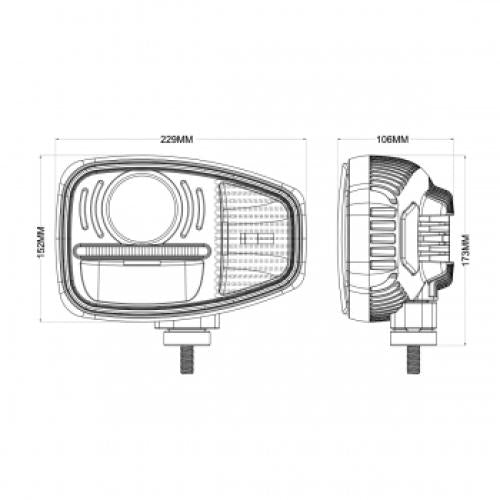

• Compact size: 229 × 152 × 106 mm.

OEM Reference Compatibility

• JCB: 700/50192, 700/50193.
• HELLA: 1EE 996 174-401.
• MAN: 81251016403.
• SCANIA: 20223061.
• VOLVO: 17 286 451.
• MANITOU: 929717.

Ideal Applications

• Telehandlers and loaders.
• JCB, Manitou, Caterpillar, Volvo, Terex and similar machinery.
• Agricultural tractors and material handlers.
• Construction and quarry equipment.
• Municipal and utility vehicles.
• Industrial yard tractors, tugs and logistics equipment.
• Fleet vehicles requiring E-mark approved forward lighting.

Why Choose the LG820REU LED Headlight?

The LG820REU is designed for professional users who need strong forward lighting, integrated signalling and dependable durability in one right-hand LED headlight. Its wide voltage range, CREE XTE LEDs, IP68 housing, ECE approvals and CISPR 25 Class 4 EMC performance make it a strong replacement option for demanding fleet and machinery applications.

For workshops, fleet operators, contractors and agricultural users, this LED headlight offers a practical upgrade from older lighting units while supporting cleaner installation, improved visibility and reduced maintenance.

Important Fitment Note

Please confirm the required side, OEM reference, connector type, mounting position, voltage system and vehicle compatibility before ordering. Original equipment names and part numbers are used only for identification and compatibility reference. This product is an aftermarket replacement part and is not an original OEM product.
