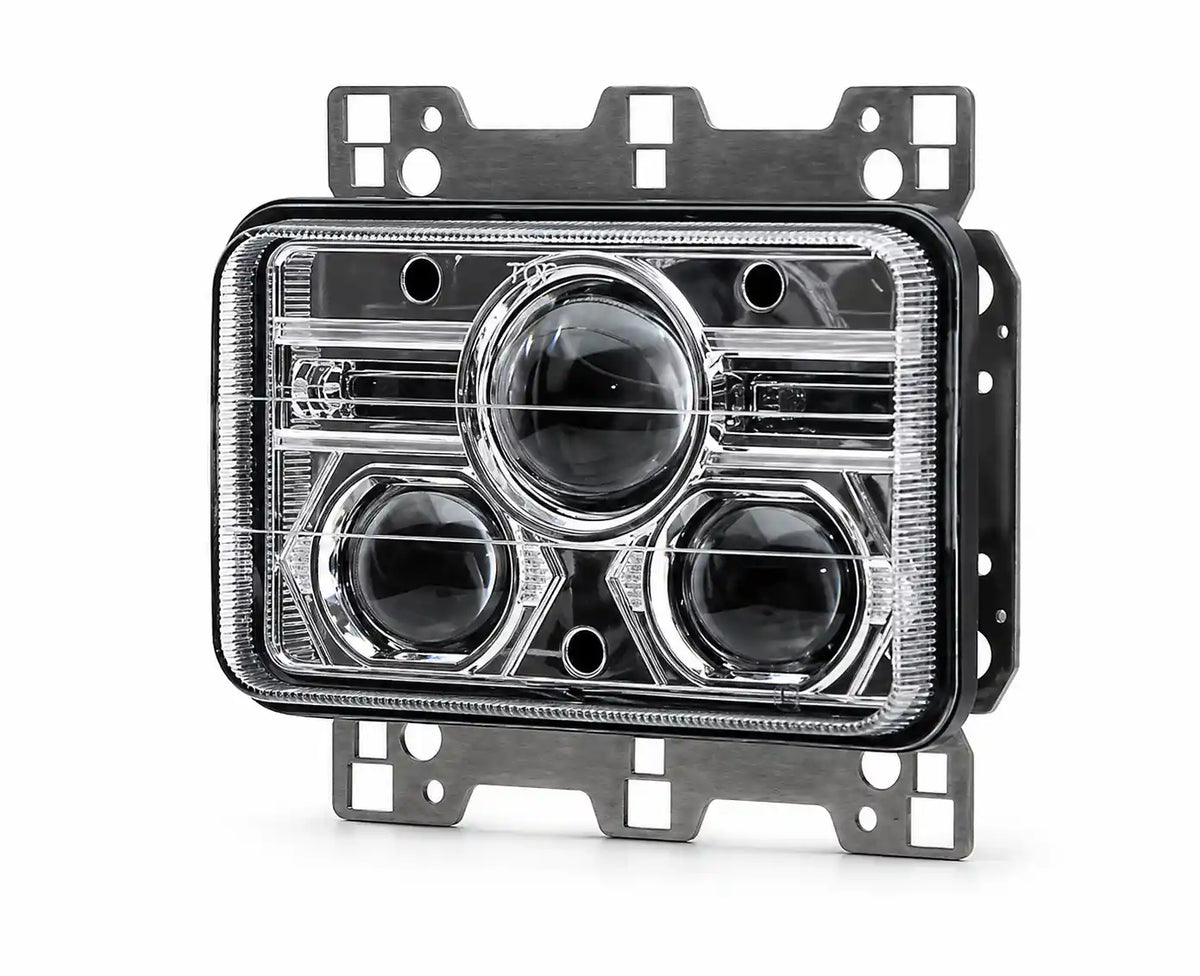

102 Watt LED High and Low Beam Headlight with DRL – LG831EU

The LG831EU is a professional 102W LED high and low beam headlight designed for tractors, agricultural machinery, loaders, construction equipment and other heavy-duty working vehicles. It combines high beam, low beam and daytime running light functions in one compact, road-ready headlamp, giving operators strong visibility for field work, yard movement and road travel.

Designed for European beam pattern requirements, this LED headlight delivers clear, controlled illumination with a defined low beam cut-off and powerful high beam reach. With 5,760 lumens, 6000 K cold white light and high-performance LED output, it helps improve visibility in poor weather, early mornings, late evenings and long working shifts.

Professional LED Headlight for Tractors and Machinery

The LG831EU is built as a modern upgrade from older halogen or sealed beam headlights. It provides 60W high beam, 30W low beam and a 12W daytime running light, giving operators a complete front lighting solution for both working and transport conditions.

The H4 plug and play connector helps simplify installation, making it easier for workshops and auto electricians to replace compatible OEM-style headlights with minimal wiring changes. Its compact 165 × 107 × 80 mm size makes it suitable for many tractor and machinery headlight positions.

Built for European Road Use

This model is designed with a European beam pattern, making it suitable for compatible vehicles operating in European markets where controlled dipped beam direction and road-ready lighting performance are required. The controlled low beam helps reduce glare for oncoming drivers while still giving the operator clear forward visibility.

The lamp carries ECE R10, ECE R112 and ECE R148 approvals, supporting road-legal use where correctly installed on compatible vehicles. CISPR 25 Class 4 EMC performance helps reduce interference with radios, GPS, ISOBUS, CANbus systems and other sensitive onboard electronics.

Durable Construction for Harsh Working Conditions

The LG831EU is built with a powder-coated aluminium housing for strength, corrosion resistance and heat control. The IP68-rated construction protects the headlight against dust, mud, water, spray and washdown conditions, making it suitable for farms, construction sites, yards and municipal fleets.

With 15G vibration resistance and a rated service life of up to 50,000 hours, this LED headlight is designed for machines that work on rough ground, field tracks and demanding job sites. It helps reduce maintenance, improve reliability and limit downtime compared with traditional lighting systems.

Key Features

102W LED headlight with high beam, low beam and daytime running light.
60W high beam for strong long-distance visibility.
30W low beam with controlled cut-off for road and work use.
12W daytime running light to improve vehicle visibility during the day.
5,760 lumen output for clear and practical working light.
6000 K cold white light for improved contrast in dark or wet conditions.
European beam pattern for suitable EU market applications.
Wide 9–32 V DC operating range for 12 V and 24 V systems.
H4 plug and play connector for easier installation.
Powder-coated aluminium housing for durability and heat management.
IP68 ingress protection for dust, water, mud and washdown resistance.
15G vibration resistance for agricultural and off-road machinery.
ECE R10, ECE R112 and ECE R148 approved.
CISPR 25 Class 4 EMC performance to help reduce electrical interference.
Rated service life of up to 50,000 hours.

OEM Cross References

John Deere AL75338 / RE56964
Massey Ferguson 1693943M93
Landini 1693943M93 / 3542817M91 / 1333291C1
New Holland 81869794 / 83999518 / F0NN13006AB

Additional references may include David Brown, Case IH, Caterpillar, AGCO, BMW and Bosch applications where compatible.

Compatible Tractor Applications

John Deere 5070M
John Deere 5080M / 5080R
John Deere 5085M
John Deere 5090M / 5090R
John Deere 5100M / 5100R up to 2014
John Deere 5620
John Deere 5720
John Deere 5820

Ideal Applications

Agricultural tractor headlight upgrades
John Deere, Massey Ferguson, Landini and New Holland lighting replacements
Farm loaders, handlers and yard tractors
Construction and civil engineering machinery
Municipal and utility vehicles
Fleet retrofits from halogen to LED lighting
Machines operating in low light, wet weather, dust and vibration-heavy environments

Why Choose the LG831EU LED Headlight?

The LG831EU is designed for professional operators who need reliable road lighting, strong work visibility and long-term durability from one compact LED headlamp. It offers a practical upgrade from older lighting systems while maintaining a European beam pattern for suitable vehicle applications.

For farmers, contractors, fleet managers and workshops, this headlight helps improve operator visibility, reduce maintenance and support safer machine operation in demanding daily conditions.

Important Fitment Note

Please confirm the original headlight shape, connector type, beam pattern requirement and OEM reference before ordering. OEM names and part numbers are used only to help identify compatibility and do not mean this replacement part is original equipment.
