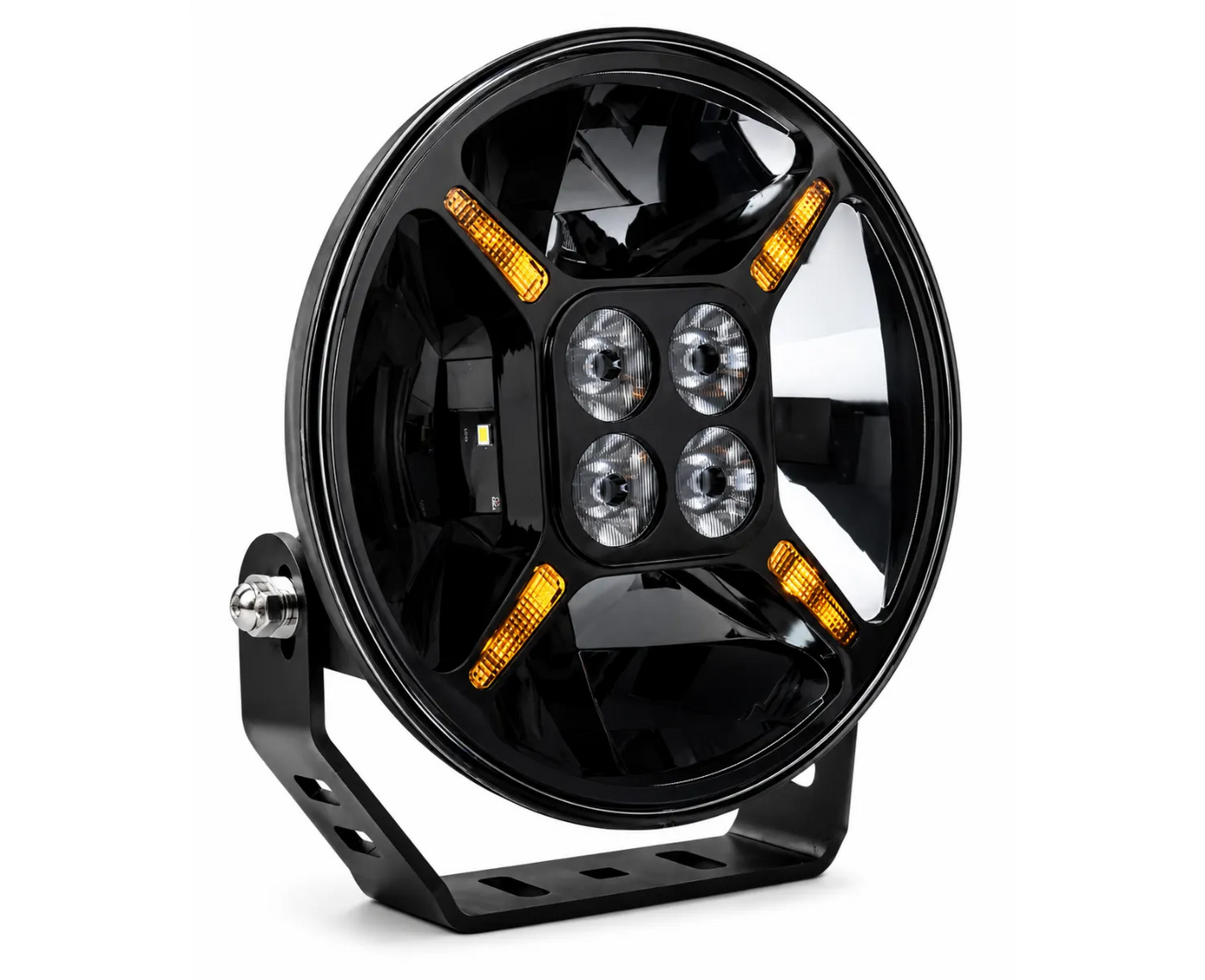

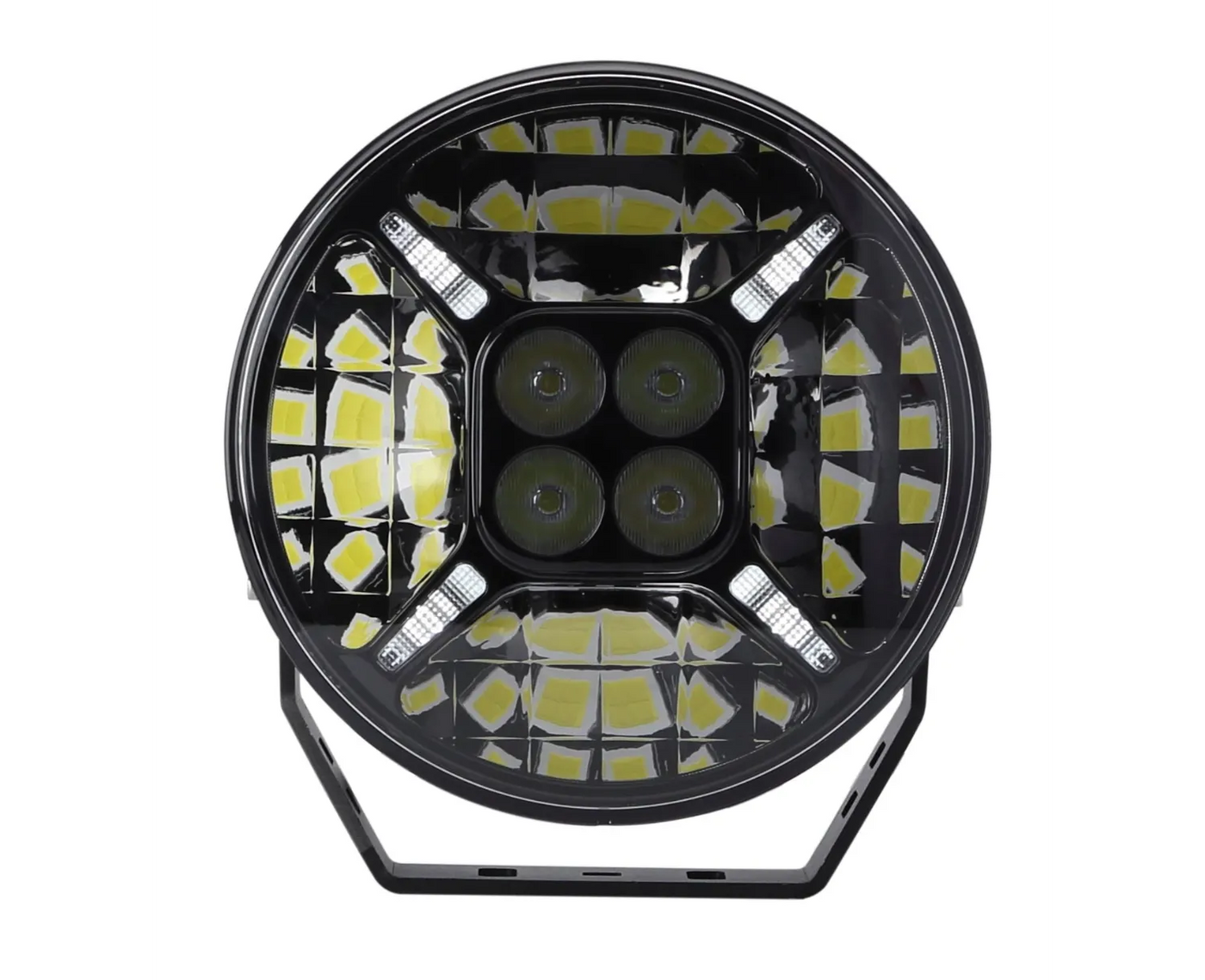

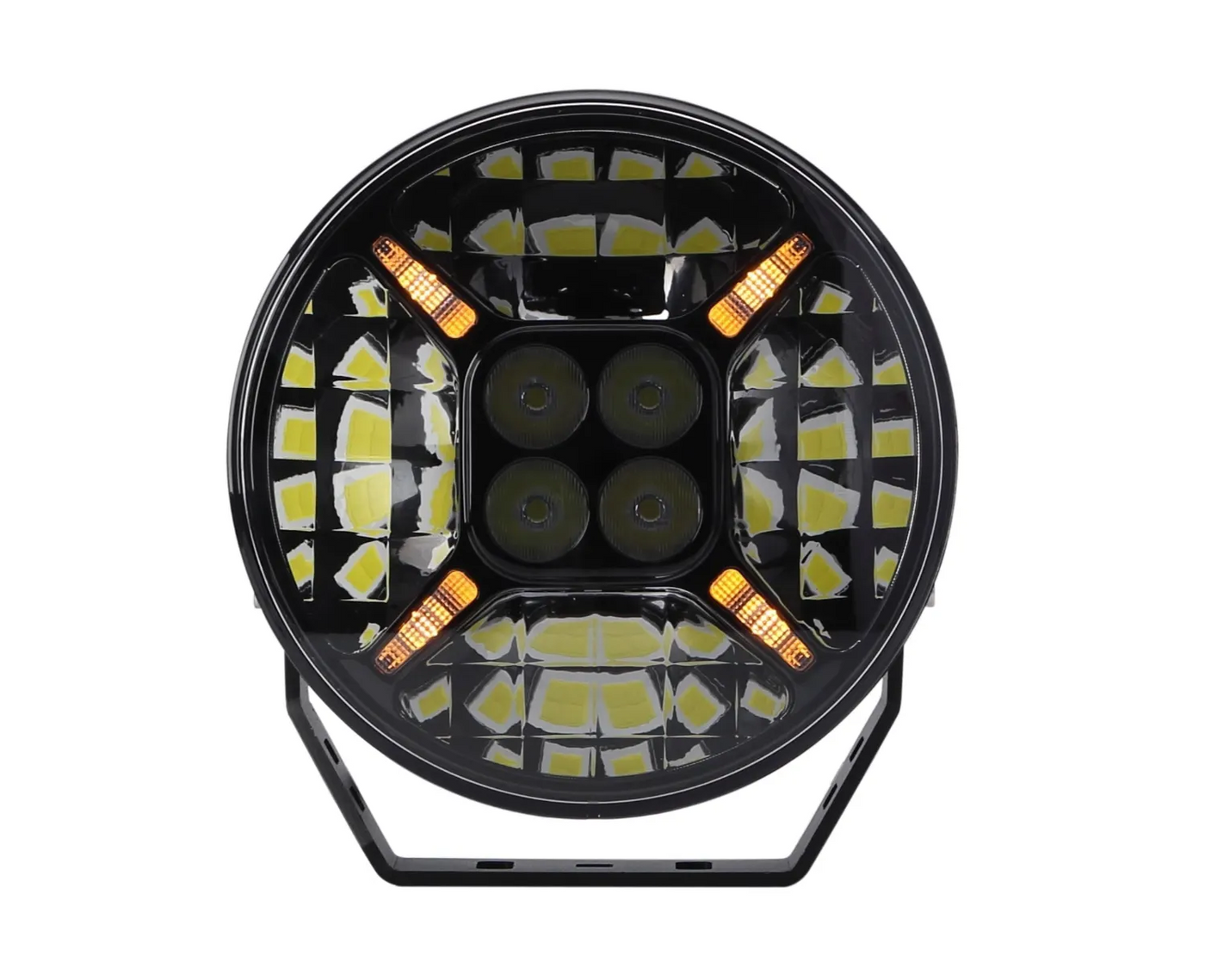

120 Watt 9 Inch Driving Light with Dual Colour Position Light – LG930

The LG930 120 W 9 inch LED driving light is built for professional vehicles that need long-range visibility, front position lighting and amber warning capability in one compact unit. It combines a powerful high beam, a dual-colour white / amber position light and an integrated amber warning light, helping reduce extra lamps, wiring and bracket clutter.

With ECE R149, ECE R148, ECE R65 and ECE R10 approvals, plus CISPR 25 Class 5 EMC performance, the LG930 is designed for serious road, fleet, utility, agricultural, construction and 4x4 applications across Europe.

Multi-Function 9 Inch LED Driving Light

The LG930 is designed for operators who need more than a standard driving lamp. Its multifunction design combines long-range driving light performance with position lighting and amber warning functionality in a single 9 inch housing.

This helps simplify the front lighting setup on trucks, 4x4s, utility vehicles, service fleets, agricultural machinery and construction equipment where space, compliance and reliability all matter.

Powerful High Beam Performance

The high beam delivers 12,900 lm raw output and 4,800 lm effective output, giving strong forward visibility for night driving, rural roads, work sites and off-road environments. The 5700–6500 K white light provides crisp detail and good distance recognition in dark conditions.

With 113 W high beam input power, the LG930 provides serious driving light performance while remaining suitable for professional 12 V and 24 V vehicle systems.

Dual Colour Position Light and Amber Warning

The integrated position light can be used in white or amber, giving installers flexibility for vehicle styling, visibility and fleet standards. The amber position light operates at approximately 2000–2200 K, helping improve visual contrast in poor weather, dust and mist.

The integrated amber warning light is approved to ECE R65, making it suitable for professional warning applications where correctly installed and legally permitted. This allows one lamp to support driving, position and warning functions without needing separate front warning modules.

Built for 12 V and 24 V Vehicles

The LG930 operates on a wide 10–30 V DC input range, making it suitable for both 12 V and 24 V vehicles. It is a practical option for mixed fleets using commercial vehicles, 4x4s, vans, plant machinery, tractors and utility vehicles.

A 40 cm cable tail gives installers flexibility when routing wiring behind grilles, bumpers, roof bars or junction boxes.

Rugged IP69K Construction

The lamp is built with a thermal plastic graphene housing, a durable polycarbonate lens and a SUS 304 stainless steel U-shape bracket. This gives strength, corrosion resistance and stable mounting in demanding environments.

With IP69K ingress protection, the LG930 is designed to withstand dust, rain, road spray and high-pressure wash-down conditions. Its operating temperature range of −40 °C to +50 °C supports reliable use in harsh European weather.

EMC-Safe and Fully Approved

The LG930 is approved to ECE R149 for driving light performance, ECE R148 for position light, ECE R65 for amber warning and ECE R10 for electromagnetic compatibility. CISPR 25 Class 5 EMC performance helps reduce interference with radios, GPS, telematics, CANbus systems and other sensitive vehicle electronics.

It also carries CE and RoHS compliance, making it suitable for professional European vehicle lighting applications.

Key Features

• 120 W 9 inch multifunction LED driving light.
• Combines high beam, dual-colour position light and amber warning light in one unit.
• High beam output: 12,900 lm raw / 4,800 lm effective.
• High beam power: 113 W input, approx. 50 W effective.
• High beam colour temperature: 5700–6500 K.
• Dual-colour position light in white or amber.
• Position light power: 20 W input, approx. 3 W effective.
• Amber position light colour temperature: 2000–2200 K.
• Integrated amber warning light with ECE R65 approval.
• Warning light power: 18 W input, approx. 15 W effective.
• Warning light colour temperature: approx. 1700 K.
• Wide 10–30 V DC input for 12 V and 24 V systems.
• Graphene thermal plastic housing for heat control and reduced weight.
• Polycarbonate lens for impact resistance.
• SUS 304 stainless steel U-shape bracket for secure mounting.
• IP69K protection for dust, water and high-pressure wash-down resistance.
• Operating temperature range from −40 °C to +50 °C.
• ECE R149, ECE R148, ECE R65 and ECE R10 approved.
• CISPR 25 Class 5 EMC performance to help reduce electrical interference.
• CE and RoHS compliant.
• Compact 225 × 230.5 × 85 mm size with 40 cm cable tail.

Ideal Applications

• Heavy trucks, tractors and semi-off-road commercial vehicles.
• Utility, telecoms, rail maintenance and energy fleet vehicles.
• 4x4s, pickups and overland vehicles needing strong auxiliary driving light.
• Municipal, highway maintenance and airport service vehicles.
• Construction, quarry, mining and site support equipment.
• Agricultural and forestry vehicles operating on roads, yards and access tracks.
• Vehicles needing driving light, position light and amber warning in one compact lamp.

Why Choose the LG930 LED Driving Light?

The LG930 is designed for professional users who need strong forward lighting, flexible position light options and approved amber warning capability in one durable lamp. Its multifunction design helps reduce installation complexity while supporting clear visibility and compliant signalling.

For fleet managers, workshops, contractors, farmers and specialist vehicle builders, this driving light offers robust construction, excellent EMC performance, recognised ECE approvals and reliable operation in harsh working conditions.

Important Fitment Note

Please check mounting position, wiring requirements, voltage system, beam alignment, warning light regulations and local road-use rules before installation. Amber warning and auxiliary driving light functions should only be used where legally permitted and correctly wired.
