| SKU | LG877 |
|---|---|
| EAN | 4255929221340 |
| Rated LED power | 120 W (12 × 10 W Cree XM-L2) |
| Effective luminous flux | 9,600 lm |
| Raw luminous flux | 12,000 lm |
| Voltage | 9–36V DC |
| Specified current draw | 7.7 A at 12V / 3.6 A at 24V |
| Power modes | ECE / off-road |
| Beam versions (1 lux) | Euro: 425 m; spot: 546 m (supplied chart) |
| Position light | White / amber |
| Warning function | Synchronisable strobe |
| Protection | IP68 / IP69K |
| ECE approvals | R112 (Euro Ref. 37.5 / Spot Ref. 50), R7, R10, R65 |
| Other conformity | CE |
| Operating temperature | −40°C to +60°C |
| Housing | ADC12 diecast aluminium |
| Lens | Lexan polycarbonate |
| Bracket | Adjustable stainless steel bottom bracket |

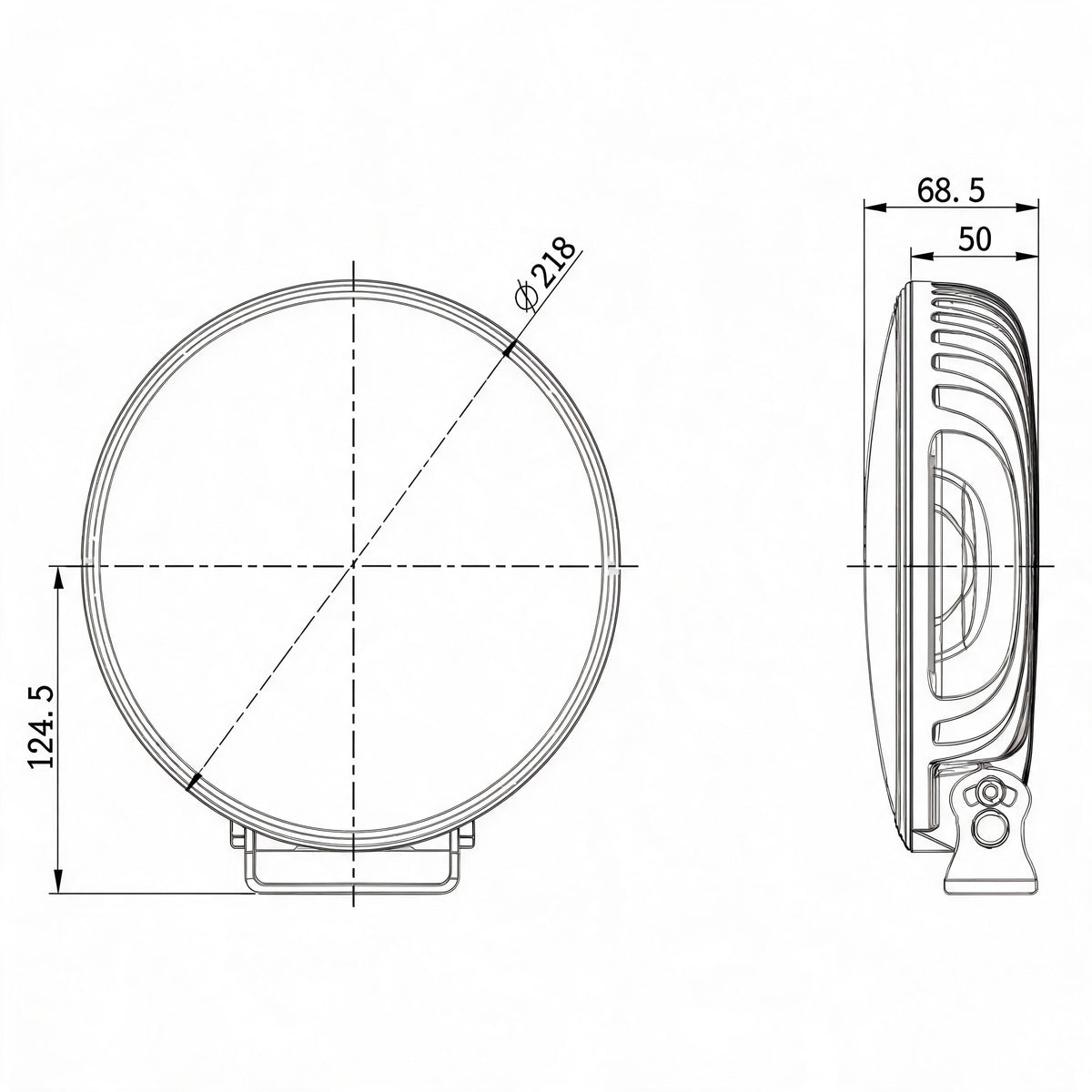

| Diameter | 218 mm |
| Overall height | Approx. 233.5 mm; base to centreline 124.5 mm |
| Depth | 68.5 mm |
| Wiring | Black: ground; red: driving +; grey: white position +; yellow: amber position +; green: warning +; blue: sync/frequency; brown: alternation; white: power activation |
All Lighting products

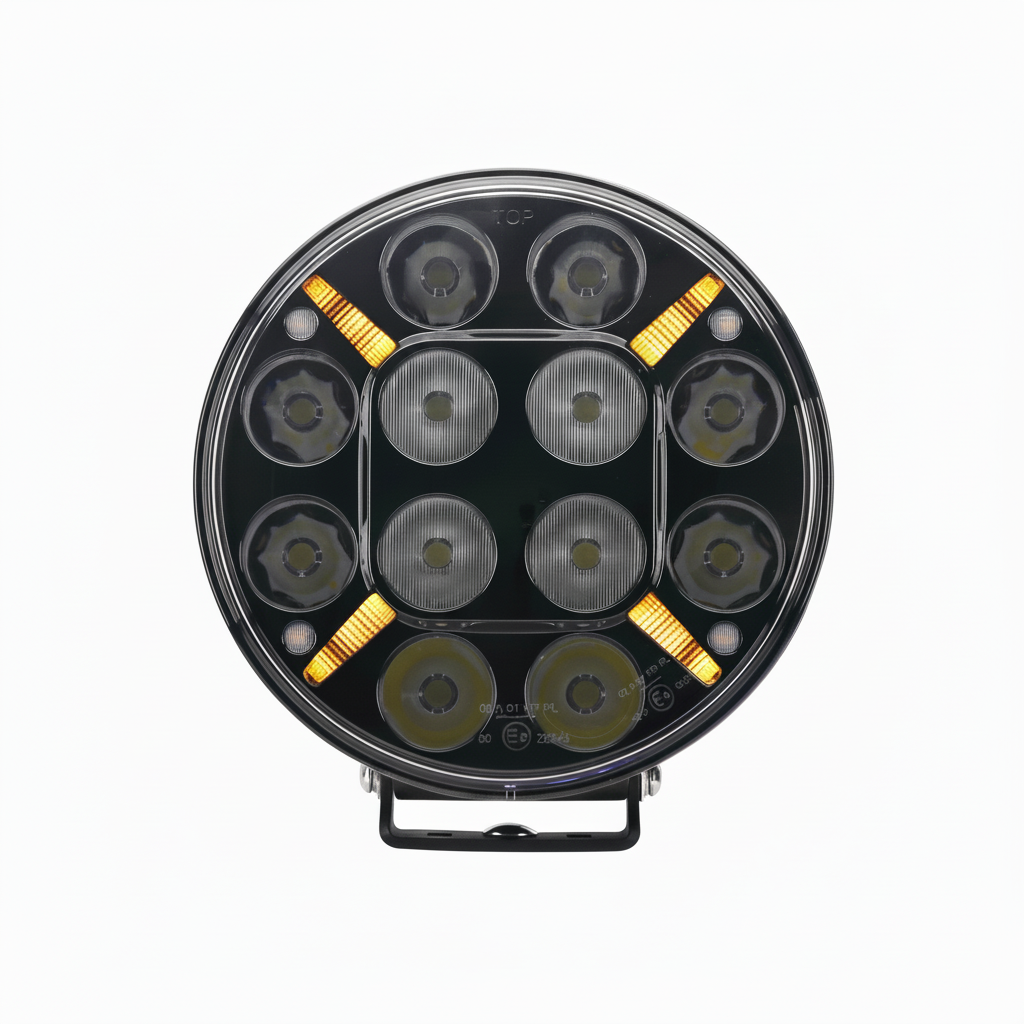

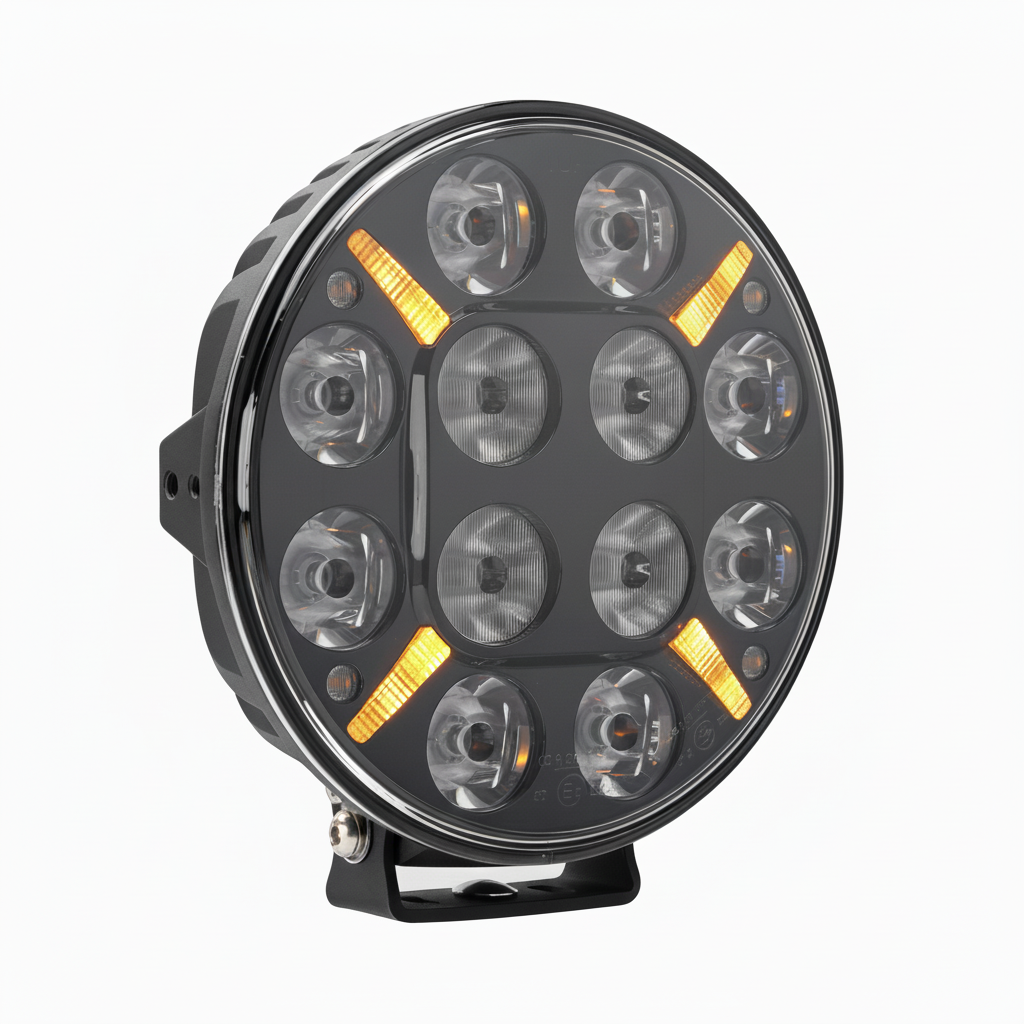

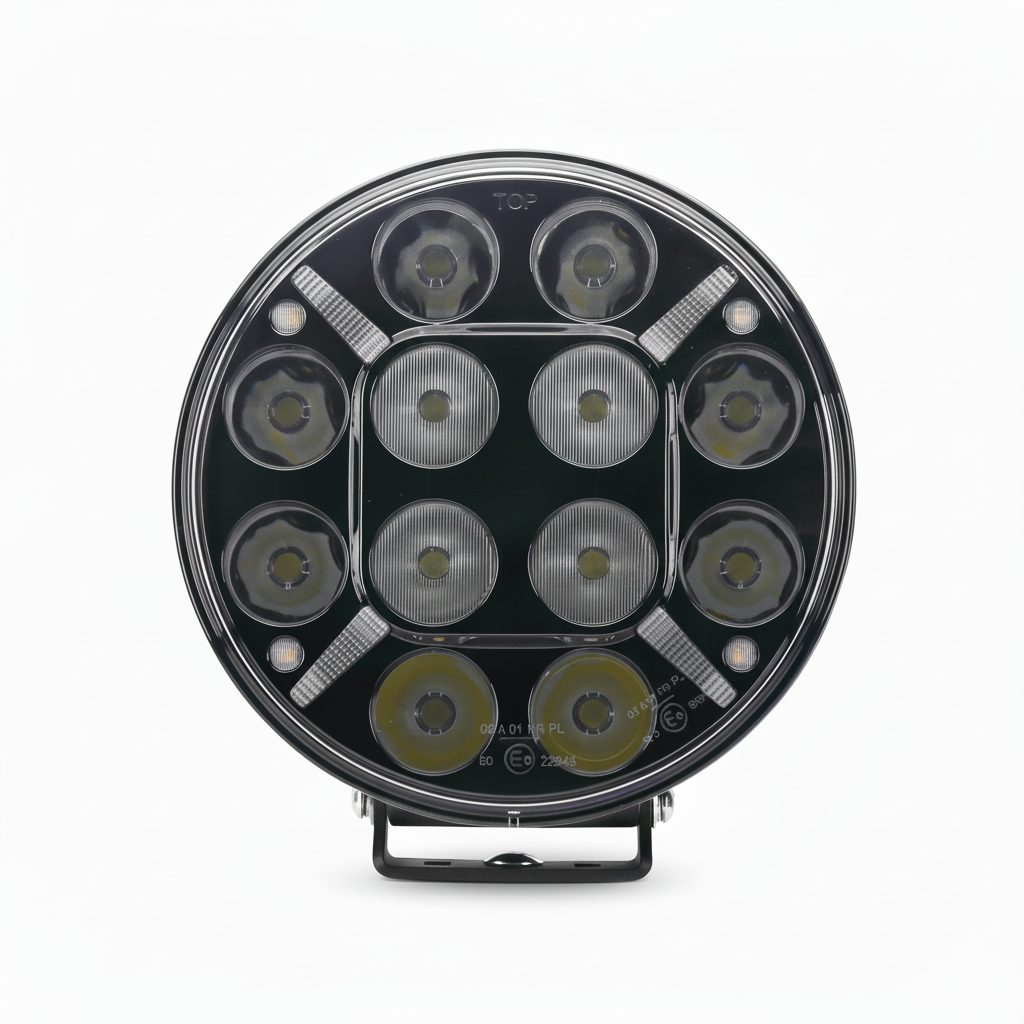

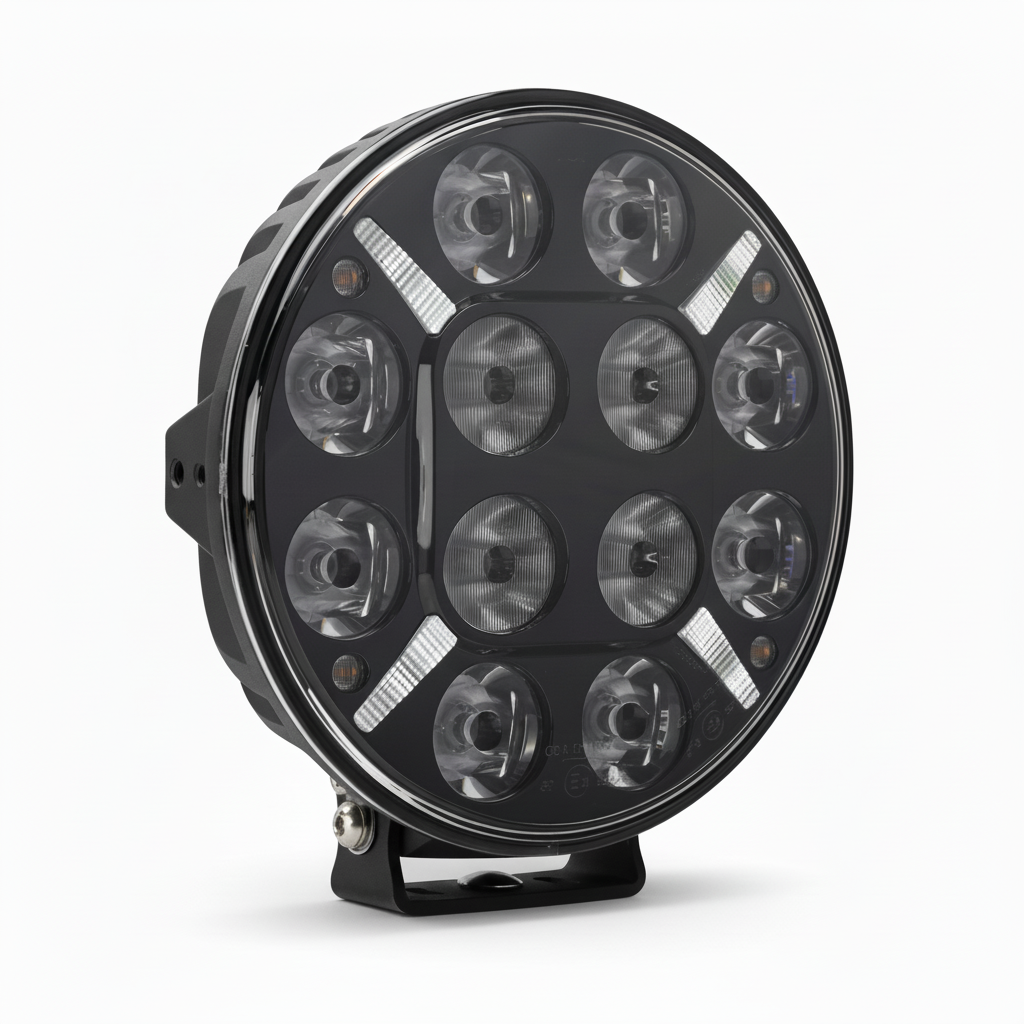

120W 8.5" LED Driving Light with Position Light & Amber Warning Strobe - LG877
120W round LED driving light with position light and warning strobe
The LG877 uses twelve 10W Cree XM-L2 LEDs and provides 9,600 effective lumens. It combines dual-power ECE/off-road modes, white and amber position lights, and a warning strobe with synchronisation. The 218 mm diameter is approximately 8.5 inches.

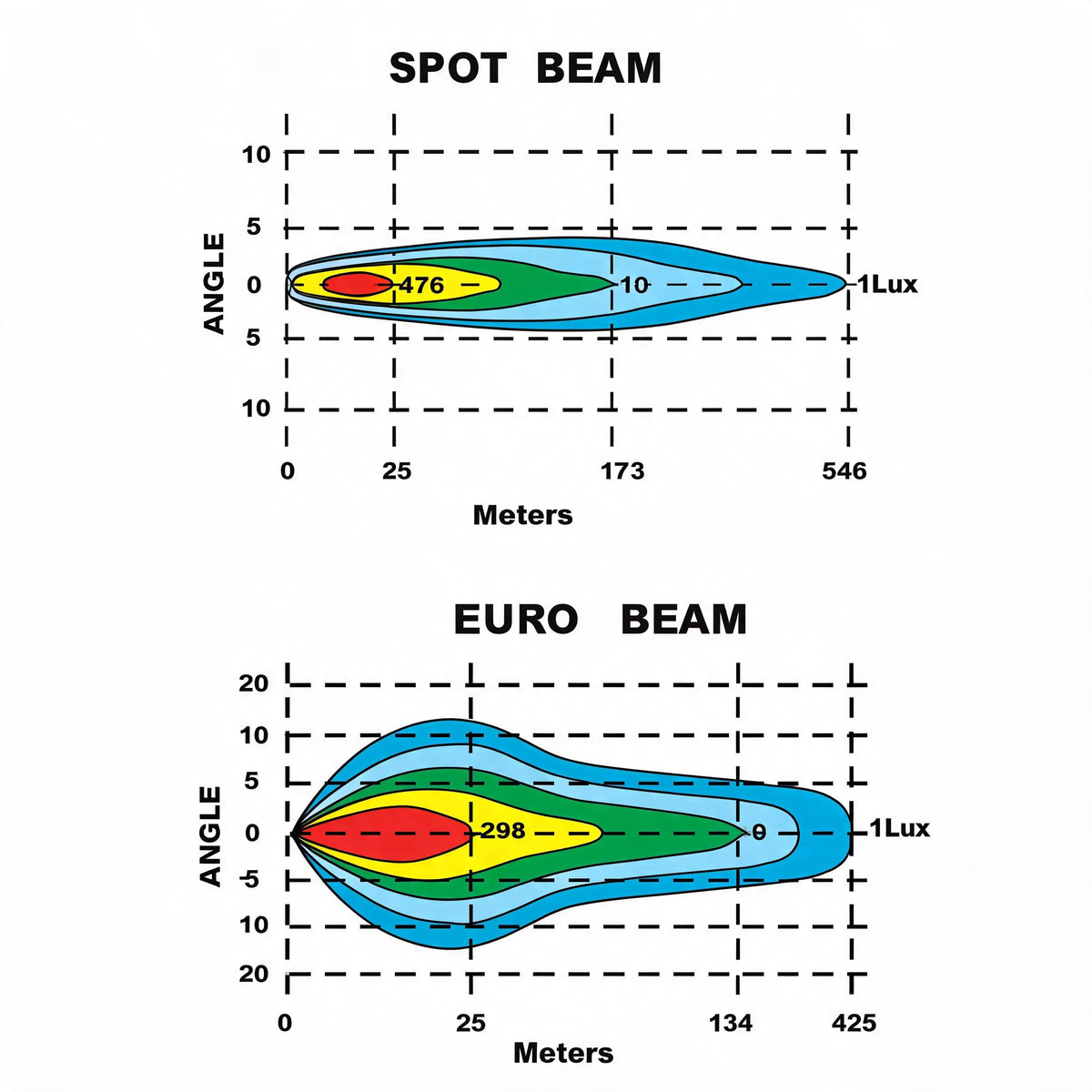

The supplied photometric chart shows Euro and spot beam versions: 425 m and 546 m respectively at 1 lux. These figures describe different optical versions. The ADC12 diecast aluminium housing, Lexan polycarbonate lens, stainless steel bracket and IP68/IP69K sealing support demanding working conditions. Electronic thermal management helps control operating temperature.
Check the optical version, mounting and wiring before installation. The kit includes the lamp, mounting bracket, hardware and installation manual.
£133.00
● In stock
