| Part number | LG932 |
|---|---|
| EAN / barcode | 4255929208099 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving beam; dual-colour position light; amber warning strobe |
| LED configuration | 12 LMP LEDs: 10 × 10 W + 2 × 20 W |
| Power rating / consumption | 140 W nominal LED rating |
| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |
| Width / length | 247 mm |
| Height | 170 mm with bracket; 141 mm housing |
| Depth | 83 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Wire functions | Black: ground (-); red: driving (+); green: warning (+); blue: signal (+); white: white position (+); yellow: amber position (+); brown: ECE activation (+) |

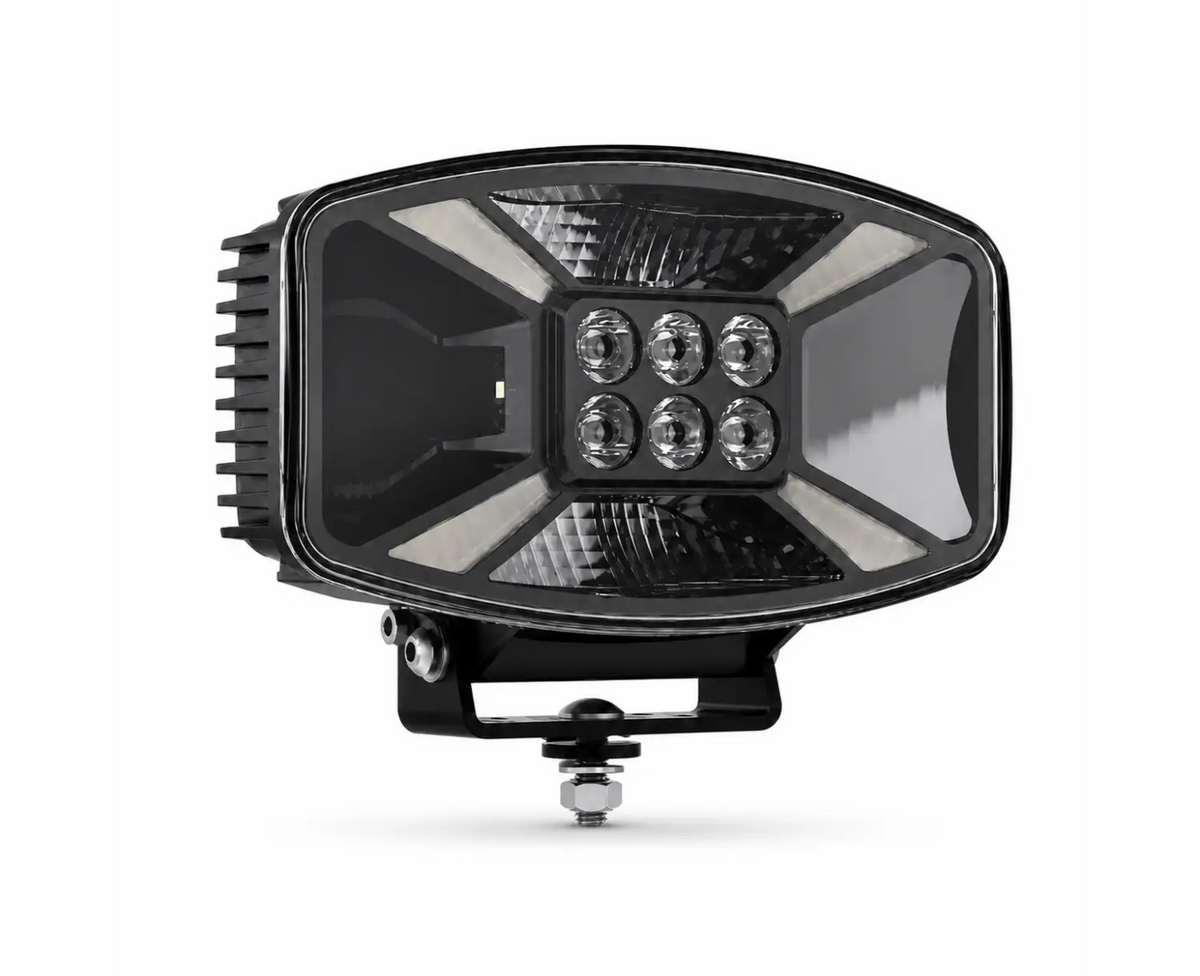

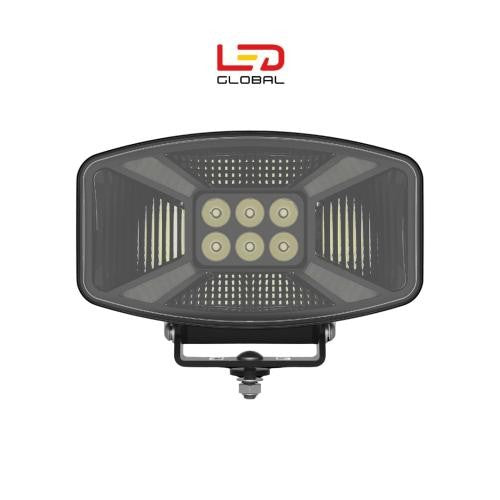

140W LED Driving Light with Warning Strobe – LG932
In stock
incl. VAT
Specifications
| Part number | LG932 |
|---|---|
| EAN / barcode | 4255929208099 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |

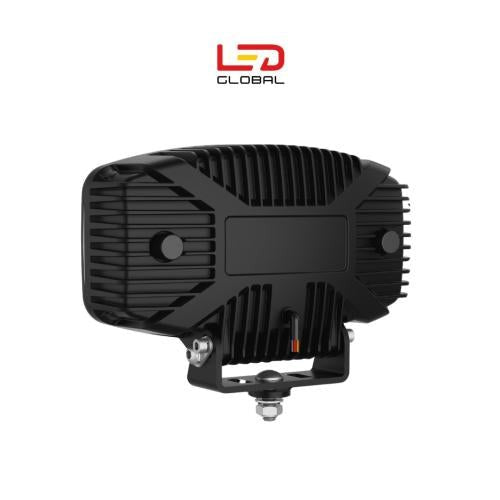

| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving beam; dual-colour position light; amber warning strobe |
| LED configuration | 12 LMP LEDs: 10 × 10 W + 2 × 20 W |
| Power rating / consumption | 140 W nominal LED rating |

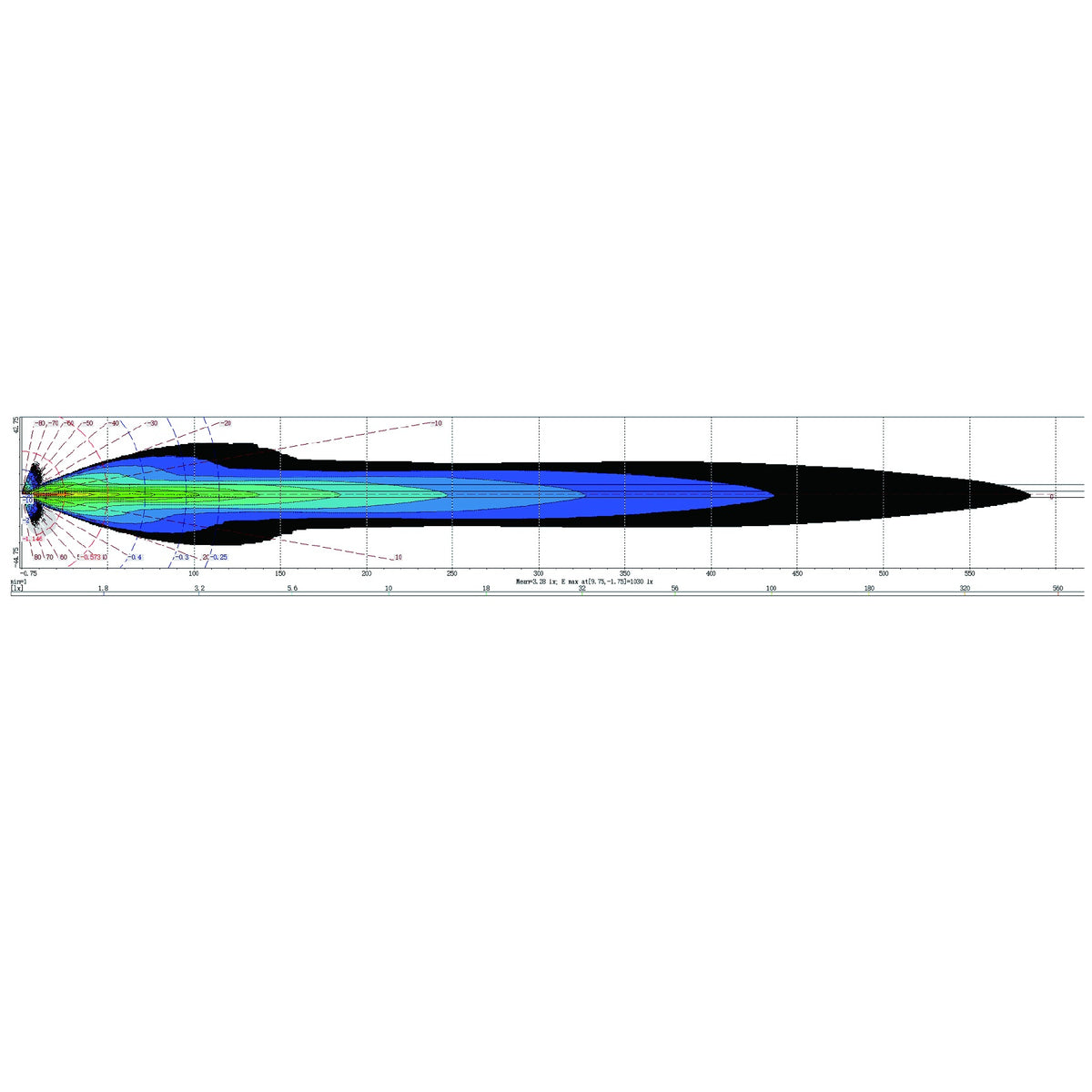

| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |
| Width / length | 247 mm |
| Height | 170 mm with bracket; 141 mm housing |
| Depth | 83 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Wire functions | Black: ground (-); red: driving (+); green: warning (+); blue: signal (+); white: white position (+); yellow: amber position (+); brown: ECE activation (+) |
Description

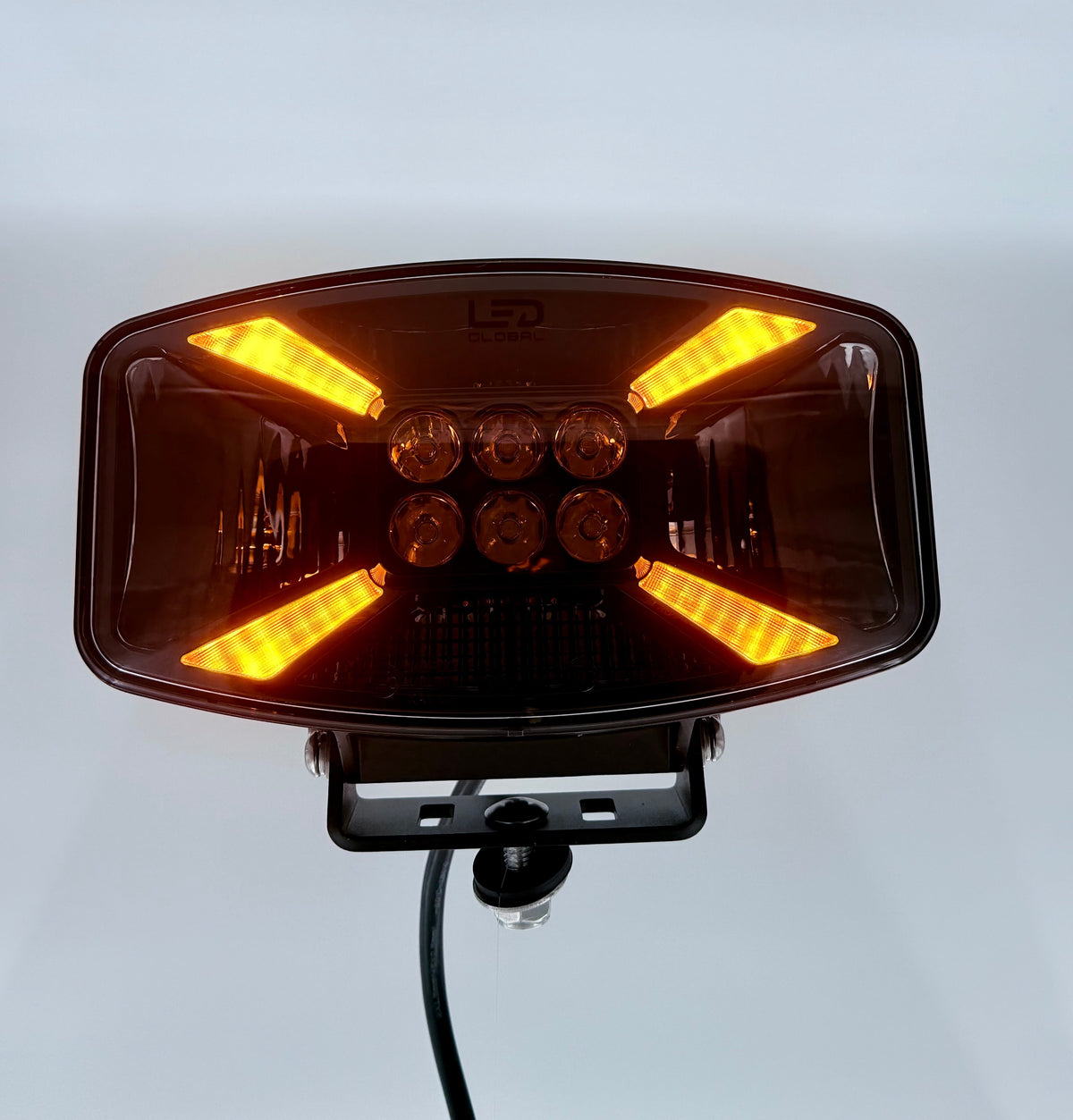

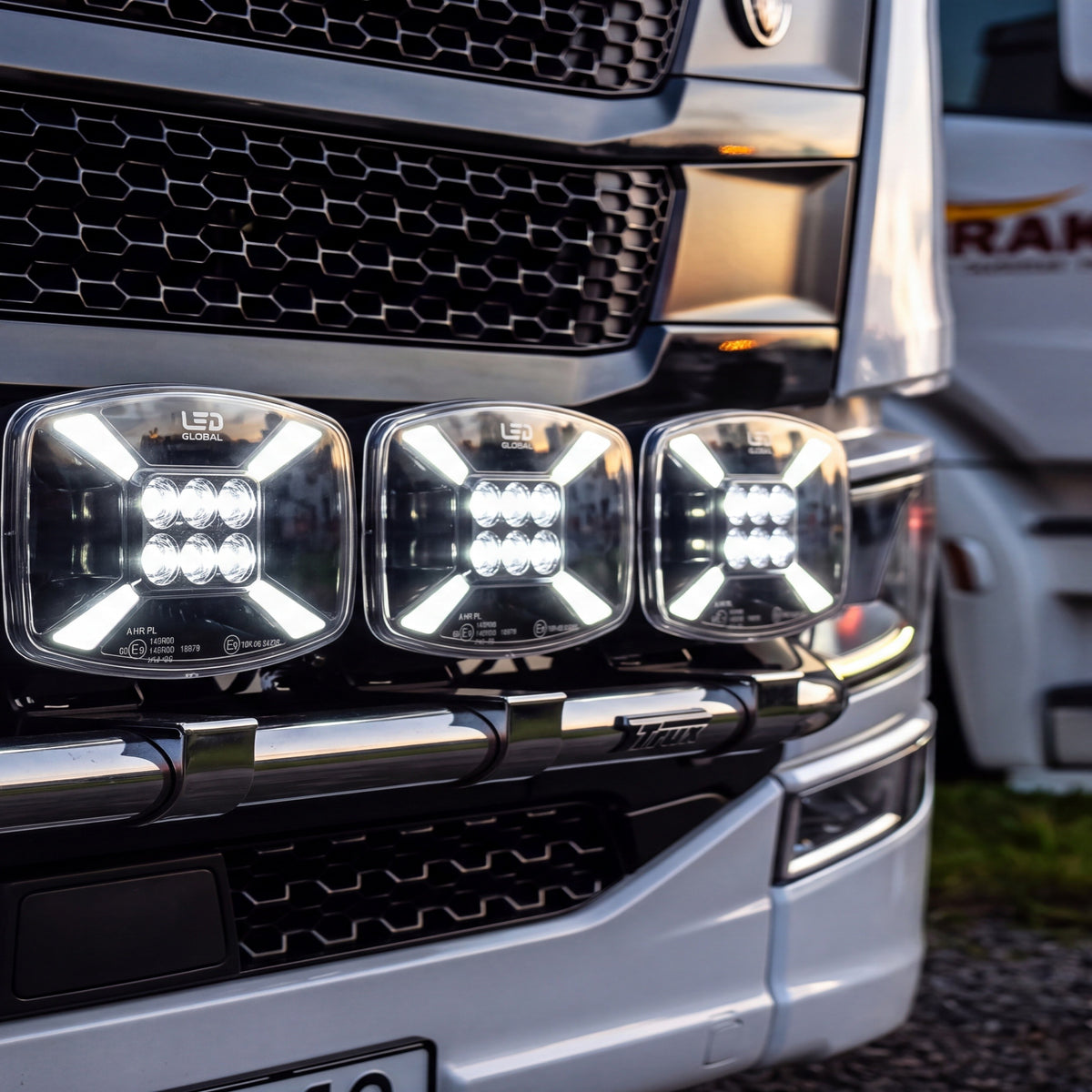

The LG932 combines a 140 W nominal LMP LED array with a 25° combo beam and an integrated amber warning strobe. It is designed for auxiliary lighting on trucks, commercial vehicles and off-road machinery.

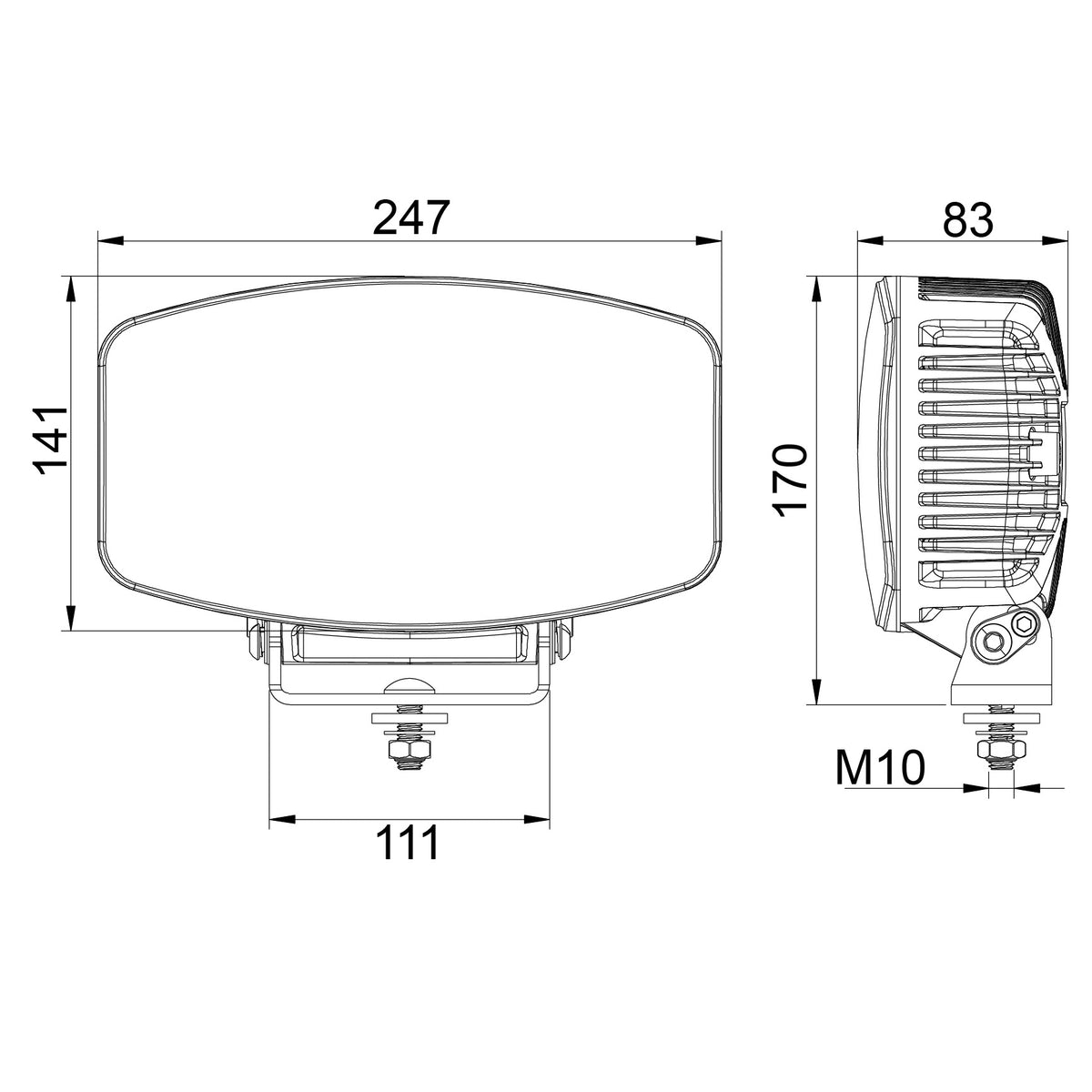

The die-cast aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket, M10 mounting point and 500 mm cable with a 6-pin DT connector support installation. Overall dimensions are 247 × 170 × 83 mm, with a 141 mm housing height.
Connecting red and black selects full-power off-road driving; adding the brown activation wire selects the ECE driving mode.
All Lighting products
140W LED Driving Light with Warning Strobe – LG932
140W LED Driving Light with Warning Strobe – LG932
The LG932 combines a 140 W nominal LMP LED array with a 25° combo beam and an integrated amber warning strobe. It is designed for auxiliary lighting on trucks, commercial vehicles and off-road machinery.
The die-cast aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket, M10 mounting point and 500 mm cable with a 6-pin DT connector support installation. Overall dimensions are 247 × 170 × 83 mm, with a 141 mm housing height.
Connecting red and black selects full-power off-road driving; adding the brown activation wire selects the ECE driving mode.
£165.00
