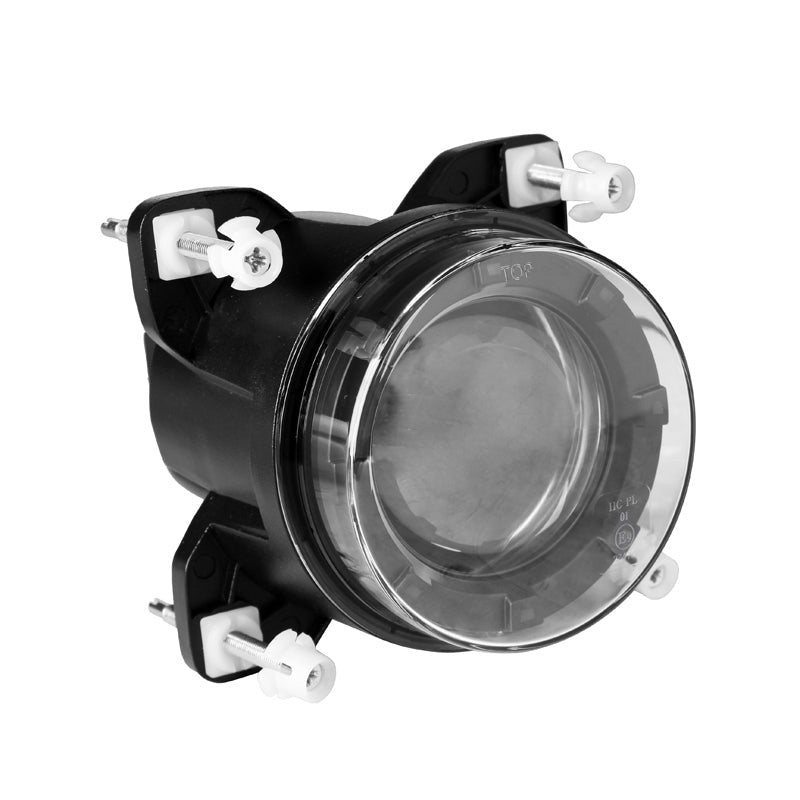

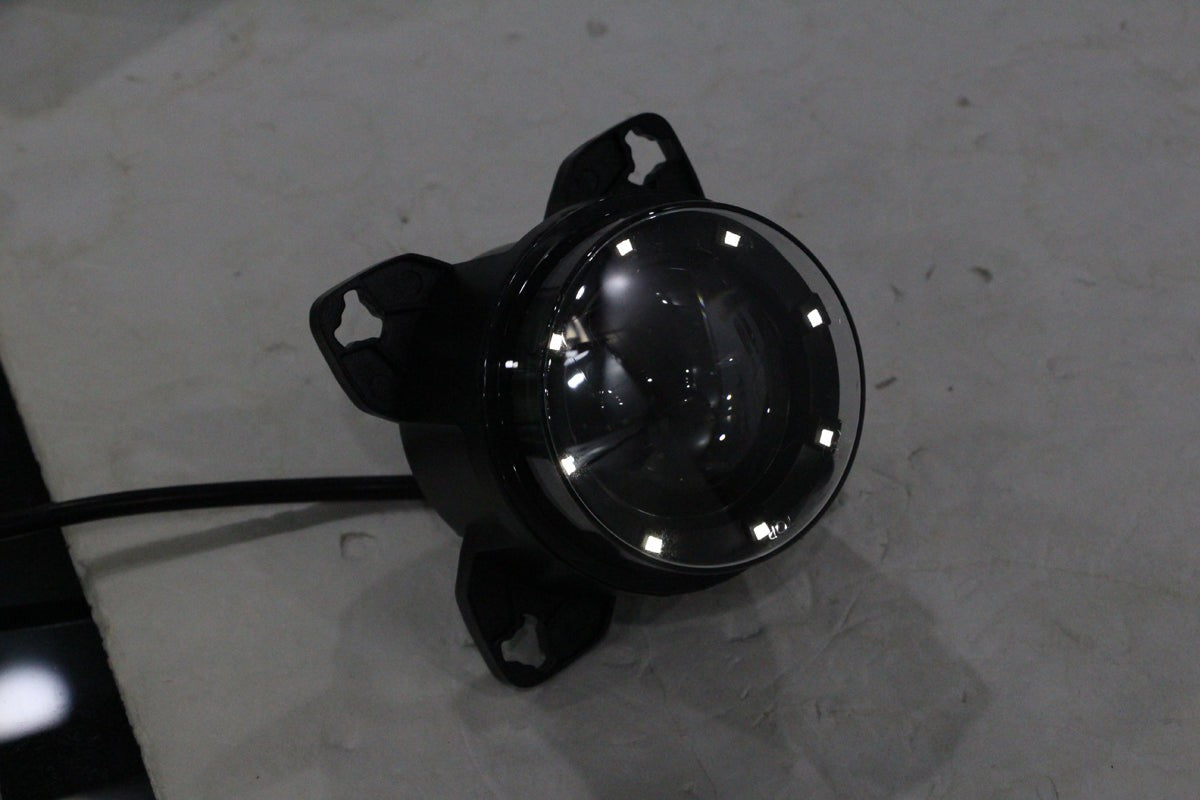

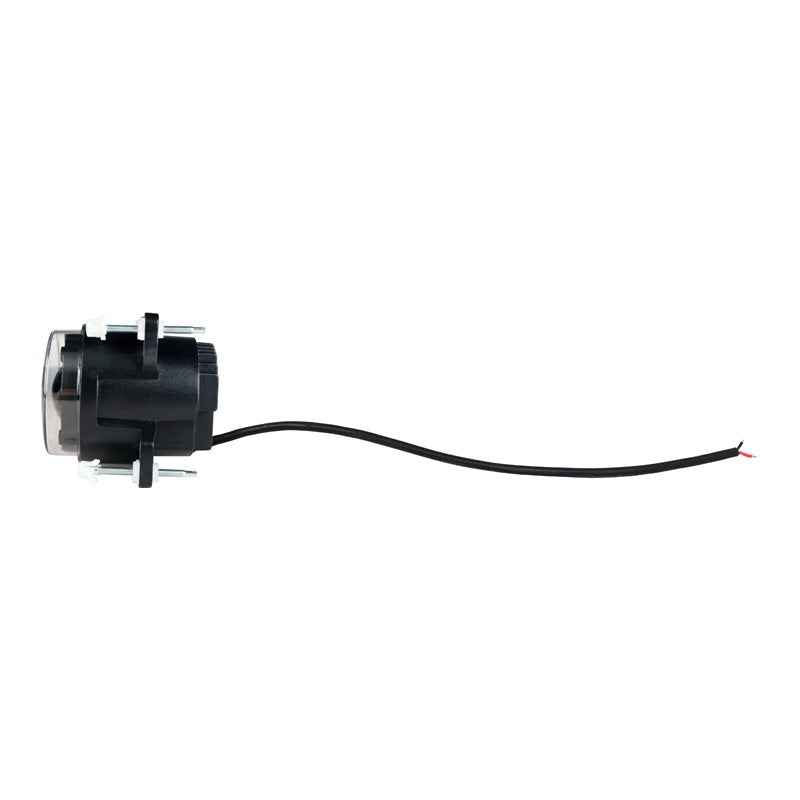

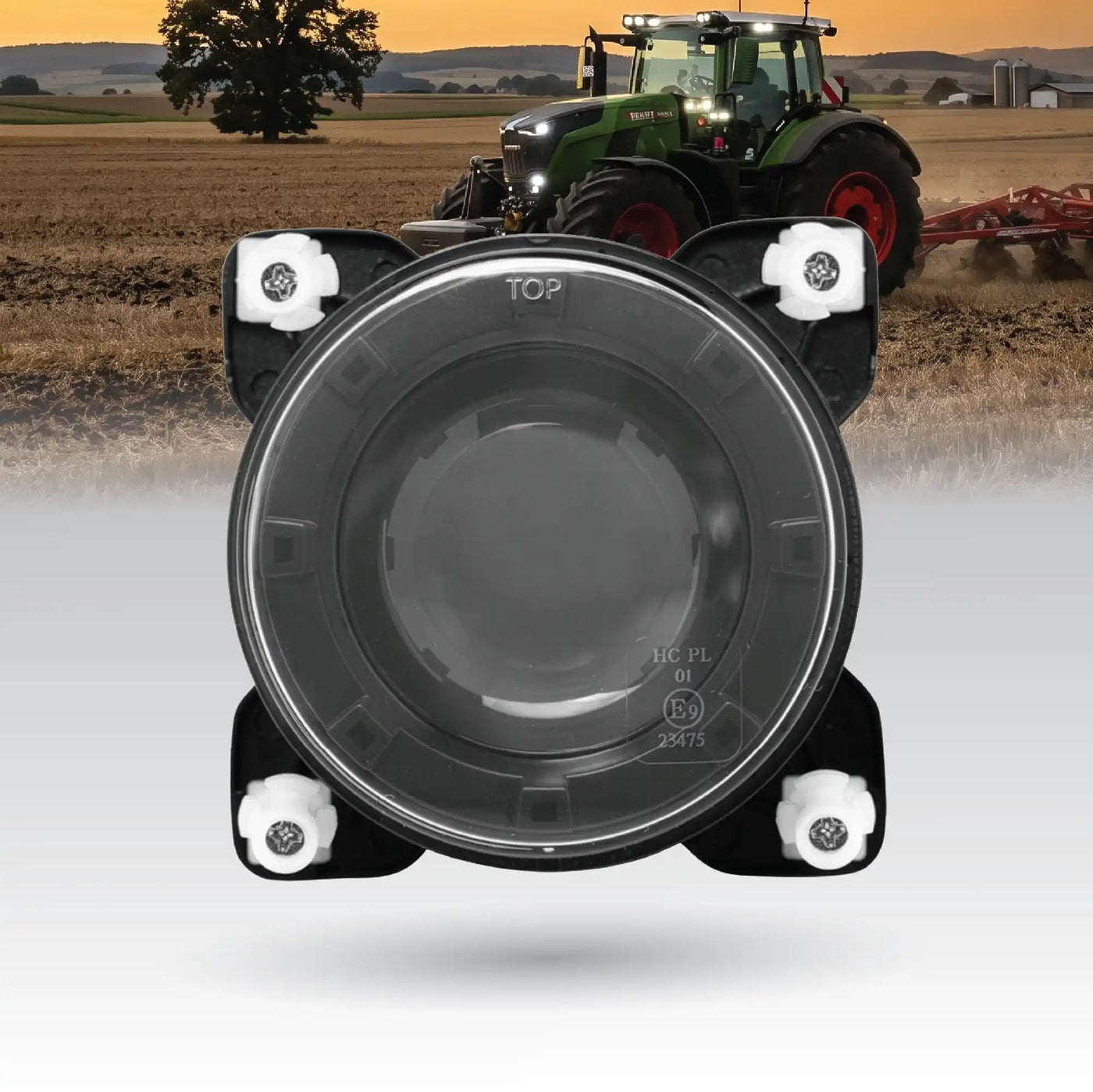

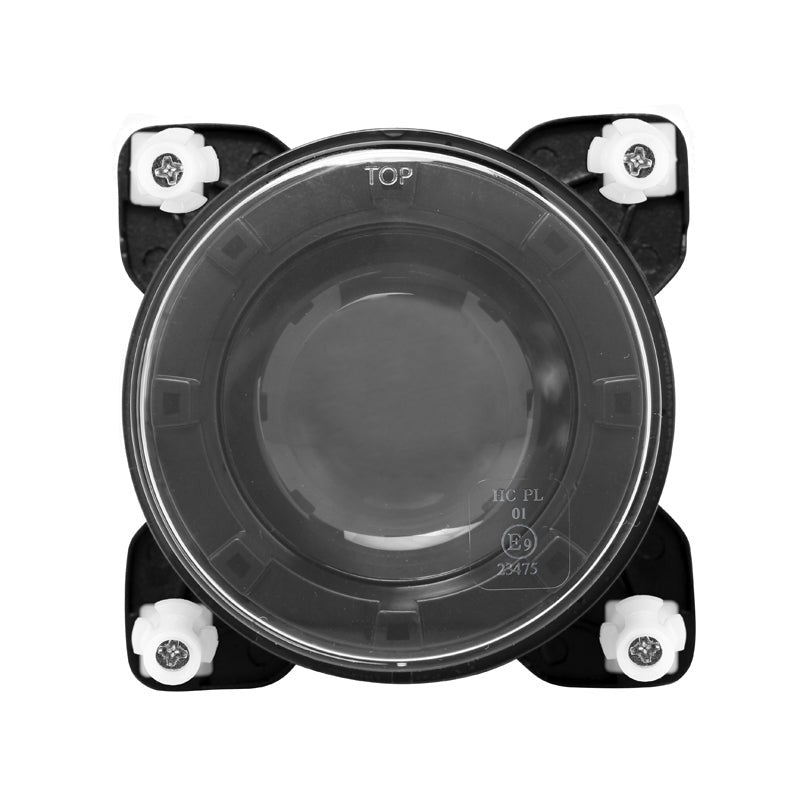

18W LED Low Beam Headlight (EU) – LG821EU

The LG821EU 18W LED low beam headlight delivers a compliant, controlled low beam pattern for European left-hand-drive vehicles. It is designed for daily use on working vehicles, with a die-cast aluminium housing, IP68 protection and a 9–32 V DC power range suitable for mixed fleets.

Ideal as a primary low beam or a halogen replacement, the LG821EU is a practical choice for compact construction machinery, agricultural tractors, special-purpose vehicles and light commercial vehicles.

Clear Low Beam Performance

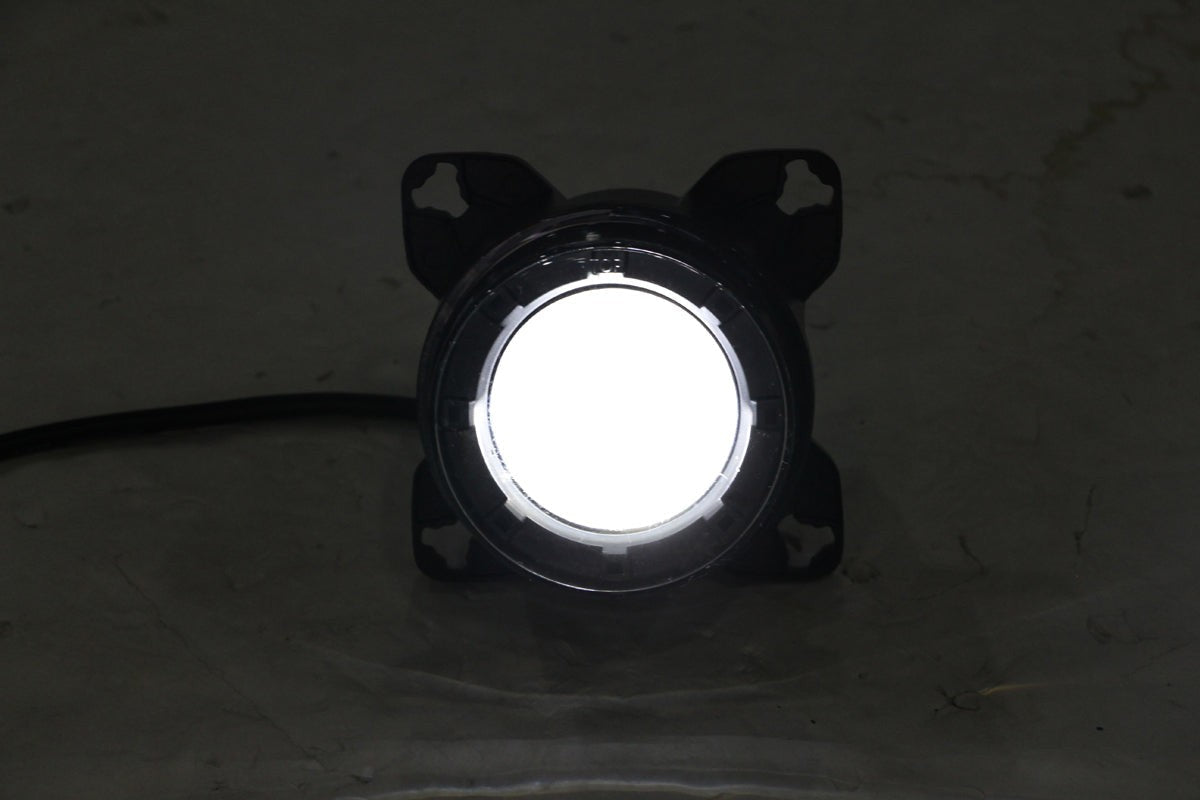

This LED headlight delivers 1,800 lumens of cold-white 6000 K light with a sharp, ECE-compliant low beam cut-off. The focused pattern helps drivers see road edges, surface conditions, hazards and obstacles more accurately without dazzling oncoming traffic.

The optimised beam delivers 12 lux at 50 m and 1 lux at 186 m, giving usable distance lighting where it is needed instead of wasted foreground glare.

European Road-Legal Approvals

The LG821EU is approved to ECE R112 and ECE R149 for European low beam use, with a beam pattern engineered for left-hand-drive traffic. This makes it suitable for road-legal installations where ECE approval is required.

The 6000 K cold-white colour temperature improves contrast on wet tarmac, yard surfaces and rough ground, helping drivers identify hazards earlier in poor conditions.

EMC and Electronic Compatibility

The headlight is approved to ECE R10 and CISPR 25 Class 4 for electromagnetic compatibility. This high level of radio-frequency suppression helps protect radios, GPS, telematics, CAN-bus systems and other sensitive vehicle electronics from interference.

This makes the LG821EU suitable for modern fleets running telemetry, ISOBUS or communication equipment alongside auxiliary lighting.

Built for Professional Vehicles

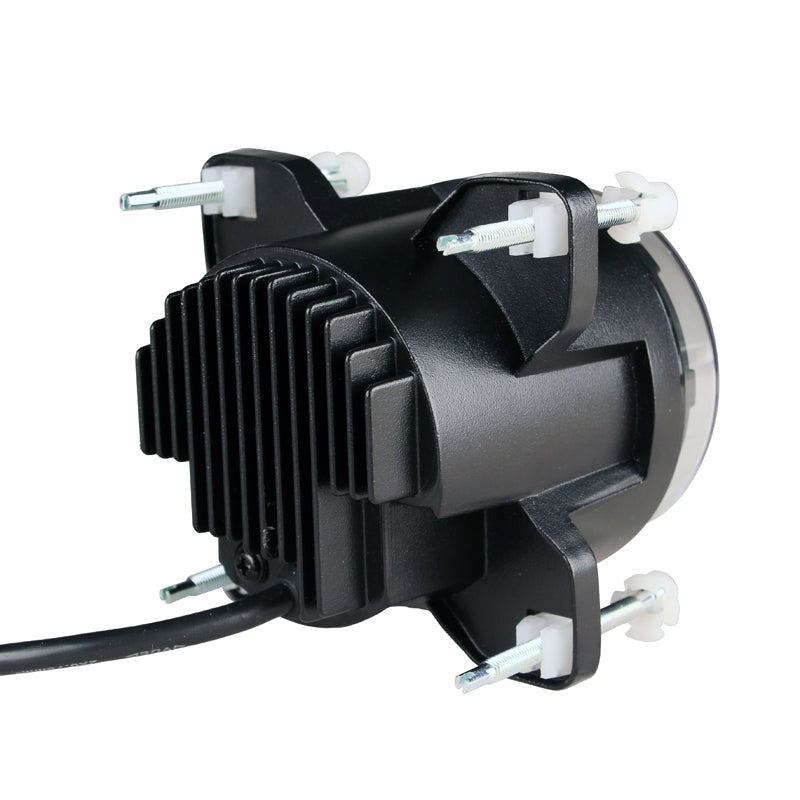

The die-cast aluminium housing is built for commercial environments where headlights are exposed to vibration, rain, spray, dust and regular washing. IP68 ingress protection helps protect the unit against dust and prolonged water exposure, including pressure washing.

The 9–32 V DC power range makes the headlight suitable for both 12 V and 24 V vehicle systems, helping workshops and fleet operators standardise across different vehicle platforms. The 50,000-hour rated lifespan helps reduce maintenance, downtime and total cost of ownership.

Key Features

• 18 W LED low beam headlight for European left-hand-drive vehicles.
• 1,800 lumen luminous output.
• 6000 K cold-white colour temperature.
• EU (LHD) low beam pattern with sharp cut-off.
• 12 lux at 50 m and 1 lux at 186 m beam performance.
• 9–32 V DC power supply for mixed vehicle fleets.

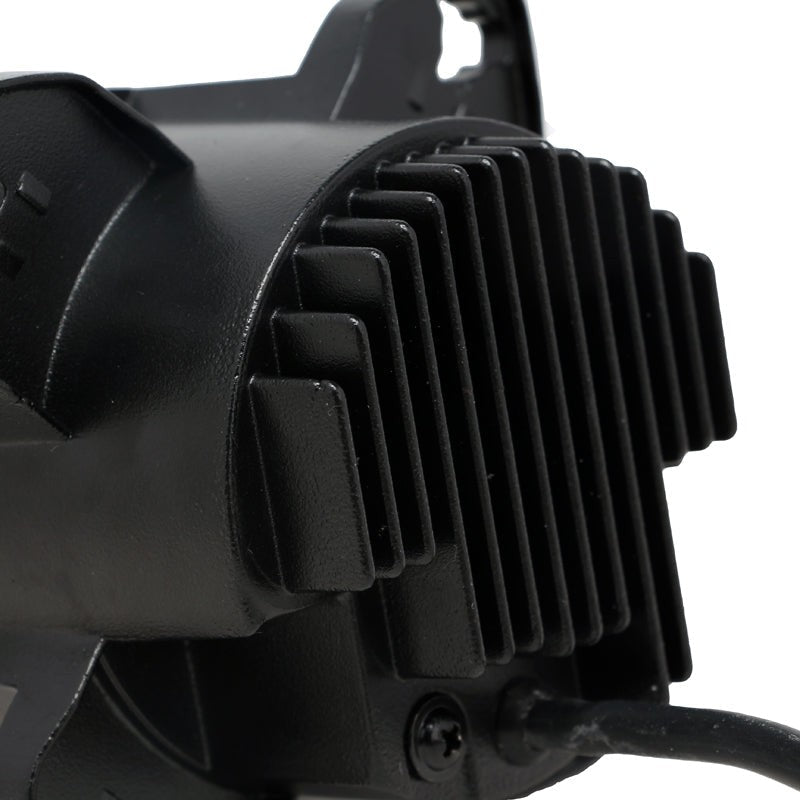

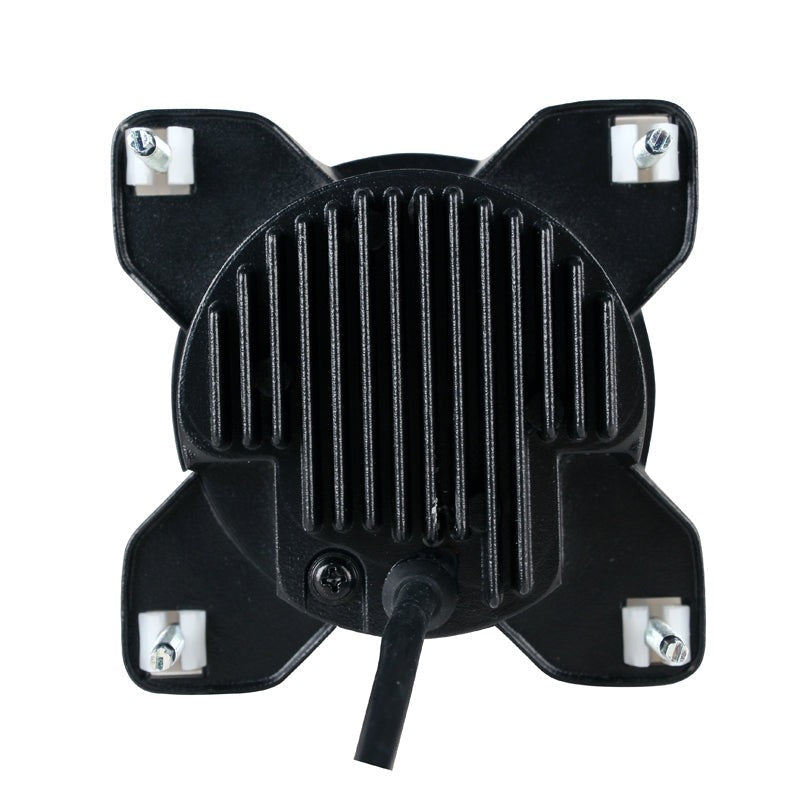

• Die-cast aluminium housing for heat management and durability.
• 50,000-hour rated LED lifespan.
• 15 G vibration resistance.
• IP68 protection against dust and prolonged water exposure.
• Approved to ECE R10, ECE R112 and ECE R149.
• EMC compliance to CISPR 25 Class 4 for radio-frequency suppression.
• Compact 102 × 102 × 90 mm housing for tight mounting positions.

Ideal Applications

• Compact construction machinery, loaders and telehandlers.
• Agricultural tractors and implements requiring EU low beam.
• Special-purpose vehicles including municipal, airport and utility units.
• Light commercial and service vehicles operating at night.
• Halogen low beam replacement and upgrade installations.
• Vehicles needing a compact, EMC-safe LED low beam solution.

Why Choose the LG821EU LED Low Beam Headlight?

The LG821EU is designed for professional users who need a road-legal LED low beam with strong beam control, durable construction and proven electromagnetic compatibility. Its 1,800 lumen output, 9–32 V compatibility, IP68 housing and ECE R112/R149 approvals make it suitable for demanding fleet, agricultural, construction and commercial vehicle applications.

For installers, fleet managers and drivers, this headlight helps improve night visibility, maintain ECE compliance and reduce maintenance compared with traditional halogen low beams.

Important Fitment Note

Please confirm vehicle voltage, mounting position, beam aim, wiring loom compatibility and applicable road-traffic regulations before installation. For best results, the headlight should be installed, aimed and tested by a competent vehicle electrician or professional installer.
