| Part number | LG994 |
|---|---|
| EAN / barcode | 4255929208297 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; side and bottom brackets included |
| Other conformity / EMC | CE, RoHS |
| Light functions | ECE driving; off-road Boost; dynamic white/amber position lights |
| Power rating / consumption | 105 W nominal; at 12 V: Boost 88.6 W initial / 55.6 W stable; ECE 51 W |
| Luminous flux | Effective: Boost 4,201 lm / ECE 3,550.5 lm |
| Beam pattern / range | Combo beam; 1 lux: ECE 418 m / Boost 552 m (manufacturer chart) |
| Connection / cable | DT connector; 600 mm cable + 330 mm extension |
| Approvals | ECE R10, R148, R149 |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); yellow: amber position (+) |
| Included | 1 light, mounting bracket(s), screws and DT connector |
| Features | Dark chrome design; dynamic position-light start-up; E-Boost |
| Measurement note | Boost beam-chart values and stable lumen figures refer to different operating conditions. |
| Height | 40.1 mm housing; 47.2 mm with brackets, excluding bolts |
| Depth | 54.4 mm |
| Width / length | 522 mm housing; 573.6 mm with side brackets |
| LED configuration | 21 × 5 W OSRAM LEDs |
| Current draw | 12 V / 24 V: ECE 4.25 / 2.12 A; Boost initial 7.38 / 3.68 A; stable 4.63 / 2.35 A |
| Position light consumption | White or amber: 9.3 W at 12 V / 9.1 W at 24 V |
| Colour temperature | 5700 K nominal |
Agricultural Lighting

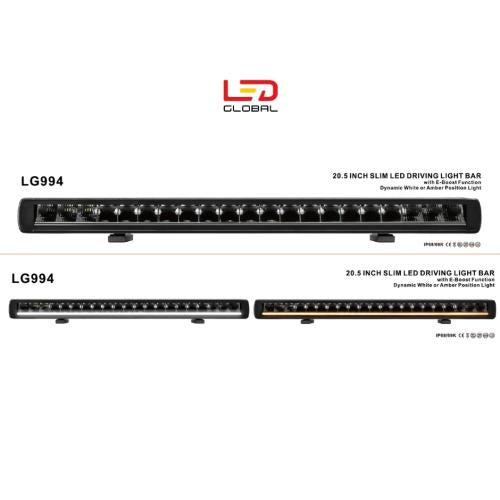

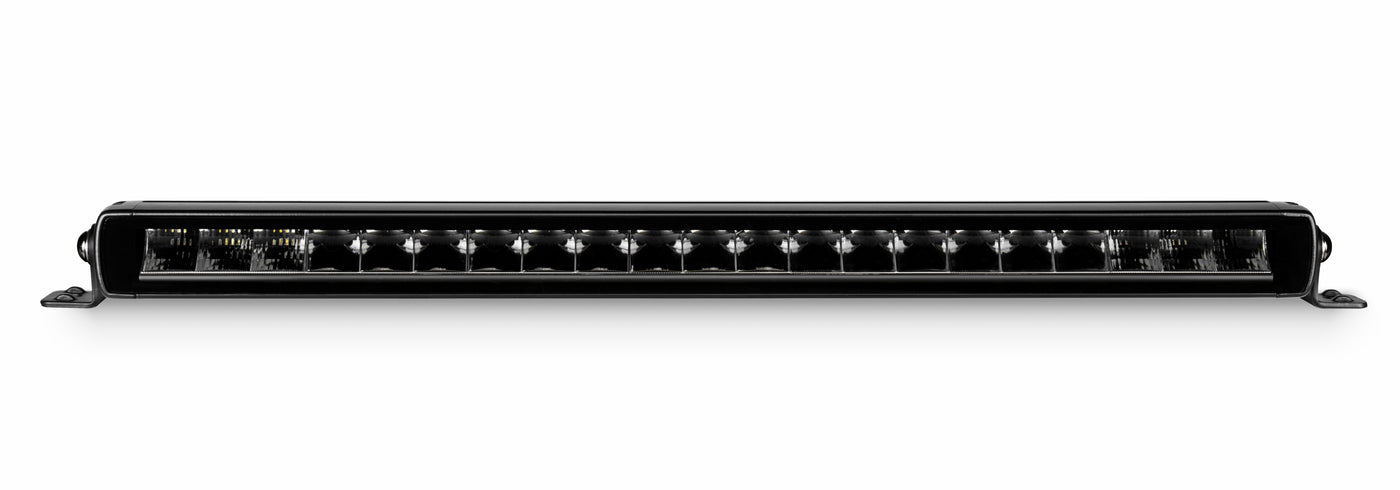

20.5-inch Slim LED Driving Lightbar with Boost and Dynamic Start-Up – LG994
20.5-inch Slim LED Driving Lightbar with Boost and Dynamic Start-Up – LG994
The LG994 combines an ECE driving mode with a separate off-road E-Boost mode and dynamic white or amber position lighting. The effective output is 3,550.5 lumens in ECE mode and 4,201 lumens in Boost mode, separate from its 105 W nominal LED rating.

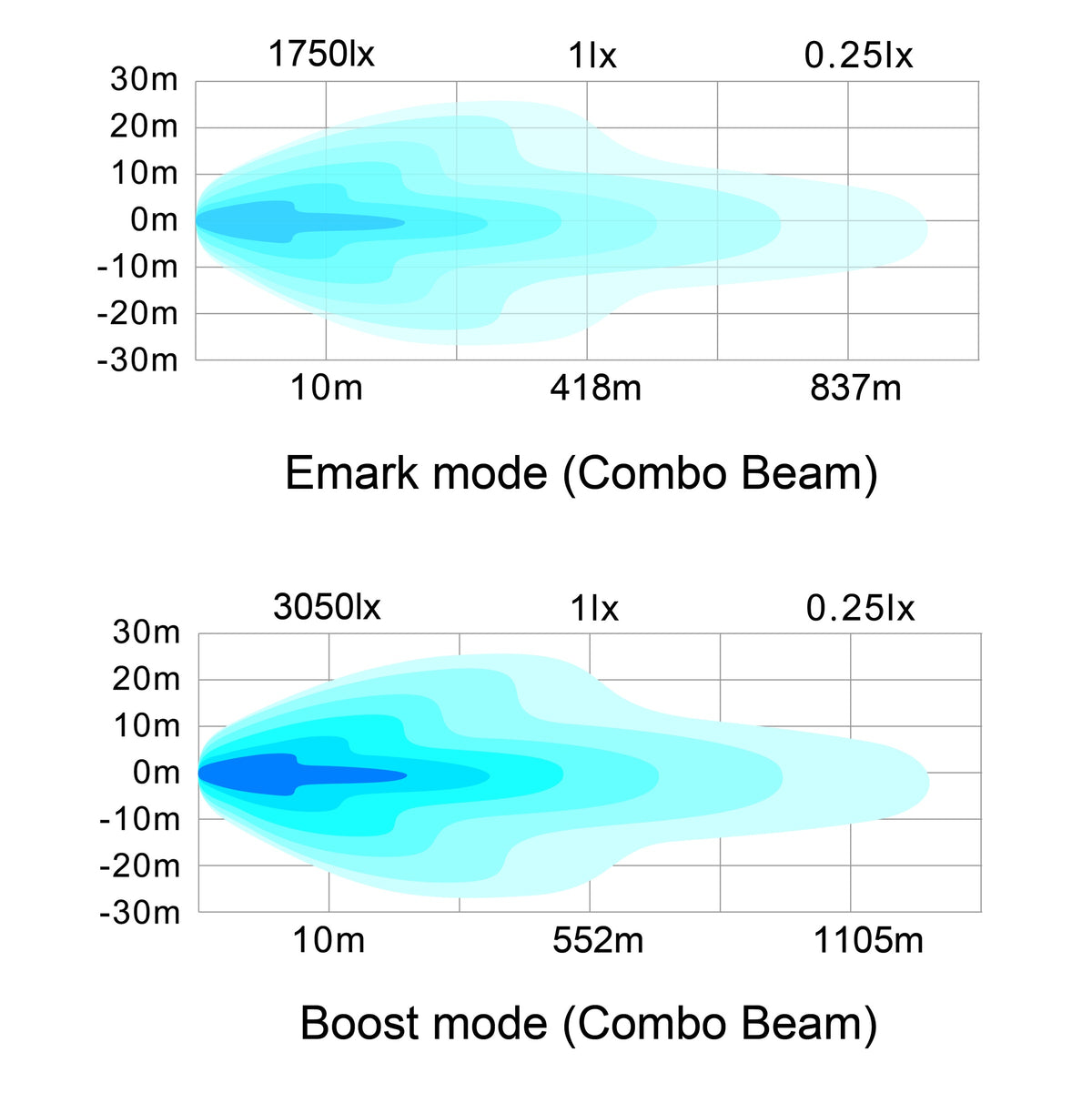

The manufacturer’s beam chart shows 1 lux at 418 m in ECE mode and 552 m in Boost mode. Boost output falls from its initial cold-start level as the lamp warms up; beam-chart reach and stable lumen output should therefore be read as separate test figures.

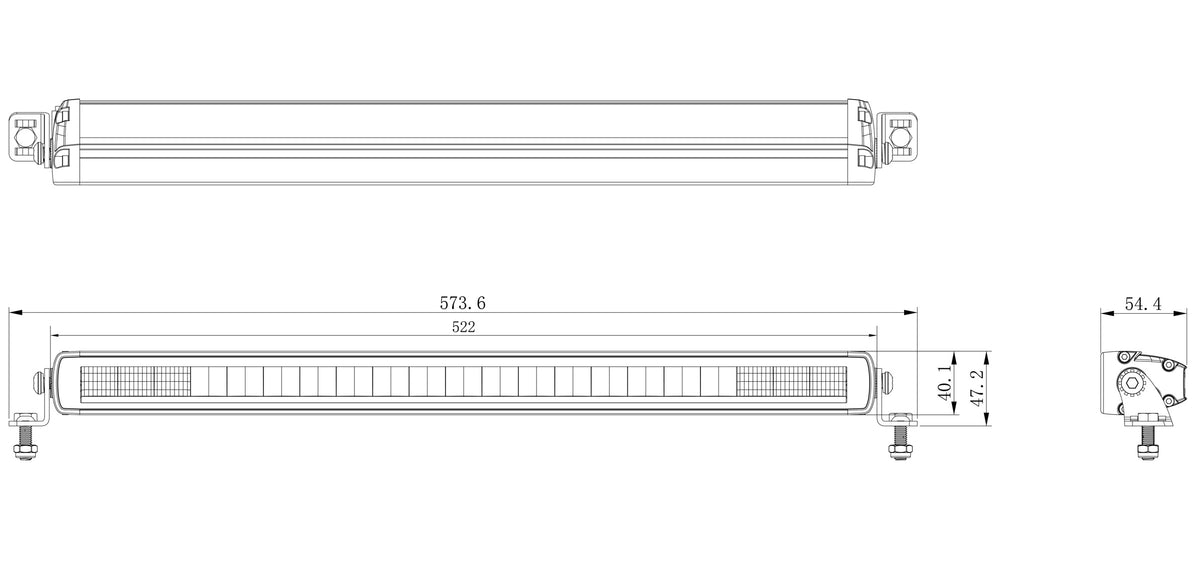

A die-cast aluminium housing, PC lens and stainless steel mounting brackets support installation. Side and bottom brackets are included, together with a DT connector harness using a 600 mm cable and 330 mm extension. Refer to the dimension drawing for bracket clearance.
