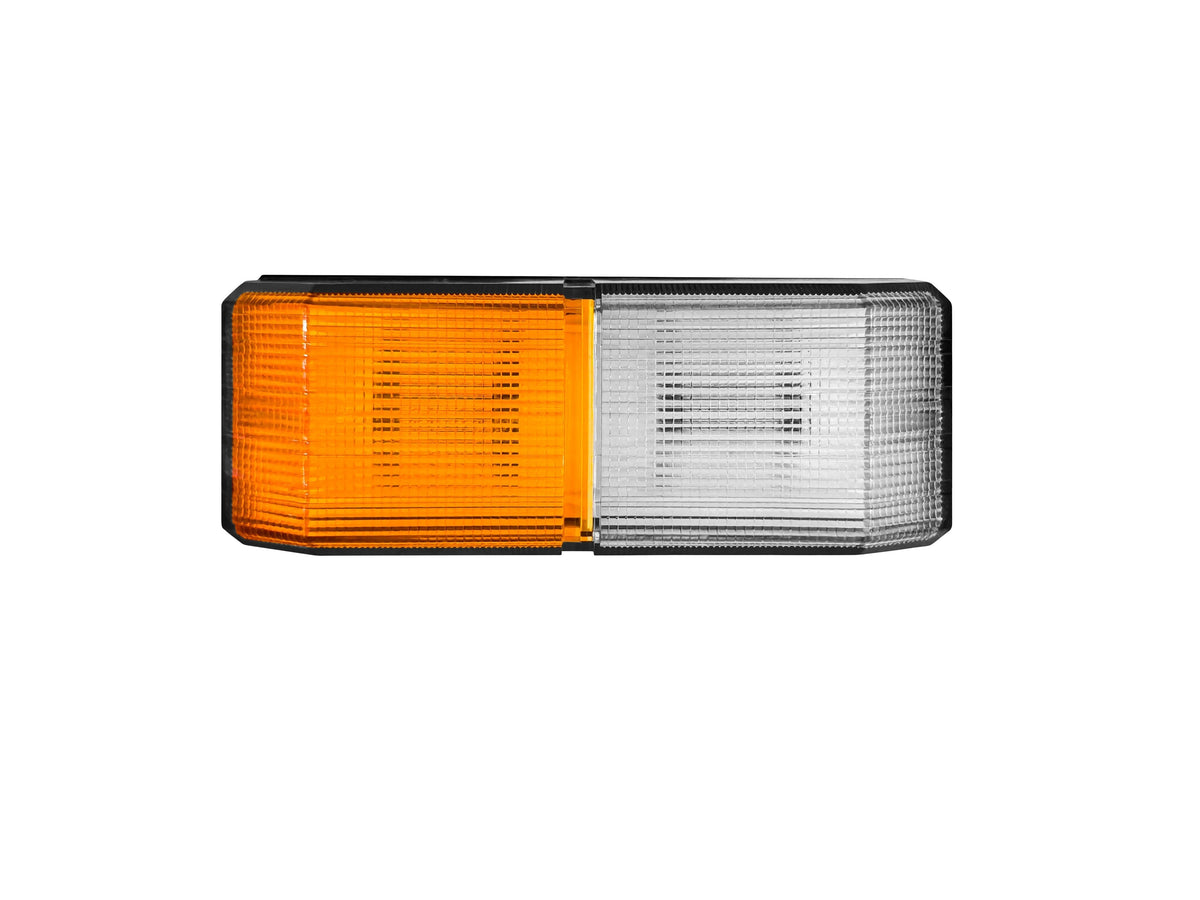

24W White Flood Driving Light & Amber Indicator - LG817

24W White Flood Driving Light & Amber Indicator – LG817

A compact 24W LED driving light with built-in amber turn signal, designed for vehicles where space is tight but visibility still matters. The LG817 delivers a wide white flood beam for close-range work lighting and a clearly defined amber indicator in one neat housing, compliant with ECE R10 EMC for electrical safety.

This combined LED work light and indicator solves a common problem on modern commercial and plant equipment: not enough mounting space for separate lamps. With 1900 lumen of clean 5700K white light, it gives strong foreground coverage for slow-speed driving, loading, or yard manoeuvres, while the integrated amber turn signal keeps signalling clear and easy to see. One unit, two functions, less wiring and fewer brackets.

The LG817 runs on 9–32 V DC, so it suits both 12 V and 24 V systems across light commercial, HGV, off-road and agricultural fleets. The white flood pattern is ideal for short to medium range illumination around the vehicle – perfect for reversing, side lighting, or area lighting on trailers and machinery. The lamp body is built for harsh conditions, with an IP68 ingress rating, so it stays sealed against dust and immersion in water in real-world use. It keeps working from -40°C to +80°C, so it copes with Northern winters and hot summer sites alike.

Electrically, the light is approved to ECE R10, meaning it’s been tested for electromagnetic compatibility and won’t interfere with radios or other on-board systems when installed correctly. The PC (polycarbonate) lens resists impact and vibration, so it’s well suited to off-road and industrial environments where lamps see regular knocks. With a rated 50,000-hour LED lifetime, fleets can fit-and-forget rather than schedule regular bulb changes.

Installation is straightforward thanks to the compact 169.5 mm x 60 mm x 64.5 mm housing, giving you flexibility to mount on bumpers, mirror arms, headboards, body sides, or rear frames. Tie it into your existing indicator circuit and work light feed, and you’ve upgraded both signalling and local visibility in one go.

Key Features

• 24 W LED power – efficient output with low current draw, suitable for 12 V and 24 V vehicle systems.
• Light output: 1900 lumen – strong illumination for close-range driving, reversing, and work areas around the vehicle.
• White flood beam pattern – wide spread of light for better awareness at low speed, ideal for yards, depots and off-road use.
• Integrated amber turn signal – combines driving/work light and indicator in a single unit, reducing bracket count and wiring complexity.
• Operating voltage: 9–32 V DC – covers typical automotive, commercial, agricultural and plant applications without additional converters.
• Colour temperature: 5700K – crisp white light that matches modern LED and HID headlamps, improving contrast and reducing eye strain.
• IP68 ingress protection – fully dust-tight and protected against prolonged immersion, built for frequent wash-downs and wet sites.
• Operating temperature: -40°C to +80°C – reliable performance in both extreme cold and high-heat environments.
• PC (polycarbonate) lens – tough, impact-resistant front lens suited to vibration and rough usage on plant and off-road vehicles.
• Lifetime: 50,000 hours (LED) – long service life that suits high-duty fleets and reduces downtime.
• EMC: ECE R10 approved – compliant with European EMC standards to help prevent interference with radios and control systems.
• Compact size: 169.5 mm x 60 mm x 64.5 mm – easy to package on crowded cabs, chassis rails and bodywork.

Ideal Applications

• Commercial vehicles and vans needing combined work light and side or front indicator where space is limited.
• HGVs and rigid trucks for bumper, side guard, or rear frame mounting to improve manoeuvring light and signalling.
• Agricultural tractors, telehandlers and implements where robust lighting and clear signalling are required in mud, dust and wash-down conditions.
• Construction and plant machinery such as excavators, wheel loaders and site dumpers operating in low-light, harsh environments.
• Trailers and recovery vehicles needing compact flood lighting with integrated turn indication on headboards or rear frames.
