| Part number | LG984 |
|---|---|
| EAN / barcode | 4255929208235 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP67 / IP69K |
| Operating temperature | -40°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Side and lower/rear mounting brackets; aluminium and stainless steel |
| Other conformity / EMC | CE, RoHS |

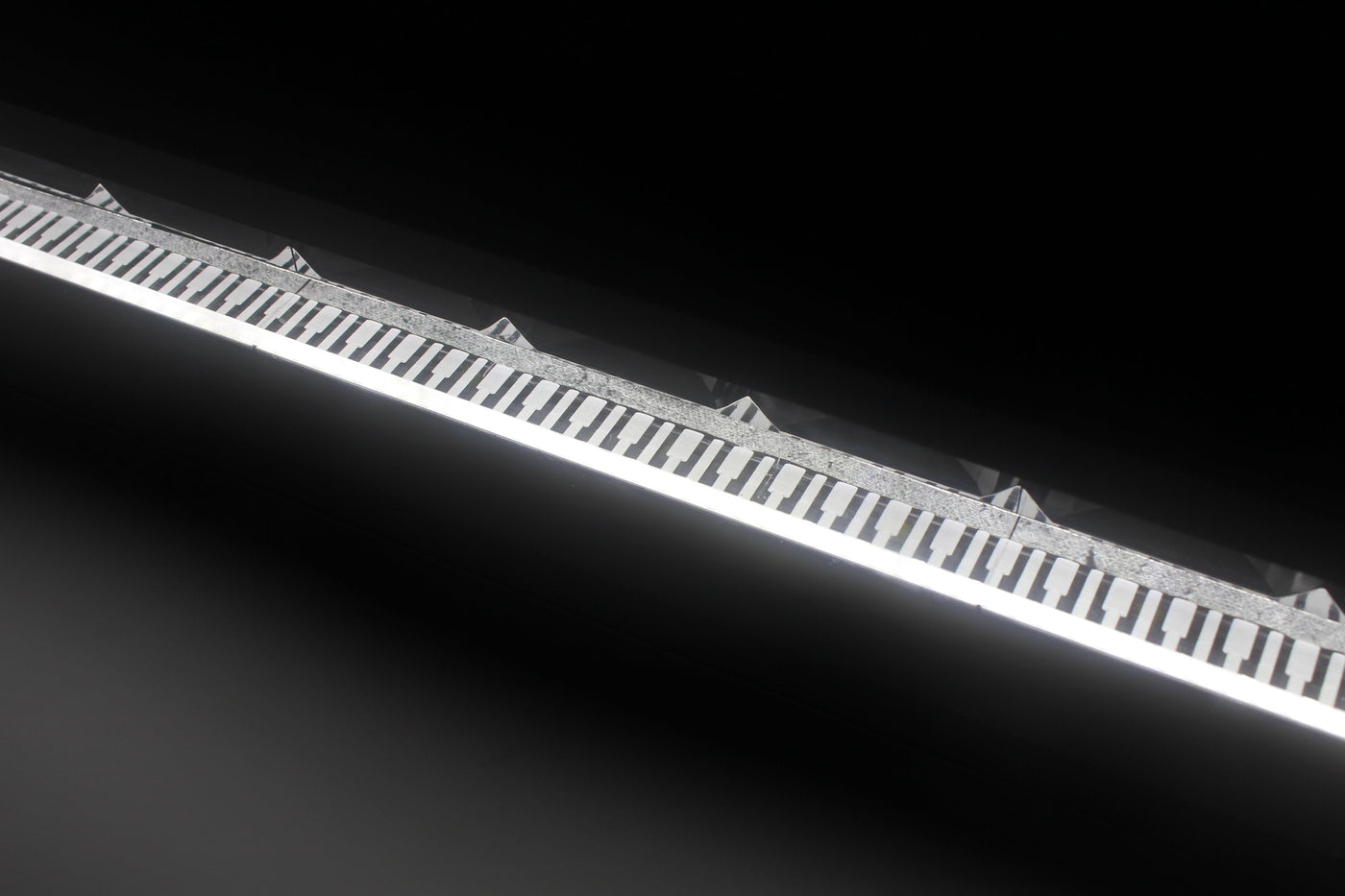

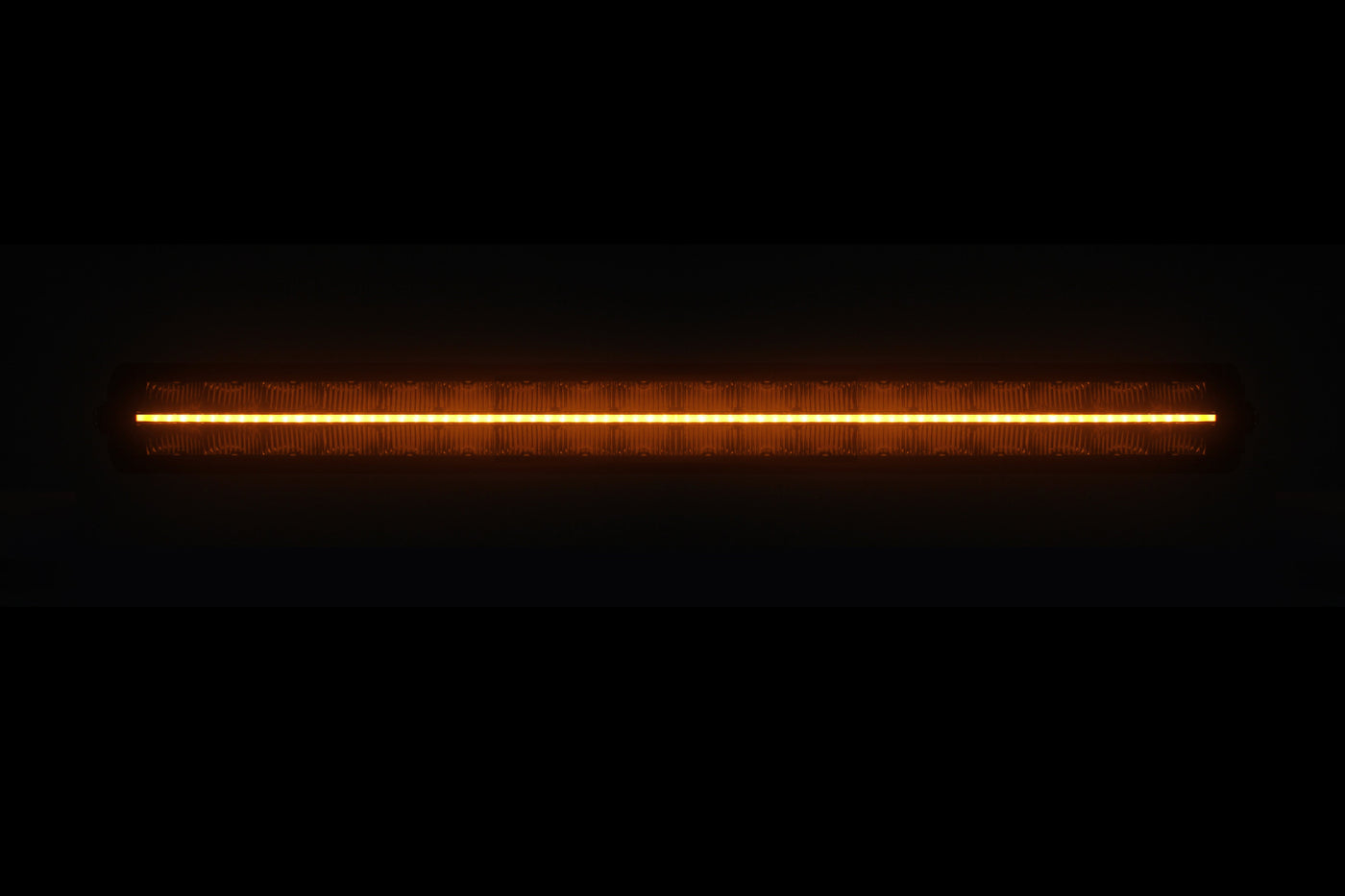

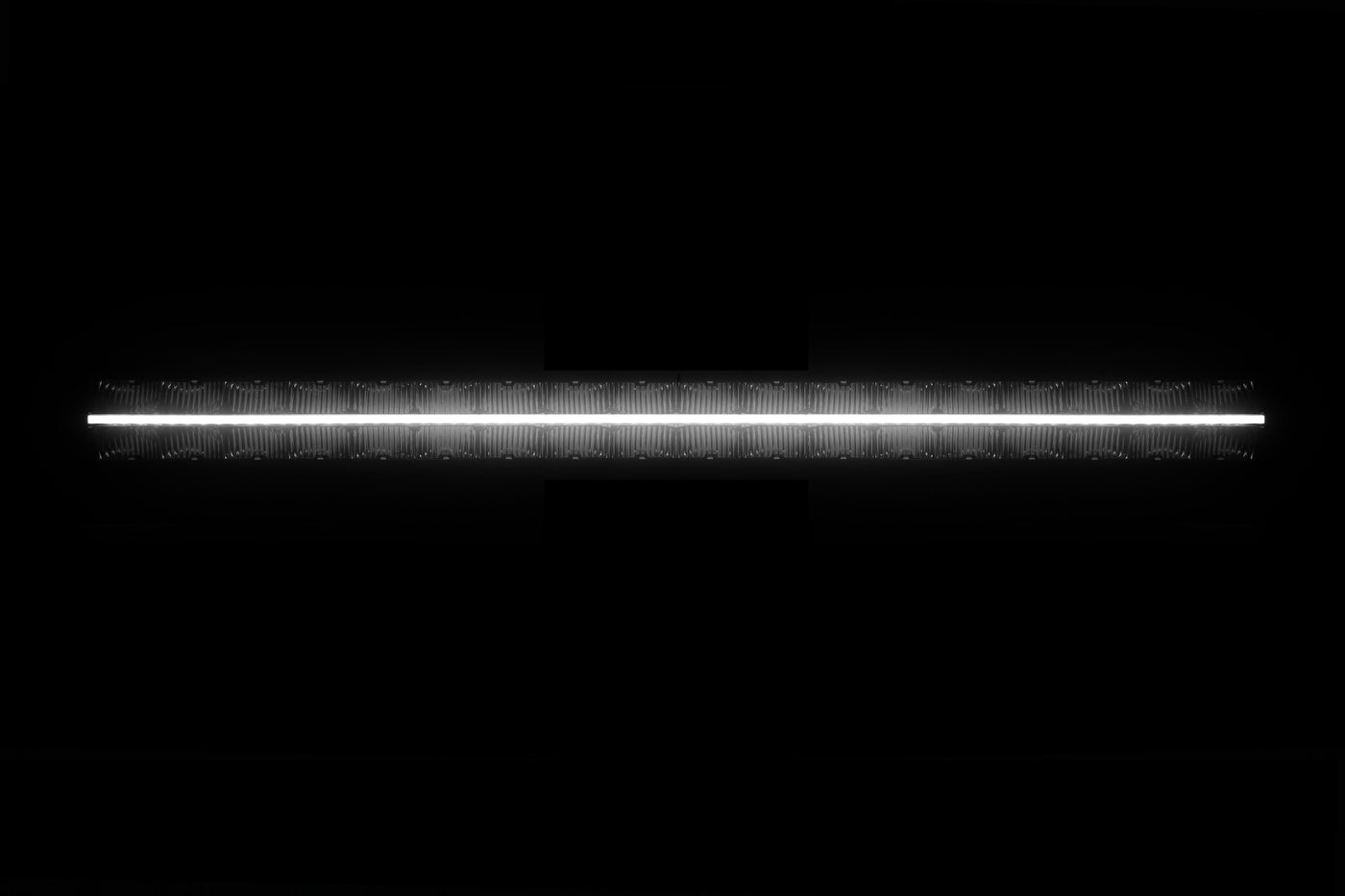

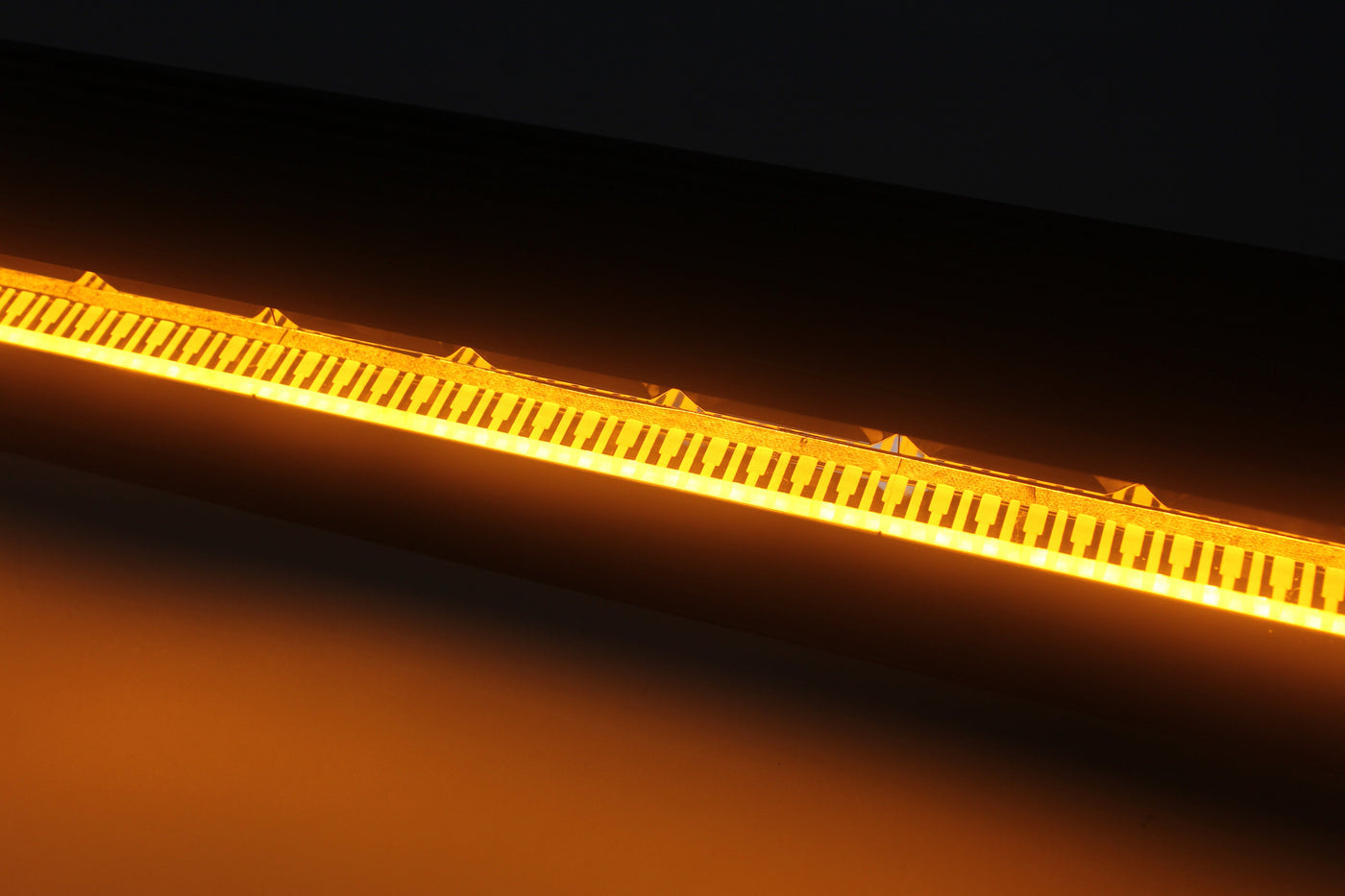

| Light functions | Driving beam; white or amber position light |
| LED configuration | 36 × 5 W OSRAM P8 driving + 72 amber + 72 white position LEDs |
| Power rating / consumption | 140 W driving; 13 W position |
| Luminous flux | 12,000 lm effective / 15,000 lm raw |

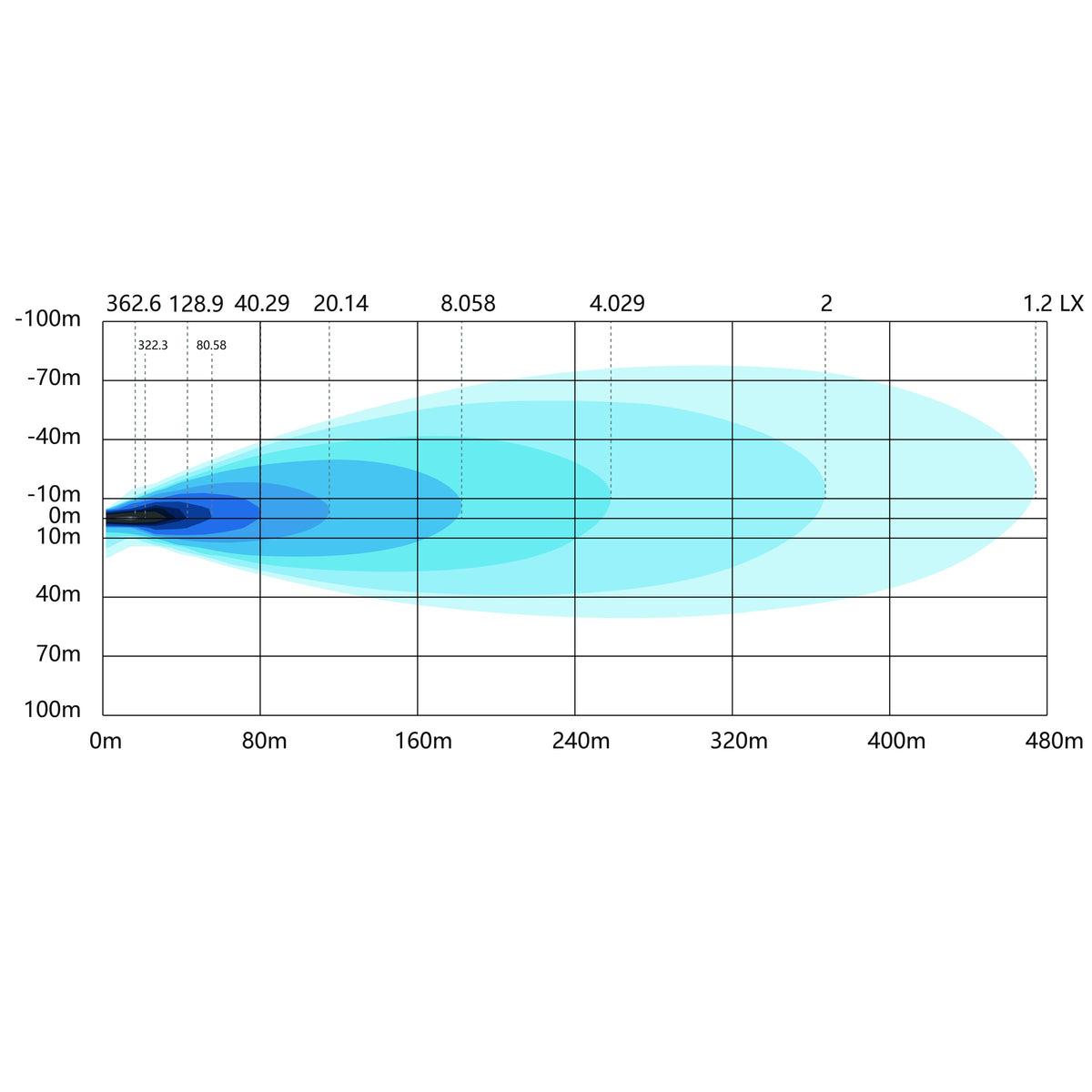

| Beam pattern / range | Driving / spot; 1 lux at 475 m |
| Approvals | ECE R10, R148, R149 |
| Width / length | 824 mm overall; 807 mm housing |
| Height | 88.47 mm with bracket; 76.33 mm housing |
| Depth | 69 mm |
| Connection / cable | Male/female DT connector harness |
| Wire functions | Black: ground (-); red: driving (+); yellow: amber position (+); blue: white position (+) |
| Features | Overheat protection; frameless design |
| Included | 1 light, mounting bracket(s), screws and DT connector |
All Lighting products

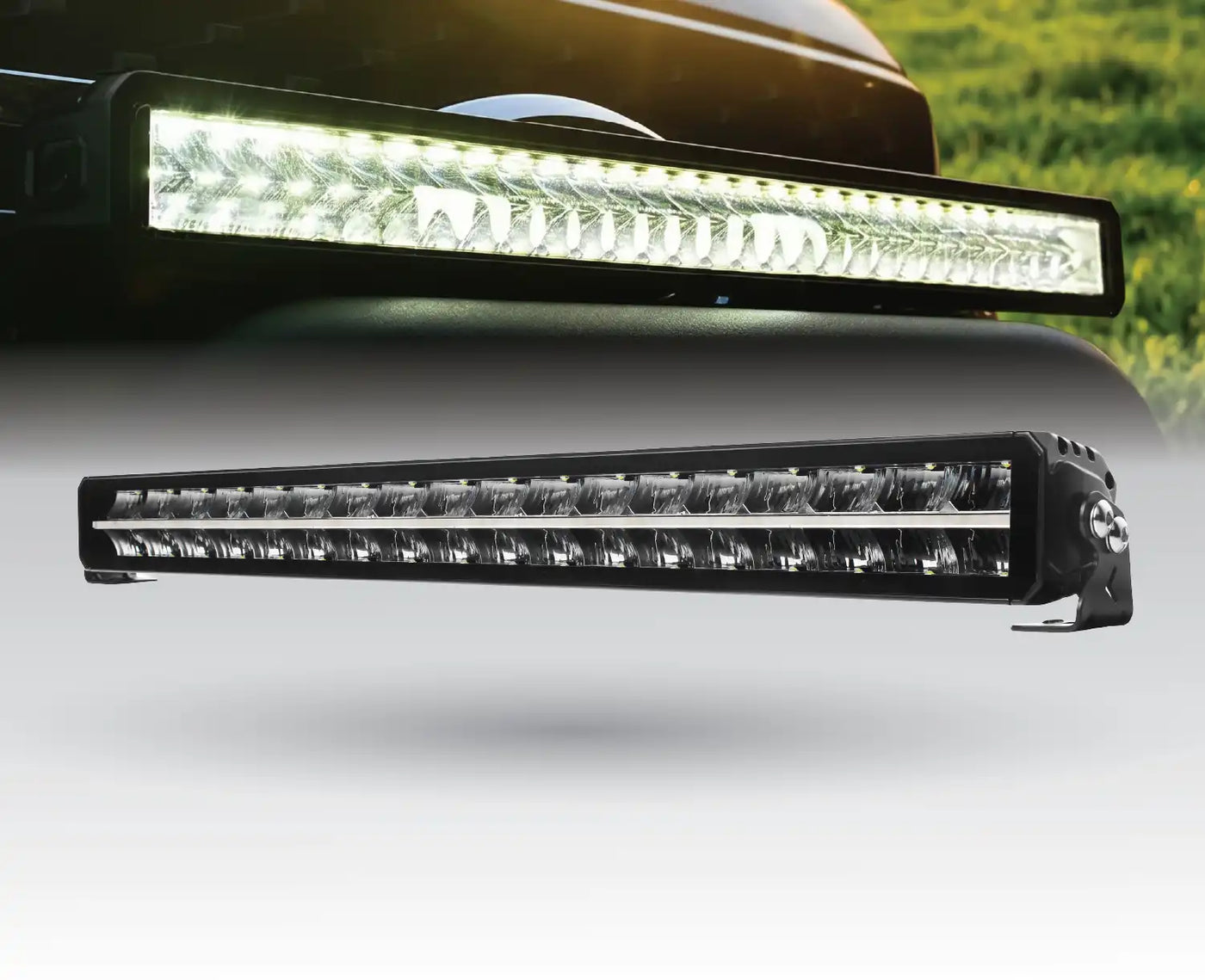

32-inch LED Driving Lightbar with Dual-Colour Position Light – LG984
32-inch LED Driving Lightbar with Dual-Colour Position Light – LG984

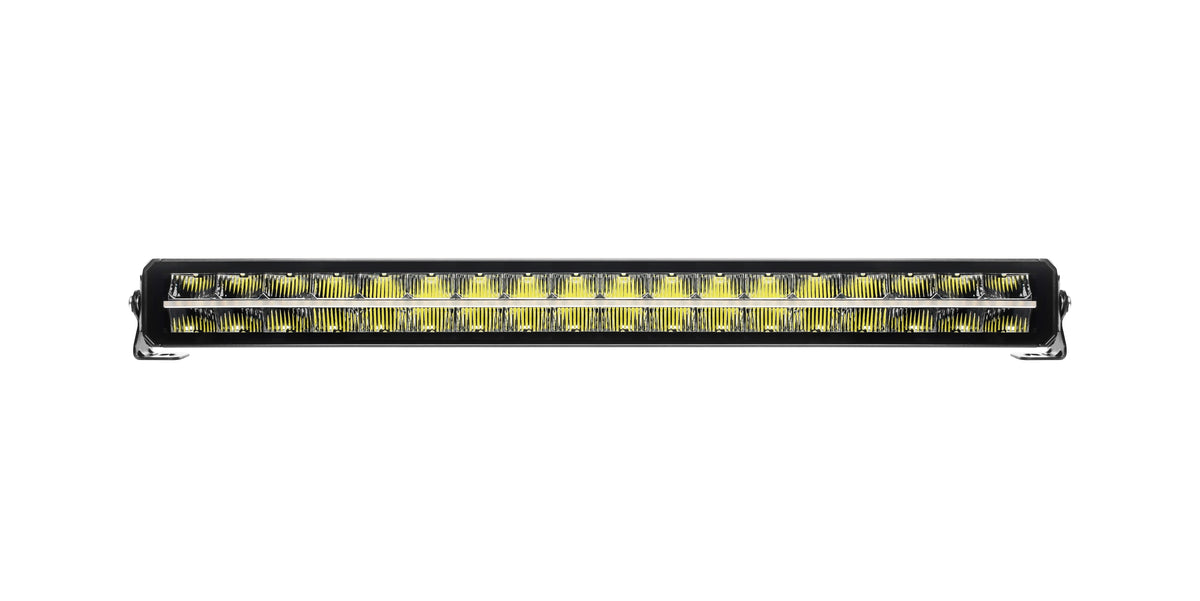

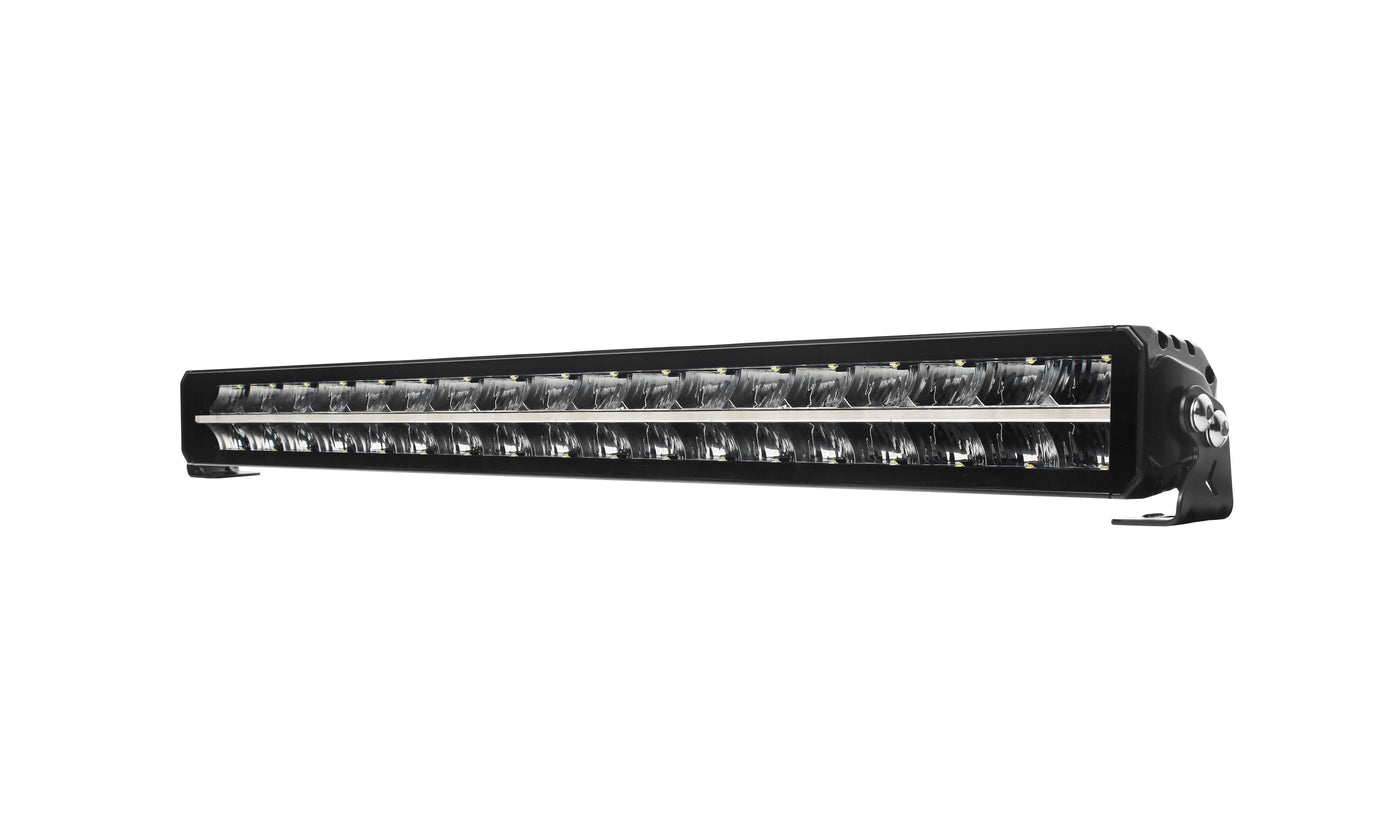

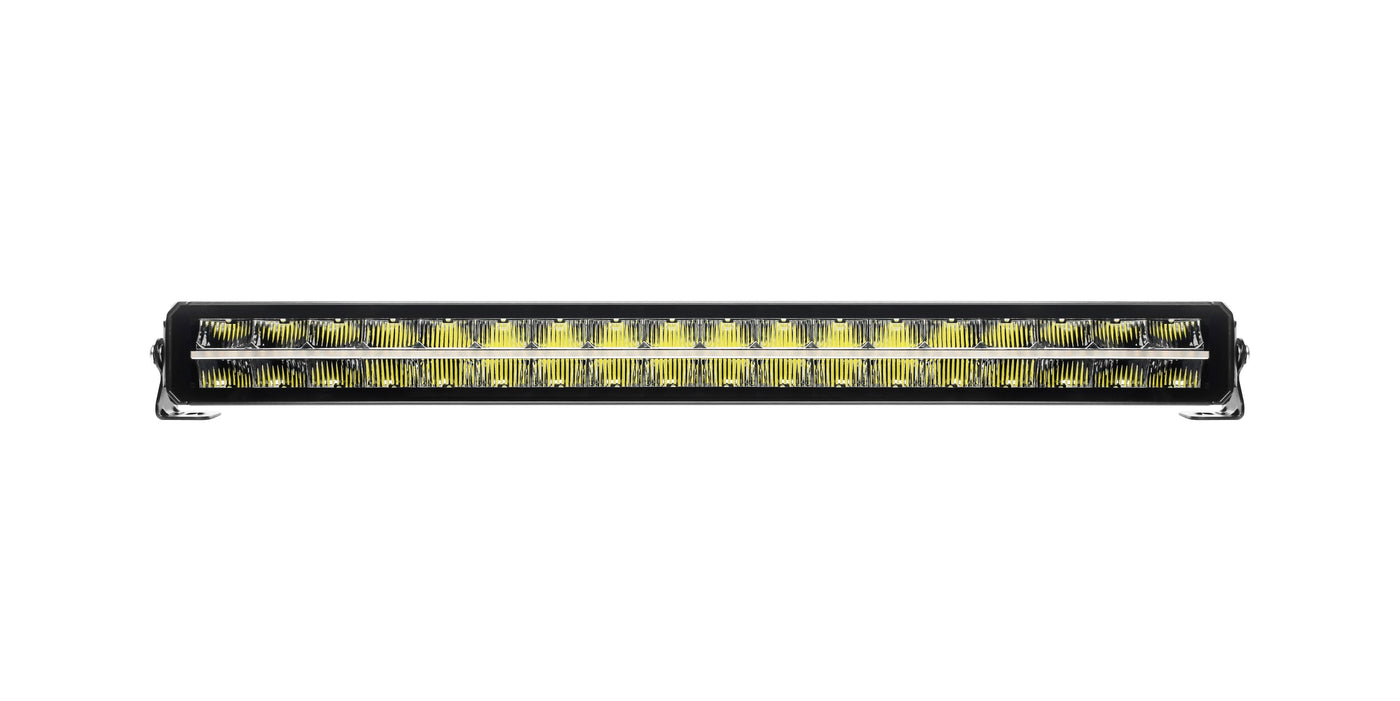

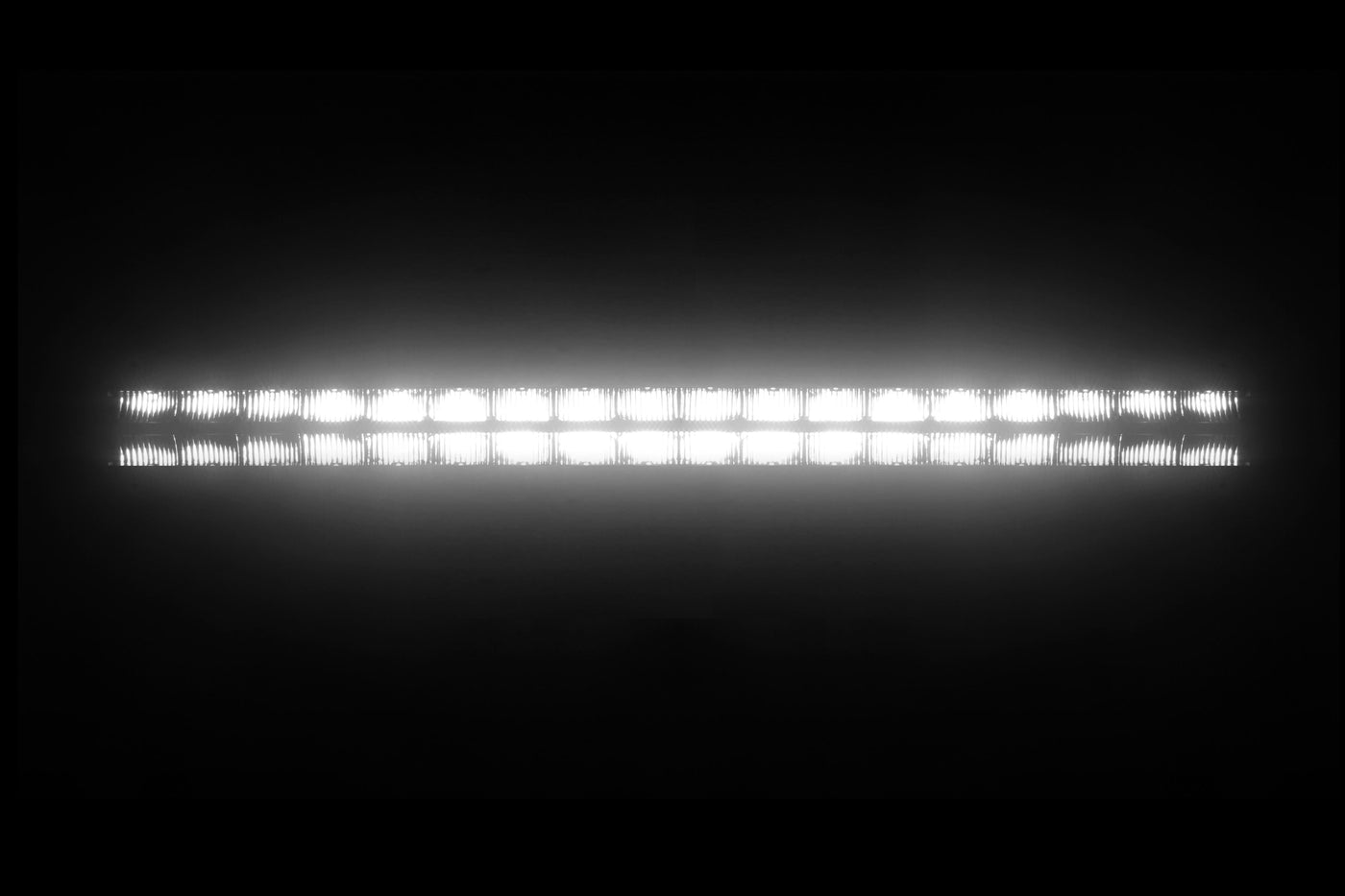

The LG984 is a 32-inch frameless LED driving lightbar with a 140 W main beam and separate white and amber position lights. Its OSRAM P8 LED array provides 12,000 effective lumens (15,000 raw lumens), with a specified reach of 475 m at 1 lux.

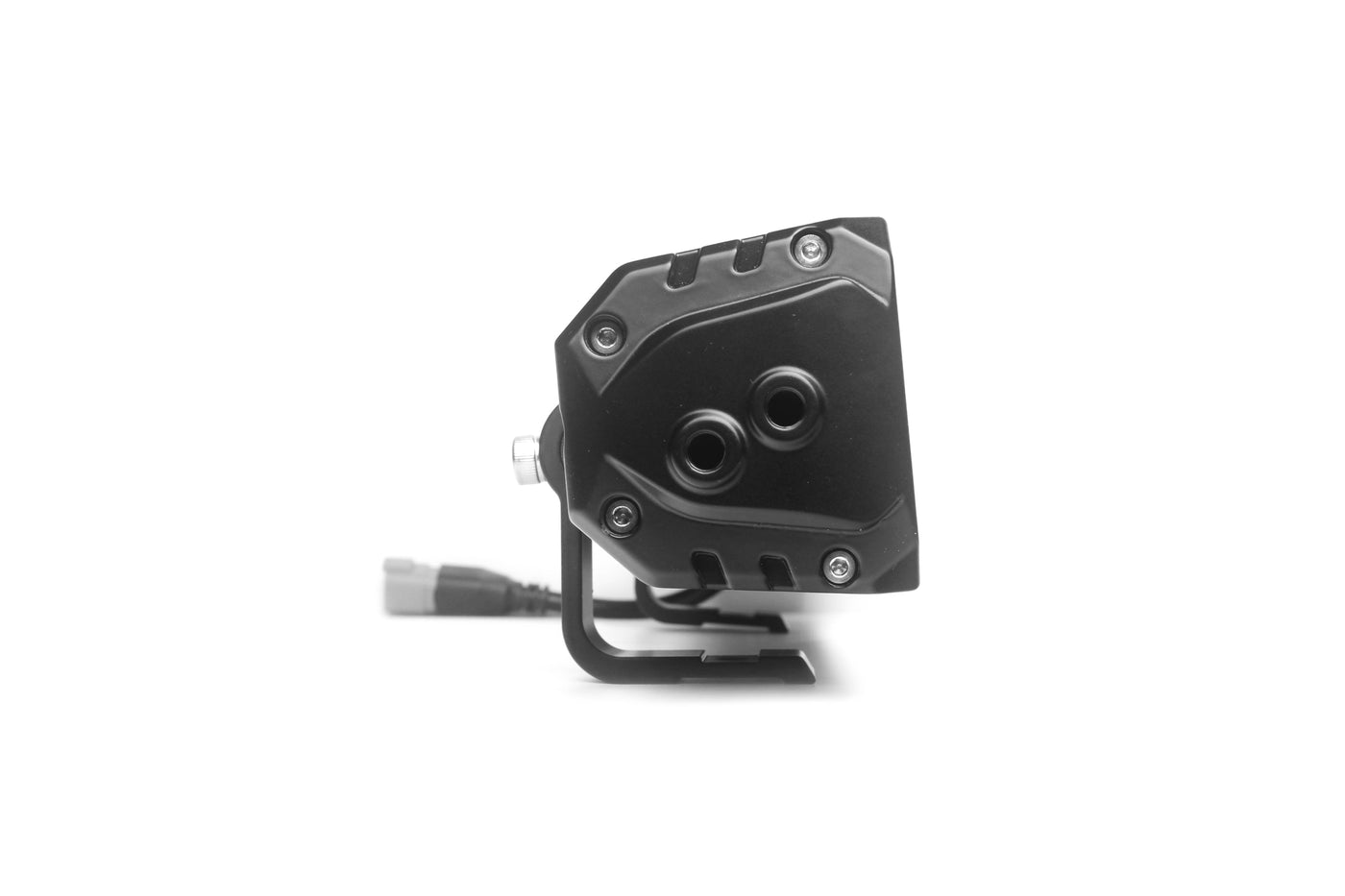

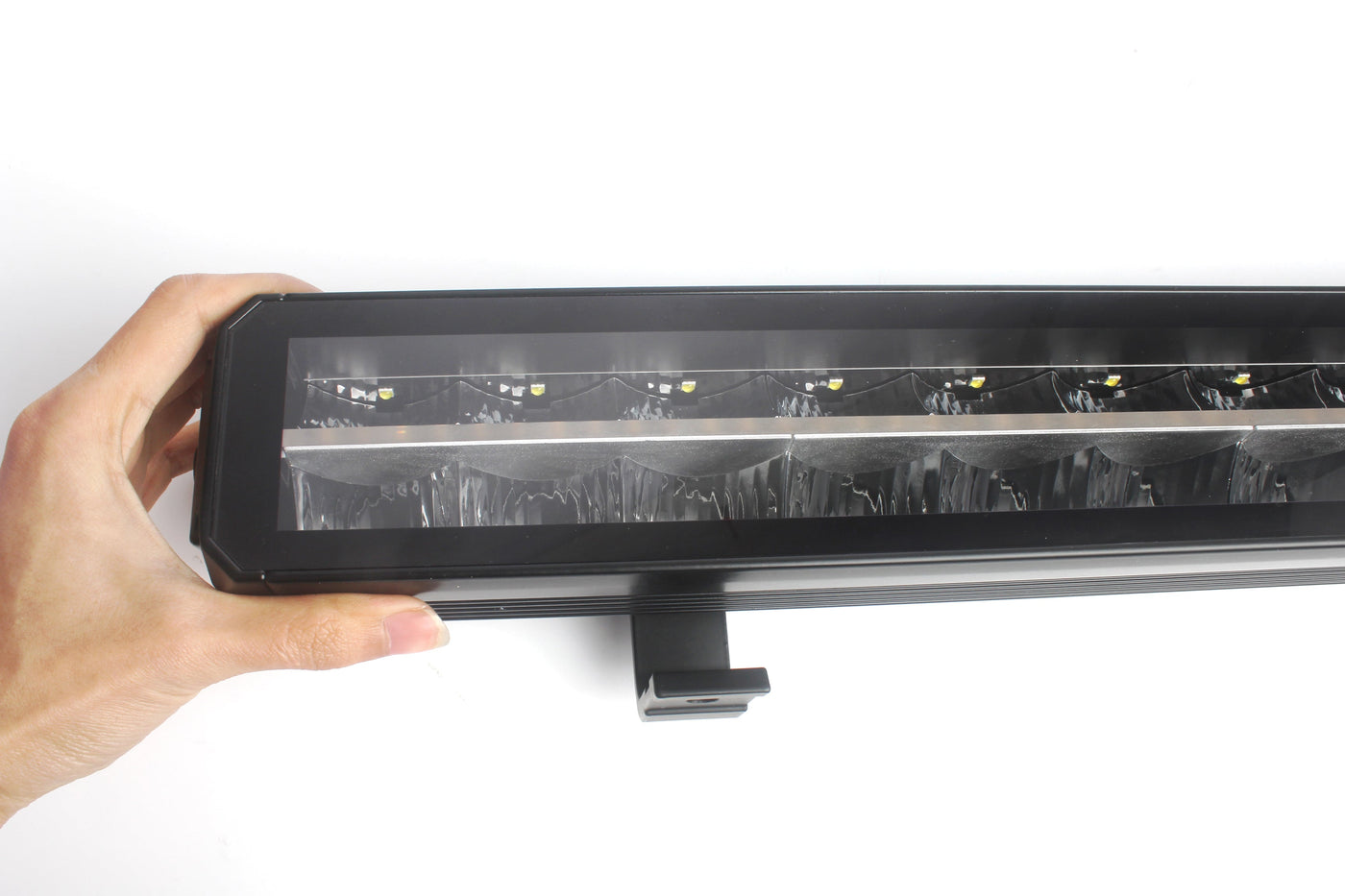

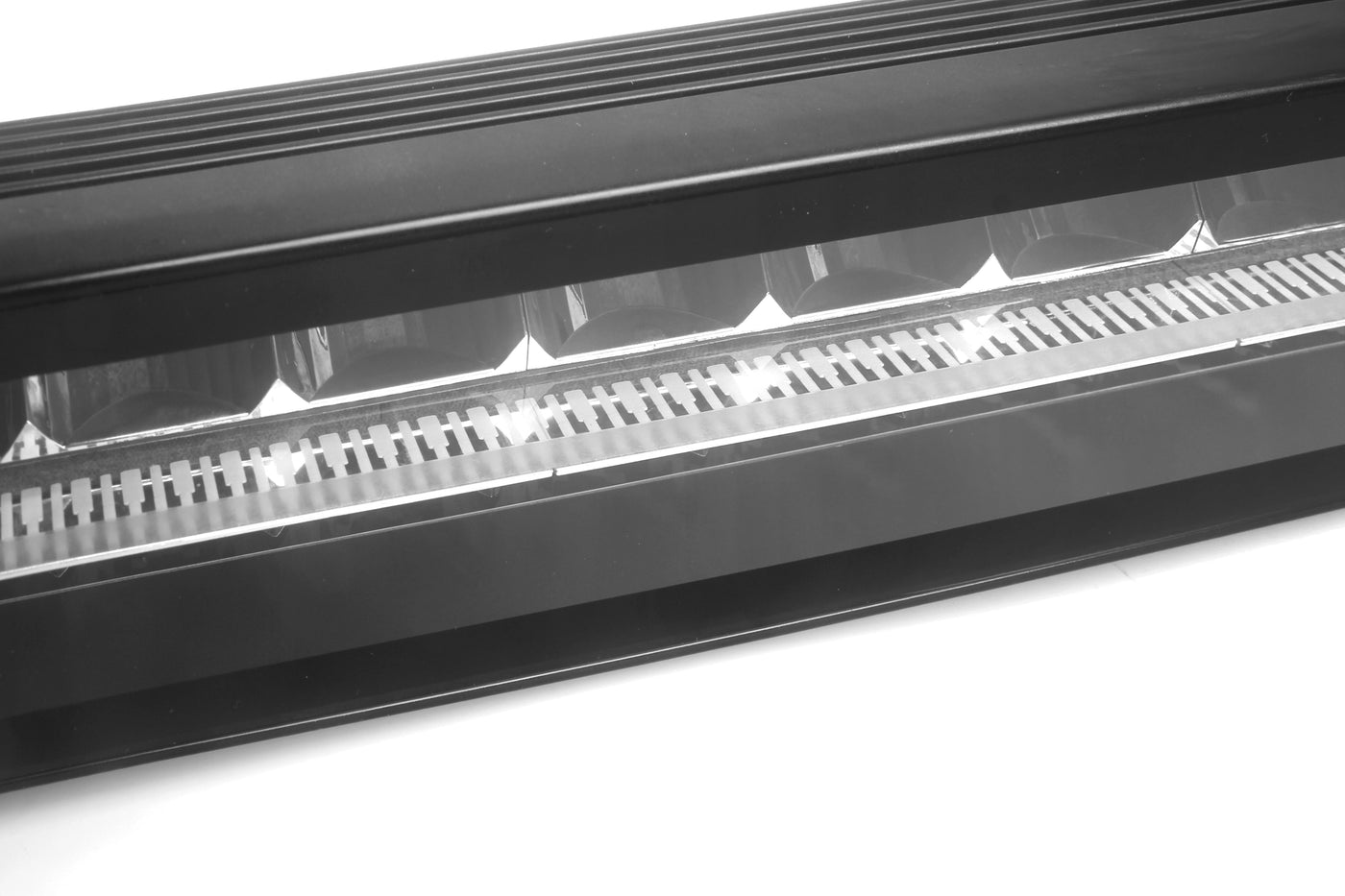

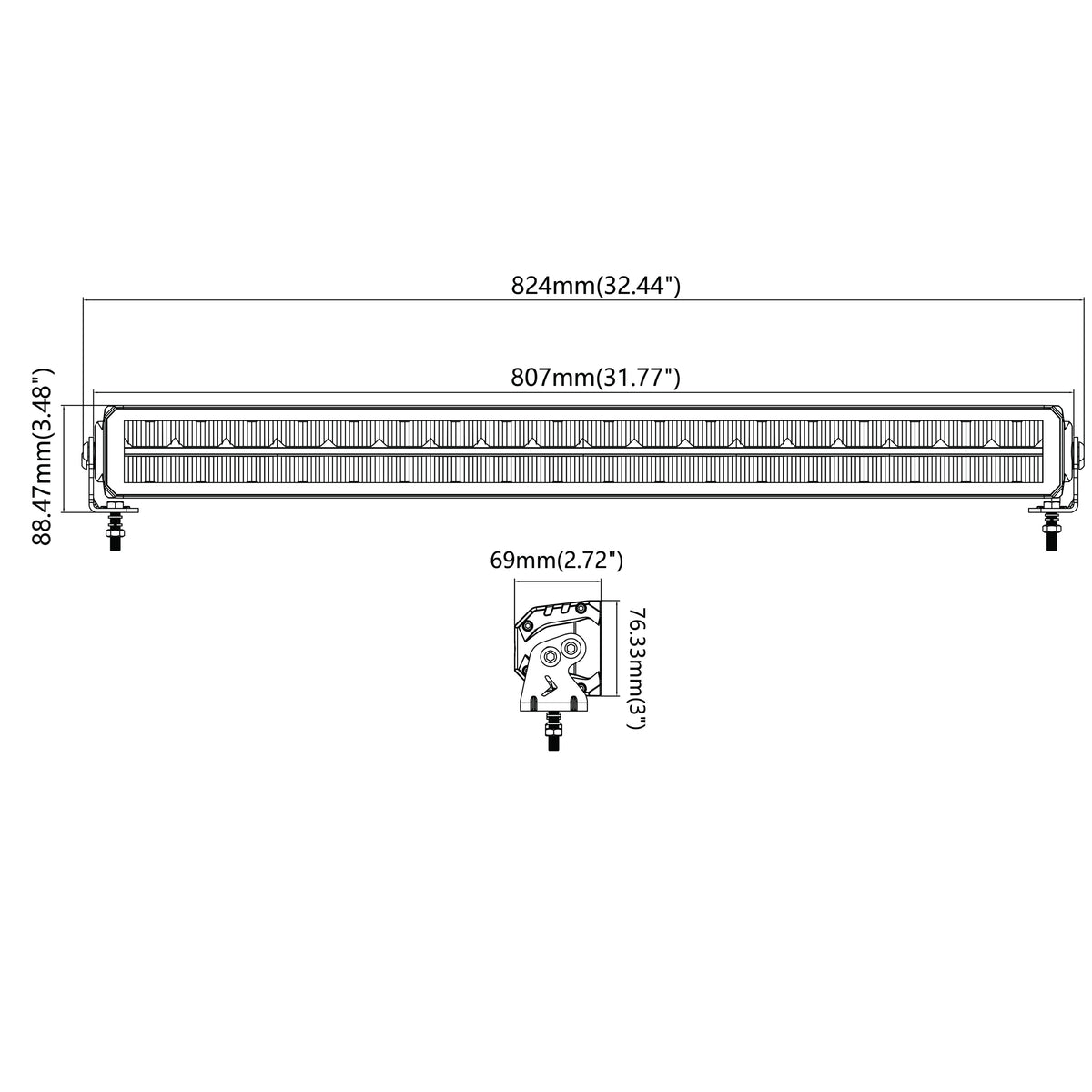

The aluminium housing, polycarbonate lens and IP67/IP69K sealing are designed for demanding vehicle use. Overheat protection helps manage operating temperature. The housing is 807 mm long; the supplied drawing shows 824 mm overall width and 88.47 mm mounting height.

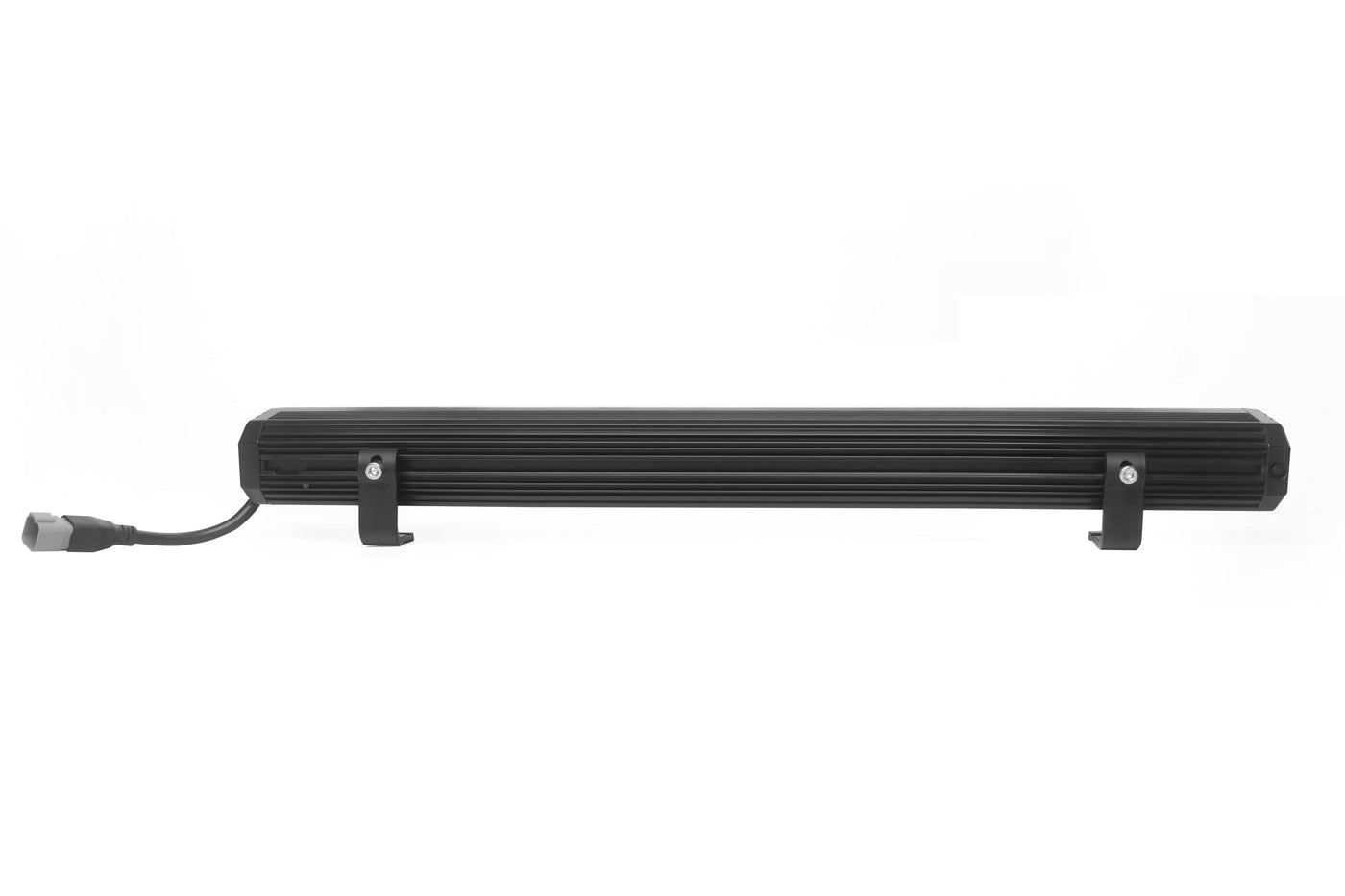

A DT connector harness is included. The red wire powers the driving beam, black is ground, yellow powers the amber position light and blue powers the white position light.
£192.00
● In stock
