| Brand | LED Global |
|---|---|
| SKU | LG847 |
| EAN / Barcode | 4255929221067 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, Swivel Bracket (Bottom or Side Mount) |
| Ideal Applications | Massey Ferguson Tractors |
| Beam Pattern | Diffused Flood |
| Luminous Flux (Lumens) | 3200 Lumen |
| Color Temperature (K) | 5300-5700K |
| Number of LEDs | 8 LEDs |
| LED Brand/Type | CREE XTE LEDs (5W/PC) |
| Power Consumption (Watts) | 40 Watt |
| Operating Voltage (V) | 10-30 Volt DC |
| Expected Service Life (Hours) | 50,000h+ |
| ECE Approvals | E9-10R05.11636 Ext.01 |
| EMC Rating | CISPR25 Class 4 |
| Protection Rating (IP) | IP68/IP69K |
| Operating Temperature Range (°C) | -40°C to +80°C |
| Shape | Oval |
| Housing Material | Diecast Aluminium |
| Lens Material | Polycarbonate (PC) |

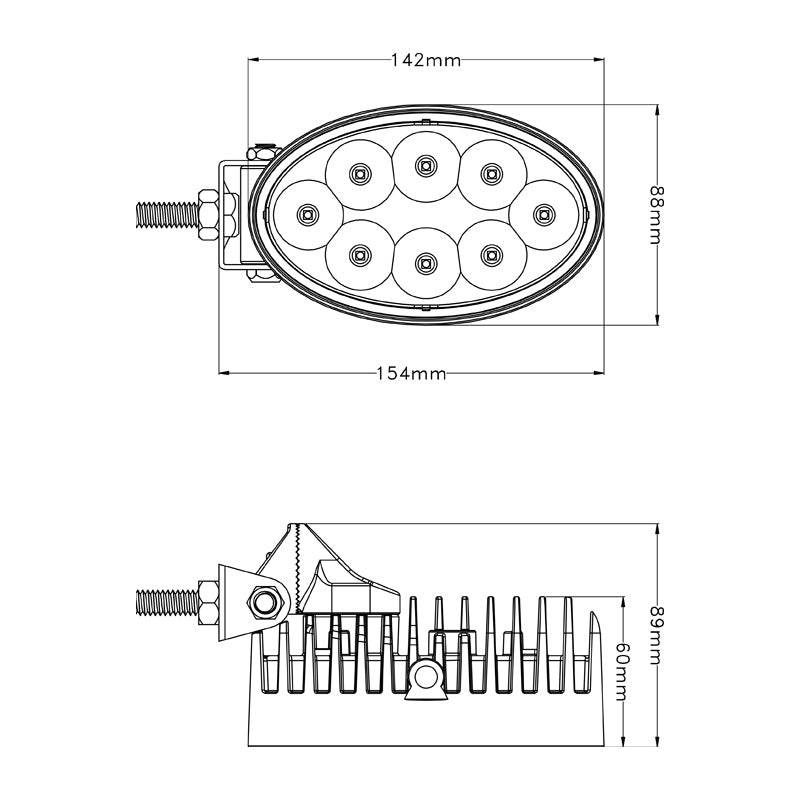

| Width (mm) | 142 mm |
| Height (mm) | 88 mm (housing) |

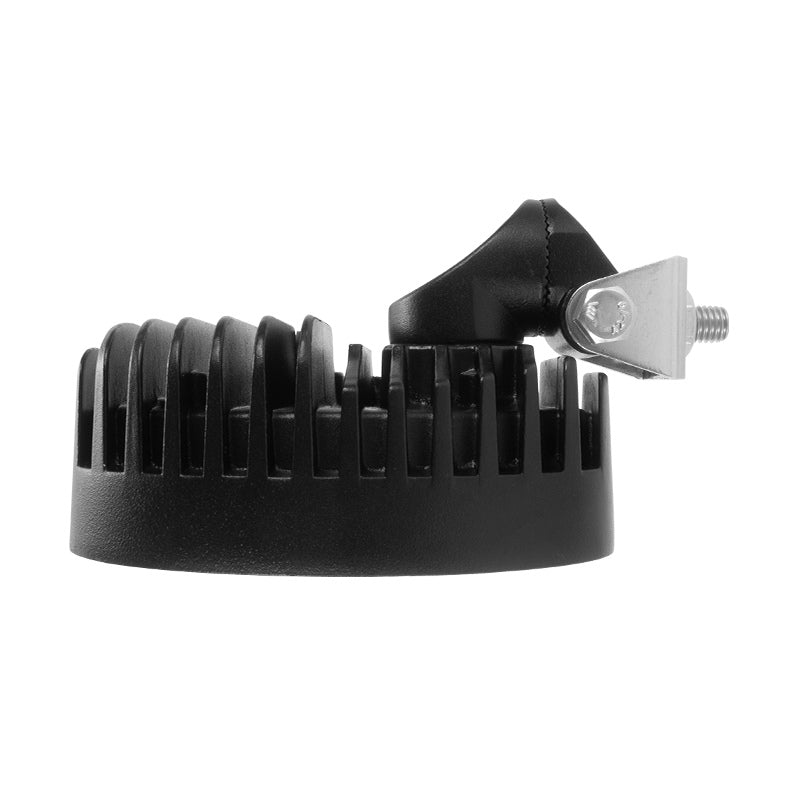

| Depth (mm) | 60 mm (housing) / 89 mm (overall) |

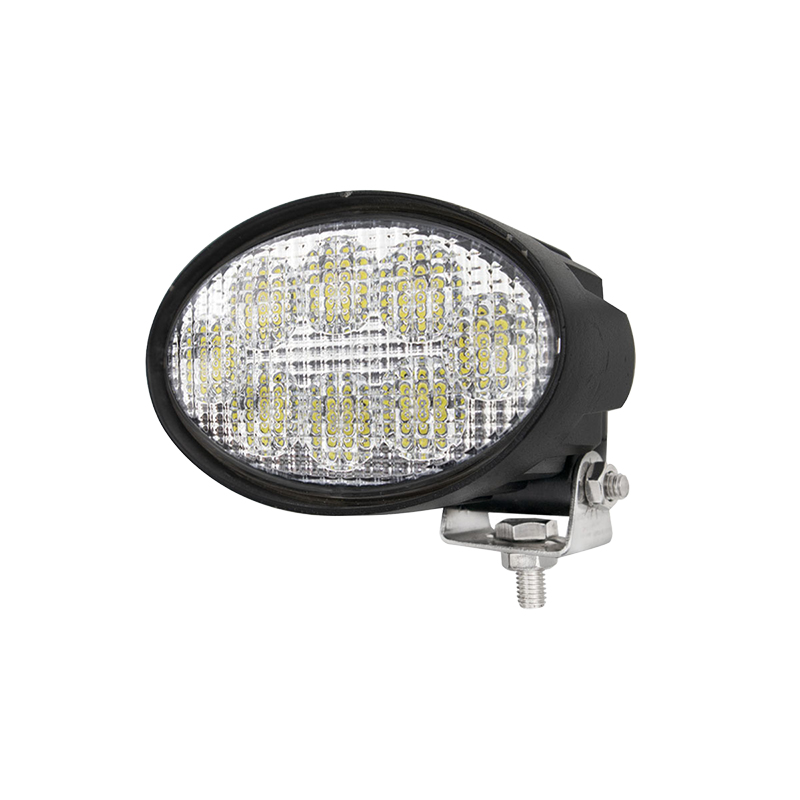

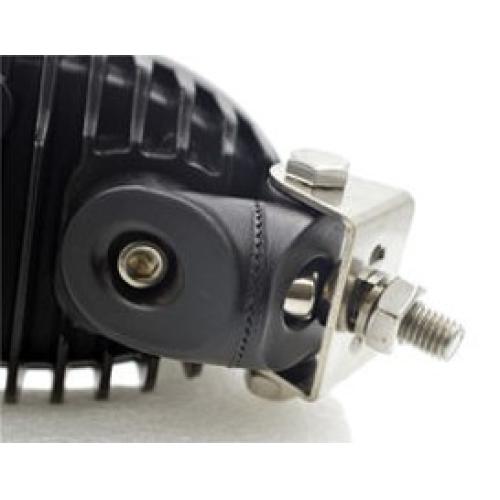

| Mounting Type | 360° Rotatable Swivel Mount Bracket (Bottom or Side Mount) |

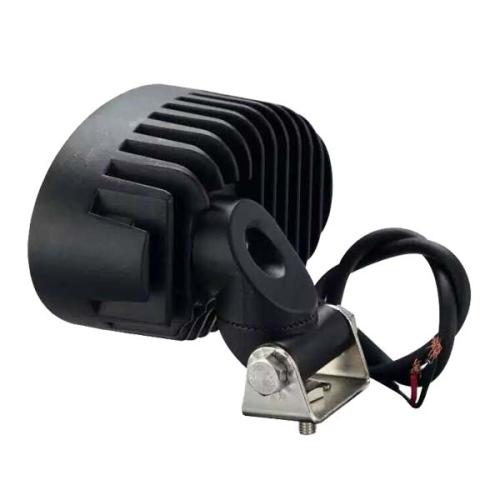

| Wiring | Red, Positive |
| Wiring | Black, Ground |
| Connection Type | DT male & female connector |
| Overall width | 154 mm (with mounting hardware) |

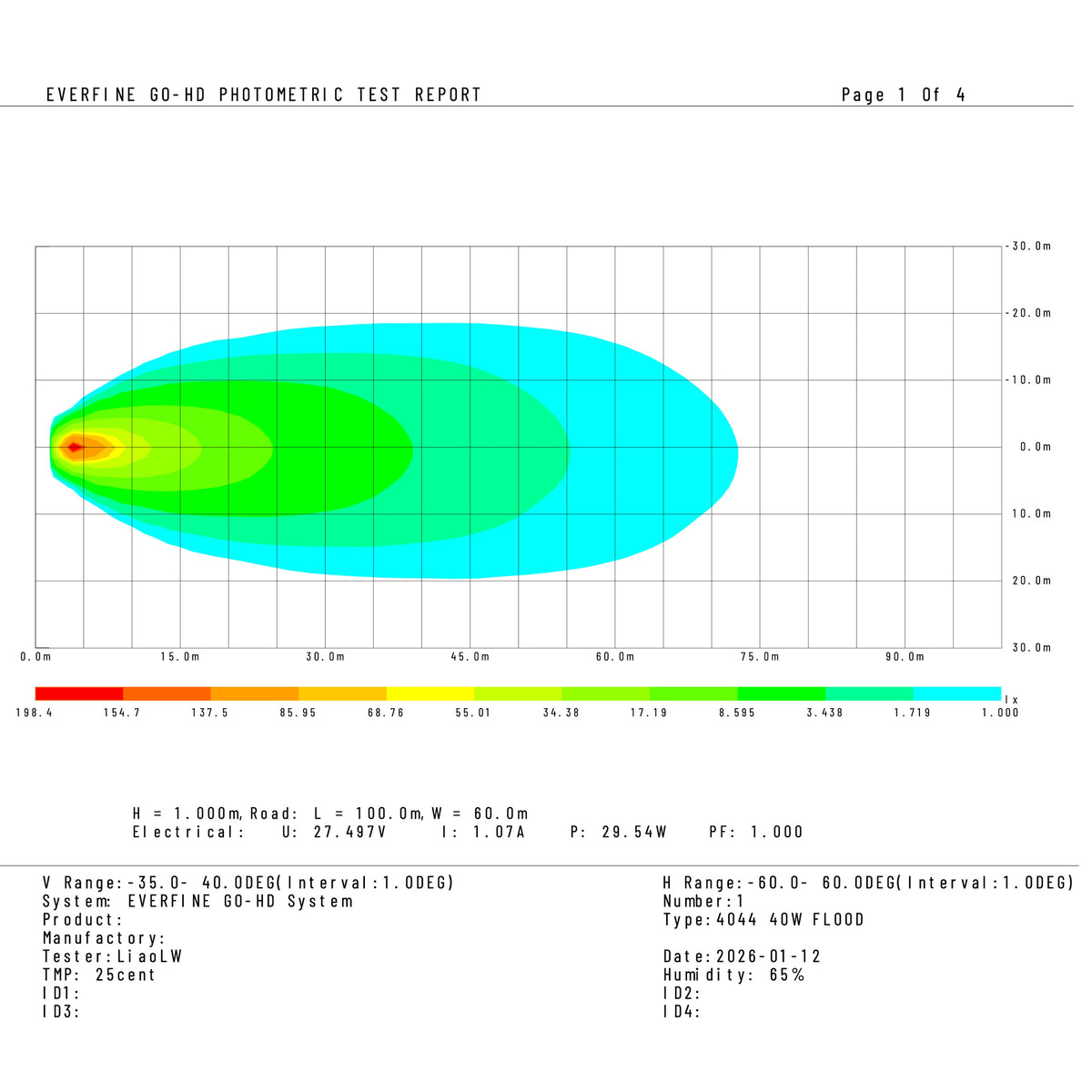

| Illuminance | 50 m @ 12 lux / 186 m @ 1 lux |
Tractor Work Lights

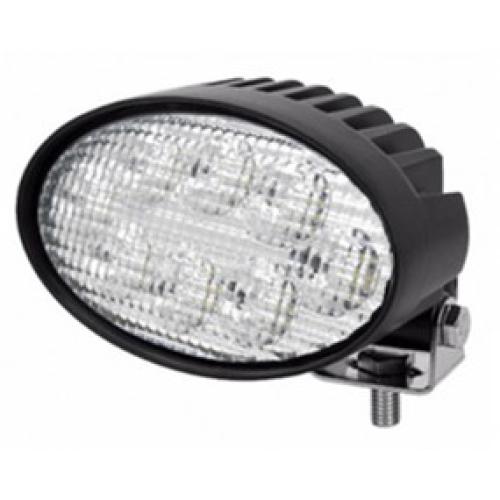

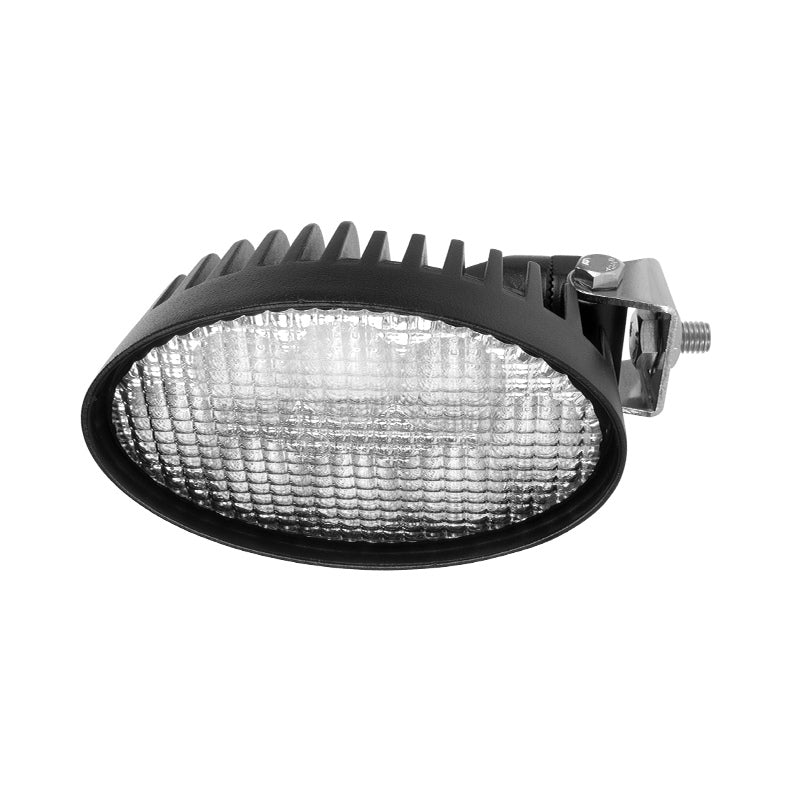

40 Watt LED Adjustable Mount Oval Work Light - LG847
40W oval LED work light with 360° adjustable mounting
The LG847 provides 3,200 lumens of diffused flood illumination from eight CREE XTE LEDs. Its 360° swivel bracket supports bottom or side mounting, making it easier to aim the beam around the working area. Operating voltage is 10–30V DC and colour temperature is 5300–5700K.
The aluminium housing and polycarbonate lens are rated IP68/IP69K. ECE R10 approval, CISPR25 Class 4 suppression and vibration testing to 15G support use on agricultural equipment. Supplied with a work light, swivel bracket and DT male/female connection. OEM references are for identification; compare the dimensions, connector and mounting before installation.
OEM references
New Holland: 84138309, 84138310, 84254556, 84254557, 84254565, 84254566, 84273088, 84273089, 84274549, 84274551
CASE IH: 84565655, 84565663
Massey Ferguson: 3786666M91, 3786668M91, 3786668M93, 4272829M91, 4275161M91, 4275162M91
JCB: 63/1931-48
Claas: 00155640
Hella: 1GA996161787, 1GA996361187, 1GA996161647, 1GA996161637, 1GN996361461, 1GA996161291, 1GA996461547, 1GA996361497
£49.00
● In stock
