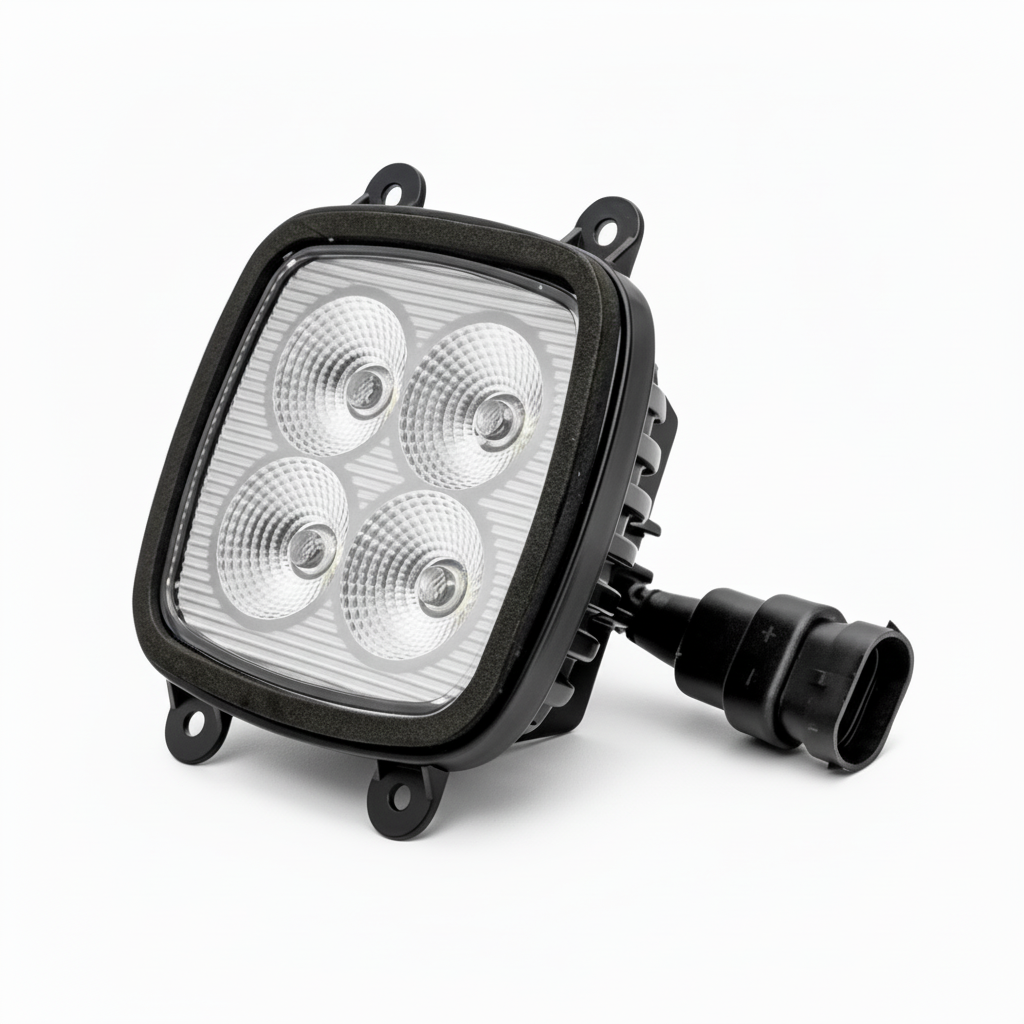

40 Watt LED Built In Bonnet Work Light - LG895

40 Watt LED Built In Bonnet Work Light – LG895

The LG895 40 Watt LED built‑in bonnet work light is engineered as a direct-fit upgrade for John Deere tractors that work long hours and harsh seasons. It delivers a strong 3200 lumen output from a compact housing, so you get clear, even light exactly where you’re working under the bonnet. ECE R10 and CISPR 25 Class 4 approvals keep electrical interference under control, even on sensitive modern machines.

This bonnet work light is built for people who actually use their tractors, not just park them in the shed. The 4 x 10 W high-output LEDs are driven to give consistent light with no flicker, so diagnostics, servicing, and repairs under the bonnet are faster, safer, and less frustrating. At 3200 lumen, it outperforms many halogen units while pulling less power and generating less heat around wiring and plastics.

The LG895 is designed to match John Deere OEM reference AL173620, using a robust diecast aluminium housing sized at 89 x 108 x 55 mm. That compact footprint makes it ideal where space is tight but reliability is non‑negotiable. It carries an IP68 ingress protection rating, which means it’s tested against dust and long-term moisture exposure – ideal for tractors that see rain, slurry, washing down, and year-round use.

Electronics are protected to CISPR 25 Class 4 with ECE R10 approval, so it plays nicely with CANbus systems, radios, and other on‑board electronics. Operating temperatures from -40°C to +60°C mean it will start first time on cold winter mornings and cope with hot engine bays in summer. It’s supplied with an H9 plug & play connector, so installation is straightforward: unplug the old unit, plug this in, and you’re back to work.

Compatibility has been carefully matched to key John Deere 6030 and 7030 Series models, giving you an OEM-style fit with LED performance. Original equipment names and numbers are used only as a reference, but the goal is clear – an upgrade that bolts in cleanly and just works.

Key Features

• 40 W LED output (4 x 10 W/pc) for strong, clear bonnet lighting with reduced power draw versus halogen.
• Approx. 3200 lumen light output for excellent visibility when servicing or fault-finding under the bonnet.
• Compact housing – 89 x 108 x 55 mm for tight engine-bay spaces and clean OE-style fitment.
• IP68 ingress protection for proven resistance to dust and prolonged moisture exposure in agricultural environments.
• Operating temperature: -40°C to +60°C, built to start and perform in sub-zero winters and hot engine bays.
• EMC protection to CISPR 25 Class 4 to minimise electrical interference with radios, control systems, and CANbus.
• ECE R10 approved, demonstrating compliance with European electromagnetic compatibility standards.
• Diecast aluminium housing for strength, heat dissipation, and long service life on hard‑worked machines.
• H9 plug & play connector for fast installation with no complex rewiring on compatible John Deere models.
• OEM reference: AL173620 – engineered as a replacement for original bonnet work lights on specified John Deere tractors.
  Original equipment names and numbers are quoted for reference only and do not imply original manufacturer supply.

Ideal Applications

• John Deere 6030 Series tractors – 6230, 6330, 6430, 6530, 6630, 6830, 6930, 6534.
• John Deere 7030 Series tractors – 7130, 7230, 7330, 7430 PR, 7530 PR.
• Agricultural workshops upgrading bonnet service lighting on mixed fleets with John Deere machines.
• Fleet managers standardising on reliable LED bonnet work lights across European farming operations.
• Contractors and dealers looking for repeatable, plug‑in LED replacements for OE bonnet lamps.
