6 LED Slim Marker Light (RED) - LG118

6 LED Slim Marker Light (RED) - LG118

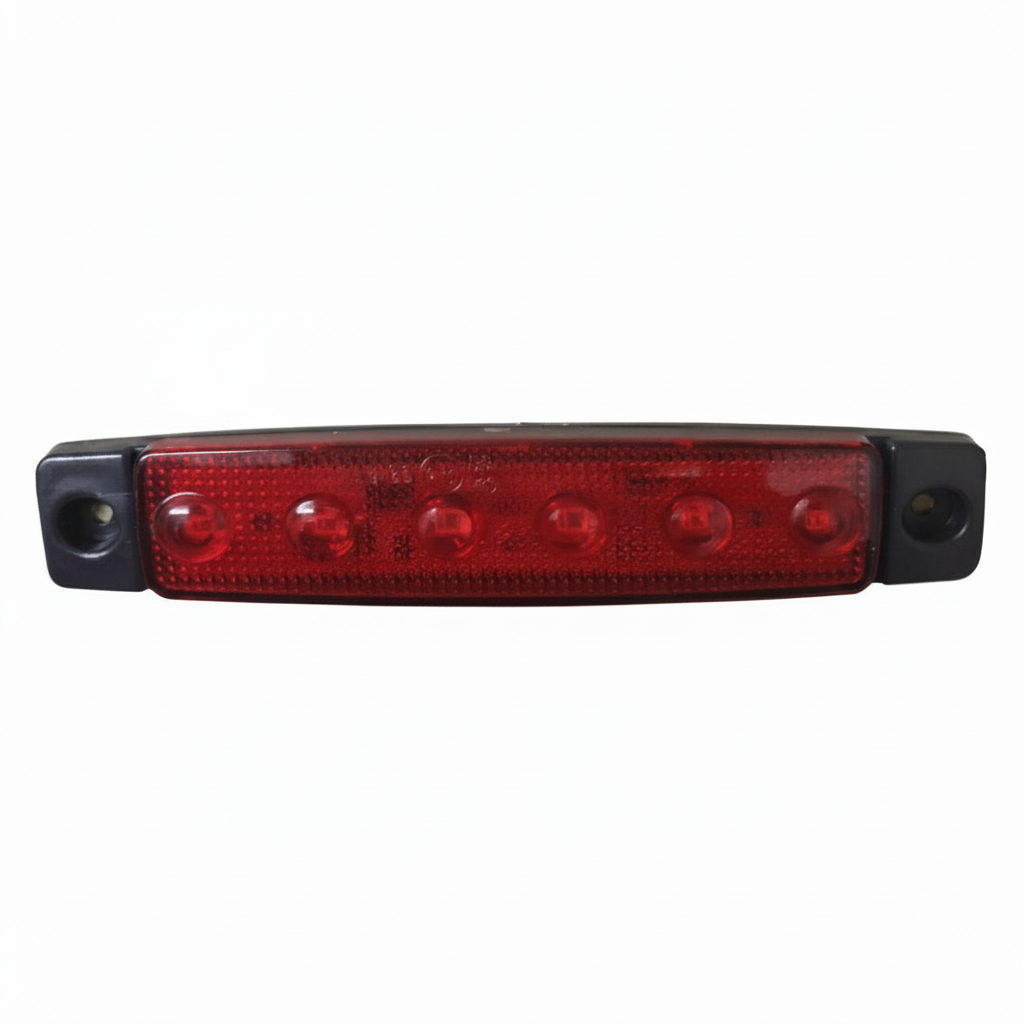

6 LED Slim Marker Light (Red) - LG118 is a compact, low-profile surface-mount marker lamp for trucks, trailers, agricultural machinery, and plant equipment. Designed to create a clear red outline line on vehicle bodies, bumpers, and chassis rails, it suits both on-road and off-road use where durable, space-saving lighting is needed.

Built with 6 high-intensity OSRAM LEDs (6 x 0.1 W) behind a PMMA lens and heavy-duty plastic housing, the LG118 delivers stable light output with low power draw. The wide 10-30V DC input makes it suitable for 12V and 24V electrical systems, helping standardize fitment across mixed fleets.

Specifications

• Model/SKU: LG118
• Light color: Red
• LEDs: 6 pcs OSRAM (total nominal power 0.6 W)
• Voltage: 10-30V DC
• Certifications: ECE approved / e-marked; EMC / radio suppression
• Ingress protection: IP67 (splashproof, dust-tight)
• Dimensions: 96 mm (Width) x 20 mm (Height) x 8 mm (Thickness)
• Pre-wired: Yes

Common uses: side or rear outline marker lighting on curtain-siders, box trailers, low-loaders, tippers, livestock trailers, tractors, slurry tankers, and utility/service vehicles.

Optional accessory: Bull bar gasket available (LG116G) for mounting on curved/tubular surfaces.
