| SKU | LG888S |
|---|---|
| EAN | 4255929221456 |
| Functions | High beam; white position light; amber warning strobe |
| Effective luminous flux | 2,000 lm |
| Raw luminous flux | 6,000 lm |
| Raw diode capacity | High: 60 W; position: 28 W; strobe: 18 W |
| Operating power | High: 30 W; position: 4 W; strobe: 15 W |
| Current at 24V | High: 1.25 A; position: 0.16 A; strobe: 0.625 A |
| Voltage | 10–30V DC |
| Cable | Six-wire cable for light and strobe control |
| Protection | IP66 / IP6K9K |
| ECE approvals | R149, R148, R65, R10 |
| EMC | CISPR25 Class 5 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +50°C |
| Housing | Graphene |
| Lens | Surface-hardened anti-UV polycarbonate |
| Bracket | Adjustable stainless steel |

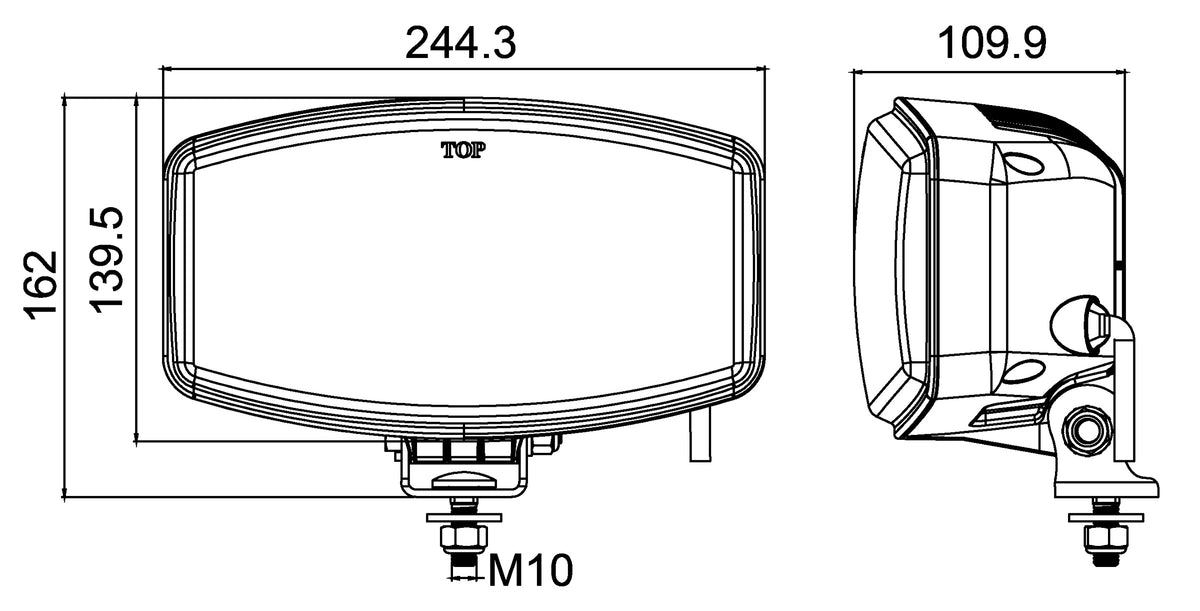

| Width | 244.3 mm |
| Body height | 139.5 mm |
| Height including bracket | 162 mm (drawing) |
| Depth | 109.9 mm |
| Mounting bolt | M10 |
| Wiring | Black: negative; red: high beam +; white: position +; yellow: warning +; blue: strobe sync/pattern; green: secondary function/phase |
All Lighting products

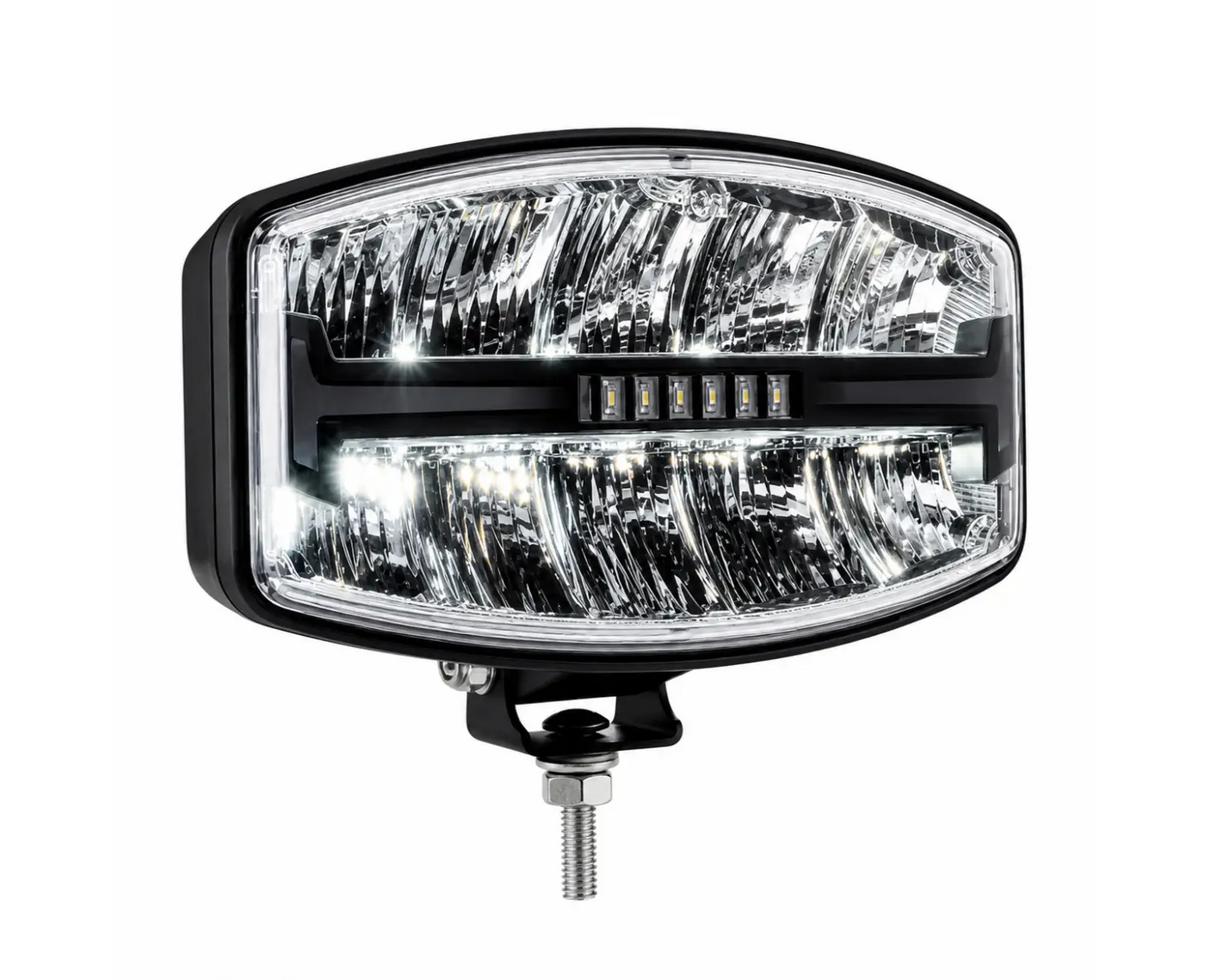

60W 10" LED Spotlight with White Position Light & Amber Warning Strobe - LG888S

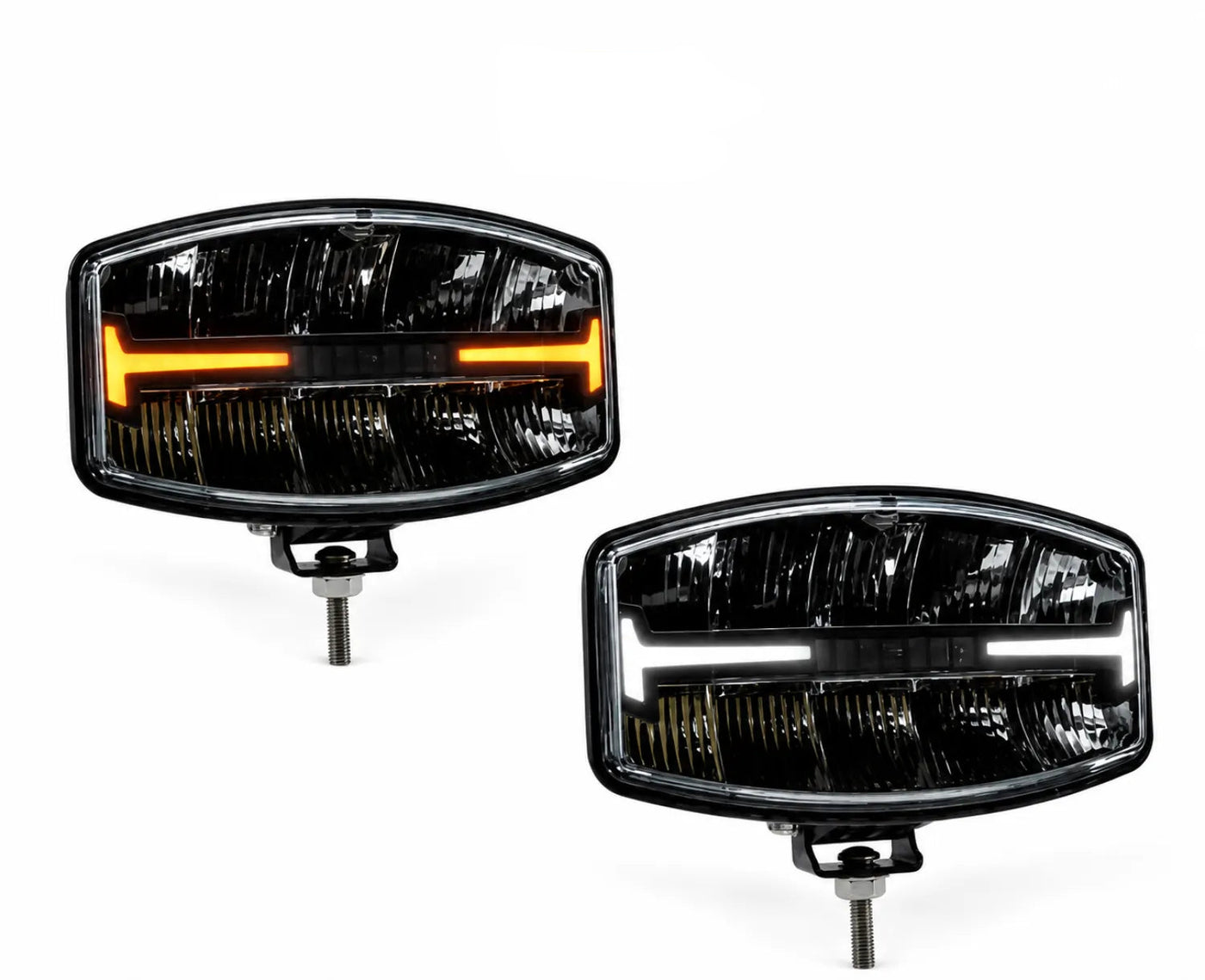

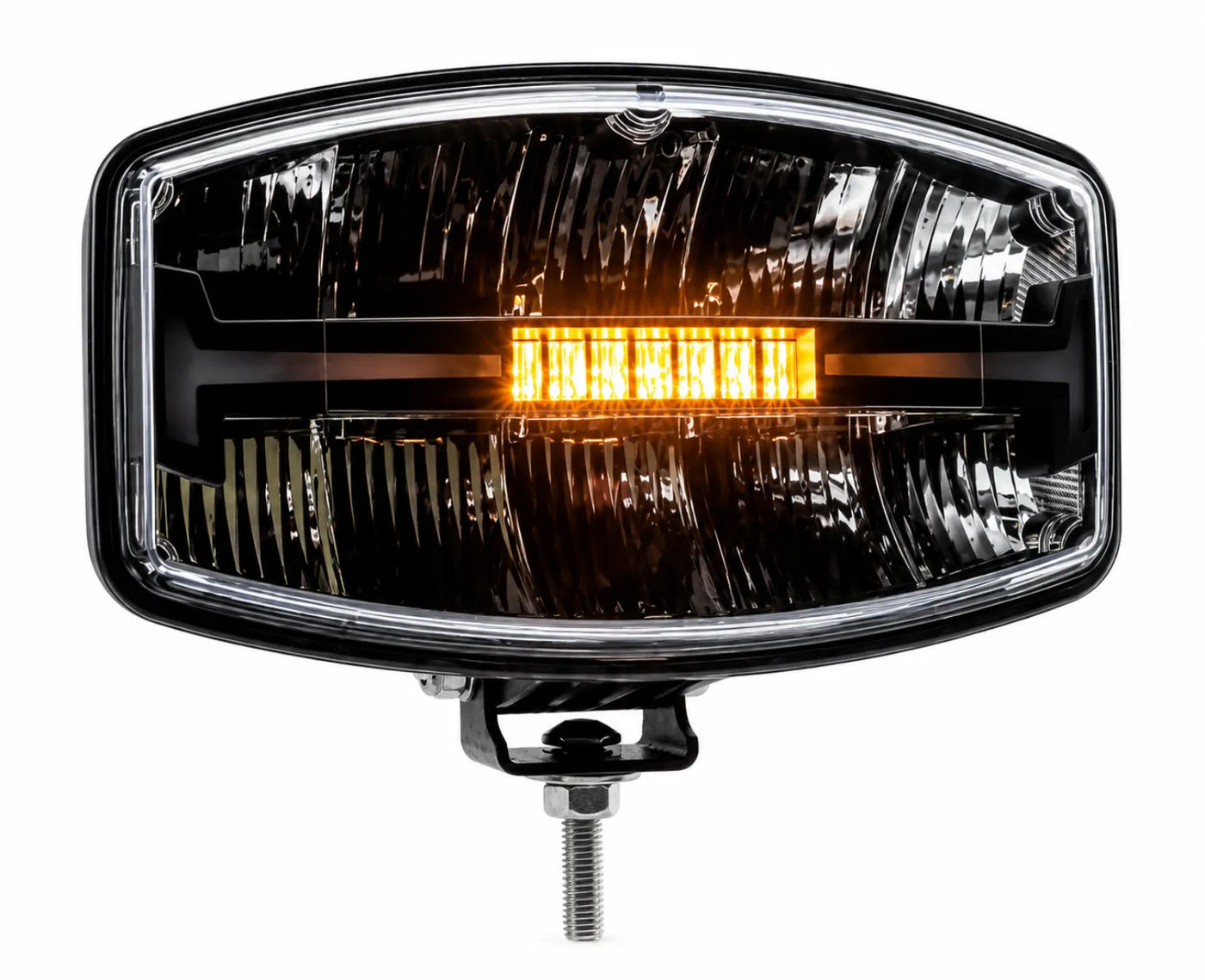

Oval LED spotlight with white position light and amber warning strobe
The LG888S combines a high-beam spotlight, white position light and integrated amber warning strobe. It delivers 2,000 effective lumens; the 6,000-lumen figure is raw LED output. The 60W rating describes raw high-beam diode capacity, while specified operating power is 30W for high beam, 4W for position light and 15W for strobe.
The graphene housing resists corrosion, and the surface-hardened anti-UV polycarbonate lens protects the optics. It operates on 10–30V DC with IP66/IP6K9K protection and CISPR25 Class 5 suppression. A six-wire cable supports the lighting and strobe-control functions. Supplied with mounting hardware.
£89.00
● In stock
