| SKU | LG876 |
|---|---|
| EAN | 4255929221333 |
| Rated LED power | 60 W (4 × 10 W + 4 × 5 W) |
| Effective luminous flux | 4,800 lm |
| Raw luminous flux | 6,000 lm |
| Voltage | 9–36V DC |
| Colour temperature | 5700K |

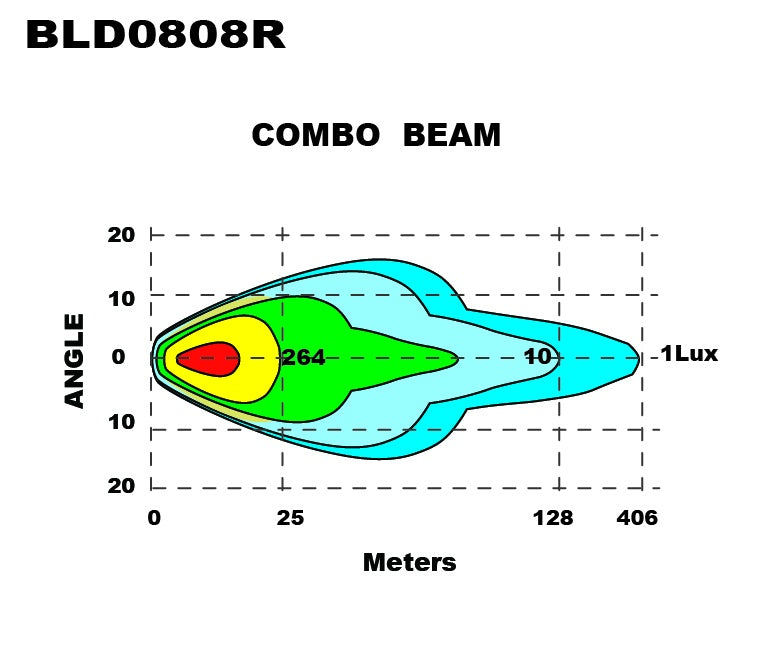

| Beam | 30° combo; 1 lux at 406 m |
| Main light current | 4.0 A at 12V / 2.0 A at 24V |
| Position light current | 0.06 A at 12V / 0.03 A at 24V |
| Position light | White / amber |
| Protection | IP68 / IP69K |
| ECE approvals | R112 (Ref. 37.5), R7, R10 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +60°C |
| Housing | ADC12 diecast aluminium |
| Lens | Lexan polycarbonate |
| Bracket | Adjustable SUS304 stainless steel U-bracket |

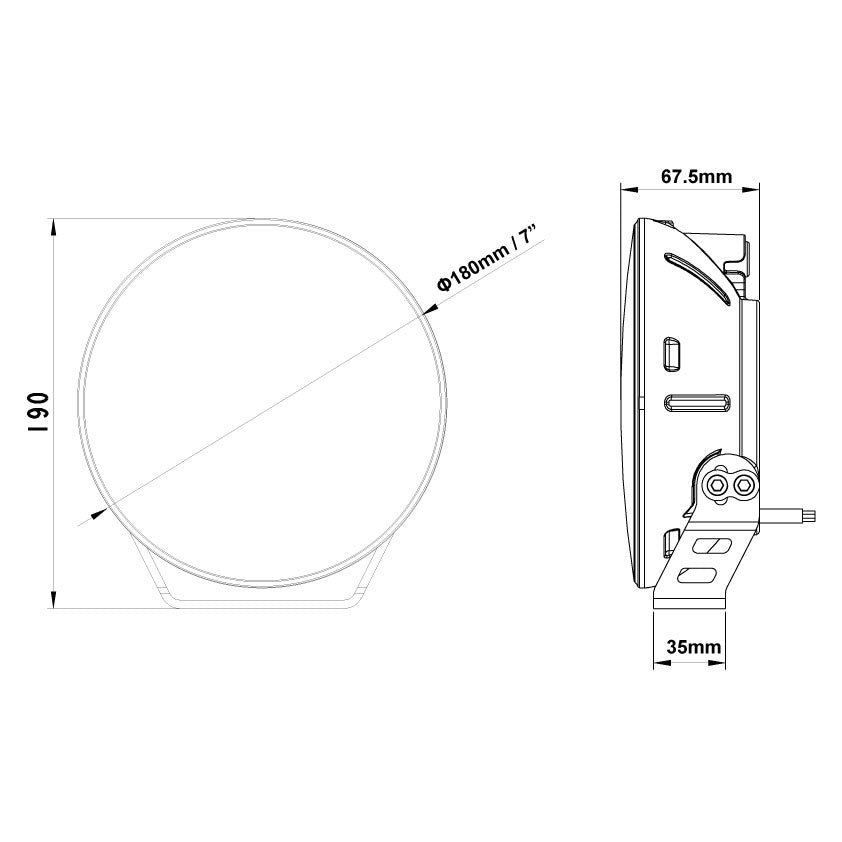

| Diameter | 180 mm |
| Height including bracket | 190 mm |
| Depth | 67.5 mm |
| Mounting hole | 10.5 mm |
| Wiring | Black: ground; red: driving light +; white: white position light +; yellow: amber position light + |
Agricultural Lighting
60 Watt 7 LED Driving Light with Dual Colour Position Light - LG876
60W 7-inch LED driving light with dual-colour position light
The LG876 delivers 4,800 effective lumens from eight LEDs, combining a focused centre with wider illumination. Its 30° combo beam reaches 406 m at 1 lux. Separate white and amber position-light functions are integrated into the round housing.
Operating on 9–36V DC, it uses an ADC12 diecast aluminium housing, Lexan polycarbonate lens and adjustable SUS304 stainless steel U-bracket. IP68/IP69K protection, electronic thermal management and TIR/side-reflecting optics support demanding vehicle applications. The supplied kit includes the light, bracket, hardware and installation manual.
The listed ECE approvals do not apply when the amber position-light function is used.
£111.00
● In stock
