| SKU | LG888 |
|---|---|
| EAN | 4255929221449 |
| Nominal model power | 60 W |
| LED configuration | 12 × 4 W high beam; 7 × 0.5 W position |
| Effective luminous flux | 2,100 lm |
| Raw luminous flux | 3,000 lm |
| Voltage | 10–30V DC |
| Functions | High beam; white / amber position light |
| Cable length | 400 mm |
| Protection | IP66 / IP69K |
| ECE approvals | R149, R148, R10 |
| EMC | CISPR25 Class 5 |
| Other conformity | CE, RoHS |
| Operating temperature | −40°C to +80°C |
| Housing | Graphene thermoplastic |
| Lens | Polycarbonate |
| Bracket | Adjustable stainless steel |

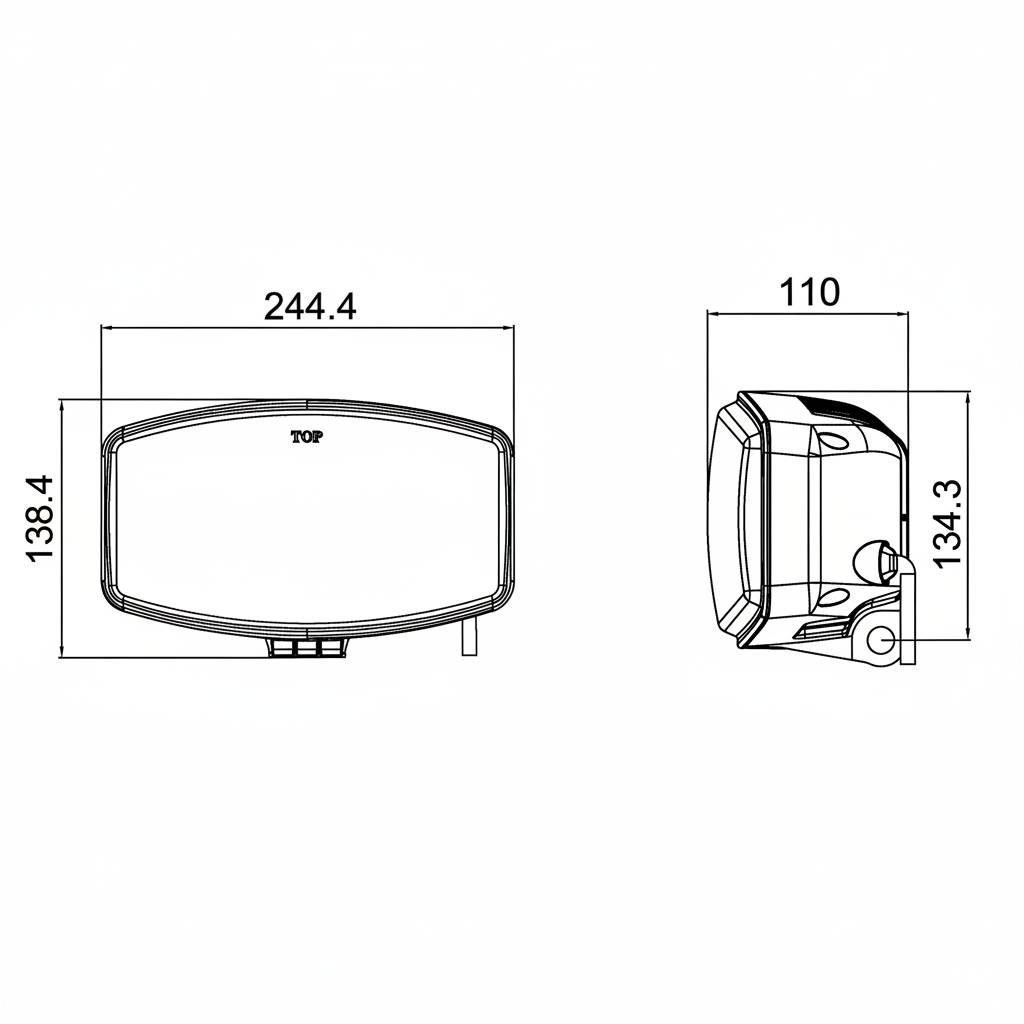

| Width | 244.4 mm (drawing) |
| Height shown in drawing | 138.4 mm |
| Depth | 110 mm |
| Wiring | Black: negative; red: high beam +; blue: white position +; yellow: amber position + |
All Lighting products
60 Watt Jumbo LED Driving Spot Light with 2 Colour Options Position Light - LG888

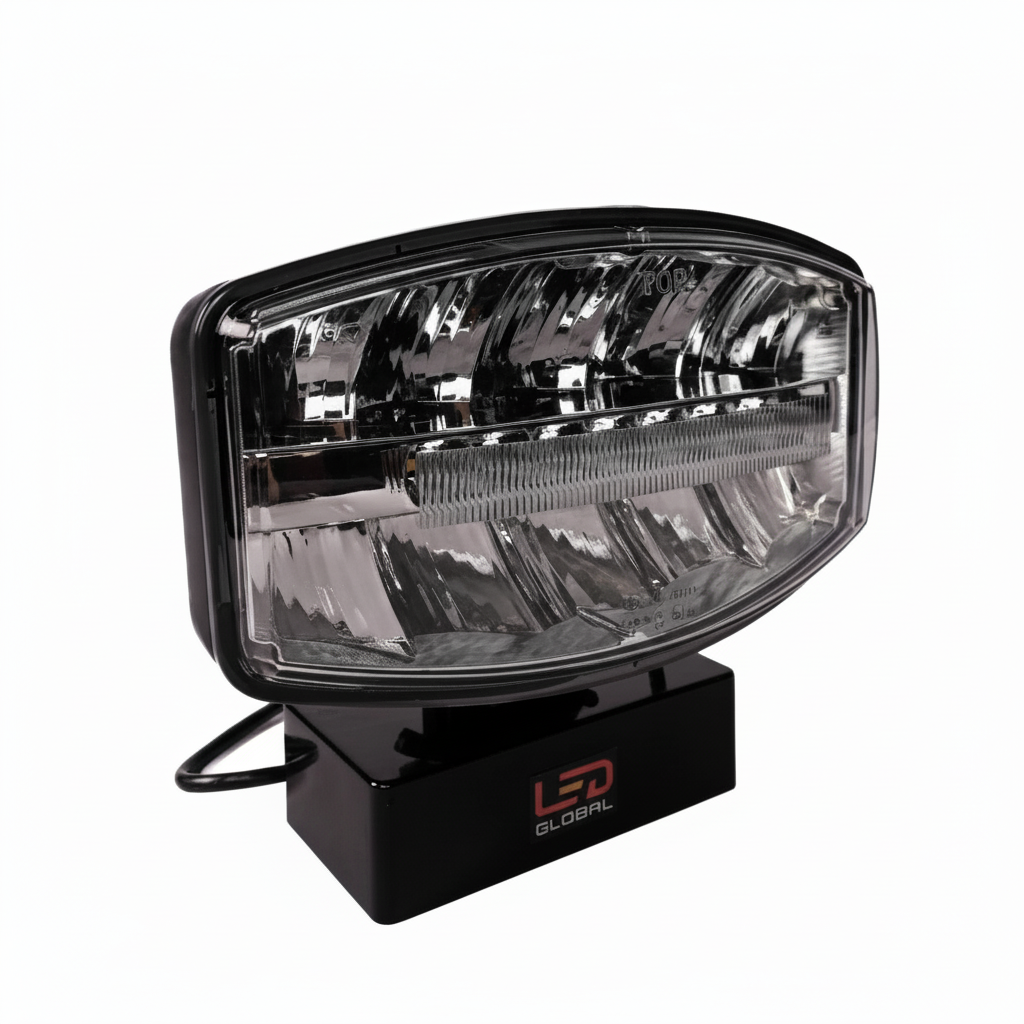

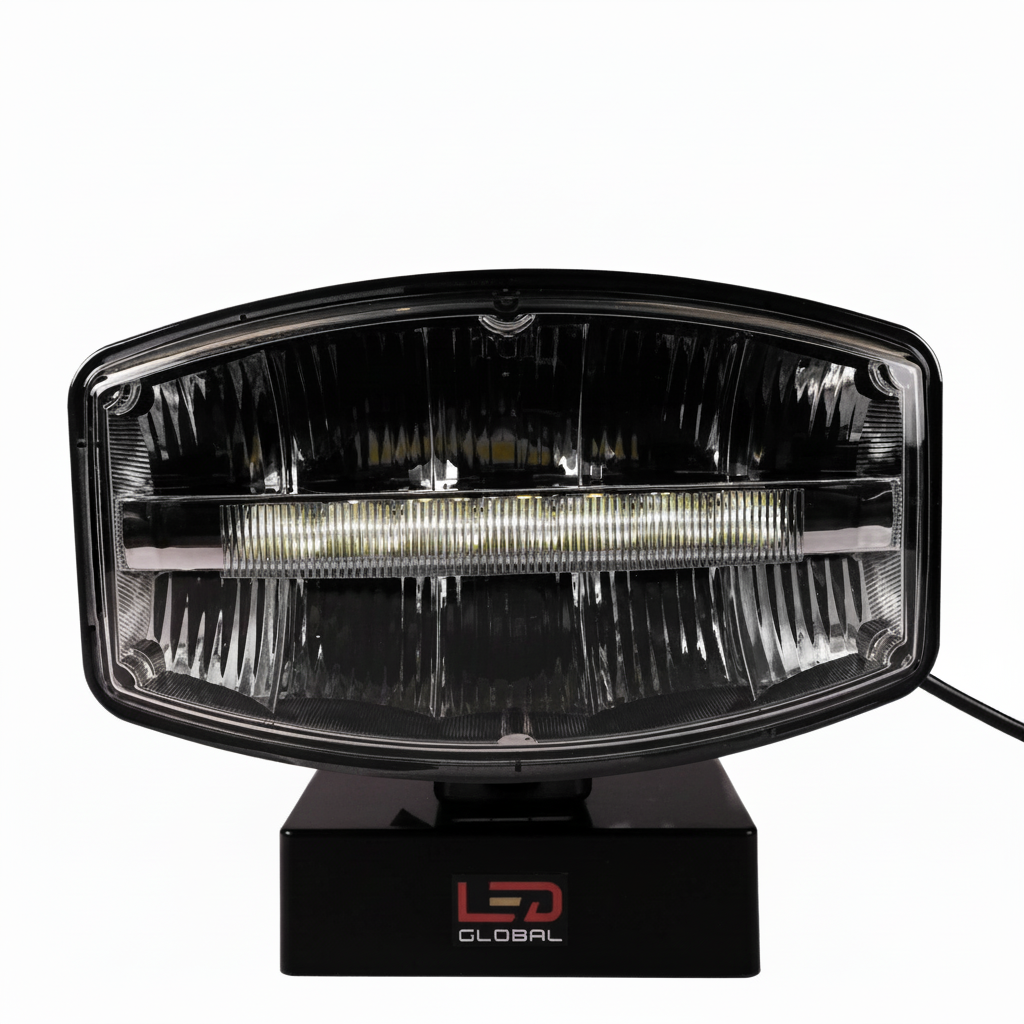

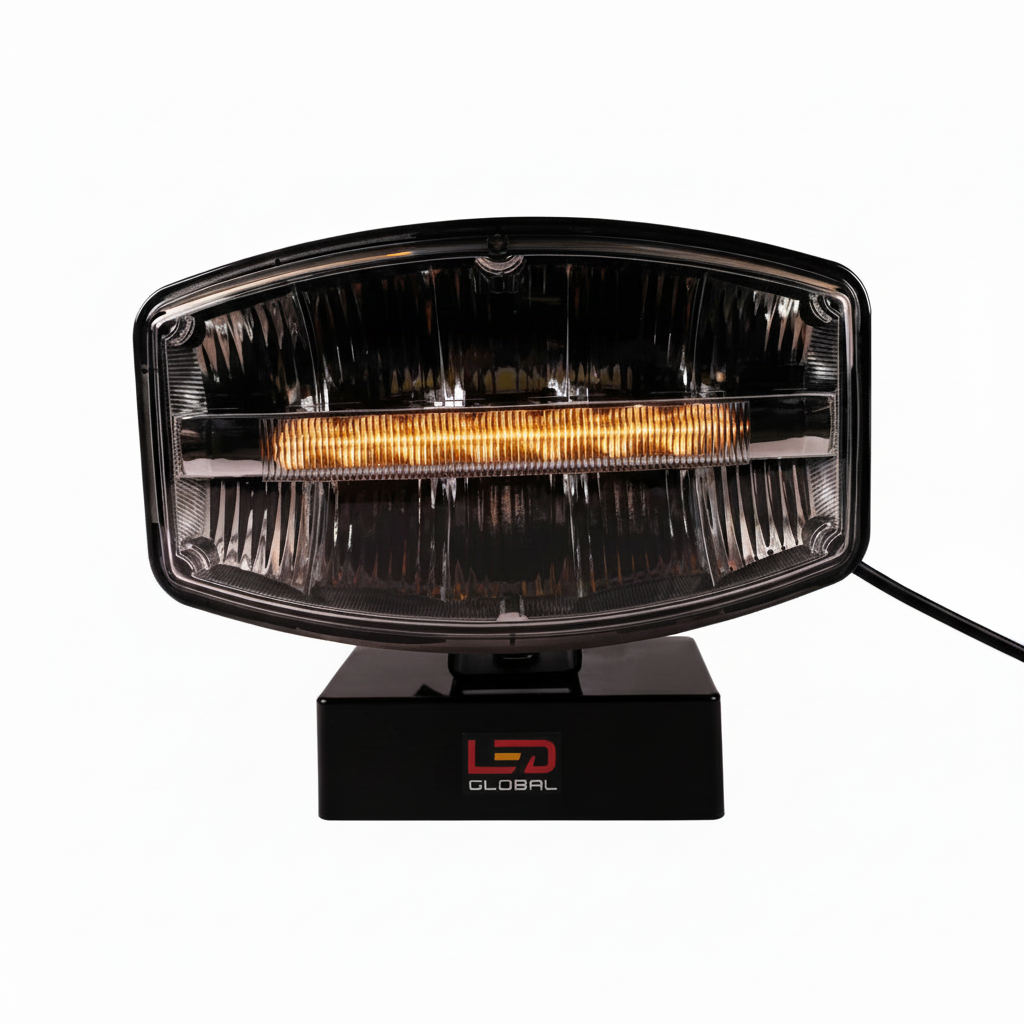

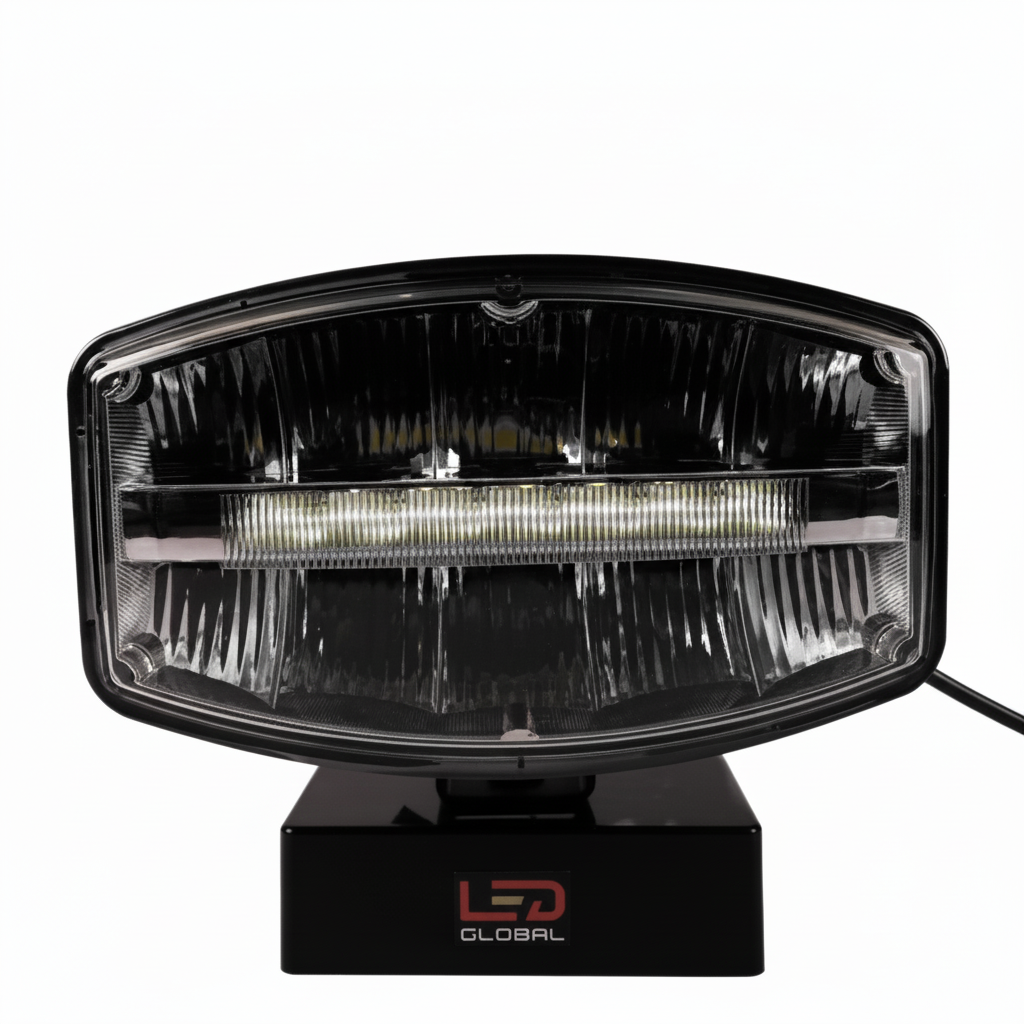

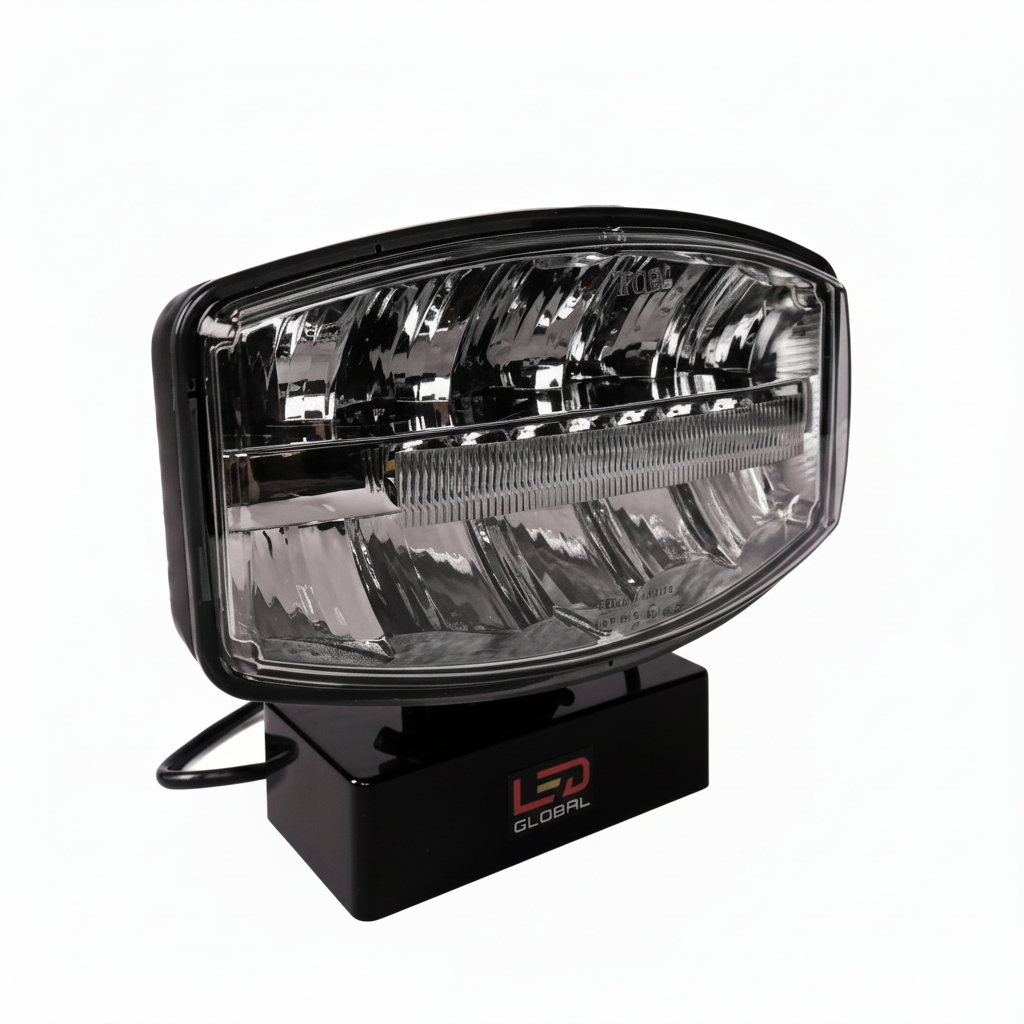

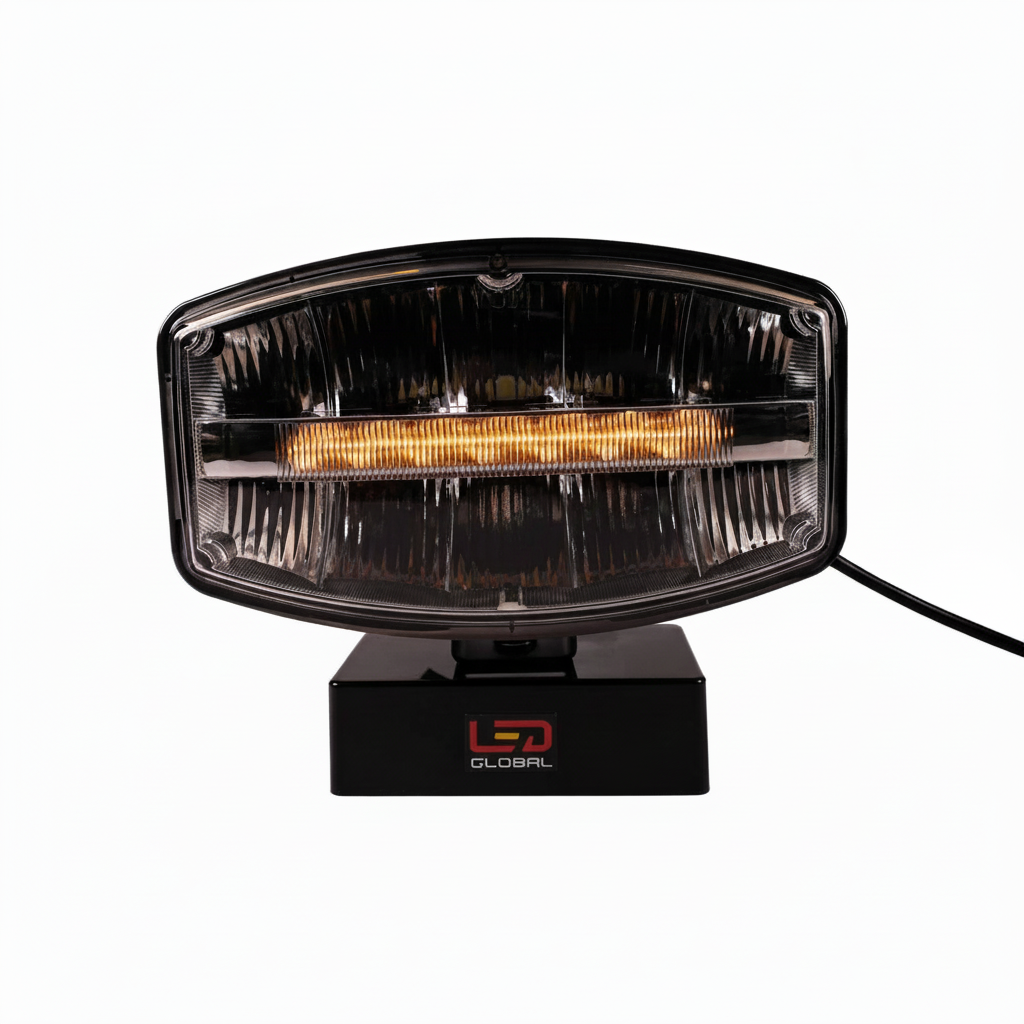

Oval LED spotlight with white and amber position light
The LG888 combines a high-beam spotlight with separate white and amber position-light functions. The updated specification lists 2,100 effective lumens and 3,000 raw lumens. Its 10–30V DC supply suits 12V and 24V vehicle systems.

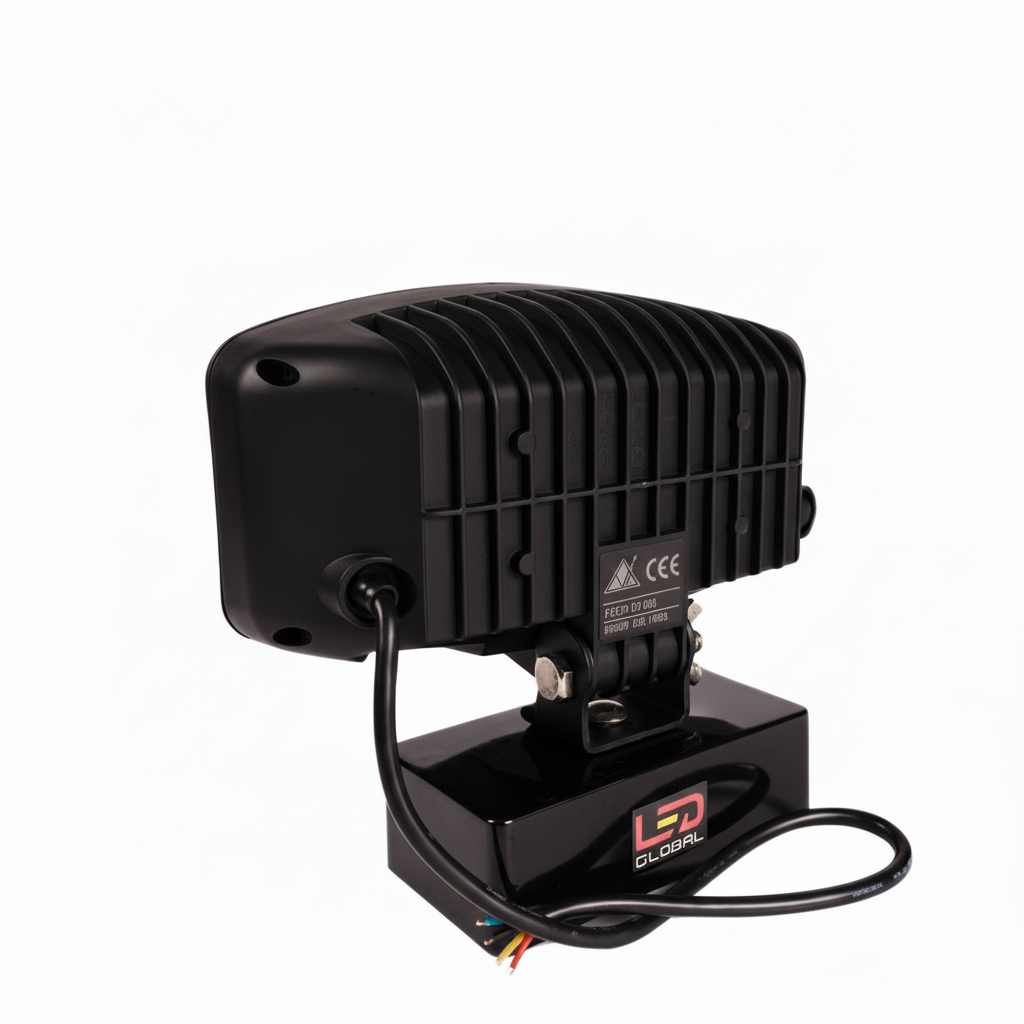

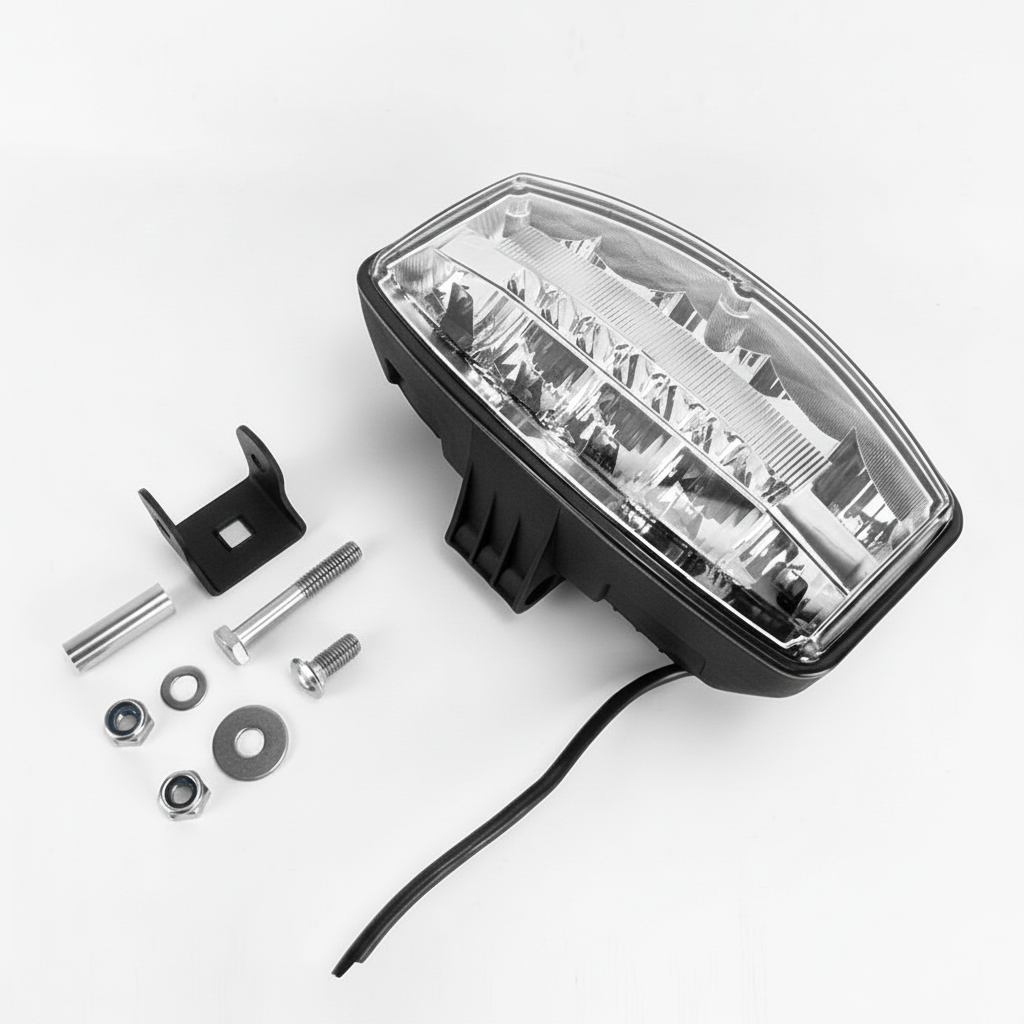

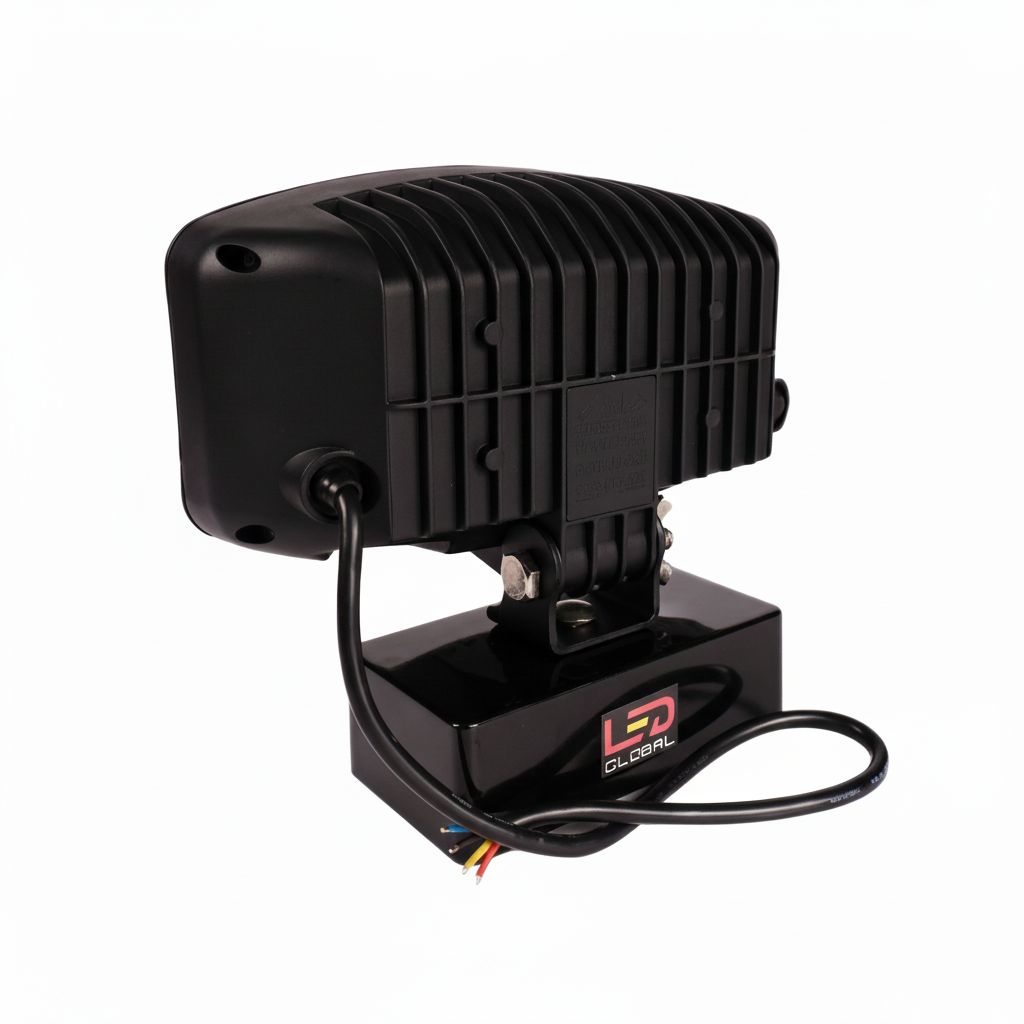

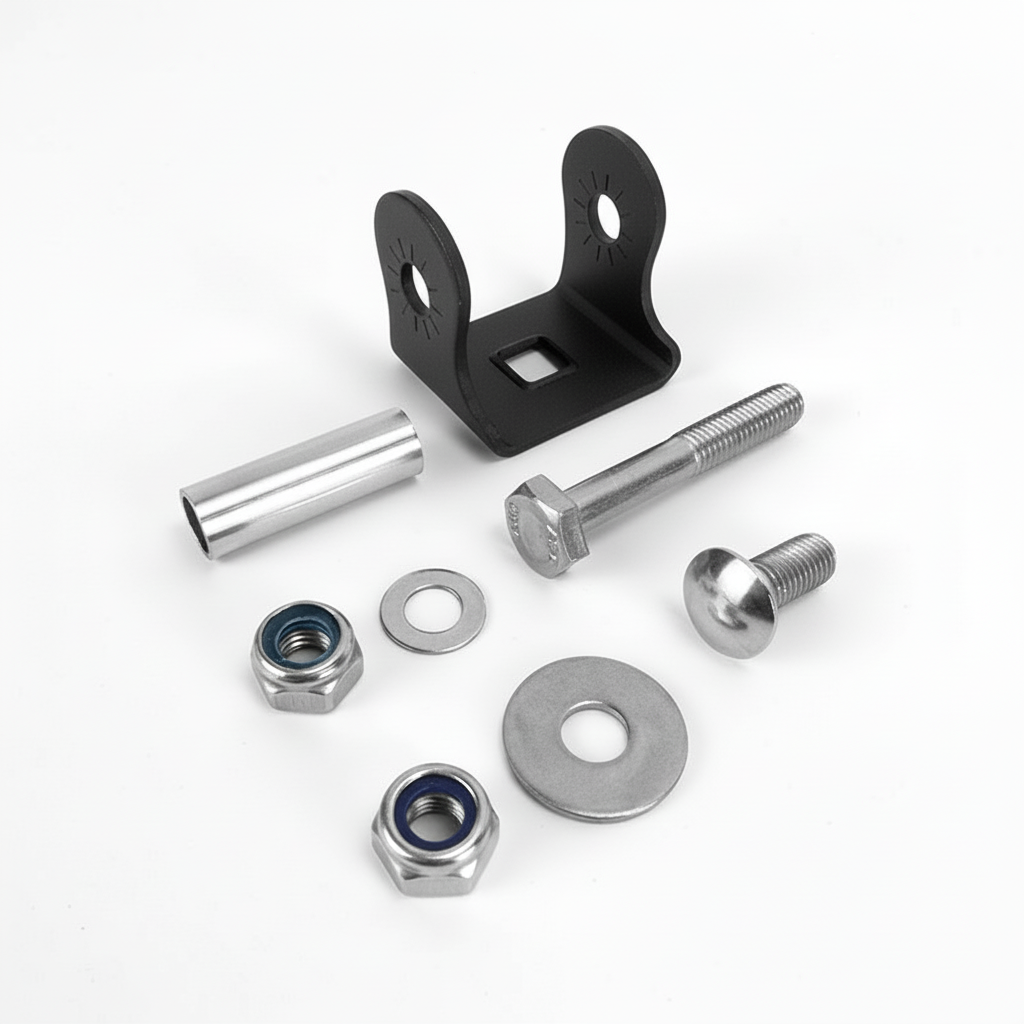

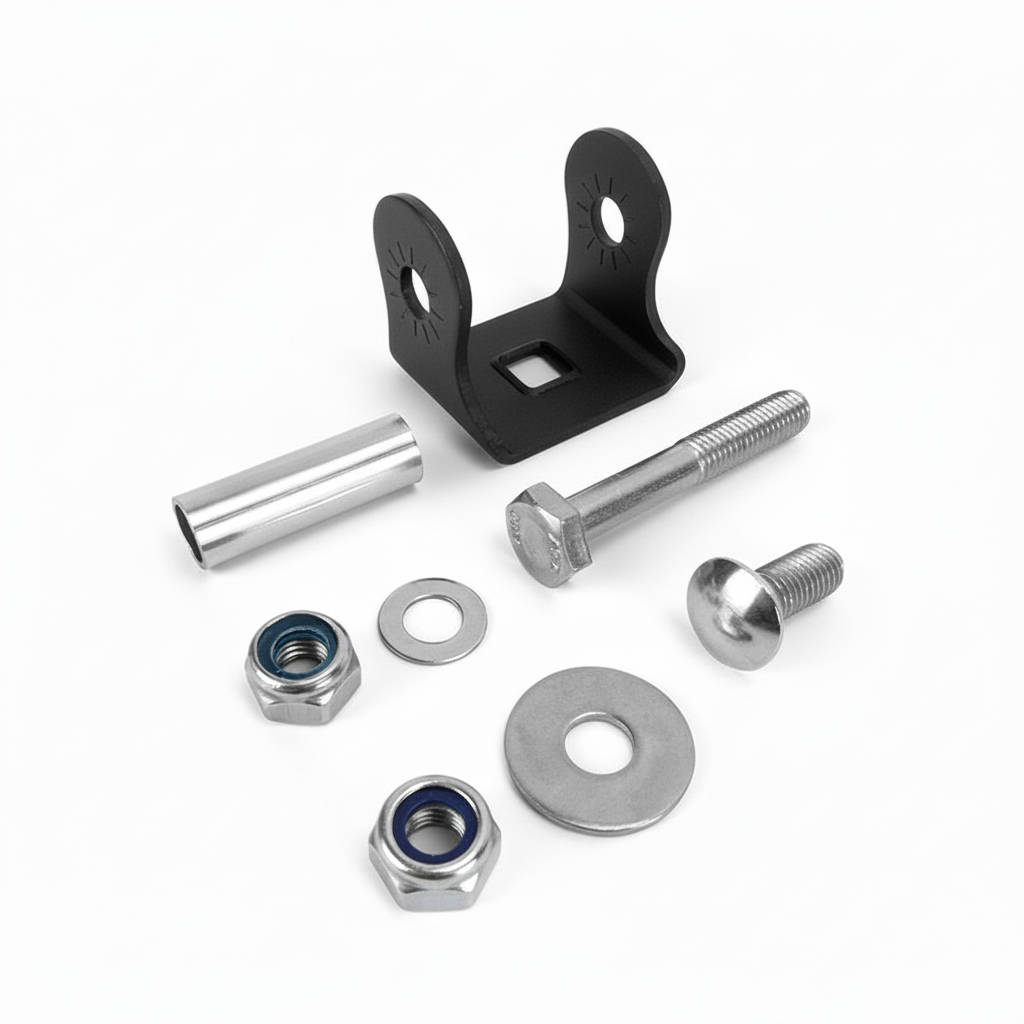

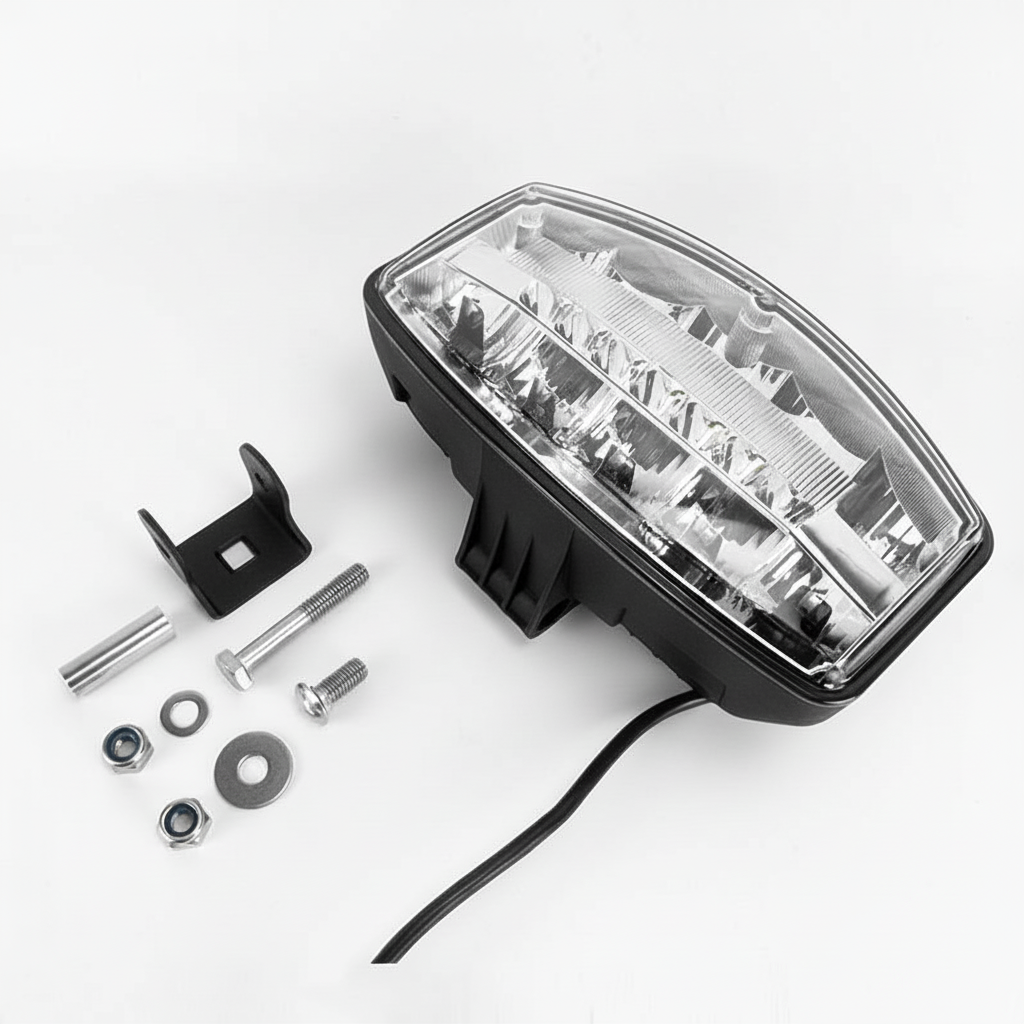

The corrosion-resistant graphene thermoplastic housing, polycarbonate lens and adjustable stainless steel bracket provide a compact mounting arrangement. IP66/IP69K protection and CISPR25 Class 5 suppression are specified. Supplied with a mounting bracket, hardware and a 400 mm cable.
£83.00
● In stock
