| Brand | LED Global |
|---|---|
| SKU | LG809 |
| EAN / Barcode | 4255929220763 |
| Product Type | LED Work Light |
| Included in Box | 1x Work Light, Stainless Steel Bracket, Screws |
| Beam Pattern | Spot |
| Luminous Flux (Lumens) | 4800 lm |
| Color Temperature (K) | 5300 - 5700K |
| LED Brand/Type | OSRAM |
| Power Consumption (Watts) | 60W |
| Operating Voltage (V) | 10-30 Volt DC |
| Expected Service Life (Hours) | 50,000 hours |
| ECE Approvals | ECE R10 Approved (E9*10R05/01*16954*00) |
| EMC Rating | CISPR25 Class 4 |
| Protection Rating (IP) | IP68 / IP69K |
| Operating Temperature Range (°C) | -40°C to +80°C |
| Shape | Rectangle |
| Housing Material | Diecast Aluminum |
| Lens Material | Polycarbonate |

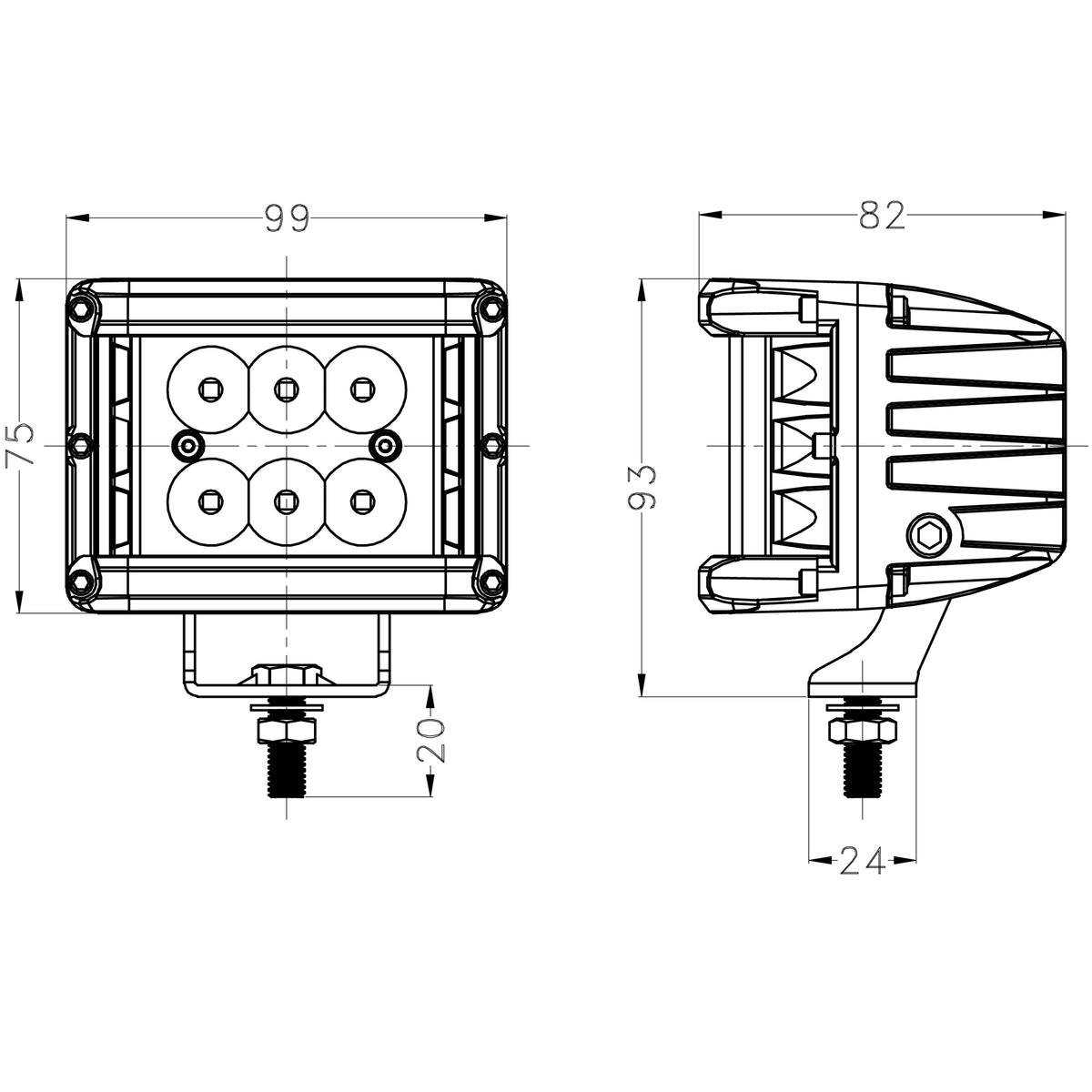

| Width (mm) | 99mm |
| Height (mm) | 75mm |
| Depth (mm) | 82mm |
| Mounting Type | Stainless Steel Bracket |
| Wiring | Black Line: Negative Pole (Ground) |
| Wiring | Red Line: Positive Pole (Power) |
| Connection Type | DT male & female connector |
| Overall height | 93 mm (including bracket; excluding mounting bolt) |
Tractor Work Lights

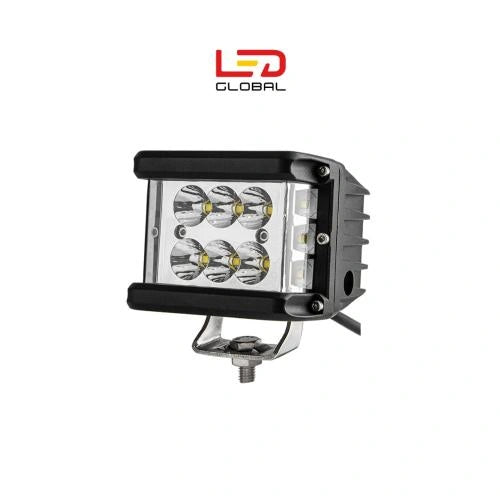

60 Watt LED Spot Work Light - LG809
Top Seller
60W LED spot work light with 4,800 lumens
The LG809 uses OSRAM LEDs to provide a focused spot beam at 5300–5700K. It operates on 10–30V DC and includes a stainless steel mounting bracket and screws.
The diecast aluminium housing and polycarbonate lens are rated IP68/IP69K. ECE R10 approval and CISPR25 Class 4 suppression help limit electromagnetic interference. A DT male and female connector and red positive/black ground wiring support installation. Expected service life is 50,000 hours.
£39.00
● In stock
