| Part number | LG936 |
|---|---|
| EAN / barcode | 4255929201960 |
| Operating voltage | 9–36 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -40°C to +60°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; M10 mounting |
| Other conformity / EMC | CE, RoHS |
| Light functions | Driving; white/amber position; amber warning strobe |
| LED configuration | 4 × 40 W LMP LEDs |
| Power rating / consumption | 160 W nominal LED rating |
| Luminous flux | 11,000 lm effective |
| Beam pattern / range | 25° combo beam |
| Connection / cable | 6-pin DT; 500 mm cable |
| Approvals | ECE R10, R65, R148, R149 |
| Width / length | Ø218 mm reference in drawing |
| Height | 198 mm housing; 211 mm with bracket, excluding bolt |
| Depth | 87 mm |
| Included | 1 light, mounting bracket(s), screws and DT connector |
All Lighting products
160W LED Driving Light with Position Light and Strobe – LG936
160W LED Driving Light with Position Light and Strobe – LG936

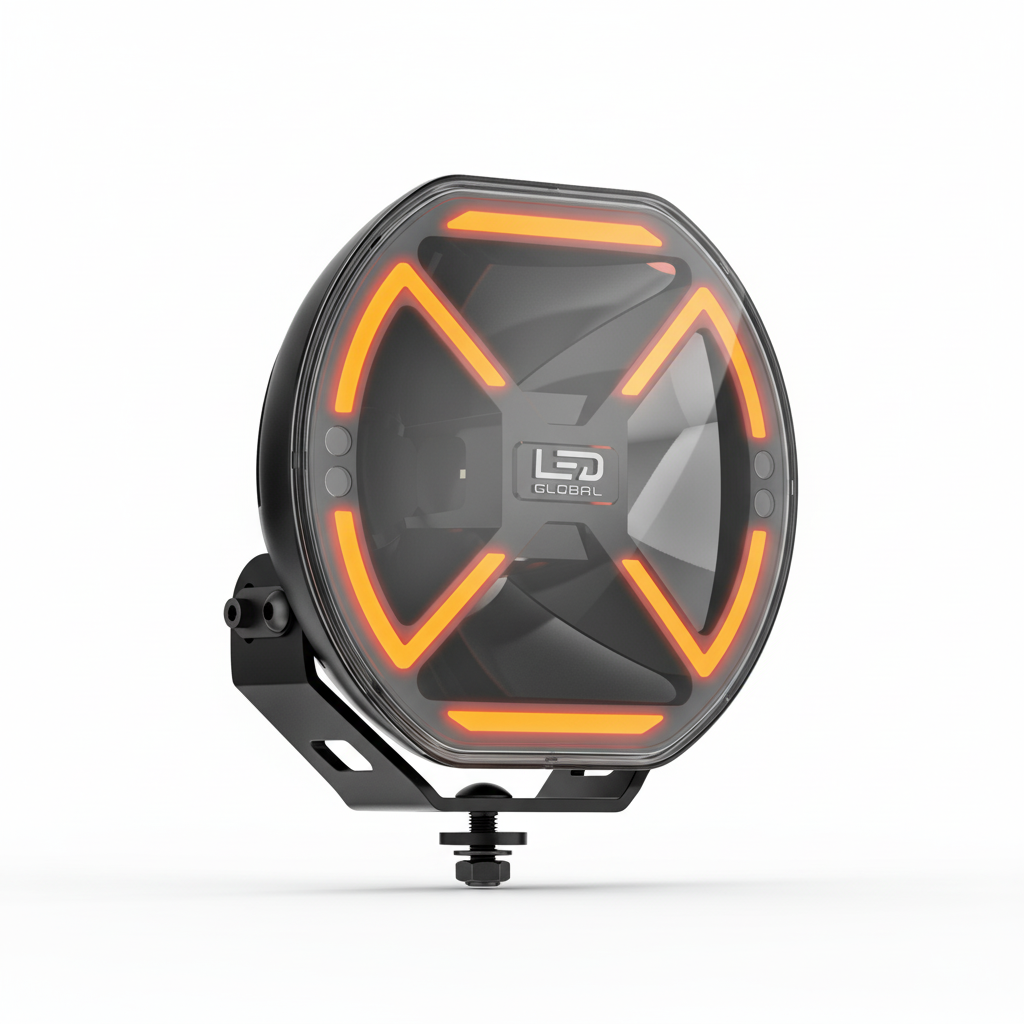

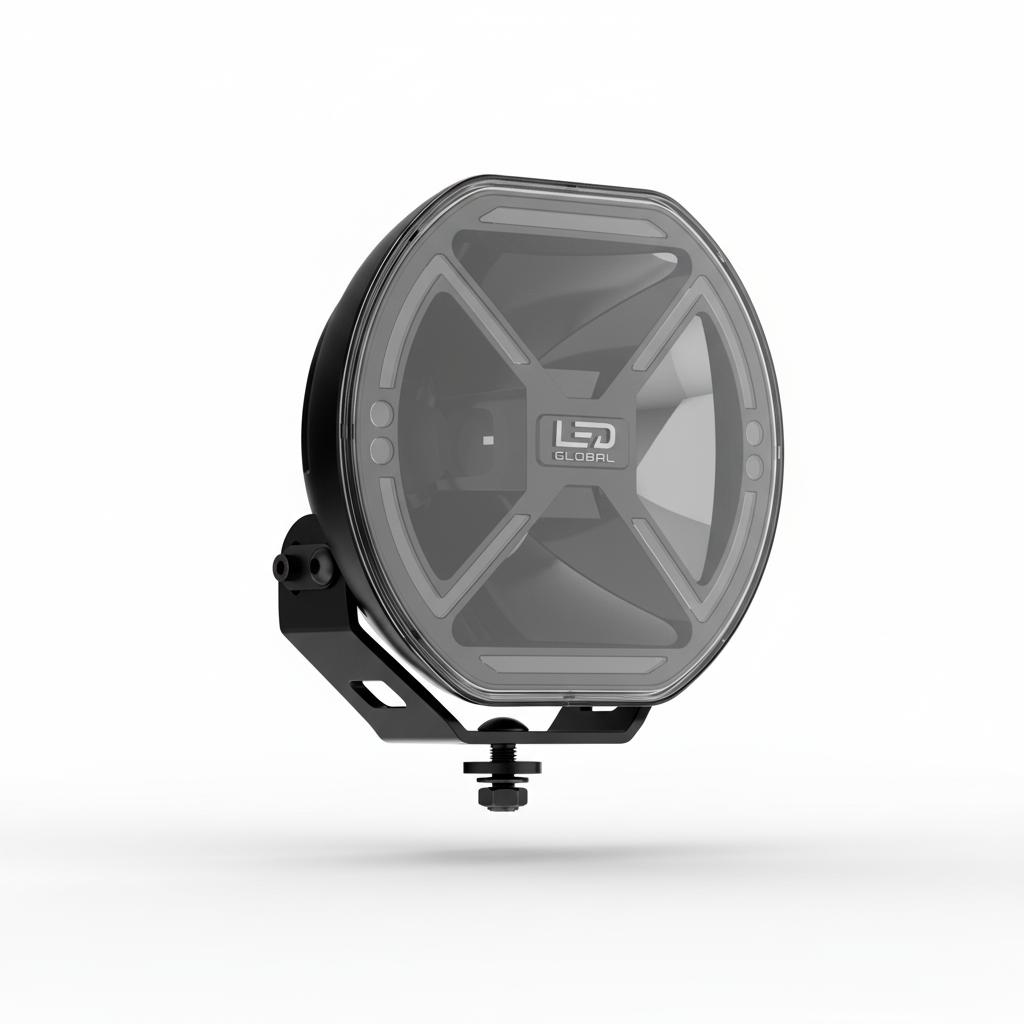

The LG936 combines four 40 W LMP LEDs with white and amber position lighting and an integrated amber warning strobe. The nominal LED rating is 160 W and the specified effective output is 11,000 lumens, with a 25° combo beam.

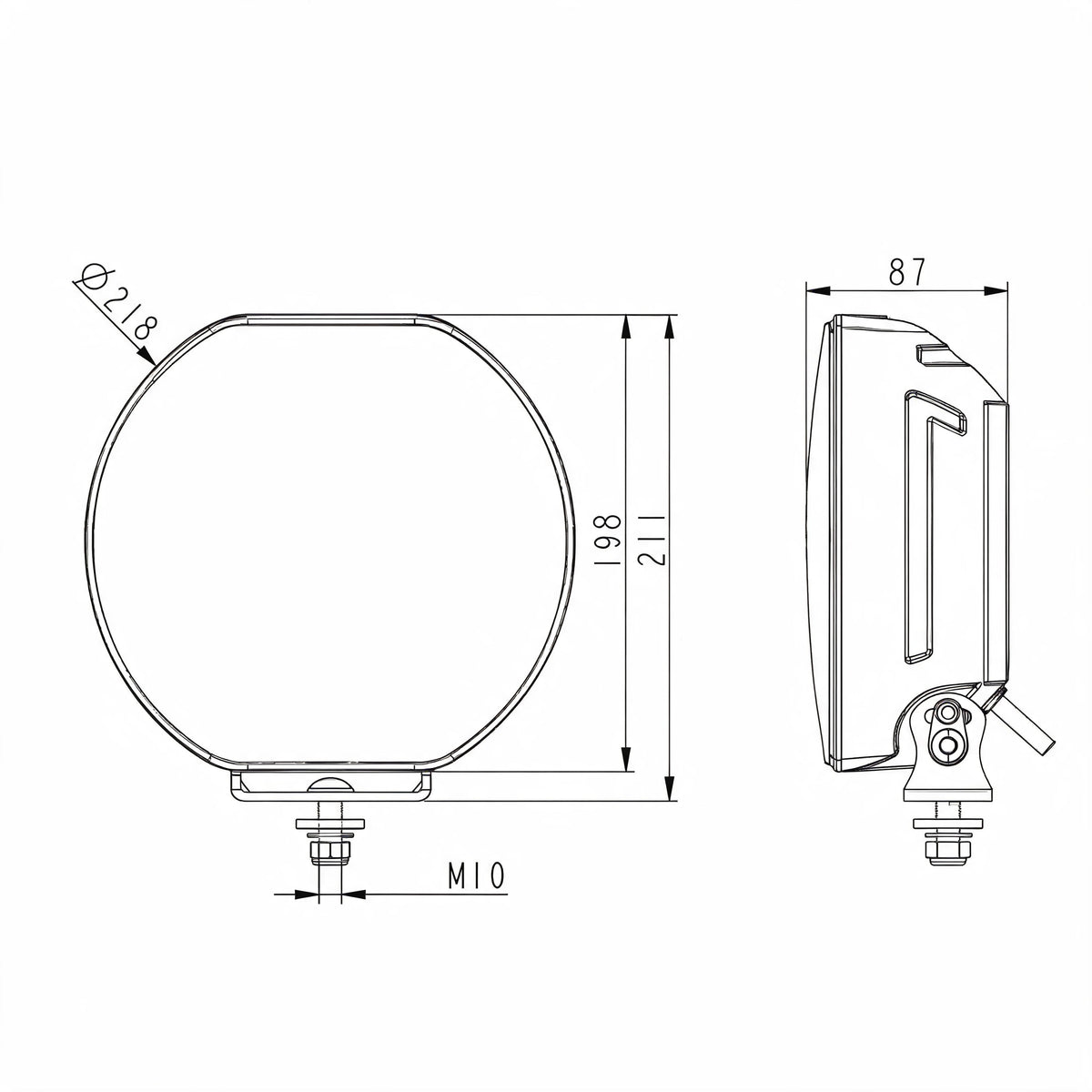

The die-cast aluminium body, PC lens and stainless steel bracket are sealed to IP68/IP69K. A 500 mm cable with a 6-pin DT plug supports connection to 9–36 V systems. The drawing shows a 218 mm diameter reference, 198 mm housing height and 211 mm height with the bracket, excluding the mounting bolt.
£155.00
● In stock
