| Part number | LG986 |
|---|---|
| EAN / barcode | 4255929208242 |
| Operating voltage | 10–30 V DC |
| Ingress protection | IP68 / IP69K |
| Operating temperature | -30°C to +65°C |
| Housing | Die-cast aluminium |
| Lens | Polycarbonate (PC) |
| Bracket / mounting | Stainless steel; adjustable bolt-on bracket |
| Other conformity / EMC | CE, RoHS, CISPR 25 Class 3 |
| Light functions | ECE driving mode; off-road Boost mode; white or amber position light |
| LED configuration | OSRAM LEDs |
| Power rating / consumption | 144 W nominal LED rating |
| Luminous flux | Effective: Boost 5,226 lm / ECE 1,629 lm; raw 11,000 lm |
| Beam pattern / range | 1 lux: ECE 335 m / Boost 768 m (manufacturer chart) |
| Connection / cable | 4-pin DT; 600 mm cable + 350 mm extension |
| Approvals | ECE R148, R149, R10 |
| Width / length | 232.76 mm |
| Height | 217.63 mm housing, excluding bracket |
| Depth | 83.5 mm |
| Wire functions | Black: ground (-); red: driving (+); white: white position (+); blue: amber position (+) |
| Included | 1 light, mounting bracket(s), screws and DT connector |
Agriculture Lighting

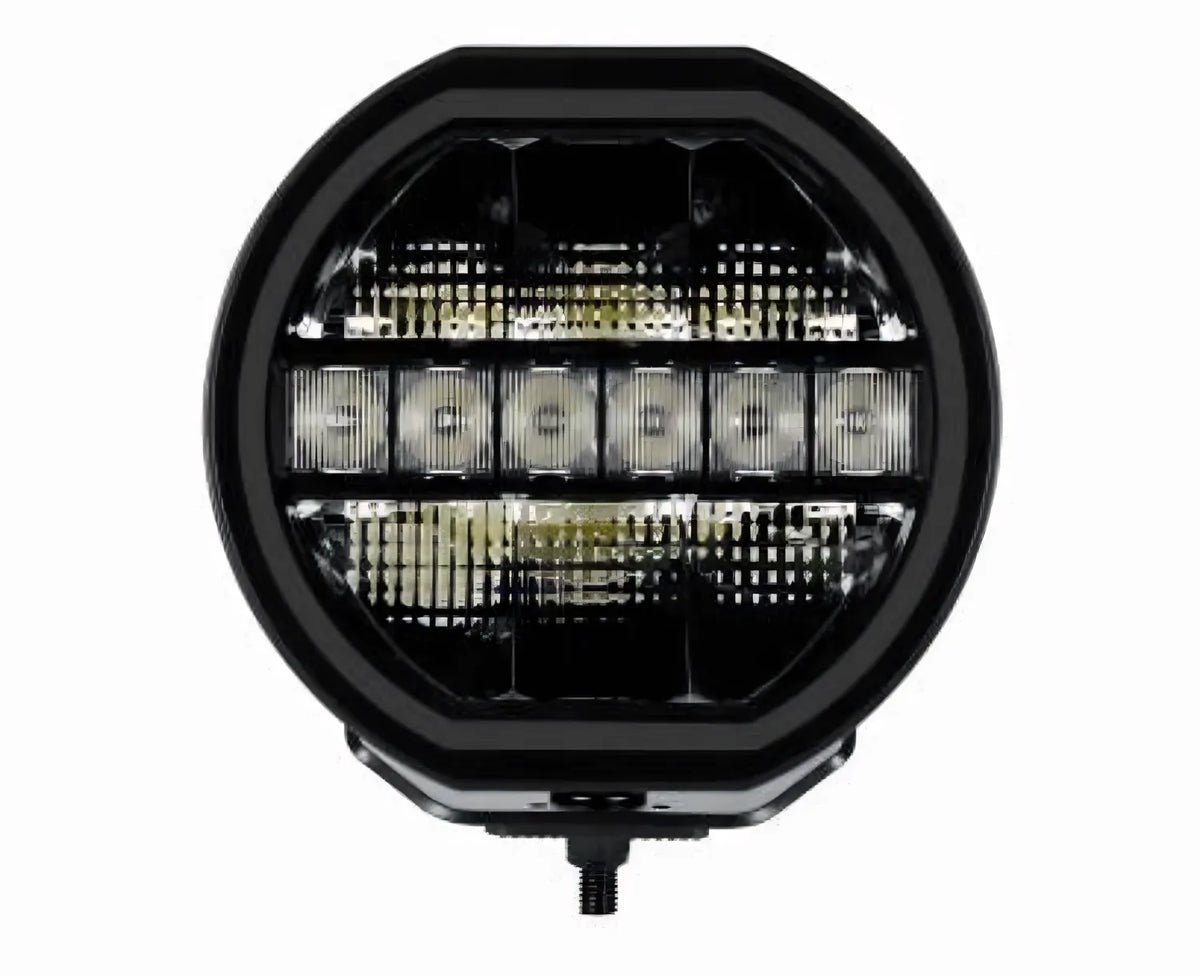

9-inch LED Driving Light with Boost Function – LG986
9-inch LED Driving Light with Boost Function – LG986
The LG986 offers an ECE driving mode and a separate off-road Boost mode, with selectable white or amber position lighting. The effective light output is 1,629 lumens in ECE mode and 5,226 lumens in Boost mode; the nominal LED rating is 144 W.

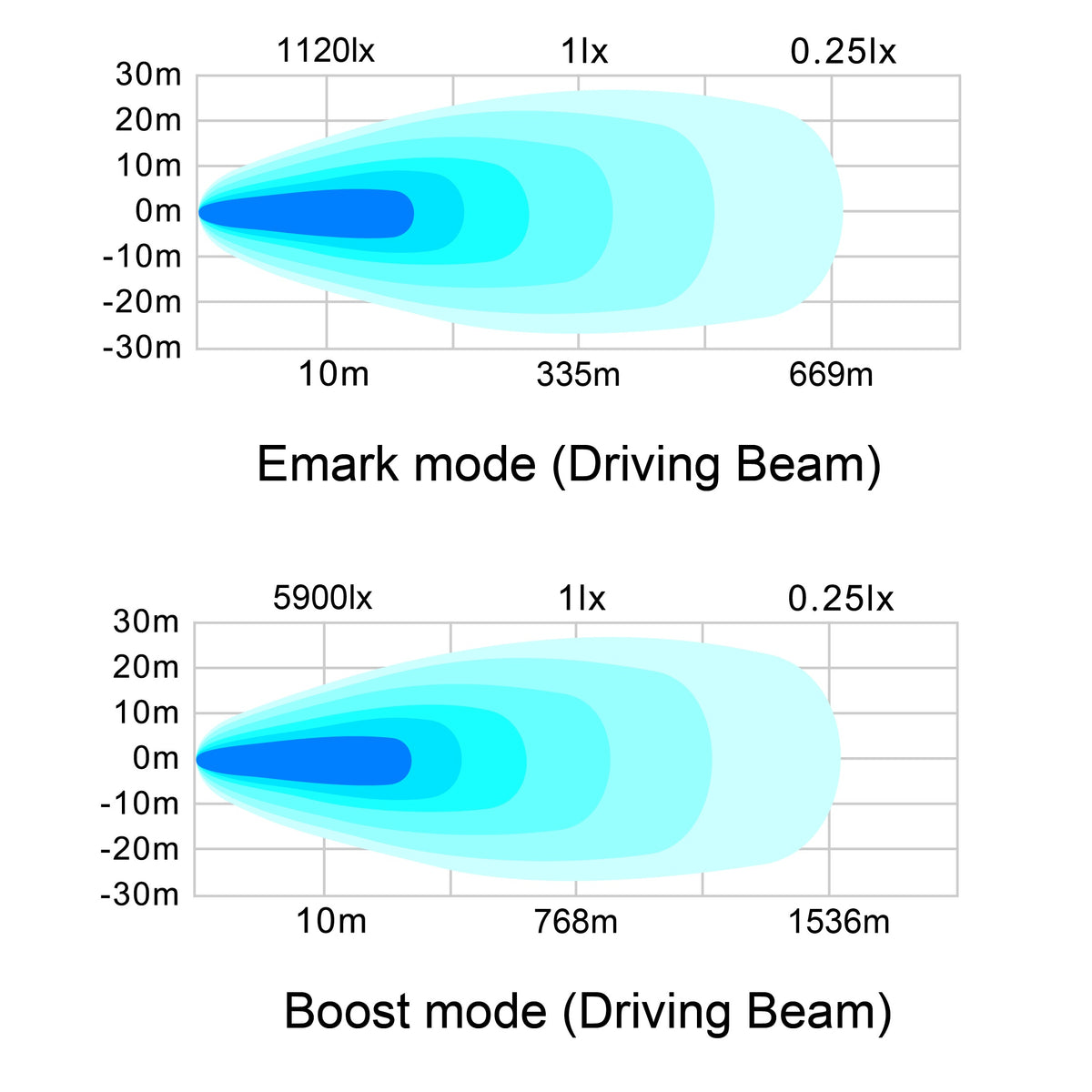

The supplied photometric chart shows 1 lux at 335 m in ECE mode and 768 m in Boost mode. These beam-chart values describe the manufacturer’s test conditions; output depends on the operating mode and temperature.

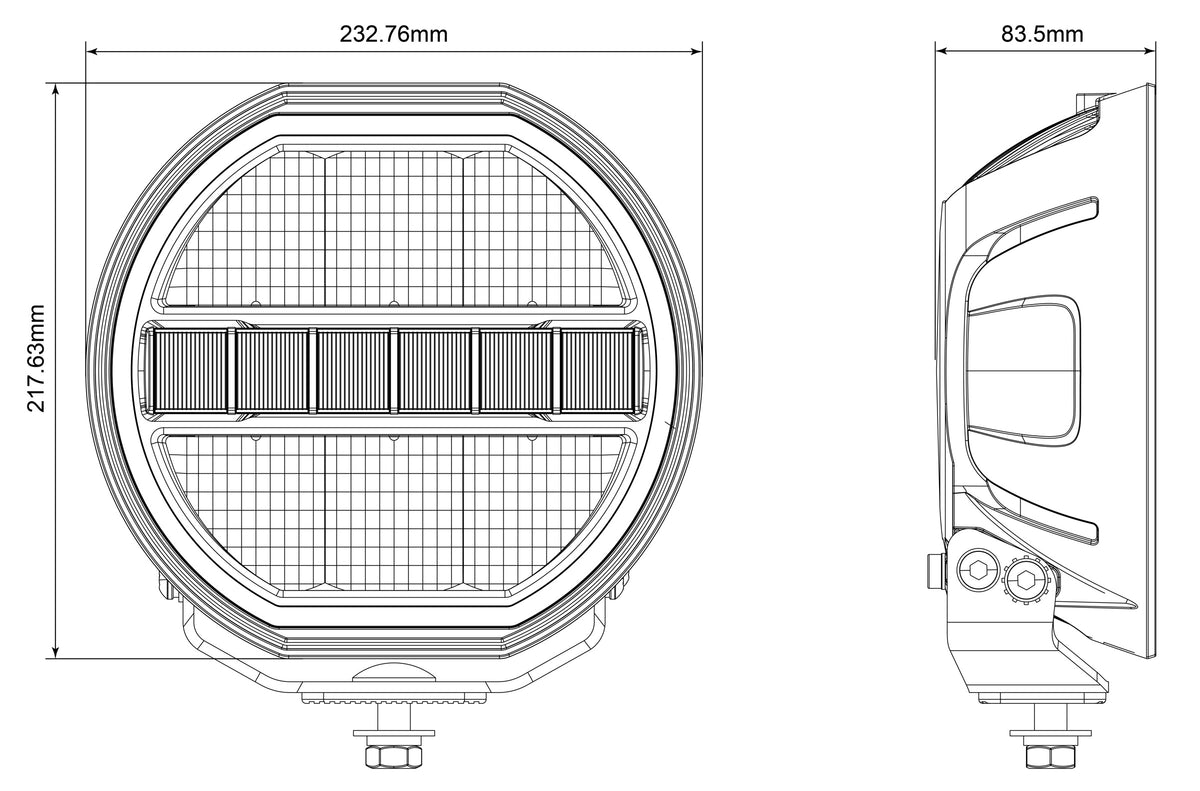

The aluminium housing and PC lens are sealed to IP68/IP69K. A stainless steel bracket and 4-pin DT harness are supplied. Housing dimensions are 232.76 × 217.63 × 83.5 mm; allow extra clearance for the bracket and mounting bolt.
£174.00
● In stock
