Product Details
| Description | Details |
|---|---|

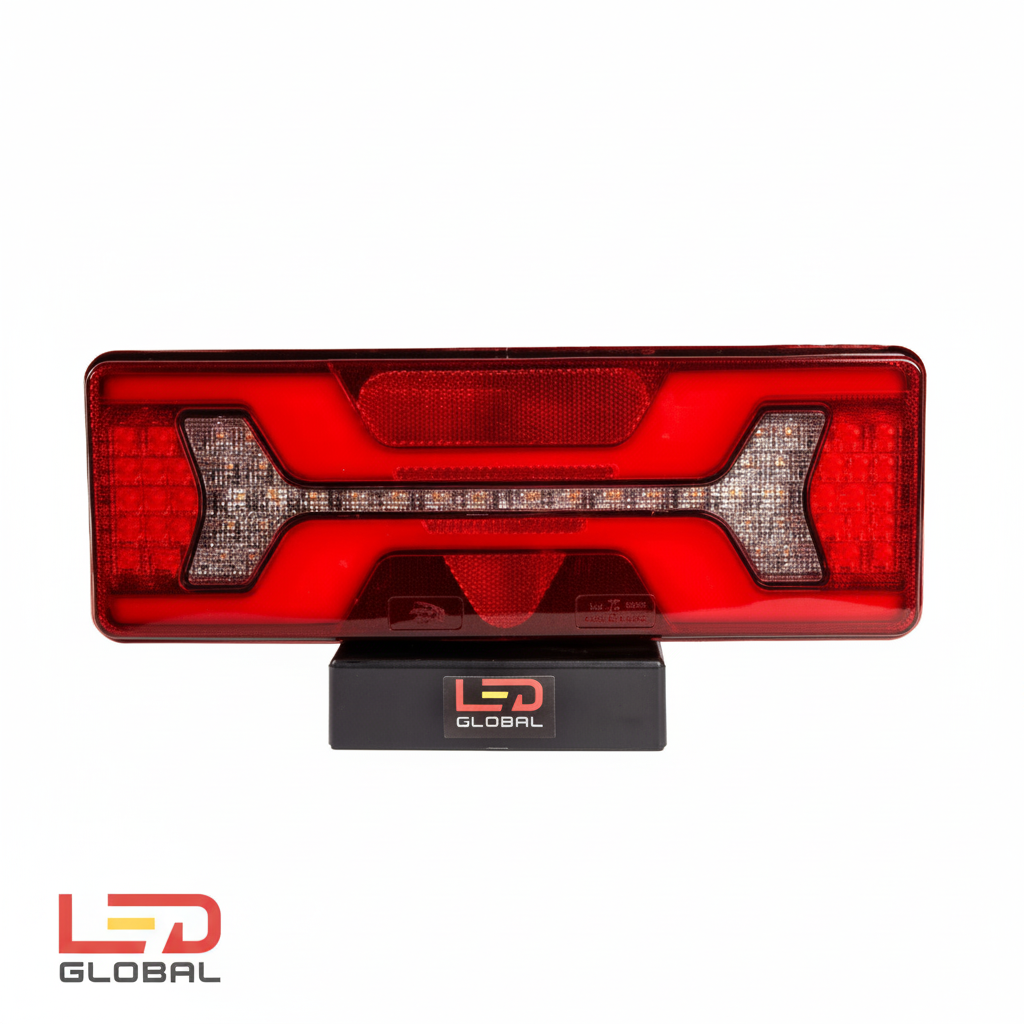

| Model / SKU | LG565 |
| Side | Left hand |
| Functions | Stop, tail, dynamic indicator, fog, reverse, reflector |
| LEDs | High-intensity CREE XTE |
| Light Colours | Amber / red / white (6000 K reverse) |
| Voltage | 9–33 V DC |
| Smart Resistor | Built-in load resistance |
| Connection | 7-pin plug, 100 cm cable |
| Lifespan | 50,000 h |
Protection & Approvals
| Description | Details |
|---|---|
| Ingress Protection | IP68 |
| Approvals | E-marked, ECE R10, R3, R4, R6, R7, R23, R38, R91 |
| EMC Classification | CISPR 25 Class 4 |
| Vibration Test | Up to 15G |
Dimensions
| Description | Details |
|---|---|
| Size | 375 × 130 × 33 mm |
Application
| Description | Details |
|---|---|
| Volvo / Renault | With LG1811 adaptor |
