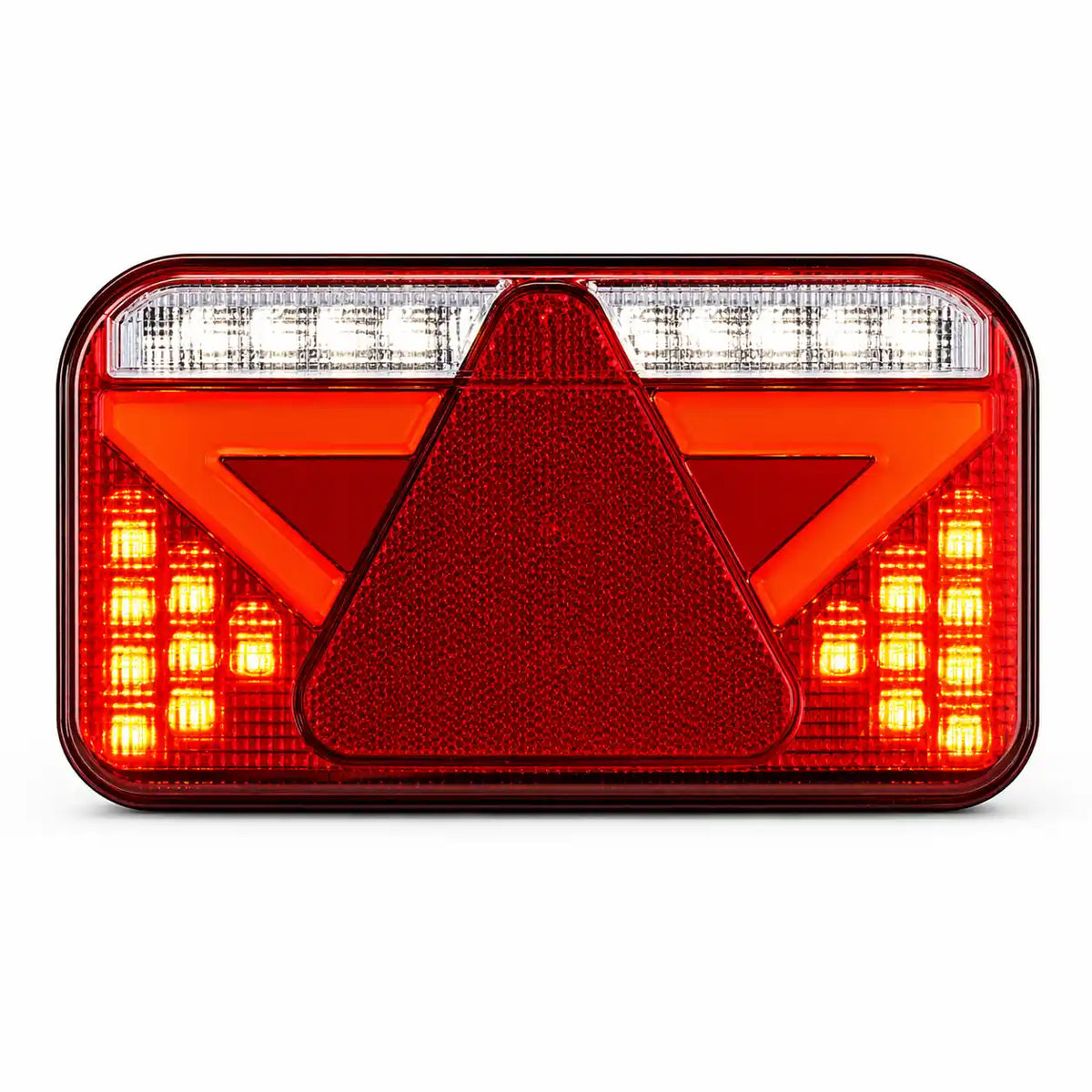

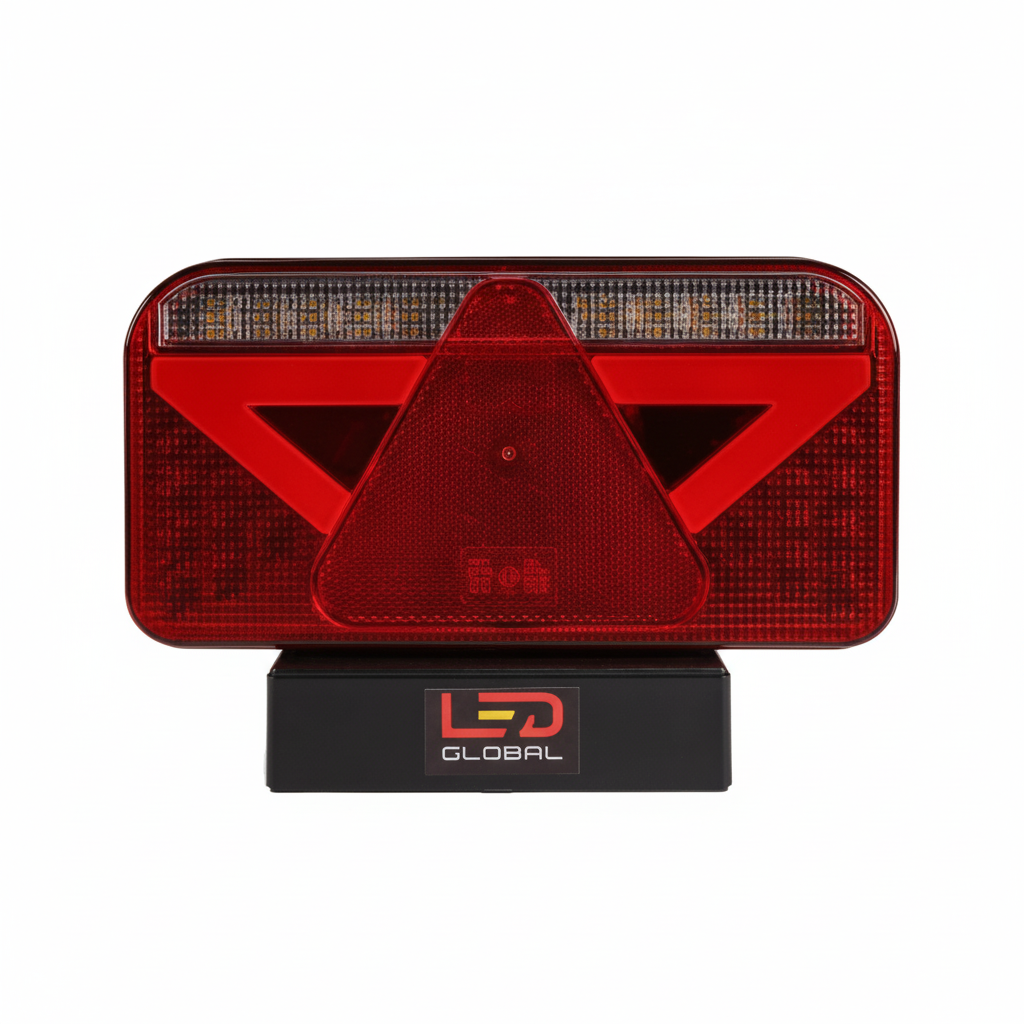

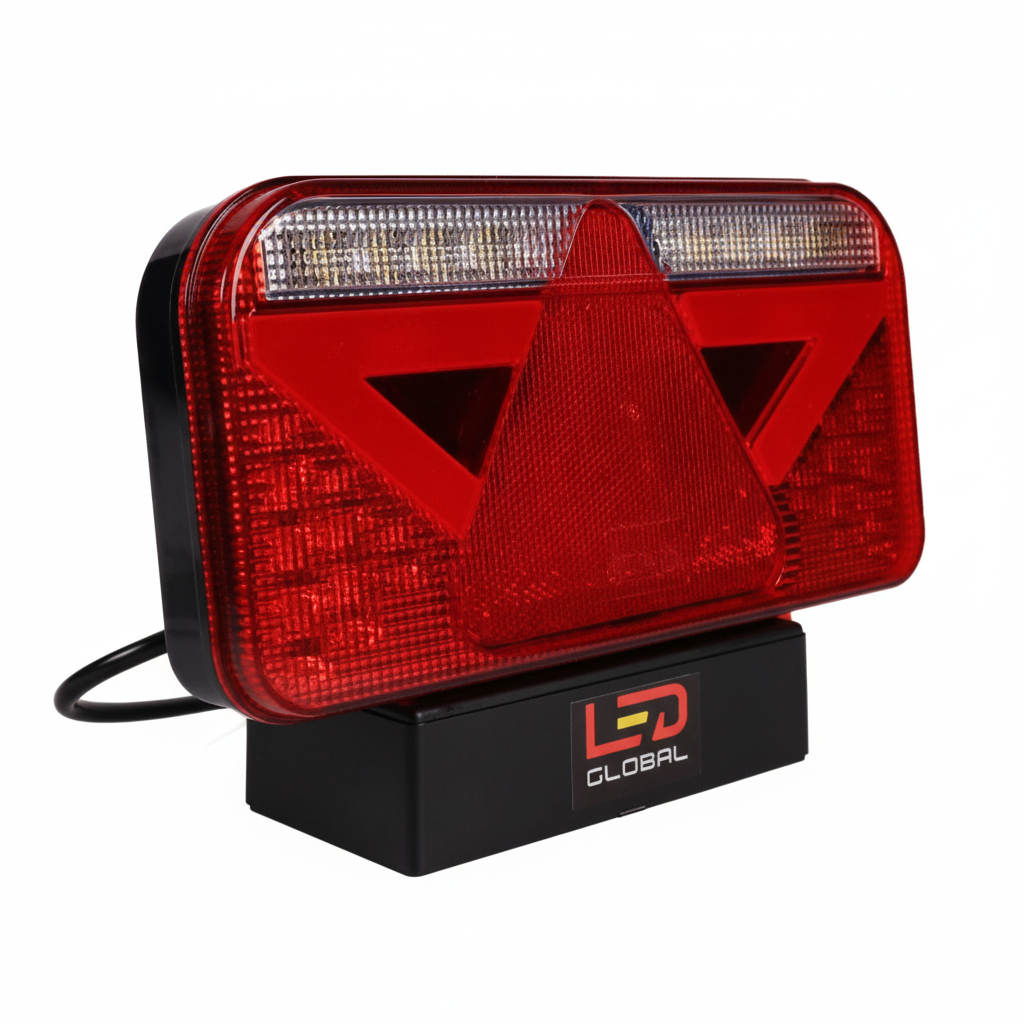

LED Tail Light Rectangular Combination with Triangle and Built-In Smart Resistor RH – LG575

The LG575 LED rectangular combination tail light is a right-hand rear lamp designed for trailers, agricultural machinery, plant equipment, recovery vehicles and commercial fleets. It combines stop, tail, indicator, rear fog, reverse, reflector and integrated triangle reflector functions in one compact unit.

With 9–33 V DC operation, 45 CREE XTE LEDs, built-in smart indicator resistance, IP67 protection, ECE approvals and CISPR 25 Class 4 EMC performance, the LG575 is built for modern 12 V and 24 V vehicle systems that need reliable, road-ready rear lighting.

Right-Hand Rectangular Combination Tail Light

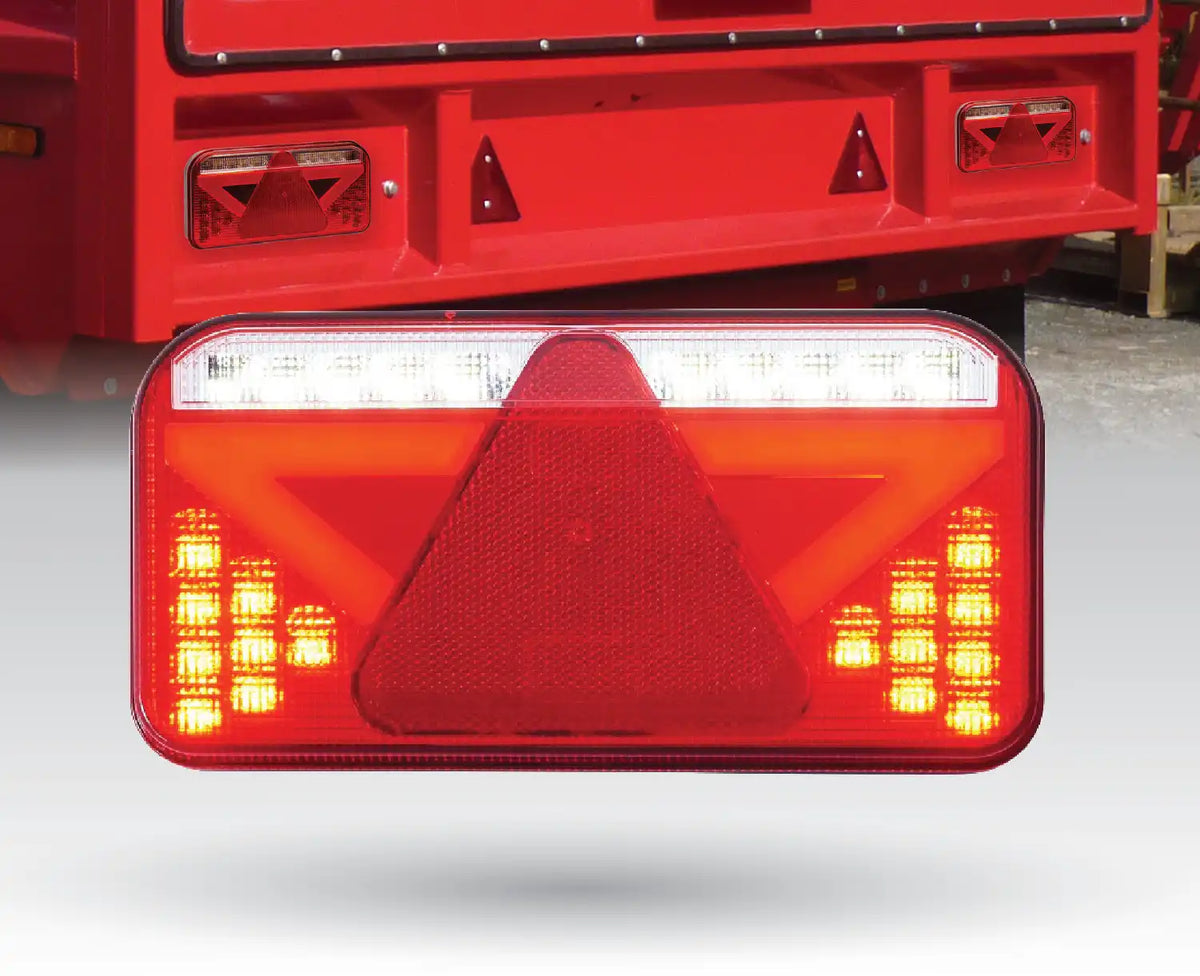

The LG575 is designed for right-hand side fitment on trailers, plant bodies, commercial vehicles and agricultural equipment. Its rectangular housing gives a clean, compact rear lighting solution while integrating multiple required functions into one unit.

The lamp includes stop, tail, indicator, rear fog, reverse, rear reflector and integrated triangle reflector functions, helping reduce separate components and simplify rear lighting layouts.

Built-In Smart Resistor for Indicator Stability

The LG575 includes a built-in smart resistor on the indicator circuit. This helps reduce CANBUS errors, hyperflash and bulb-failure warnings on many modern trucks, towing vehicles and trailer systems.

Because the resistance is integrated into the lamp, installers can avoid extra external load resistors in many applications, keeping the wiring cleaner and more reliable.

45 CREE XTE LEDs for Strong Rear Visibility

The lamp uses 45 high-intensity CREE XTE LEDs across its lighting functions. It provides amber, red and white outputs for clear rear signalling, braking, reversing and vehicle positioning.

The reverse function produces a 6000 K white light, helping improve rear visibility when manoeuvring in dark yards, depots, farms, construction sites and loading areas.

Suitable for 12 V and 24 V Systems

The wide 9–33 V DC input range makes the LG575 suitable for both 12 V and 24 V electrical systems. This is ideal for mixed fleets that include trailers, trucks, plant machinery, agricultural vehicles and commercial bodies.

This makes it easier for fleet operators, bodybuilders and workshops to standardise rear lighting across different vehicle types.

IP67 Sealed for Harsh Working Conditions

The LG575 is rated IP67, helping protect the lamp against dust, rain, road spray, mud and temporary water exposure. It is suitable for regular outdoor use, wash-down conditions and demanding trailer environments.

The lamp is also vibration tested to 15 G, making it suitable for agricultural trailers, low-loaders, plant transporters and rough working conditions.

ECE Approved and EMC Safe

The LG575 is approved to ECE R10, R3, R6, R7, R23, R38 and R91. These approvals support road-ready use for electromagnetic compatibility, reflector, indicator, stop and tail, reverse, rear fog and triangle reflector functions where correctly installed.

CISPR 25 Class 4 EMC performance helps reduce interference with radios, GPS, telematics, communication systems and other onboard electronics.

Ready-to-Fit Wiring

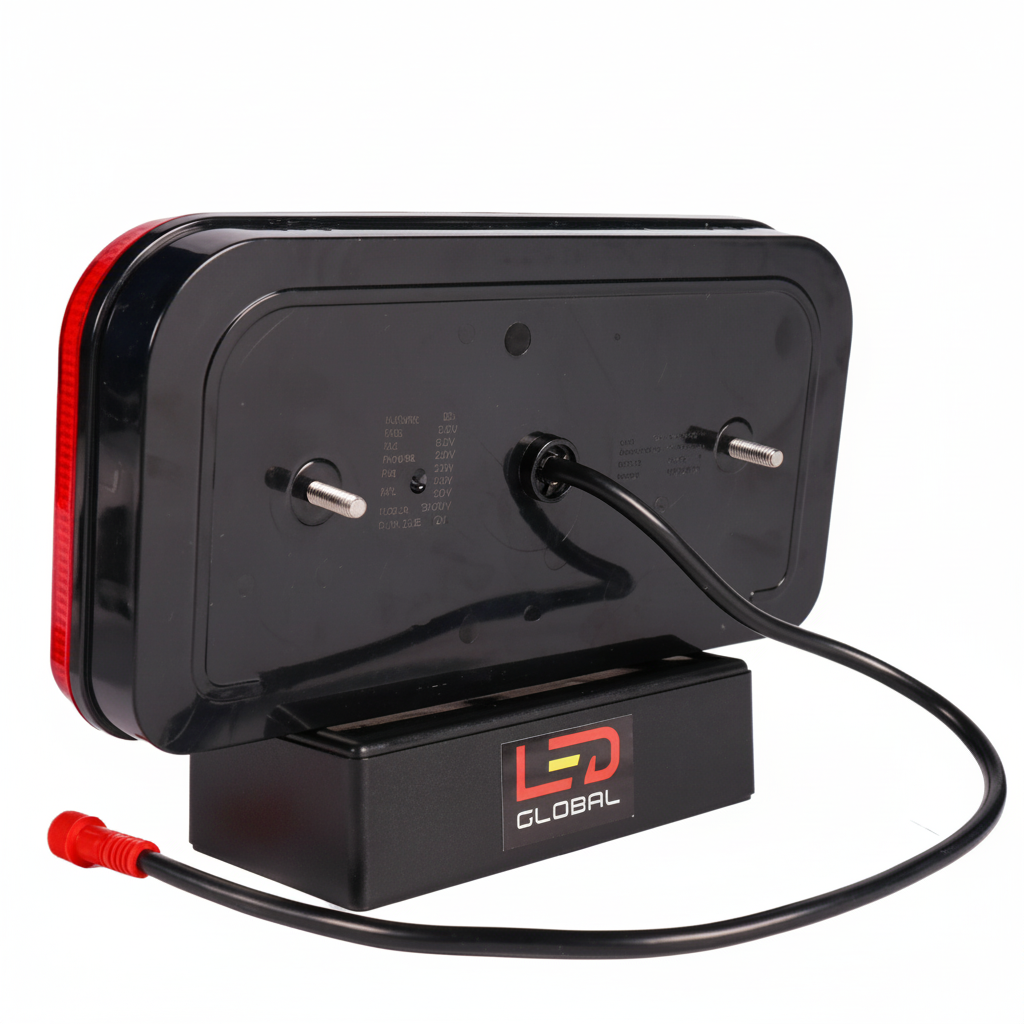

The lamp is supplied with a plug and socket connection and a 60 cm cable, helping make installation, testing and future replacement more straightforward for workshops and bodybuilders.

This listing is for the right-hand version. Pair it with the matching left-hand lamp where a complete rear lighting set is required.

Key Features

• Right-hand rectangular LED combination tail light.
• Stop, tail, indicator, rear fog, reverse, reflector and integrated triangle reflector functions.
• Built-in smart resistor on the indicator circuit.
• Helps reduce hyperflash and bulb-failure warnings on many modern vehicle systems.
• 9–33 V DC input for 12 V and 24 V systems.
• 45 high-intensity CREE XTE LEDs.
• Amber, red and white LED output.
• 6000 K white reverse light.
• IP67 protection against dust, rain, spray and temporary water exposure.
• Vibration tested to 15 G.
• 50,000 hour service life.
• ECE R10, R3, R6, R7, R23, R38 and R91 approved.
• CISPR 25 Class 4 EMC performance.
• Supplied with plug and socket connection and 60 cm cable.
• Compact size: 256 × 130 × 40.5 mm.

Ideal Applications

• Commercial trailers, box trailers, flatbeds and low-loaders.
• Agricultural trailers, slurry tankers, grain trailers and bale trailers.
• Forestry trailers and trailed implements.
• Recovery vehicles, slide beds and breakdown trucks.
• Construction and plant transport trailers.
• Municipal, utility and service fleets.
• Commercial vehicle body builds and trailer refurbishments.

Why Choose the LG575 Rectangular Tail Light?

The LG575 is designed for professional users who need compact, reliable and compliant rear lighting with integrated smart resistance. Its multi-function layout, wide voltage range, CREE XTE LEDs, IP67 sealing, ECE approvals and CISPR 25 Class 4 EMC performance make it a strong choice for demanding trailer and fleet applications.

For fleet operators, bodybuilders, farmers, contractors and workshops, this right-hand rectangular LED tail light offers a durable, low-maintenance and road-ready rear lighting solution.

Important Fitment Note

Please confirm the required side, mounting position, wiring layout, voltage system and vehicle lighting requirements before installation. This is the right-hand version. Use with the matching left-hand lamp where a complete rear lighting pair is required. The lamp should be securely mounted, correctly wired and positioned in accordance with local road lighting regulations.
