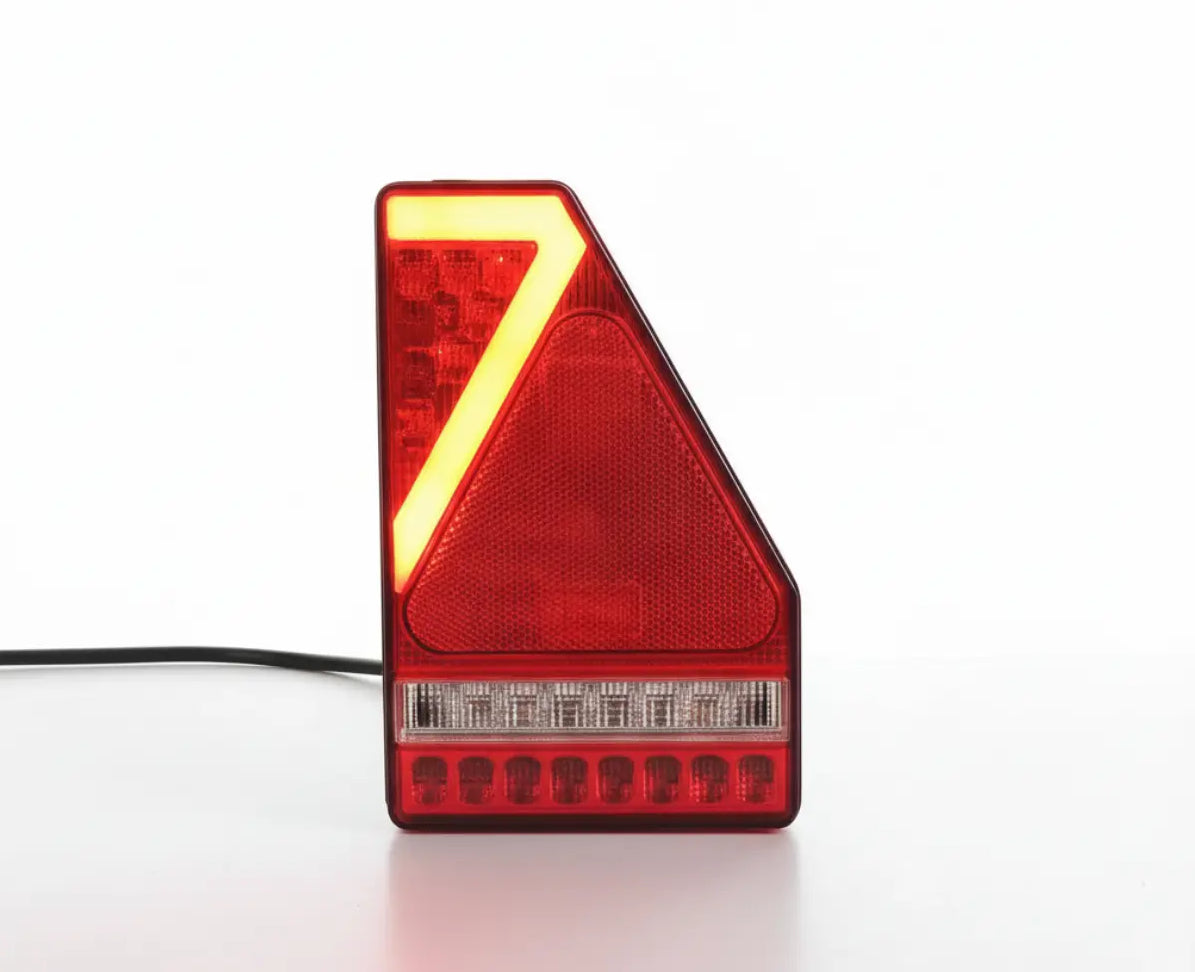

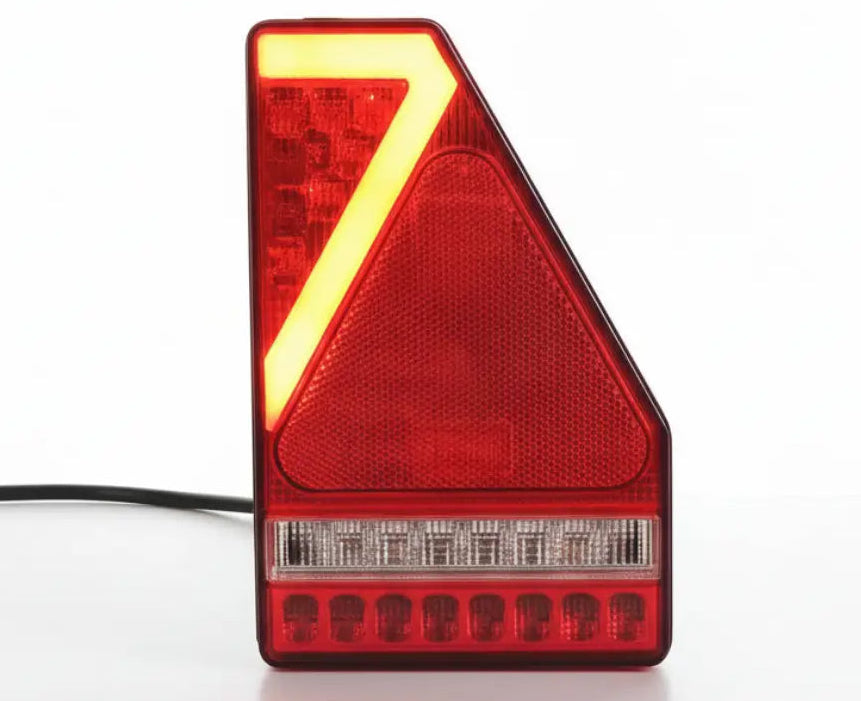

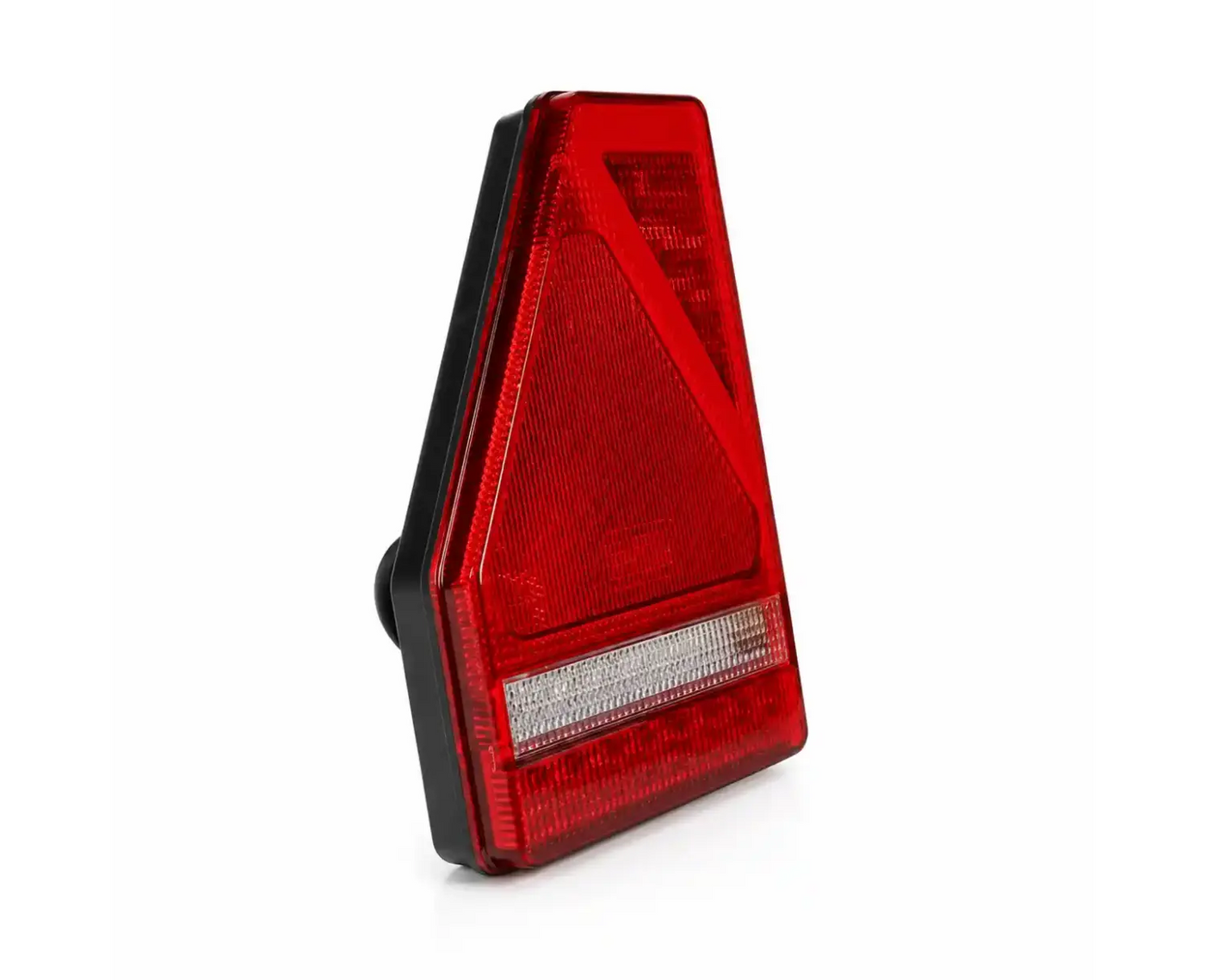

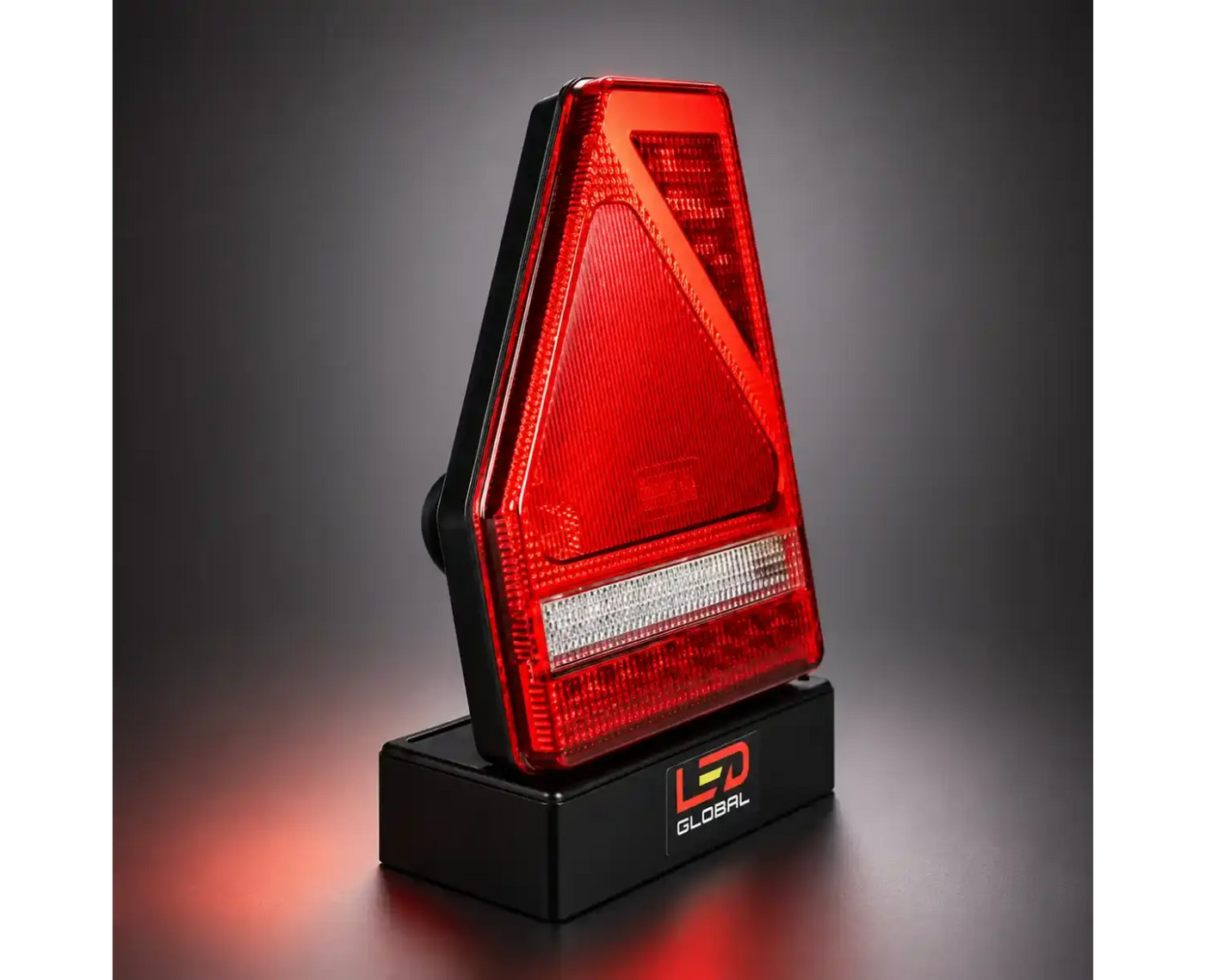

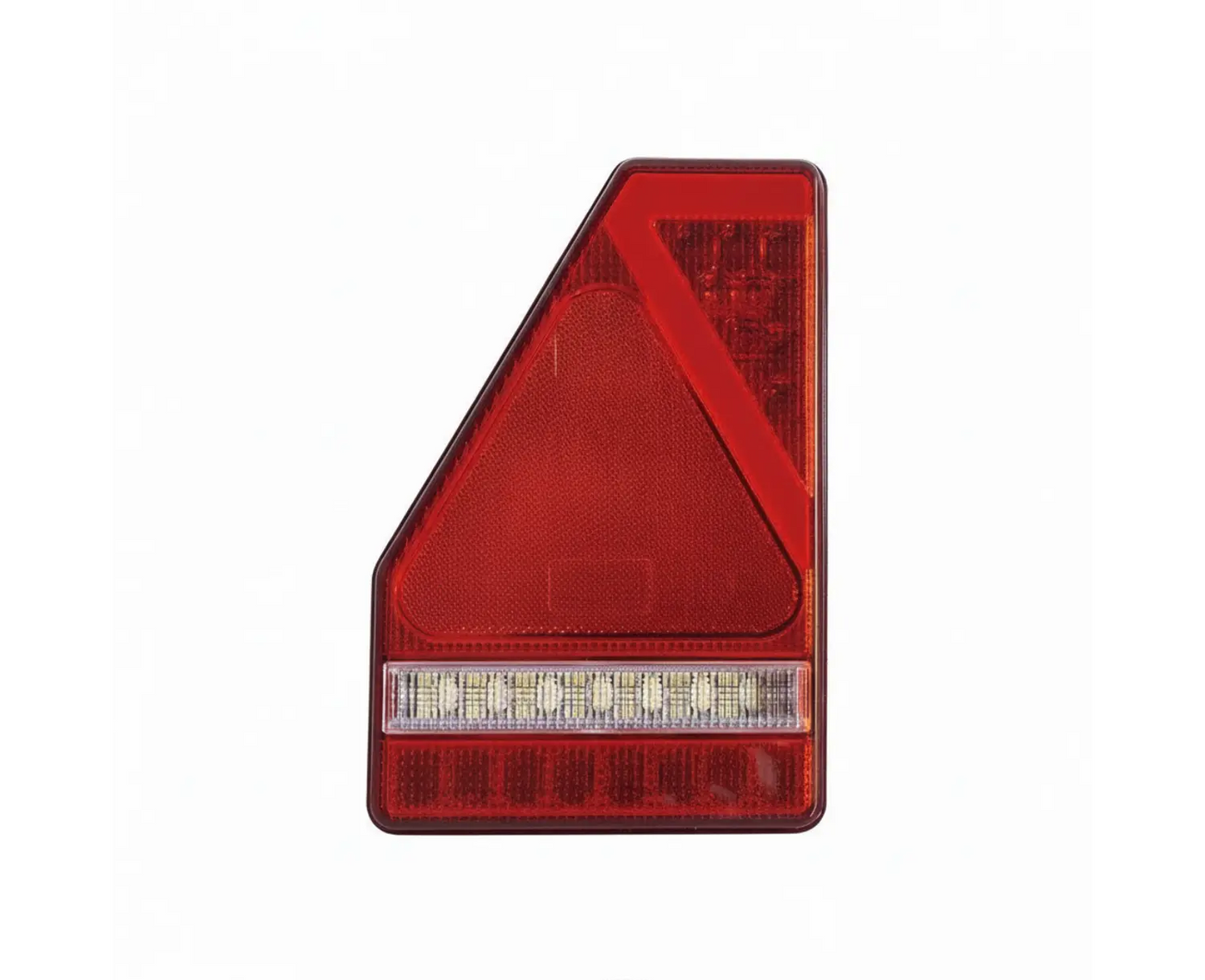

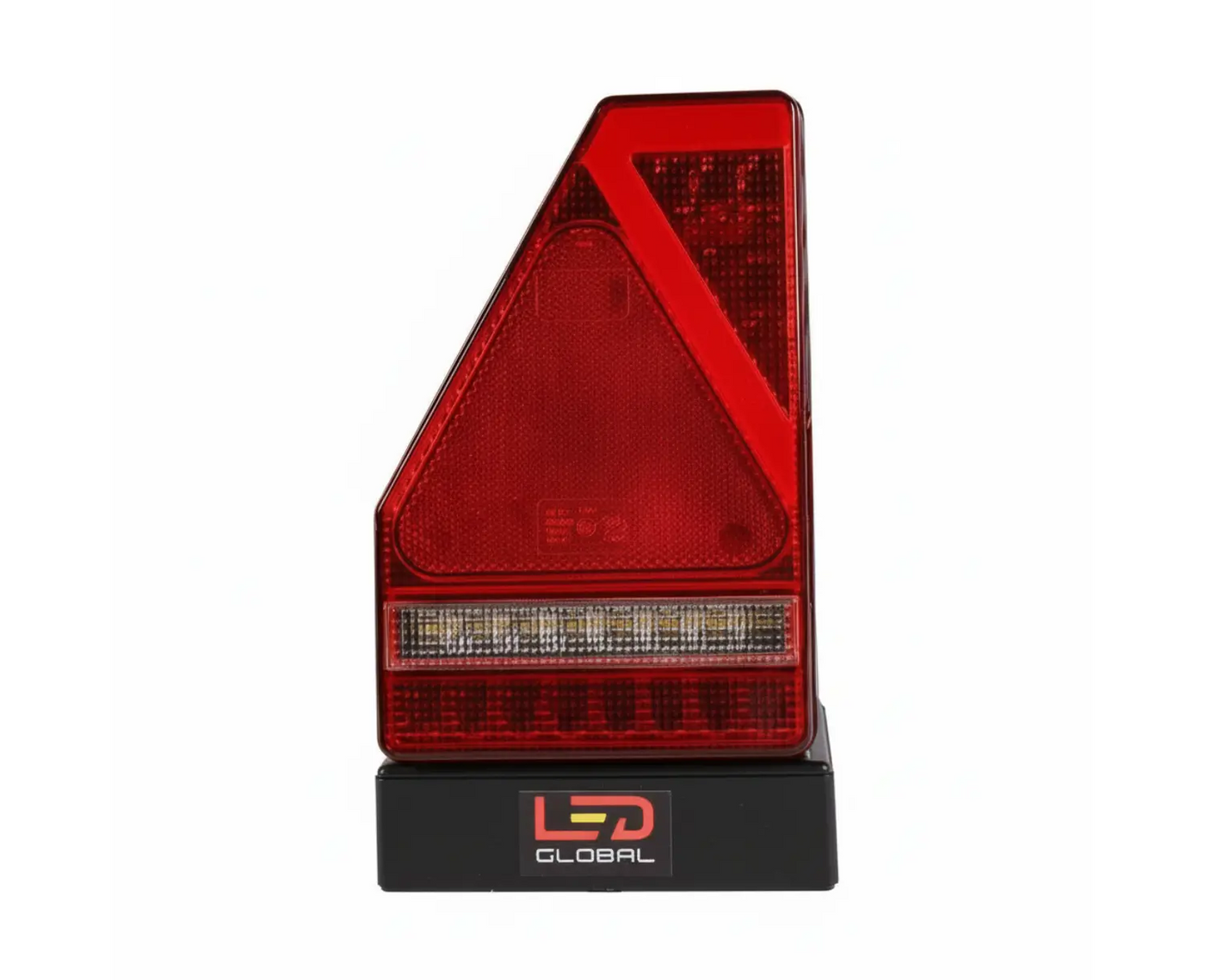

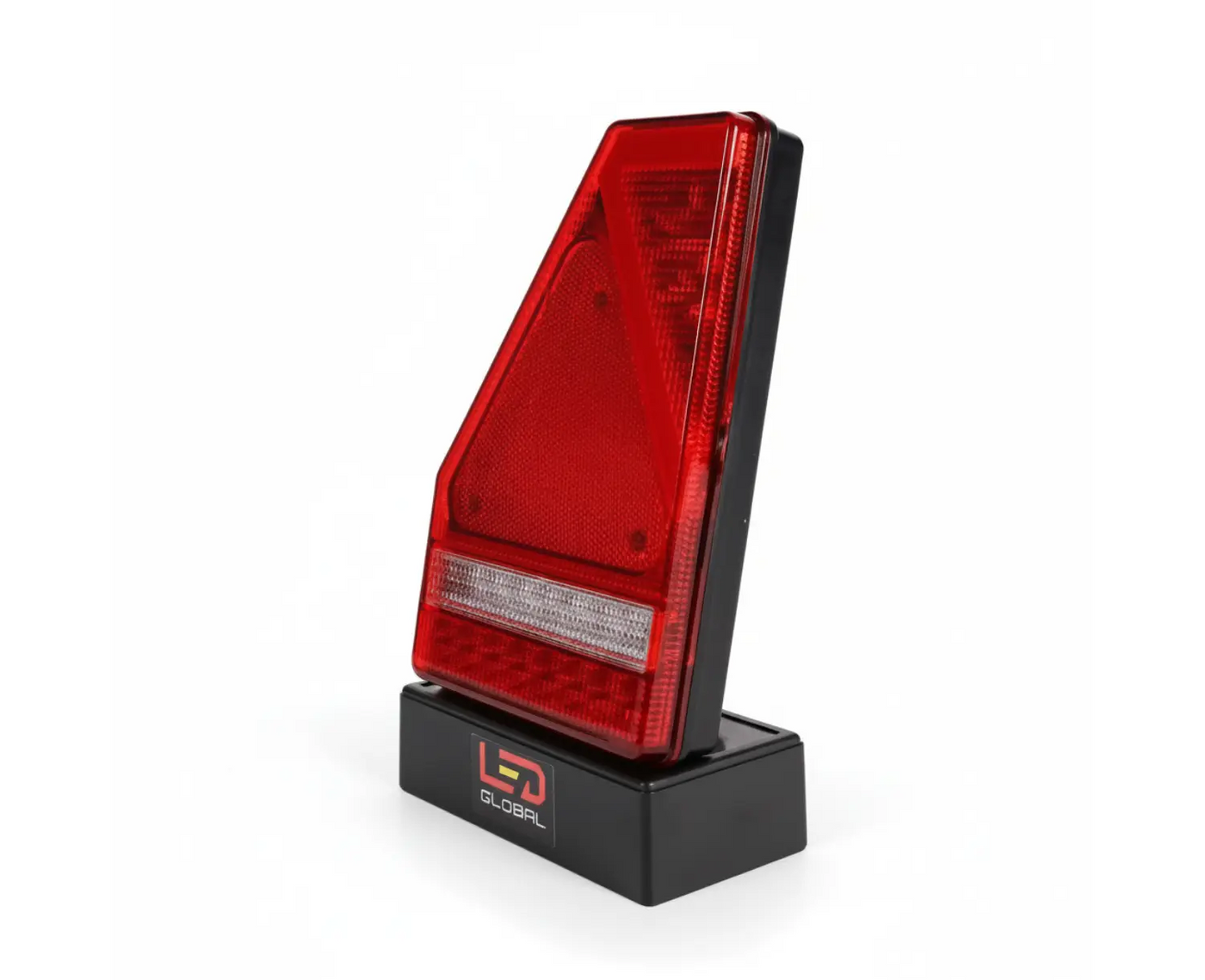

LED Tail Light Triangular Combination with Built In Smart Resistor RH – LG571

The LG571 LED triangular combination tail light is a right-hand rear lamp designed for trailers, low loaders, plant equipment, agricultural machinery, commercial vehicles and fleet bodies. It combines stop, tail, indicator, fog, reverse, reflector and rear warning triangle functions in one compact triangular unit.

With 9–33 V DC operation, built-in smart load resistance, 45 Cree XTE LEDs, IP67 protection, ECE approvals and CISPR 25 Class 4 EMC performance, the LG571 is built for modern 12 V and 24 V vehicle systems that need reliable, road-ready rear lighting.

Right-Hand Triangular Combination Tail Light

The LG571 is designed for the right-hand rear side of trailers and commercial vehicles. It combines multiple rear lighting functions in one triangular housing, helping reduce the need for separate lamps, extra reflectors and additional wiring.

Its compact 218 × 145 × 35 mm body gives a clean rear installation while still providing full visibility for stop, tail, indicator, fog, reverse, reflector and triangular warning functions.

Built-In Smart Resistor for Indicators

The LG571 includes a built-in smart load resistor for the indicator function. This helps prevent hyperflash and bulb-out warnings that can happen when standard LED lamps are fitted to modern trucks, trailers and CANbus-style vehicle systems.

Because the resistor is already integrated, installers do not need to add external resistors, extra relays or complicated wiring modifications in many applications.

45 Cree XTE LEDs for Strong Rear Visibility

The lamp uses 45 high-intensity Cree XTE LEDs to deliver clear amber, red and white rear lighting. The reverse function provides a crisp 6000 K white output, helping improve rear visibility during coupling, reversing, yard manoeuvring and night-time work.

The LED design offers low current draw, long service life and stable output compared with traditional filament lamps.

Suitable for 12 V and 24 V Systems

The wide 9–33 V DC input range makes the LG571 suitable for both 12 V and 24 V electrical systems. This is ideal for mixed fleets using trailers, trucks, agricultural machinery, low loaders and commercial vehicle bodies across different voltage platforms.

It helps fleet operators and workshops standardise rear lighting across a wide range of vehicles and equipment.

IP67 Protection and 15 G Vibration Tested

The LG571 is rated IP67, helping protect the unit against dust, rain, road spray, mud and temporary water exposure. It is built for trailers and machinery that regularly face wash-downs, rough roads and harsh outdoor environments.

The lamp is also vibration tested to 15 g, making it suitable for agricultural trailers, plant transporters, low loaders and heavy-duty commercial use.

ECE Approved and EMC Safe

The LG571 is approved to ECE R10, R3, R6, R7, R23, R38 and R91. These approvals cover electromagnetic compatibility, reflectors, indicators, stop and tail functions, reverse, rear fog and triangular warning requirements.

CISPR 25 Class 4 EMC performance helps reduce interference with radios, GPS, telematics, communication systems and onboard electronics.

Simple Installation

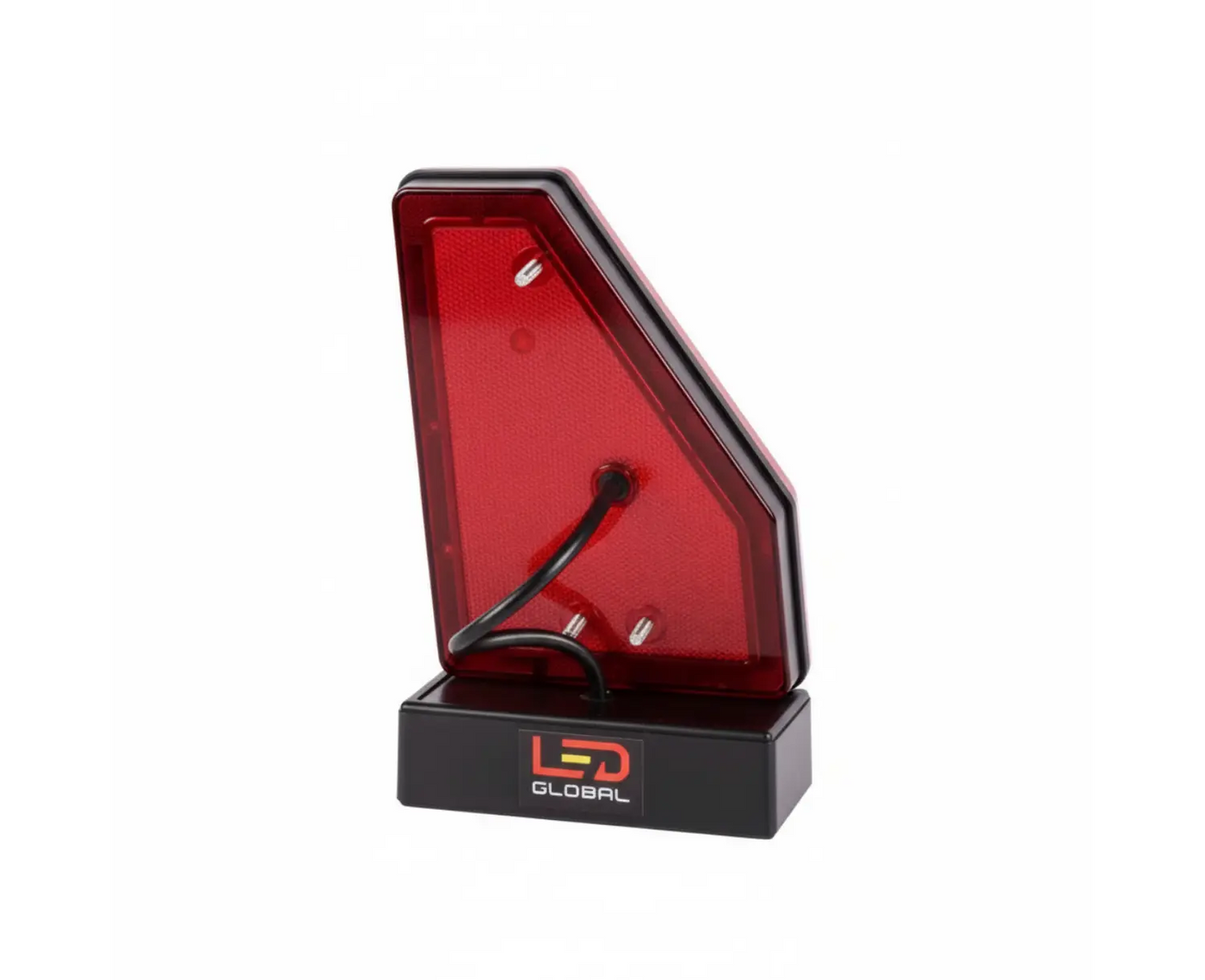

The lamp is supplied with a socket and 30 cm cable, giving installers enough length to connect into existing harnesses, junction boxes or trailer wiring systems.

This listing is for the right-hand version. Pair it with the matching left-hand unit for a complete triangular rear lighting setup.

Key Features

• Right-hand triangular LED combination tail light.
• Stop, tail, indicator, fog, reverse, reflector and rear warning triangle functions.
• 9–33 V DC operation for 12 V and 24 V systems.
• 45 high-intensity Cree XTE LEDs.
• Amber, red and white LED output.
• 6000 K white reverse light for improved rear visibility.
• Built-in smart load resistor for indicator stability.
• Helps reduce hyperflash and bulb-out warnings on modern vehicle systems.
• IP67 protection against dust, rain, spray and temporary water exposure.
• Vibration tested to 15 g.
• 50,000 hour rated service life.
• ECE R10, R3, R6, R7, R23, R38 and R91 approved.
• CISPR 25 Class 4 EMC performance.
• Supplied with socket and 30 cm cable.
• Compact size: 218 × 145 × 35 mm.

Ideal Applications

• Truck and semi-trailer rear lighting.
• Low loaders and plant transport trailers.
• Agricultural trailers, slurry tankers and bale trailers.
• Municipal and utility trailers.
• Commercial vehicle body builds and refurbishments.
• Cross-border European fleets needing ECE-compliant rear lighting.
• Trailers and equipment operating in wet, muddy and high-vibration environments.

Why Choose the LG571 Triangular Tail Light?

The LG571 is designed for professional users who need compact, compliant and reliable rear lighting in one unit. Its integrated smart resistor, wide voltage range, Cree XTE LEDs, IP67 sealing, ECE approvals and CISPR 25 Class 4 EMC performance make it a strong choice for modern trailers, plant and commercial fleets.

For fleet operators, bodybuilders, farmers, contractors and workshops, this right-hand triangular tail light offers a durable, low-maintenance and road-ready rear lighting solution.

Important Fitment Note

Please confirm the required side, mounting position, wiring layout, voltage system and vehicle lighting requirements before installation. This is the right-hand version. Use with the matching left-hand lamp where a complete rear lighting pair is required. The lamp should be securely mounted, correctly wired and positioned in accordance with local road lighting regulations.
