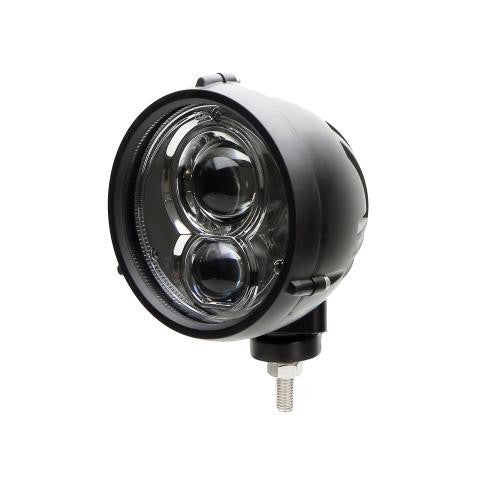

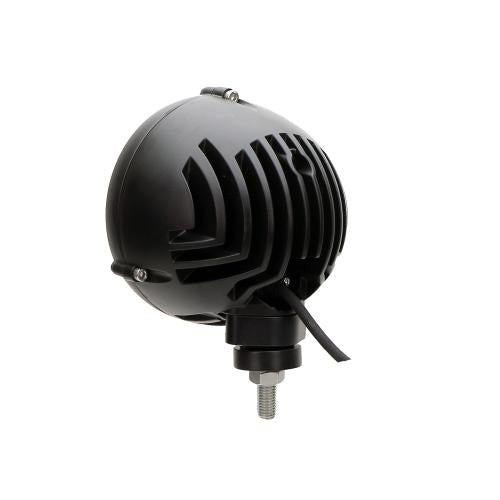

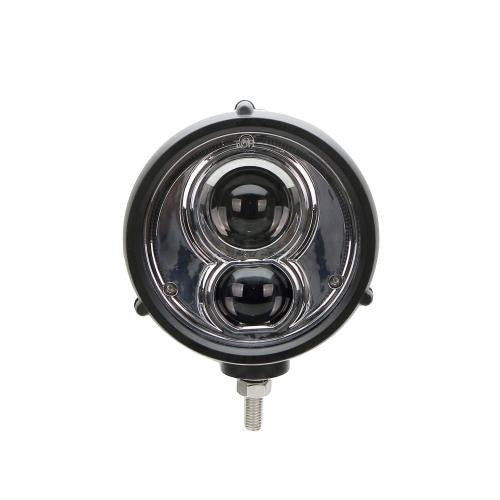

90 Watt LED High/Low Beam Headlight (LG819EU) is a compact, road-approved LED headlamp designed for tractors and working vehicles that need reliable forward lighting in demanding agricultural and industrial environments. It combines both low beam and high beam in one housing for controlled near-field visibility in yards and strong distance lighting on the road.
The headlight runs on 9-32 V DC, making it suitable for both 12 V and 24 V electrical systems. It produces a 6000 K cold white beam for clear contrast when operating in darkness, rain, mud, or dusty conditions. A die-cast aluminium housing supports heat dissipation and durability, while an IP68 rating provides protection against dust and long-term water immersion. For on-road compliance and reduced electrical noise, it is certified to ECE R112 and ECE R10, and meets CISPR 25 Class 4 EMC requirements.
-
Total power: 90 W (60 W high beam, 30 W low beam)
-
Voltage: 9-32 V DC
-
Light color: cold white, 6000 K
-
Ingress protection: IP68
-
Rated lifespan: 50,000 hours
-
Connection: 2-core cable
-
Size (Length x Width x Height): 144 x 166 x 118 mm
-
Applications: tractors, telehandlers, construction and municipal machinery
-
Compatibility guidance: replacement option for Massey Ferguson 3707, 3708, 3709, 3710 (OEM references used for cross-compatibility only)
Included: 1x LED headlight with attached 2-core cable.
