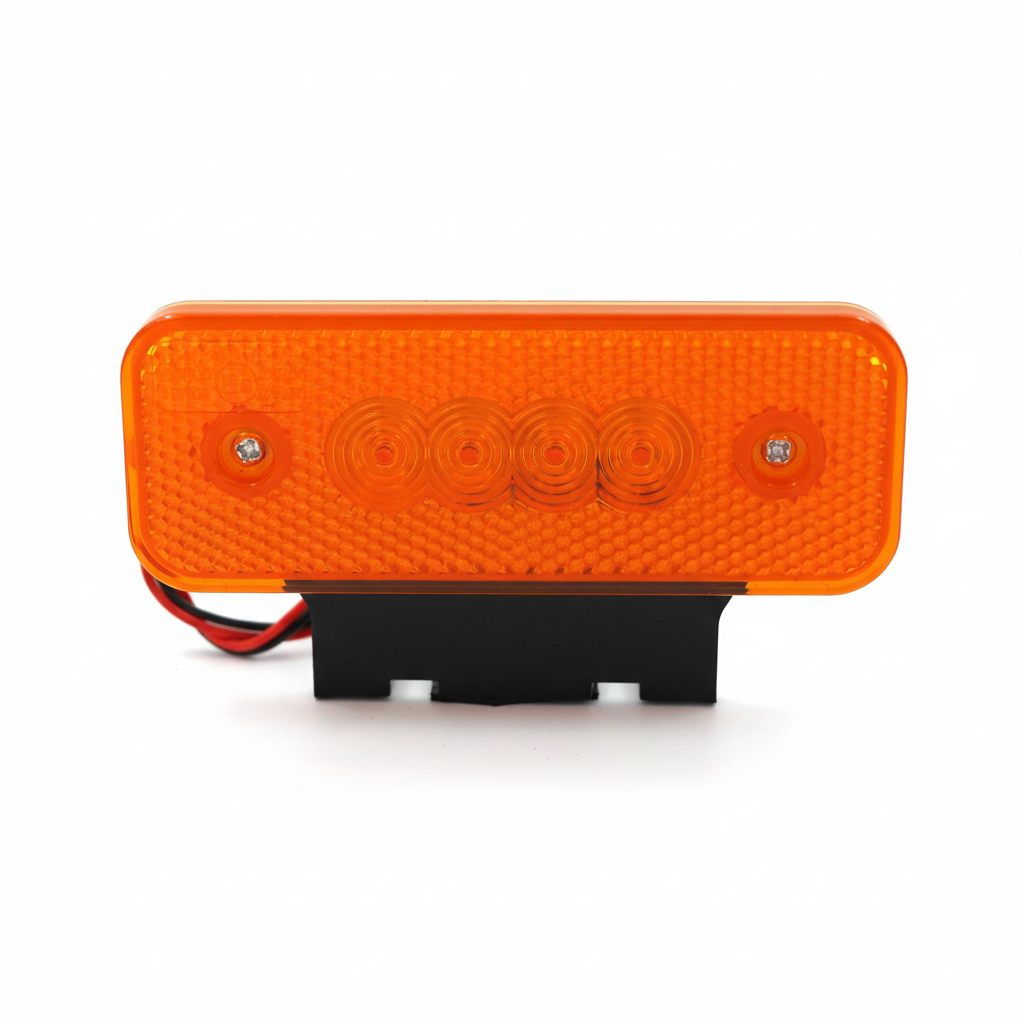

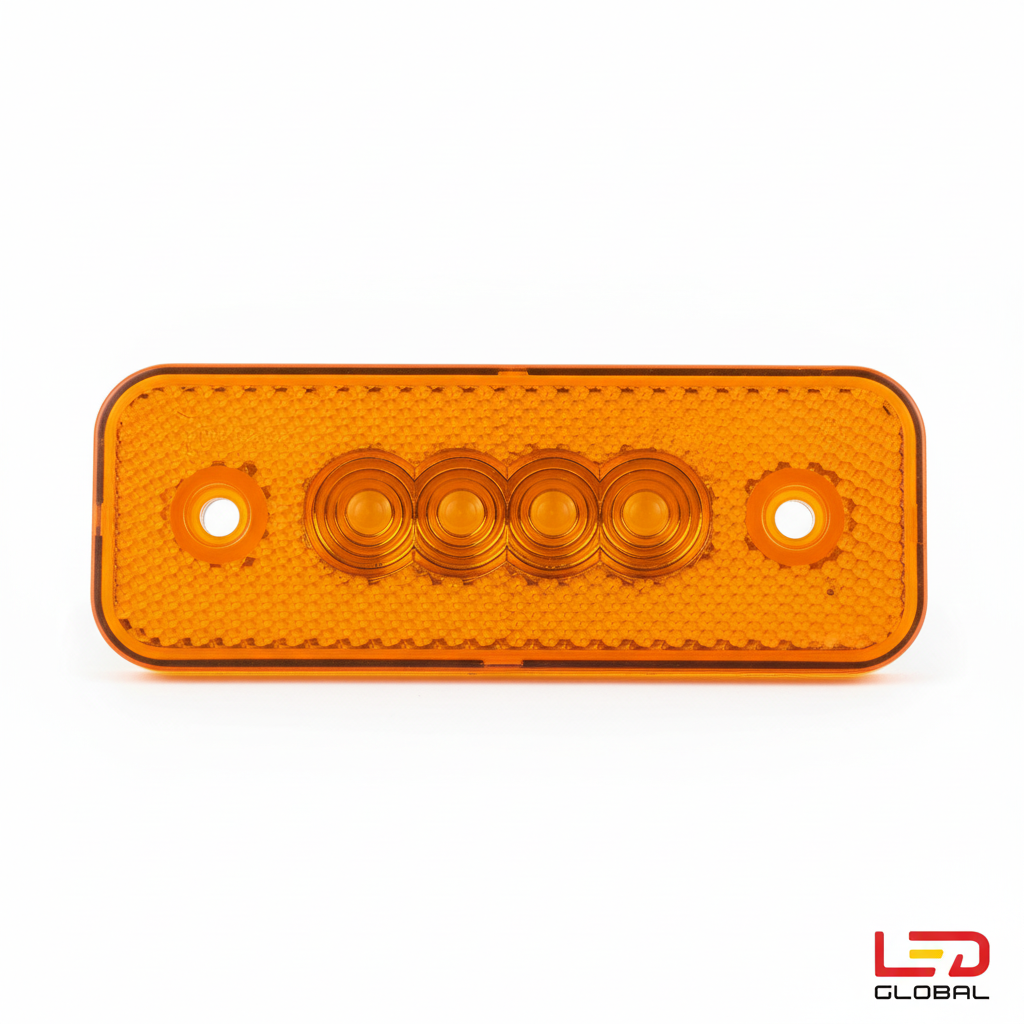

LED Rectangular Marker Light Amber - LG098

LED Rectangular Marker Light Amber - LG098

LED Rectangular Marker Light Amber - LG098 is a compact LED side marker / position light designed to improve vehicle outline visibility on trucks, trailers, agricultural machinery, and construction equipment. Built with a durable plastic housing and tough PC (polycarbonate) lens, it is suited to demanding on-road and off-road environments.

Running on a wide 12-24 V DC input, the LG098 fits both 12 V and 24 V electrical systems, making it practical for mixed fleets. The lamp uses 6 high-intensity OSRAM LEDs and draws approximately 0.6 W for efficient amber marking light output. With an IP67 rating, it is sealed against dust and protected against temporary immersion for reliable performance in rain, spray, and washdowns. It is also ECE R10 and e-mark certified for electromagnetic compatibility.

Specifications

• Type: Amber LED marker light
• LEDs: 6 OSRAM LEDs
• Voltage: 12-24 V DC
• Power: approx. 0.6 W
• Ingress protection: IP67
• Approvals: ECE R10, e-mark

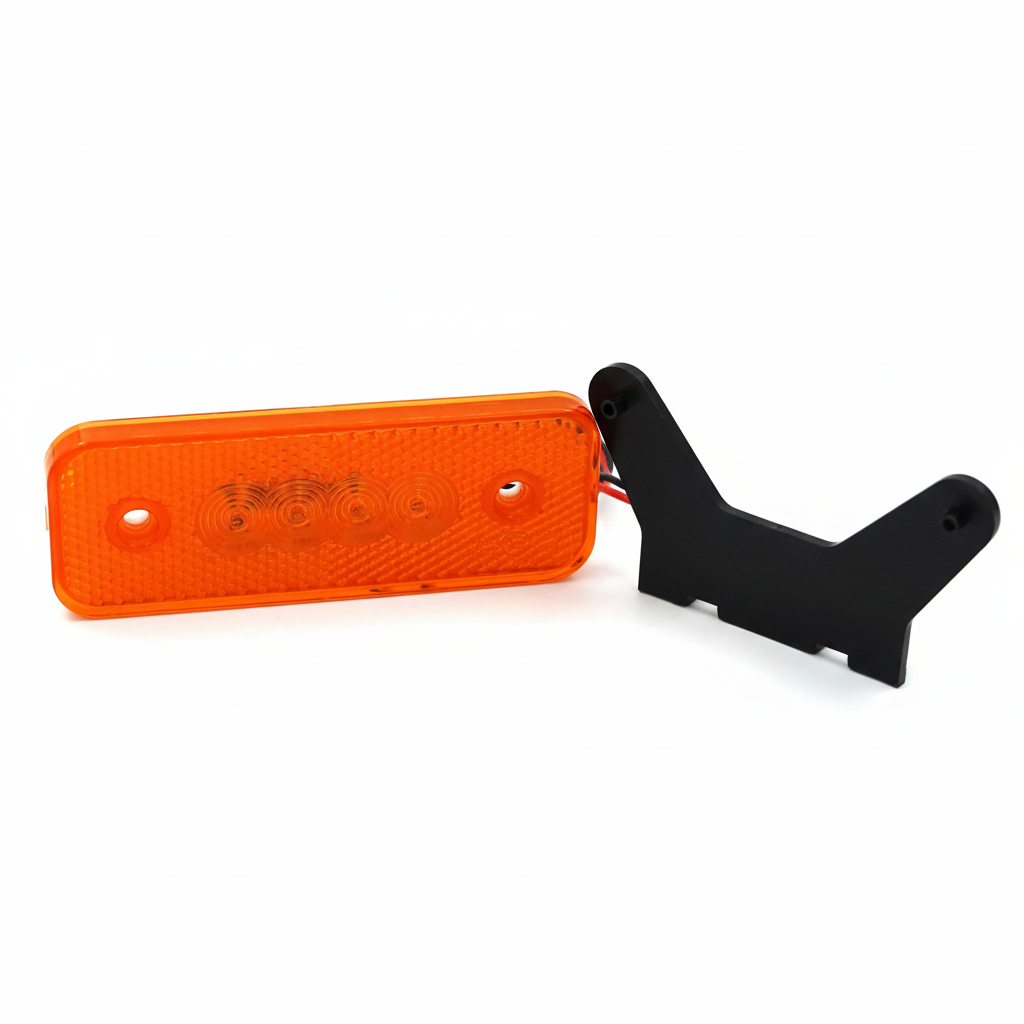

• Mounting: Flat surface mount with removable bracket

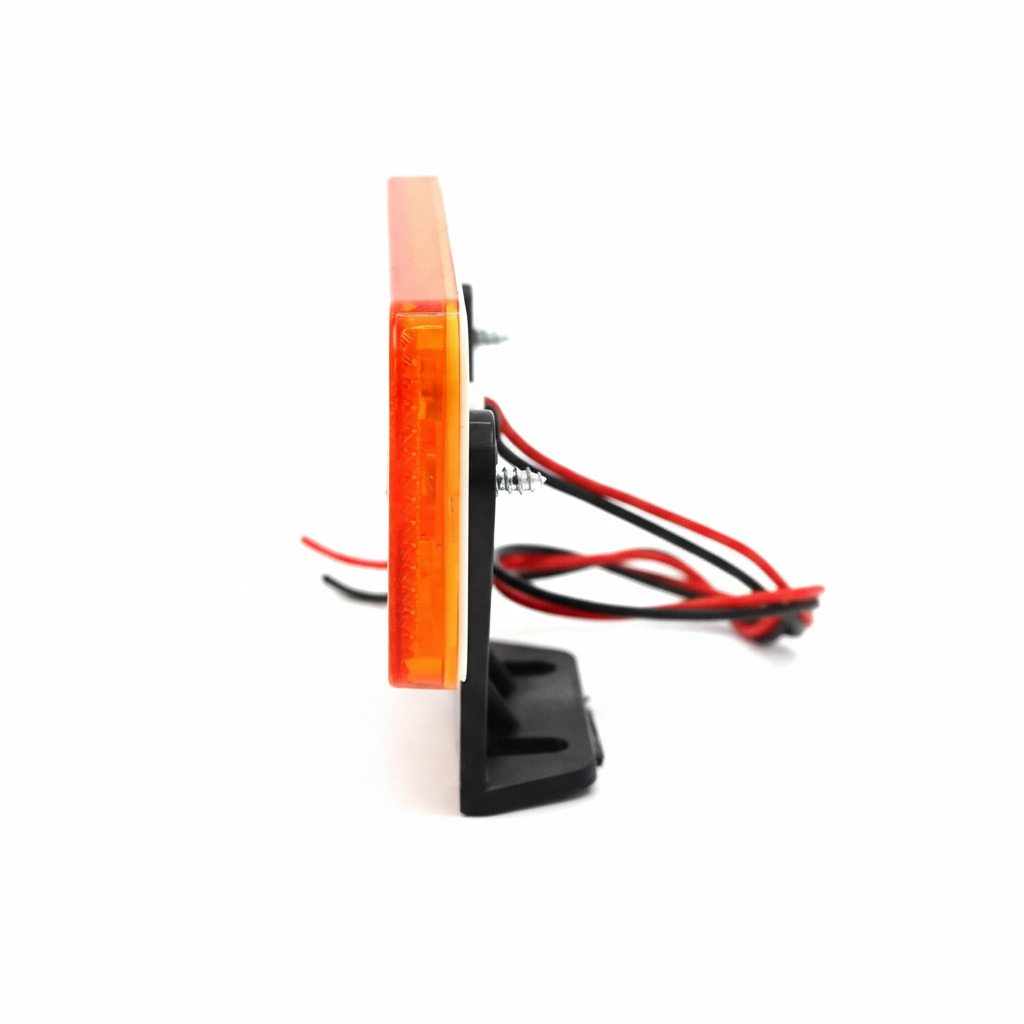

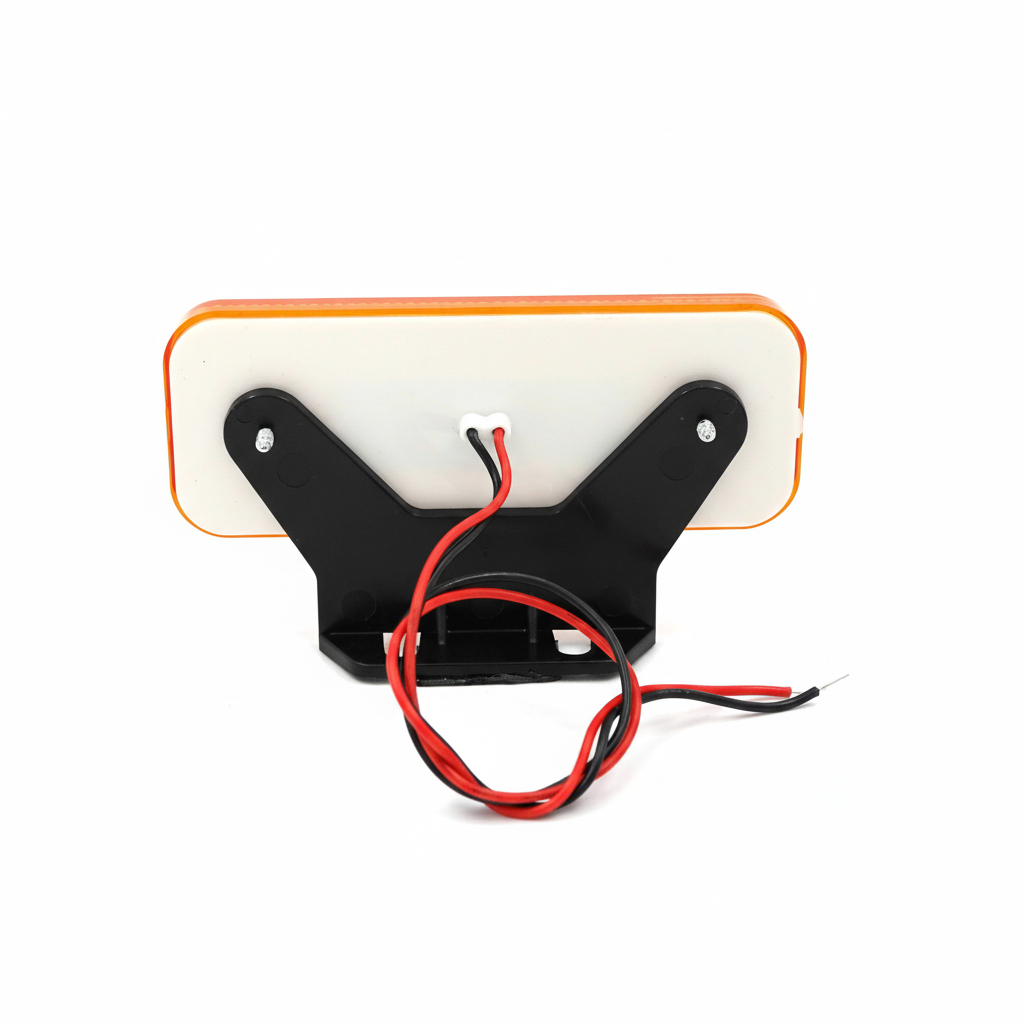

• Cable: 30 cm pre-wired (pre-installed)
• Dimensions: 110 mm Length x 40 mm Width x 35 mm Height

In the Box

1x LG098 rectangular amber marker light with removable bracket and pre-wired cable.
