LED Bulb Details
| Description | Details |
|---|---|
| Model / SKU | LG5117 |
| Bulb Type | BA9S (Pair) |
| Voltage | 12-24 V |
| Power | 1 W |
| Lumens | 140 lm |
| Installation | Plug & Play |
| Application | For Cars, Tractors and Trucks |
Protection & Approvals
| Description | Details |
|---|---|
| Certification | EMC Certified |
Dimensions
| Description | Details |
|---|---|
| Size (W × H) | 11.6 × 30 mm |

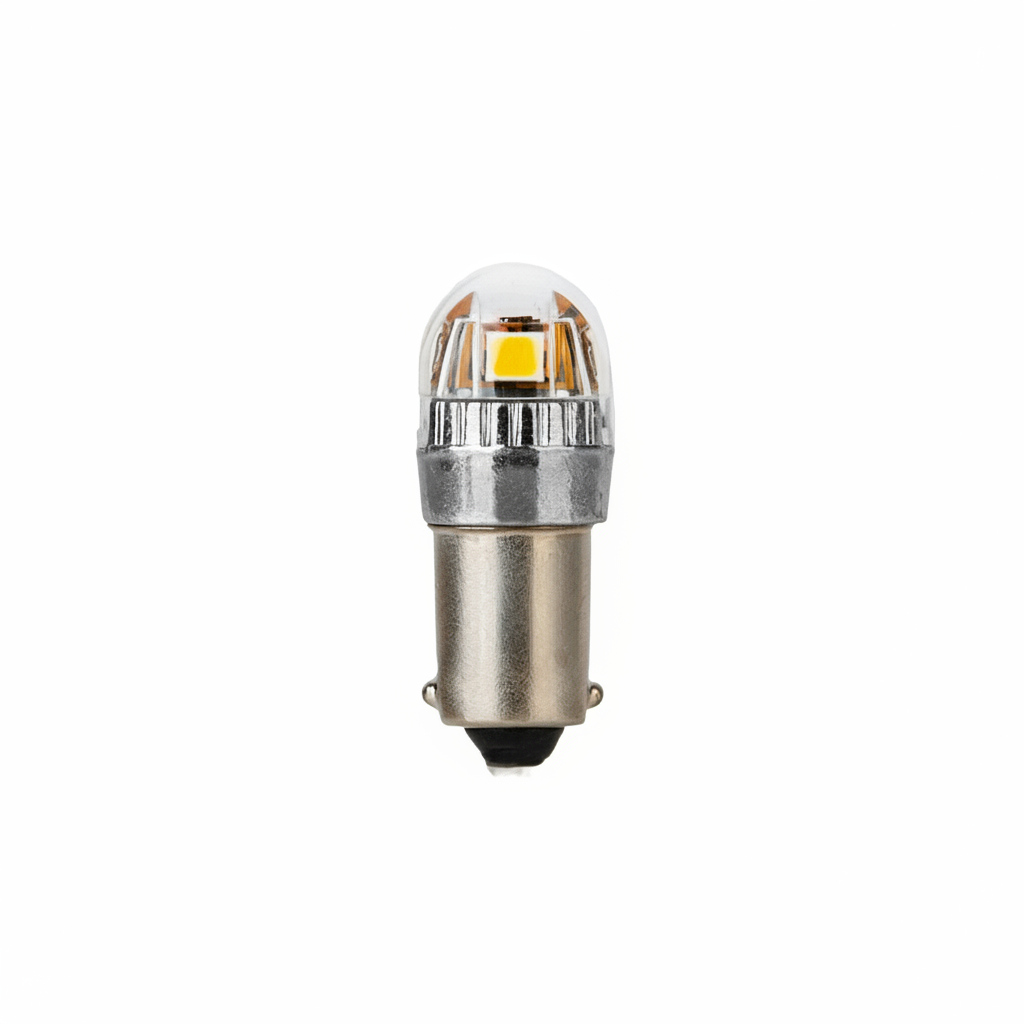

LED Bulb Type BA9S (Pair) - LG5117 is a compact BA9S base LED replacement designed for vehicle lighting where a standard BA9S miniature bulb is specified. Built for 12-24 V systems, it installs as a direct plug and play swap with no extra wiring or control boxes, making it suitable for mixed fleets and everyday service work.
Each bulb uses 1 W and delivers approximately 140 lm for a clean, modern light output while reducing electrical load compared to filament lamps. The compact body (11.6 mm Diameter x 30 mm Height) helps it fit neatly into many OEM housings used for small lamps and instruments. EMC certified design helps minimize electrical interference when installed correctly, supporting use around radios and sensitive vehicle electronics.
Typical uses: instrument and dashboard lighting, interior/courtesy lights, small position or marker lamp applications on cars, trucks, tractors, and similar equipment that use BA9S holders.
