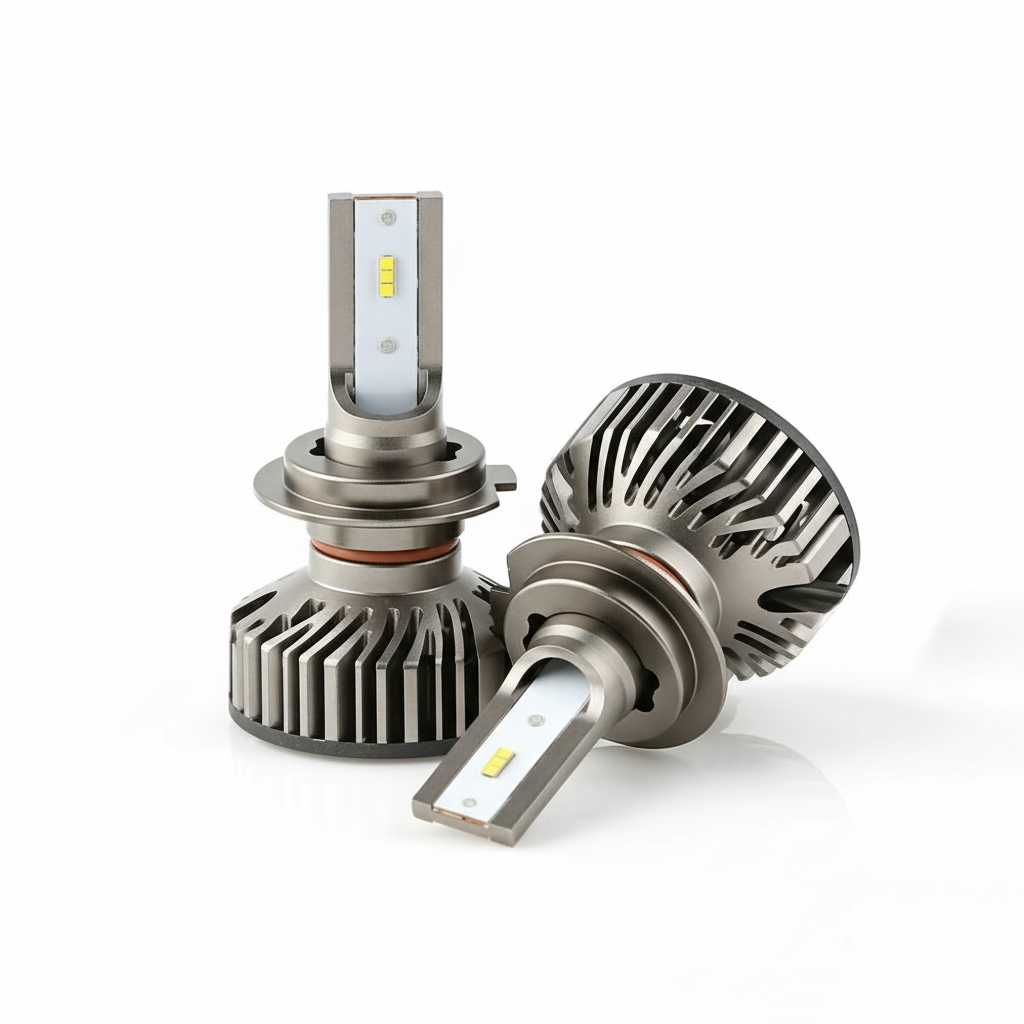

LED Bulb Type H7 Kit - LG5082

LED Bulb Type H7 Kit – LG5082

This H7 LED bulb kit is built for one thing: turning weak halogen low beams into clear, usable light. Each bulb delivers 200% more brightness than a standard H7 halogen, with a clean, focused beam that works in everyday road conditions. Designed for 12–24 V systems, it suits cars, tractors and trucks where you need dependable, low-beam performance and stable EMC behaviour.

Halogen light output drops fast. Lenses yellow. Night driving becomes a strain. This LED H7 conversion kit solves that by giving you a stable 2000 lm per bulb, with a colour and beam pattern that make road edges, signs and obstacles easier to read. The light is dense, not just bright on paper, so the improvement is obvious the first time you switch on.

Each bulb uses a 25 W LED module on a copper PCB to move heat away from the diodes quickly. That’s backed by a built‑in cooler fan that keeps operating temperature under control in closed headlamp housings. The result? Consistent output, reduced risk of thermal shutdown, and a longer working life than ordinary retrofit lamps that cook themselves in their own heat.

The LG5082 kit is EMC / EMI controlled, so it’s designed not to interfere with radios or other on‑board electronics when installed correctly. Operating voltage from 12–24 V makes it suitable for both light vehicles and agricultural or commercial equipment that share H7 fittings. As with any LED headlamp conversion, check local road‑use regulations; this model is CE approved and marked for off‑road use.

Installation is straightforward for anyone comfortable working with headlamps. The bulbs are supplied as a matched pair, plug into a standard H7 socket, and are sized for typical reflector and projector housings where there is enough depth at the rear for the integrated fan. Always confirm clearance behind the dust cap, and test beam alignment against a wall or beam setter to avoid glare.

Key Features

• H7 LED bulb kit – 12–24 V: Works on both 12 V passenger vehicles and 24 V agricultural or commercial systems using H7 low beams.
• 25 W per bulb: Efficient LED package providing strong light output without excessive power draw on older wiring looms.
• 2000 lumens per bulb: High, usable output that delivers up to 200% more brightness than standard H7 halogen low beams.
• Low beam optimised: Designed for low-beam applications, with a focused pattern when used in suitable H7 housings and correctly aimed.
• Copper PCB for fast heat conduction: Copper board under the LEDs pulls heat away quickly, protecting the chip and stabilising light output over time.
• Built‑in cooler fan: Active cooling keeps operating temperatures in check inside tight lamp housings and supports long service life.
• EMC / EMI controlled design: Engineered to minimise electrical interference with in‑cab radios and vehicle electronics when correctly installed.
• CE approved: Meets CE requirements, with product marked for off‑road use; users must verify local road‑legality of LED headlamp conversions.
• Wide vehicle compatibility: Suitable for cars, tractors and trucks that use H7 low-beam bulbs and have adequate rear clearance.
• Sold as a pair: Kit includes 1 × pair of H7 LED bulbs (LG5082) for complete left/right replacement.

Ideal Applications

• Passenger cars and vans using H7 low beams where drivers want stronger, clearer night-time visibility.
• Agricultural tractors operating in fields and lanes after dark, where reliable low-beam light helps reduce operator fatigue.
• Light and medium trucks with H7 headlamps in mixed urban and rural work.
• Service and maintenance vehicles that frequently travel on unlit or poorly lit routes.
• Off‑road and utility vehicles requiring bright, efficient low-beam lighting in harsh working environments.

Why Choose LED-Global Lighting

LED-Global focuses on engineered lighting solutions, not gimmicks. Every kit is specified with clear, honest data so fleet managers, mechanics and installers know exactly what they’re fitting. With roots in European engineering standards and a practical approach to real‑world use, we build products that integrate cleanly with existing vehicles, respect EMC requirements and deliver dependable performance shift after shift.
