| Brand | LED Global |
|---|---|
| SKU | LG656 |
| EAN / Barcode | 4255929220176 |
| Product Type | LED Mini Light Bar Warning Beacon |
| Mounting / Base Type | Magnetic Mount |

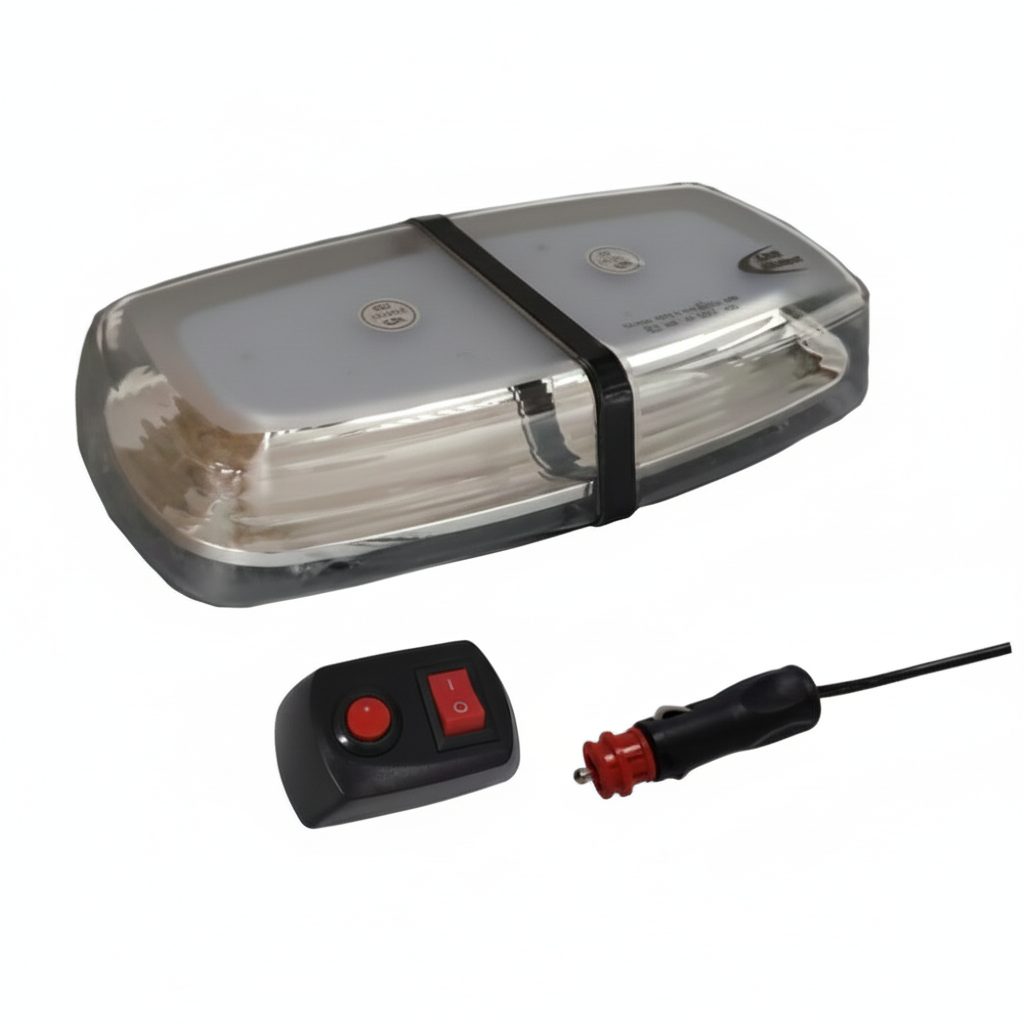

| Scope of Delivery (Included in Box) | 1x Magnetic LED Mini Bar, 4.5m Cable with Controller and Cigarette Plug |
| Ideal Applications | Recovery Vehicles, Escort Vehicles, Commercial Vans, Construction & Agricultural Equipment |
| Light Function / Color | Amber Flashing & Rotating |
| Lens Color | Clear |
| Housing Color | Black Base with Clear Cover |
| Number of Flash Patterns | 8 |
| Names of Flash Patterns | 1. Alternating (Side to Side) - Octa, 2. Alternating (Front to Back) - Octa, 3. Rotating (Clockwise), 4. Rotating (Counter Clockwise), 5. Quick/side to side, 6. Quick/quad, 7. Single (ECE R65), 8. Steady on |
| Theoretical Power (Watts) | 72W (72x 1W LEDs) |
| Current Draw (Amps @ 12V / 24V) | 1.18A @ 12V / 0.84A @ 24V |
| Operating Voltage Range | DC 12-24V |
| Connection Type / Cable Length | Cigarette Plug (3m cable with controller + 1.5m cable with cigarette plug) |
| ECE Approvals | ECE R65 TA1 (E9 00.1851) |
| EMC / Suppression Rating | ECE R10 (E9 06.11372), CISPR 25 Class 3, CE, UKCA |
| Protection Rating (IP) | IP66 / IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate (PC) with UV resistance |
| Lens Material | Polycarbonate (PC) with UV resistance |
| Height (mm) | 75 mm (with magnetic base) |
| Length / width | Length: 310 mm, Width: 159 mm |
Magnetic LED Mini Warning Light Bar, 310 mm - LG656
In stock
incl. VAT
Specifications
| Brand | LED Global |
|---|---|
| SKU | LG656 |
| EAN / Barcode | 4255929220176 |
| Product Type | LED Mini Light Bar Warning Beacon |
| Mounting / Base Type | Magnetic Mount |
| Scope of Delivery (Included in Box) | 1x Magnetic LED Mini Bar, 4.5m Cable with Controller and Cigarette Plug |
| Ideal Applications | Recovery Vehicles, Escort Vehicles, Commercial Vans, Construction & Agricultural Equipment |
| Light Function / Color | Amber Flashing & Rotating |
| Lens Color | Clear |
| Housing Color | Black Base with Clear Cover |
| Number of Flash Patterns | 8 |
| Names of Flash Patterns | 1. Alternating (Side to Side) - Octa, 2. Alternating (Front to Back) - Octa, 3. Rotating (Clockwise), 4. Rotating (Counter Clockwise), 5. Quick/side to side, 6. Quick/quad, 7. Single (ECE R65), 8. Steady on |
| Theoretical Power (Watts) | 72W (72x 1W LEDs) |
| Current Draw (Amps @ 12V / 24V) | 1.18A @ 12V / 0.84A @ 24V |
| Operating Voltage Range | DC 12-24V |
| Connection Type / Cable Length | Cigarette Plug (3m cable with controller + 1.5m cable with cigarette plug) |
| ECE Approvals | ECE R65 TA1 (E9 00.1851) |
| EMC / Suppression Rating | ECE R10 (E9 06.11372), CISPR 25 Class 3, CE, UKCA |
| Protection Rating (IP) | IP66 / IP67 |
| Operating Temperature Range (°C) | -30°C to +60°C |
| Housing / Base Material | Polycarbonate (PC) with UV resistance |
| Lens Material | Polycarbonate (PC) with UV resistance |
| Height (mm) | 75 mm (with magnetic base) |
| Length / width | Length: 310 mm, Width: 159 mm |
Description

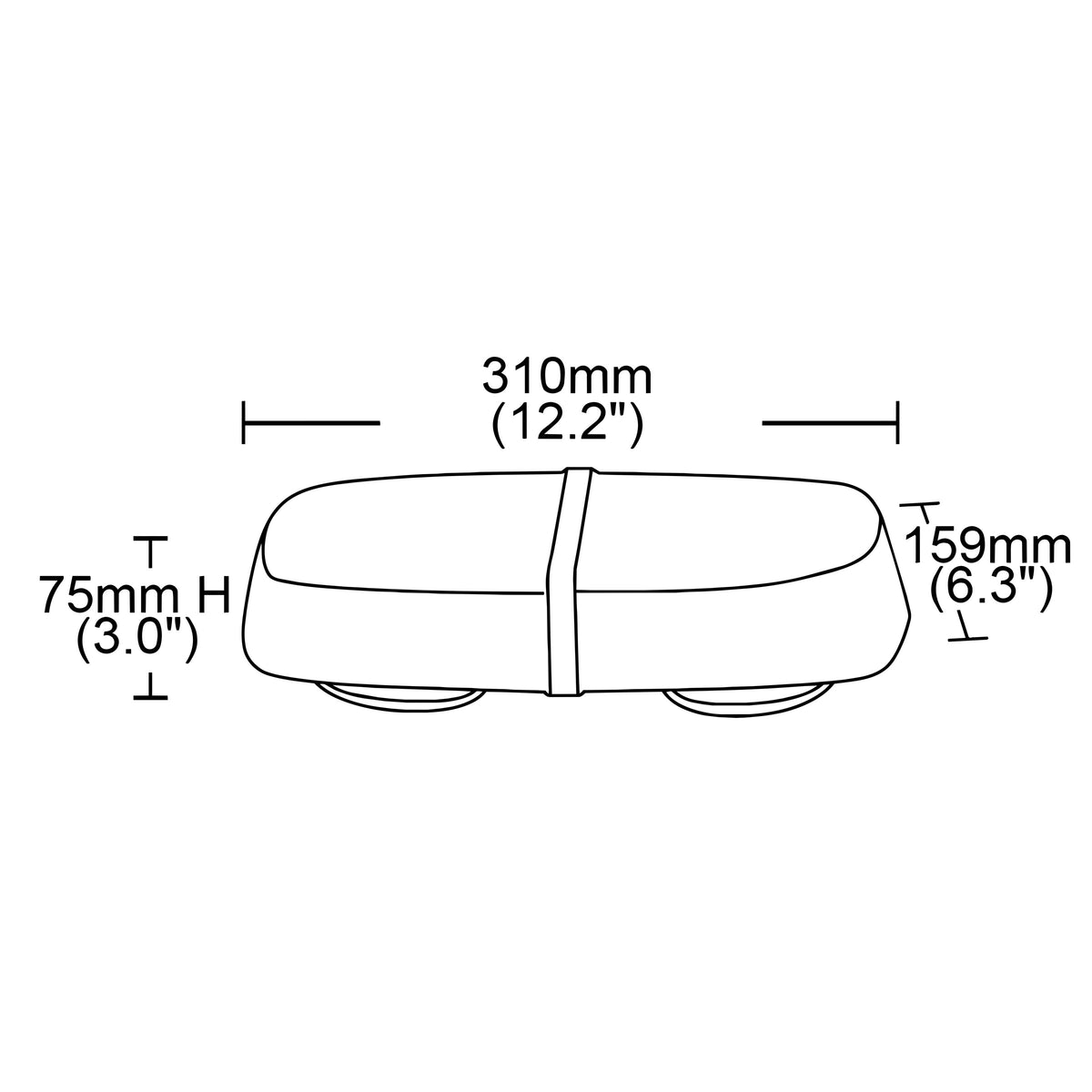

The LG656 uses 72 × 1W LEDs behind a clear UV-resistant polycarbonate cover to produce amber warning light. Its low-profile magnetic base allows attachment to a suitable steel mounting surface. Dimensions are 310 × 159 × 75 mm including the magnetic base.
Eight selectable modes include alternating flashes, clockwise/counter-clockwise rotation, single flash and steady light. The single-flash mode is identified as ECE R65 in the specification. A 4.5 m total cable combines an integrated controller and cigarette-lighter plug. It operates on 12–24V DC and features memory, reverse-polarity protection, IP66/IP67 protection and CISPR25 Class 3 suppression. The 72W figure is theoretical LED power; specified current draw is 1.18A at 12V and 0.84A at 24V.
Agricultural Lighting
Magnetic LED Mini Warning Light Bar, 310 mm - LG656
Magnetic LED mini warning bar with eight patterns
The LG656 uses 72 × 1W LEDs behind a clear UV-resistant polycarbonate cover to produce amber warning light. Its low-profile magnetic base allows attachment to a suitable steel mounting surface. Dimensions are 310 × 159 × 75 mm including the magnetic base.
Eight selectable modes include alternating flashes, clockwise/counter-clockwise rotation, single flash and steady light. The single-flash mode is identified as ECE R65 in the specification. A 4.5 m total cable combines an integrated controller and cigarette-lighter plug. It operates on 12–24V DC and features memory, reverse-polarity protection, IP66/IP67 protection and CISPR25 Class 3 suppression. The 72W figure is theoretical LED power; specified current draw is 1.18A at 12V and 0.84A at 24V.
£44.00
● In stock
