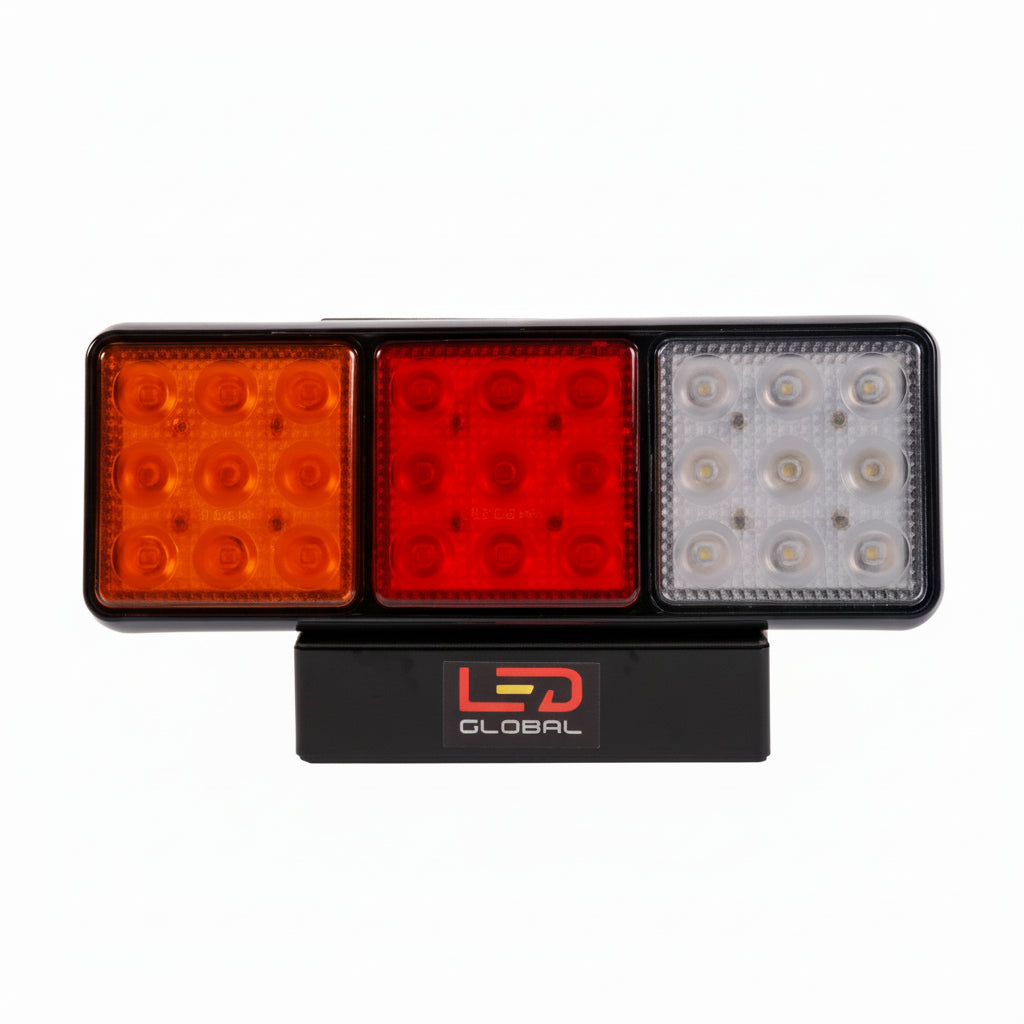

LED 3-Pod Combination Tail Light – LG507

The LG507 is an LED 3-pod combination tail light delivering stop, tail, indicator and reverse functions in one compact, heavy-duty unit. Built around 27 high-output LEDs (9 per pod), it runs on a 10–30 V input range covering 12 V and 24 V vehicle systems. It is approved to ECE R3, R6, R7 and R10, with EMC compliance to CISPR 25 Class 3.

The LG507 is designed for installers who need a single, tidy rear lighting unit that handles all four core functions – a practical replacement for fragile bulb lamps on trucks, trailers, vans and commercial bodies.

Four Functions in One Unit

Three pods deliver dedicated stop, tail, indicator and reverse functions through 27 high-output LEDs total (9 per pod). Following drivers see clear, fast-on signalling, helping reduce close calls in traffic, yards and depots.

Mixed Fleet Compatibility

The 10–30 V DC input range covers 12 V and 24 V systems, allowing the LG507 to drop straight onto mixed fleets without rewiring or voltage converters.

Pre-Wired for Faster Installation

The lamp is factory-fitted with a 1.5 m 4-core pre-wired cable, allowing direct routing to junction boxes or vehicle looms. This cuts installation time on chassis rails, rear cross-members and body panels.

European Road-Legal Approvals

The LG507 is approved to ECE R3, R6 and R7 for compliant rear lighting functions where applicable. ECE R10 EMC approval and CISPR 25 Class 3 radio-frequency suppression help prevent interference with radios, telematics and onboard electronics.

Built for Wet Commercial Use

The IP67-rated housing is dust-tight and resistant to temporary immersion. This makes the LG507 suitable for high-pressure wash-downs, road spray and harsh European winter conditions.

Key Features

• Combination stop / tail / indicator / reverse lamp in one unit.
• 27 LEDs total – 9 per pod.
• Wide 10–30 V DC input for 12 V and 24 V systems.
• Pre-wired with 4-core, 1.5 m cable.
• Compact dimensions: 272 × 100 × 27.4 mm.
• IP67 dust-tight and immersion-resistant housing.
• Approved to ECE R3, R6, R7 and R10.
• EMC compliance to CISPR 25 Class 3.
• Solid-state LED design for long service life.

Ideal Applications

• Rigid trucks, drawbar trailers and semi-trailers needing long-life rear lighting.
• Light commercial vehicles and vans where a compact all-in-one lamp simplifies bodywork.
• Plant, agricultural and construction equipment exposed to mud, spray and wash-downs.
• Recovery trucks, tippers and utility fleets reducing bulb downtime.
• Custom builds and body conversions requiring neat wiring.

Important Fitment Note

Please confirm vehicle voltage, mounting position, wiring loom compatibility and applicable road-traffic regulations before installation. Install by a competent vehicle electrician for best results.
