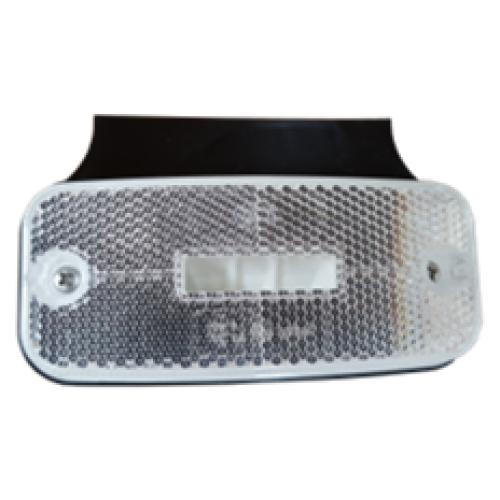

LED Marker Light with Bracket (White) - LG134 is a compact white LED side marker designed for clear position/marker visibility on commercial and off-road vehicles. Built with a durable plastic housing and sealed to IP67, it is suited to daily use on trucks, trailers, agricultural machinery, and construction equipment. The lamp is pre-wired and supplied with a removable mounting bracket to support fast, flexible installation on body panels, mudguards, or chassis locations.
High-intensity OSRAM LEDs and a PMMA lens with mirror reflector deliver an even, crisp white marker output while keeping power consumption low. A wide 9-33 V DC input range supports both 12 V and 24 V electrical systems. ECE approval and integrated EMC/radio suppression help ensure compliant operation and reduced interference with vehicle electronics.
-
Model / SKU: LG134
-
Type: White side marker light with removable bracket
-
LEDs: 4 x 1.25 W OSRAM high-intensity LEDs
-
Nominal power: 0.6 W
-
Voltage: 9-33 V DC (12 V / 24 V systems)
-
Luminous flux: 21.4 lumens
-
Ingress protection: IP67 splashproof
-
Certifications: ECE approved / e-marked; EMC/radio suppression
-
Dimensions: 114 mm (Width) x 70 mm (Height) x 18.8 mm (Thickness)
Included: LED marker light (pre-wired) and removable mounting bracket.
Marker Light Details

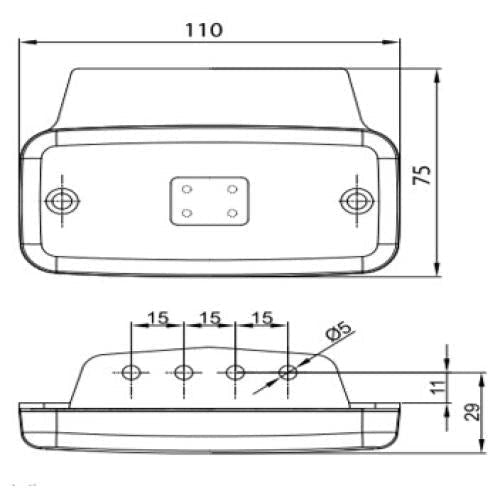

Dimensions
Protection & Certifications
