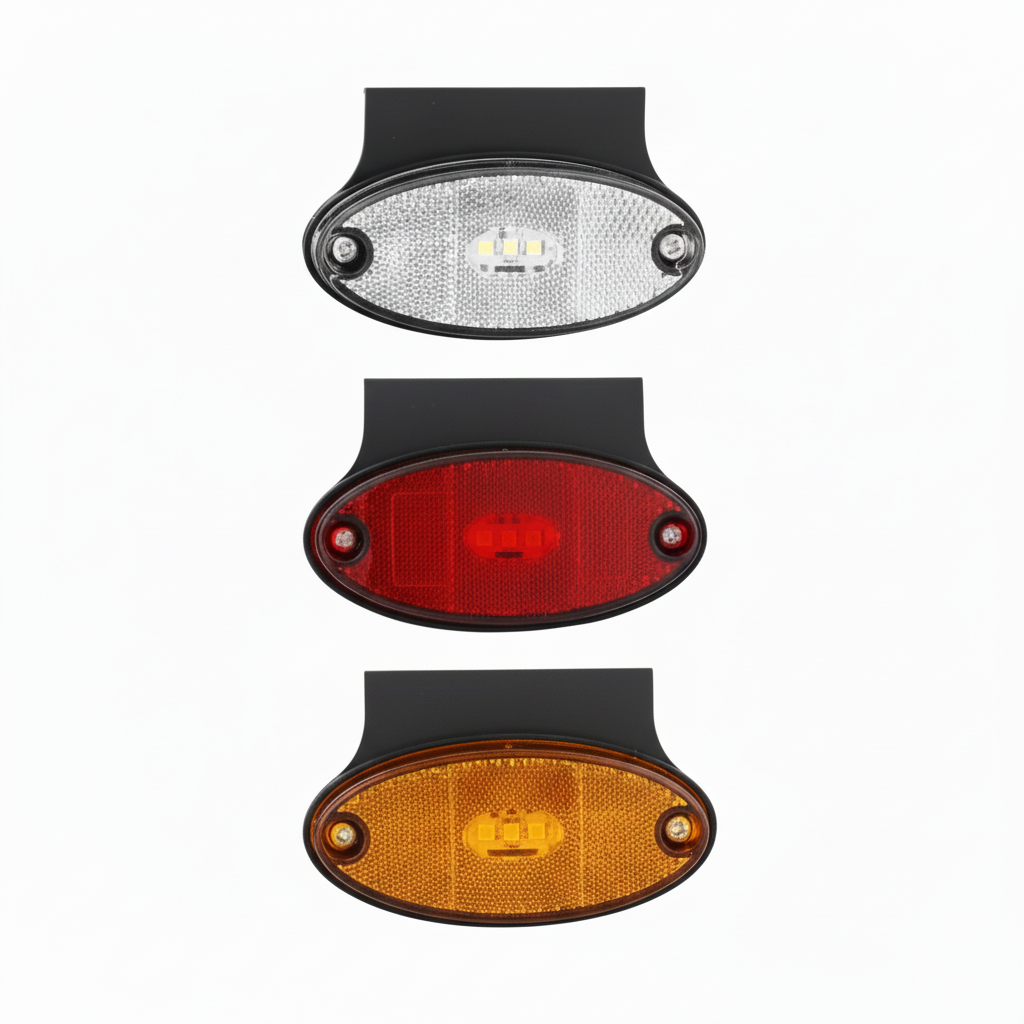

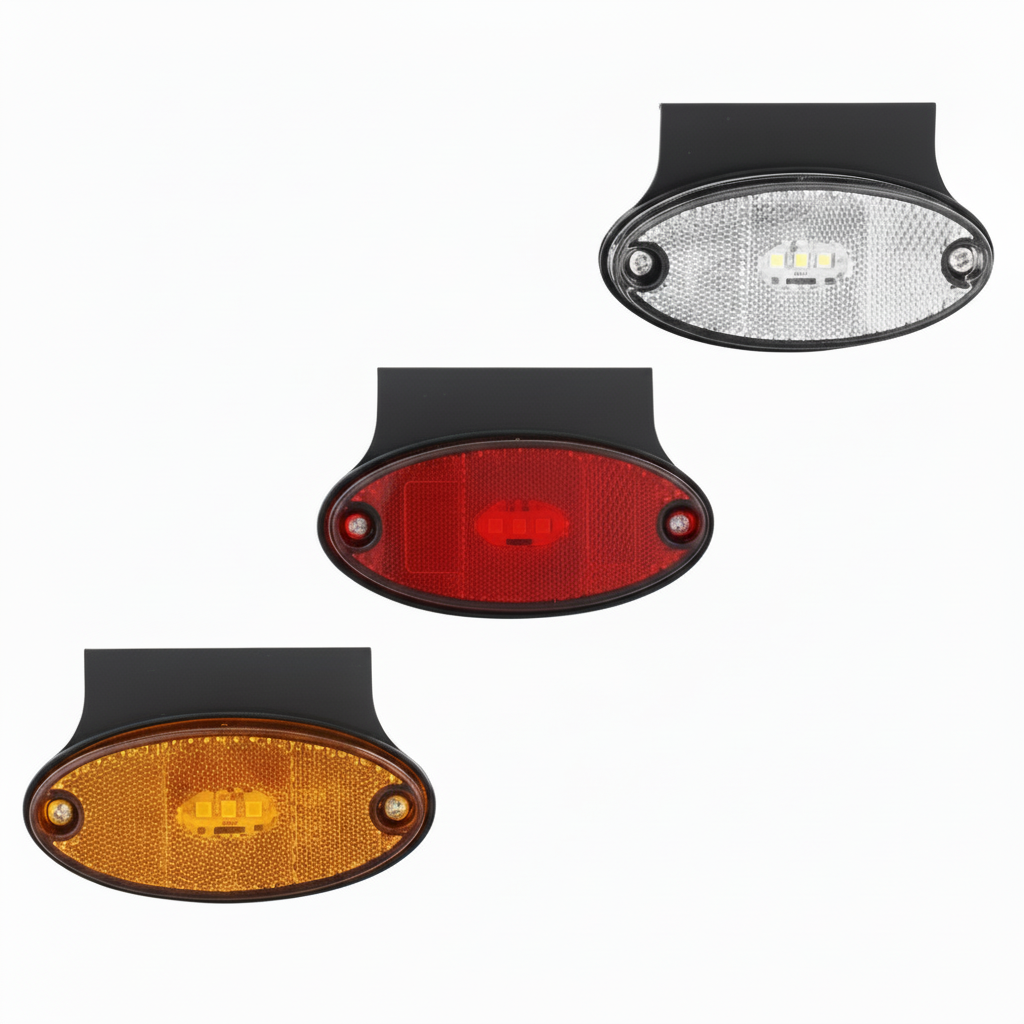

LED Oval Marker Light with Bracket (RED) - LG187

LED Oval Marker Light with Bracket (Red) - LG187 is a compact red LED side marker designed for commercial vehicles and equipment. Built for 12 V and 24 V systems (9-33 V DC), it uses a precision lens and mirror reflector to provide a clear, consistent marker signal while keeping power consumption low. The sealed housing and PMMA lens are suited to wet, dusty, and high-vibration environments, making it a practical choice for trucks, trailers, agricultural machinery, and construction equipment.

• Light color: Red
• LEDs: 4 x 1.25 W high-intensity OSRAM LEDs
• Voltage range: 9-33 V DC (covers 12 V and 24 V)
• Nominal power: 0.6 W
• Output: 21.4 lm
• Optics: Mirror Reflector Technology
• Ingress protection: IP67
• Approvals: ECE approved / e-mark, EMC / radio suppression

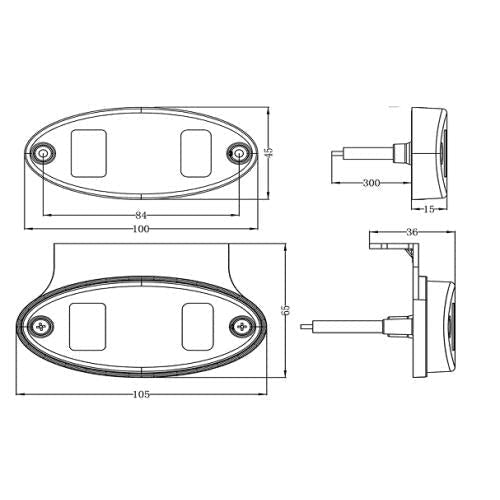

• Dimensions: 105 x 65 x 36 mm (Length x Width x Height)

Common uses: side marking on rigid trucks, trailers and semi-trailers, municipal and service vehicles, and off-road equipment operating in yards, depots, or on public roads.

• Mounting: supplied with removable bracket (2 mounting options)
• Wiring: pre-wired for faster installation
• Housing materials: heavy-duty plastic housing with PMMA lens

Included: 1 x LED oval red marker light (LG187) with mounting bracket (pre-wired).
